Allen Bradley PanelView Plus 1000 Keypad to Allen Bradley PanelView Plus 7 12.1" Touch (AP3010-3005-SM)

Specifications:

• Existing HMI:
  • Allen Bradley PanelView Plus 1000 Keypad
    • Models: 2711P-B10****, 2711P-K10****
  • Allen Bradley PanelView Plus 6 1000 Keypad
    • Models: 2711P-B10C4A8, 2711P-B10C4A9, 2711P-B10C4D8, 2711P-B10C4D9, 2711P-K10C4A8, 2711P-K10C4A9, 2711P-K10C4D8, 2711P-K10C4D9

• New HMI:
• Allen Bradley PanelView 5000 12.1" Touch
• Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
• Allen Bradley PanelView Plus 7 12.1" Touch
• Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

• 11 Gauge Heavy Duty Adapter Plate
• Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
• Includes a Paper Template for Drilling Around Existing Cutout
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

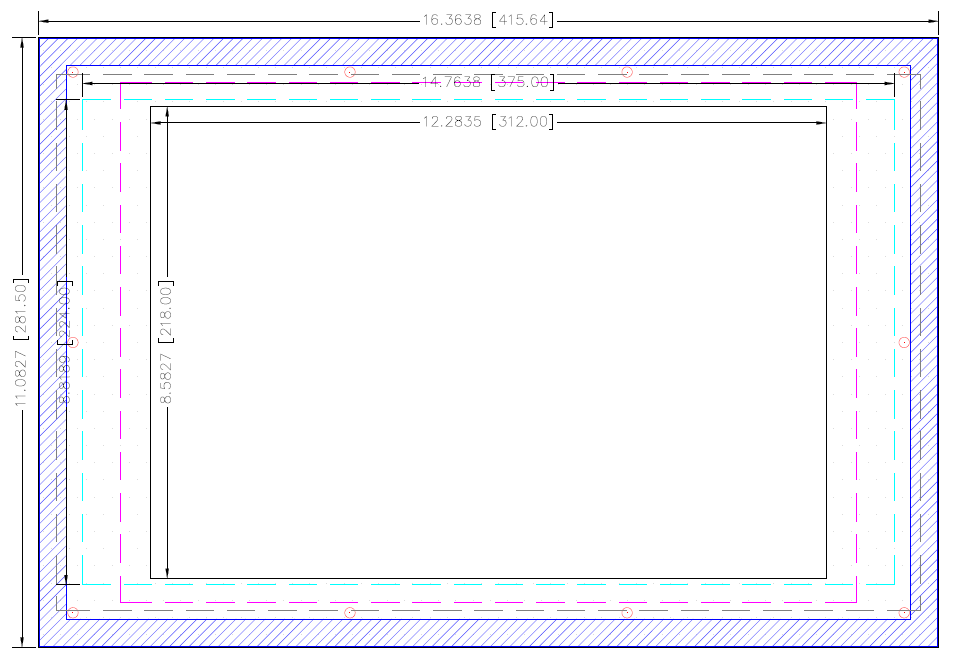

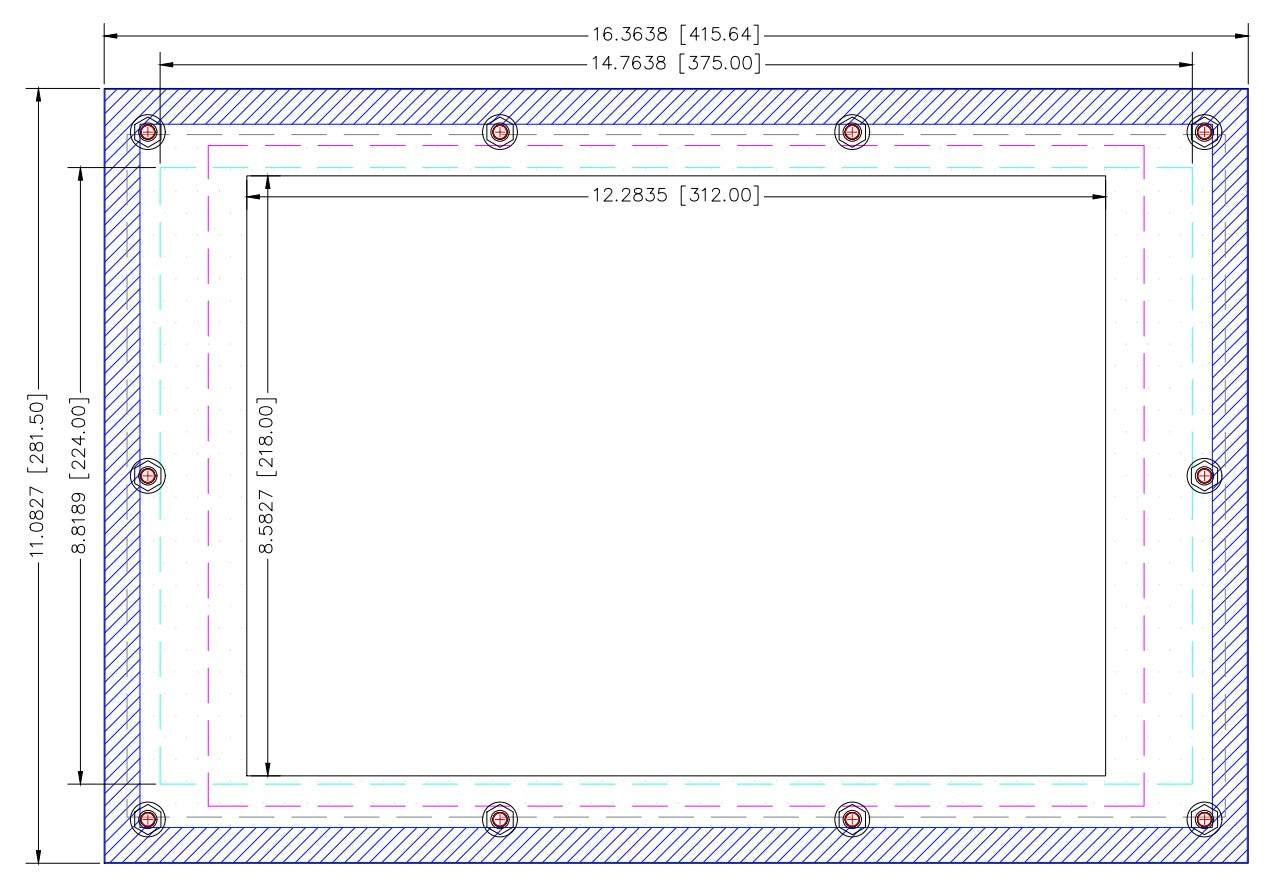

• Drawings: DXF, PDF

Notes:

• This same conversion is also available as an Inside Mount (IN) (AP3010-3005-IN)

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
