HMIAdapterPlate

Allen Bradley PanelView 5000, Plus, Plus 6, Plus 7 to Allen Bradley PanelView 5000, Plus, Plus 6, Plus 7 (AP1024-1024-SM)

Model #:

Allen Bradley PanelView 5000, Plus, Plus 6, Plus 7 to Allen Bradley PanelView 5000, Plus, Plus 6, Plus 7 (AP1024-1024-SM)

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
2 Week Manufacturing Leadtime
Need to Expedite?
  • Existing HMI:
    • Allen Bradley PanelView 5000 6" Touch
      • Models:  2713P-T6CD1
    • Allen Bradley PanelView Plus 400 Keypad
      • Models:  2711P-K4****, 2711PC-B4C20D, 2711PC-K4M20D
    • Allen Bradley PanelView Plus 600 Touch
      • Models:  2711P-T6****, 2711PC-T6C20D, 2711PC-T6M20D
    • Allen Bradley PanelView Plus 6 400 Keypad
      • Models: 2711P-B4C20A8, 2711P-B4C20D8, 2711P-B4C5A8, 2711P-B4C5D8, 2711P-K4C20A8, 2711P-K4C20D8, 2711P-K4C5A8, 2711P-K4C5D8, 2711P-K4M20A8, 2711P-K4M20D8, 2711P-K4M5A8, 2711P-K4M5D8, 2711PC-B4C20D8, 2711PC-B4C20D8-LR, 2711PC-K4M20D8
    • Allen Bradley PanelView Plus 6 600 Touch
      • Models: 2711P-T6C20A8, 2711P-T6C20A9, 2711P-T6C20D8, 2711P-T6C20D9, 2711P-T6C5A8, 2711P-T6C5A9, 2711P-T6C5D8, 2711P-T6C5D9, 2711P-T6M20A8, 2711P-T6M20D8, 2711P-T6M5A8, 2711P-T6M5D8, 2711PC-T6C20D8, 2711PC-T6M20D8
    • Allen Bradley PanelView Plus 7 5.7" Touch
      • Models2711P-T6C21D8S, 2711P-T6C21D8S-B, 2711P-T6C22D8S, 2711P-T6C22D8S-B
  • New HMI:
    • Allen Bradley PanelView 5000 6" Touch
      • Models: 2713P-T6CD1
    • Allen Bradley PanelView Plus 400 Keypad
      • Models: 2711P-K4****, 2711PC-B4C20D, 2711PC-K4M20D
    • Allen Bradley PanelView Plus 600 Touch
      • Models:  2711P-T6****, 2711PC-T6C20D, 2711PC-T6M20D
    • Allen Bradley PanelView Plus 6 400 Keypad
      • Models:  2711P-B4C20A8, 2711P-B4C20D8, 2711P-B4C5A8, 2711P-B4C5D8, 2711P-K4C20A8, 2711P-K4C20D8, 2711P-K4C5A8, 2711P-K4C5D8, 2711P-K4M20A8, 2711P-K4M20D8, 2711P-K4M5A8, 2711P-K4M5D8, 2711PC-B4C20D8, 2711PC-B4C20D8-LR, 2711PC-K4M20D8
    • Allen Bradley PanelView Plus 6 600 Touch
      • Models:  2711P-T6C20A8, 2711P-T6C20A9, 2711P-T6C20D8, 2711P-T6C20D9, 2711P-T6C5A8, 2711P-T6C5A9, 2711P-T6C5D8, 2711P-T6C5D9, 2711P-T6M20A8, 2711P-T6M20D8, 2711P-T6M5A8, 2711P-T6M5D8, 2711PC-T6C20D8, 2711PC-T6M20D8
    • Allen Bradley PanelView Plus 7 5.7" Touch
      • Models:  2711P-T6C21D8S, 2711P-T6C21D8S-B, 2711P-T6C22D8S, 2711P-T6C22D8S-B



  • 11 Gauge Heavy Duty Adapter Plate
  • Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
  • Includes a Paper Template for Drilling Around Existing Cutout
  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

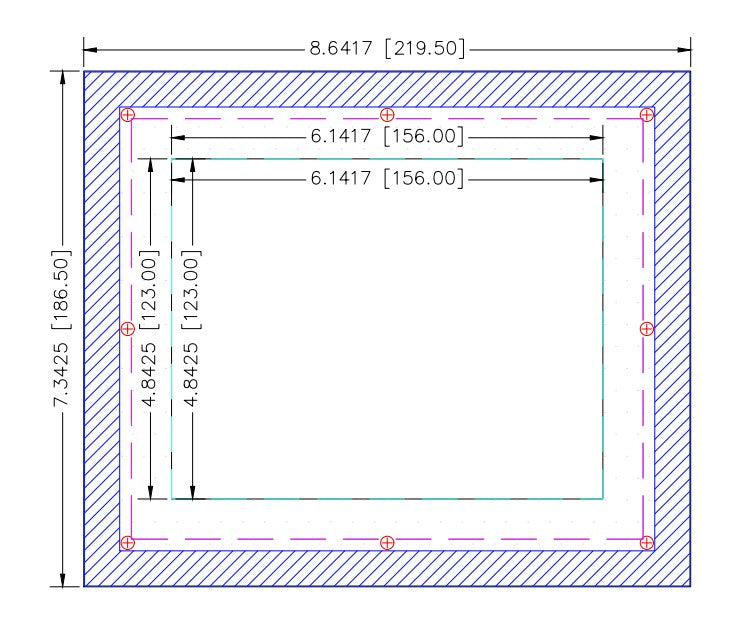

Download DXF: D062222 AP1024-1024-SM
Download PDF: D062222 AP1024-1024-SM


Rating:
  • Steel: NEMA 12, 13, 1
  • Stainless: NEMA 4X, 4, 12, 13, 1
  • IP66
