Allen Bradley 6180 to Allen Bradley PanelView Plus 7 15" Keypad (AP4102-4006-SM)

• Existing HMI:
• Allen Bradley Panel PC 6180, All Sizes, Keypad
• Models: 6180-******
• Allen Bradley Panel PC 6180P 15" Keypad
• Models: 6180P-15BPXP, 6180P-15BPXPDC, 6180P-15BSXP, 6180P-15KPXP, 6180P-15KSXP

• New HMI:
• Allen Bradley PanelView 5000 15" Keypad
• Models: 2715-B15CX, 2715P-B15CD
• Allen Bradley PanelView Plus 7 15" Keypad
• Models: 2711P-B15C22A9P, 2711P-B15C22D9P

• 11 Gauge Heavy Duty Adapter Plate
• Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
• Includes a Paper Template for Drilling Around Existing Cutout
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

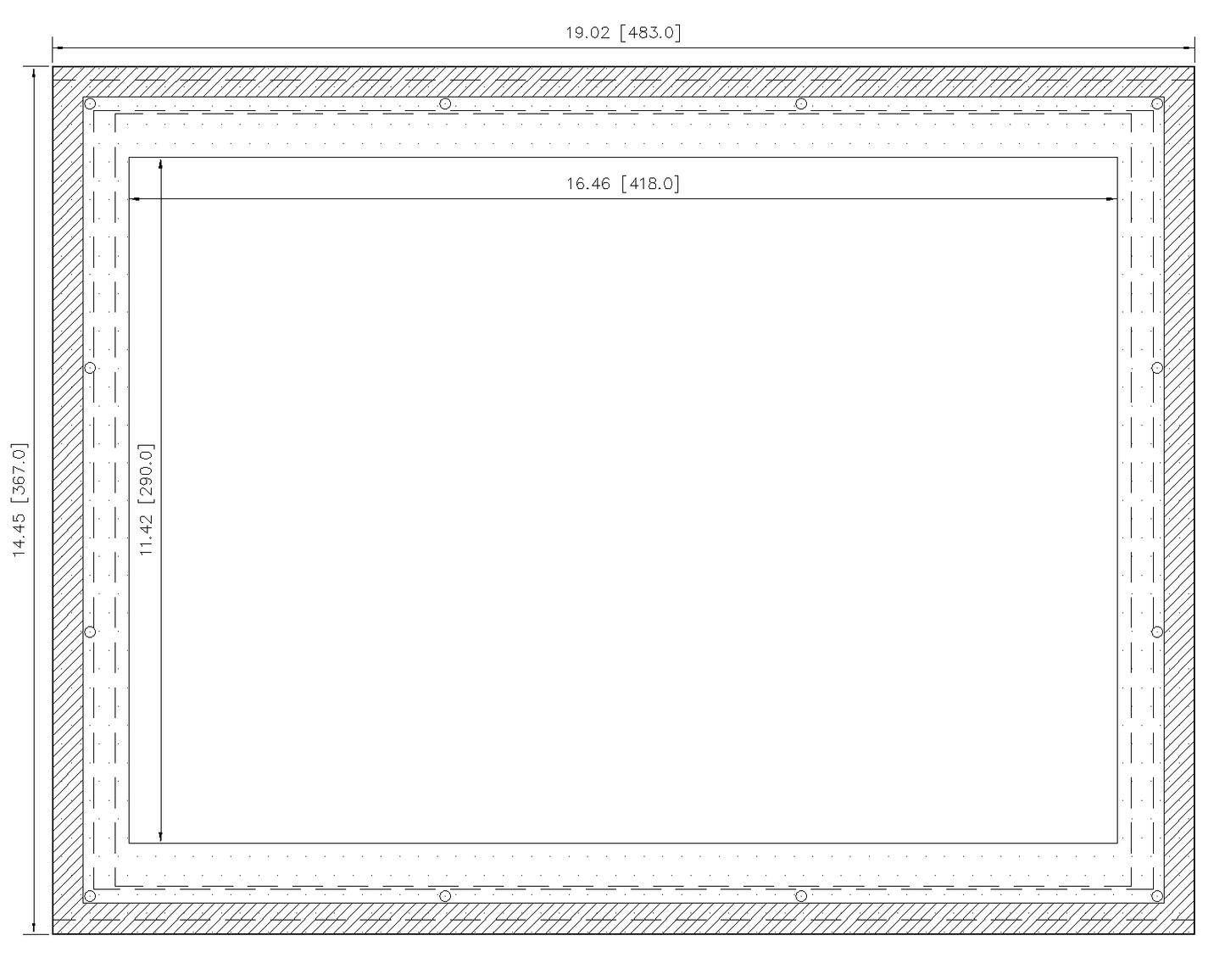

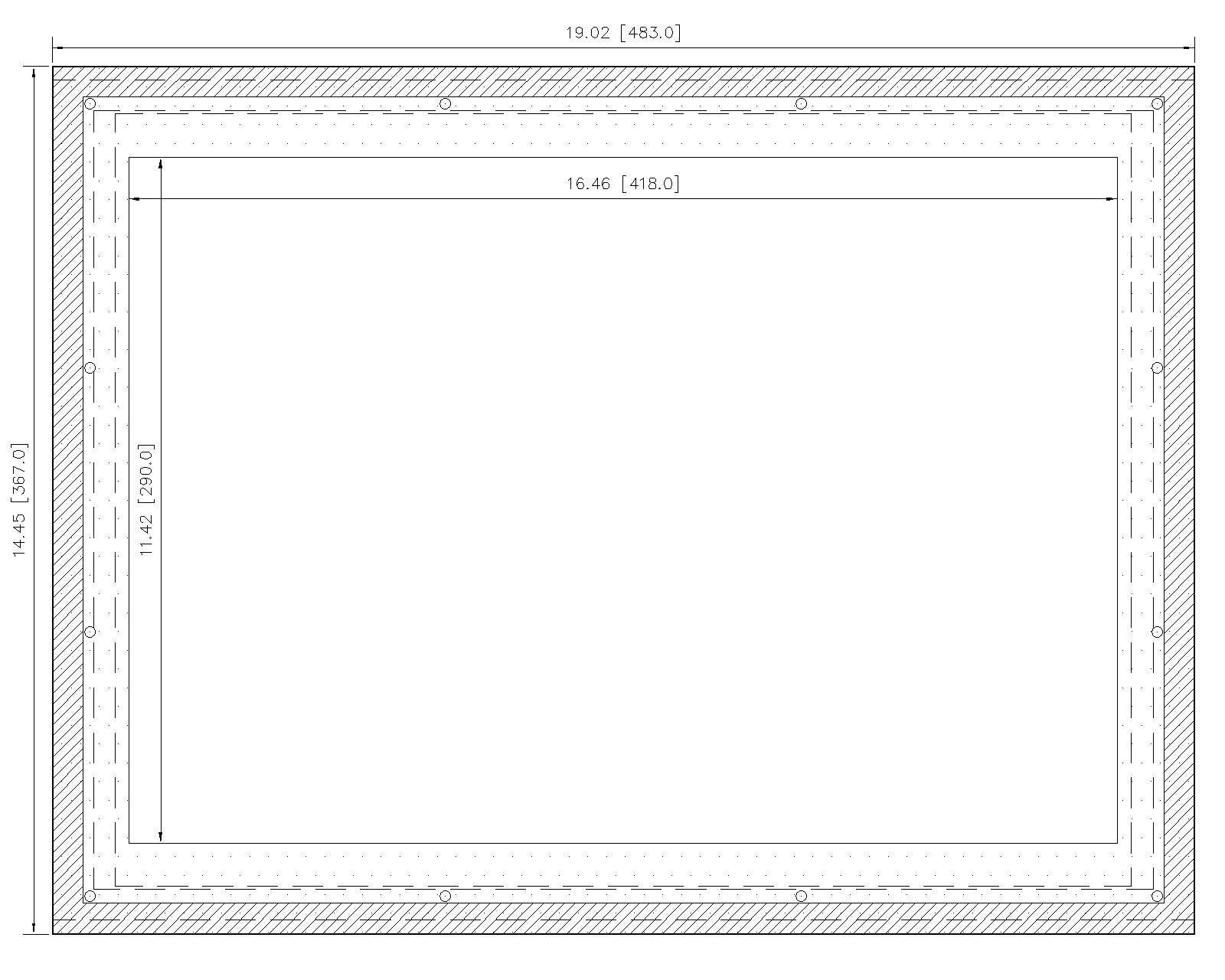

Download DXF:  D035839 AP4102-4006-SM
Download PDF:  D035839 AP4102-4006-SM
