Siemens ITC 2200 22" Touch to Siemens ITC 2200 22" Touch (AP5016-5015)

• Existing HMI:
• Siemens ITC 2200 22" Touch
• Models: ITC2200

• New HMI:
• Siemens ITC 2200 22" Touch
• Models: ITC2200 V3

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes a Seamless Closed-Cell Neoprene Gasket
• Includes Washers and Lock Nuts for Mounting

• Backplate Mount Option
• 11 Gauge Powder Coated Steel Back Plate

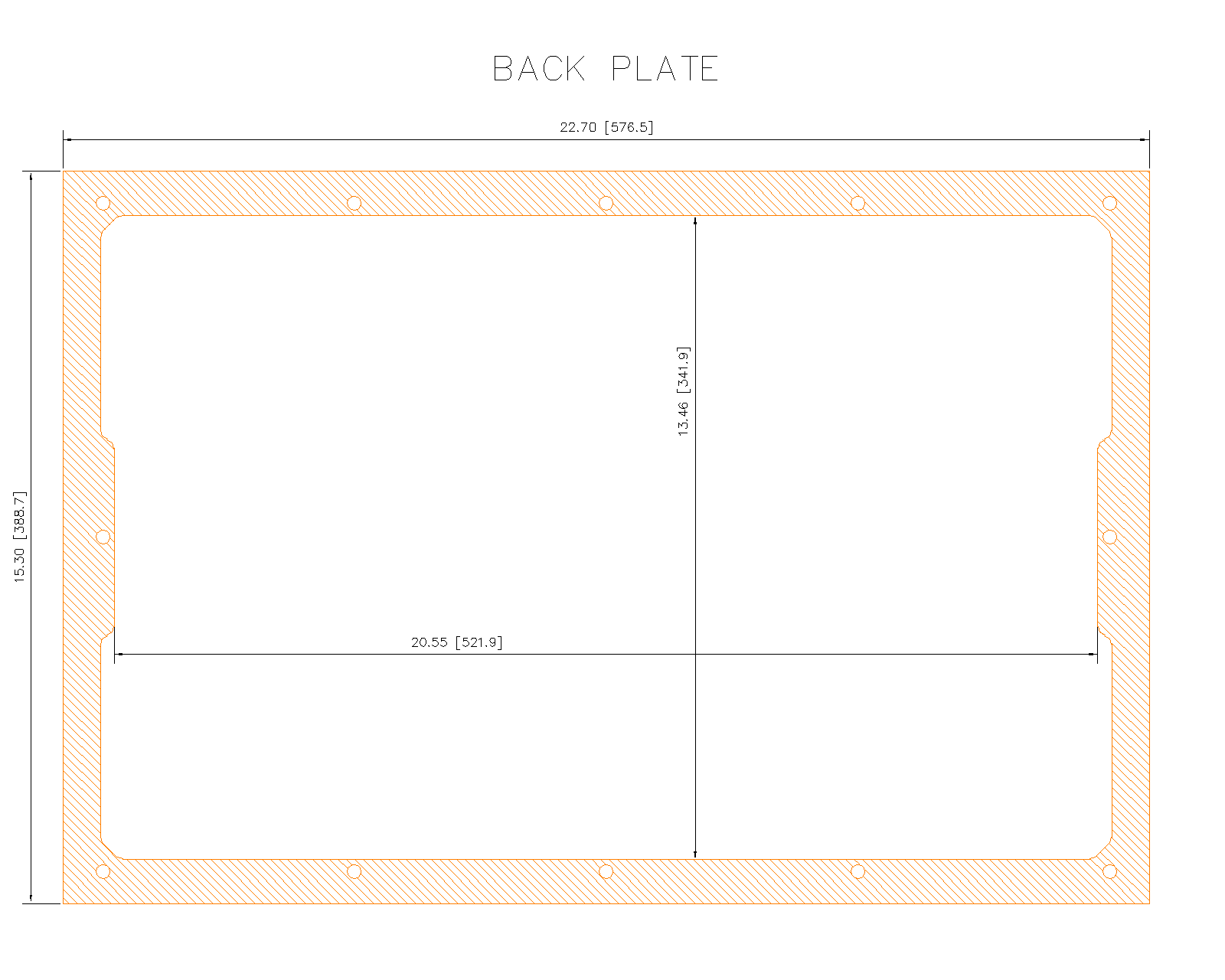

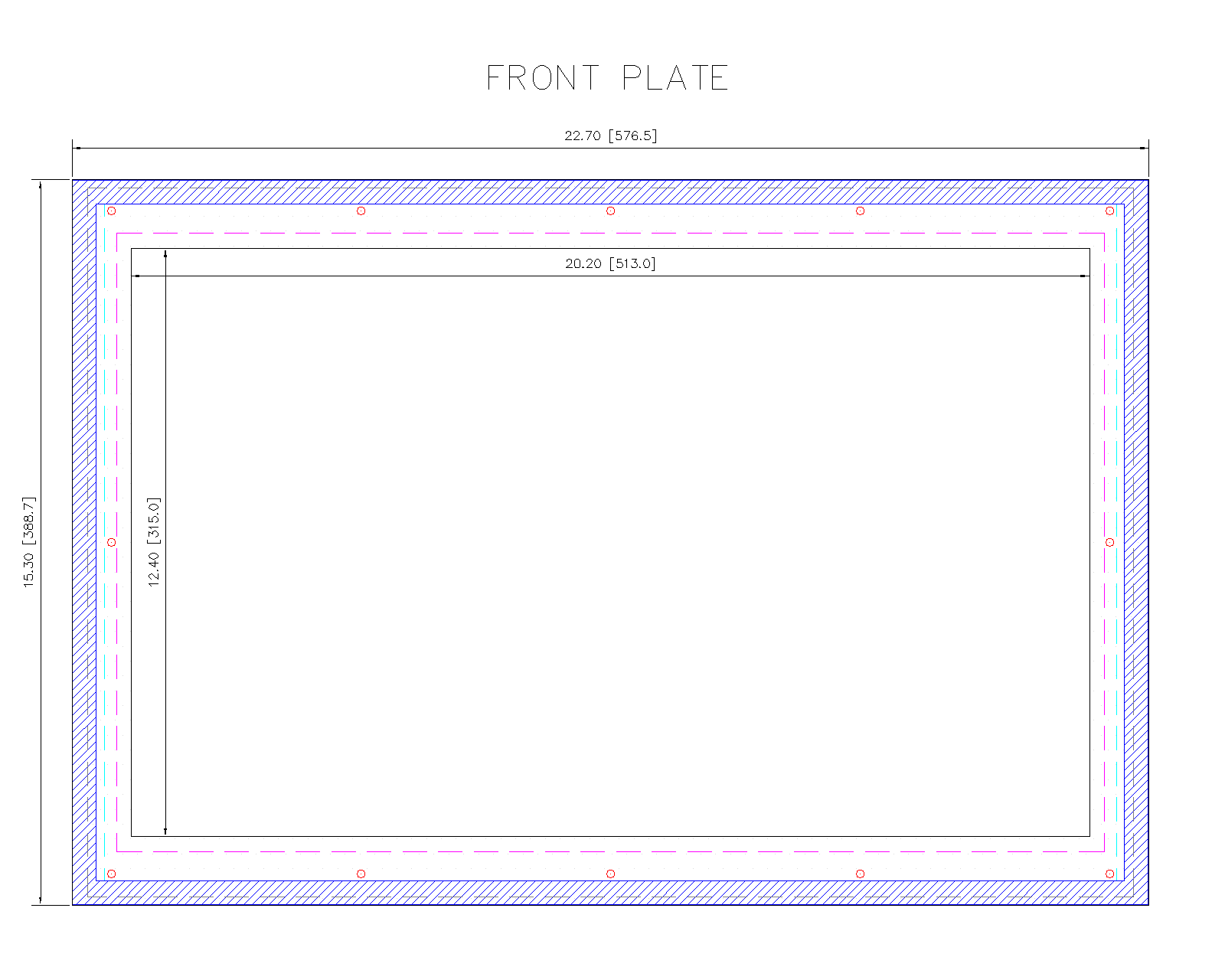

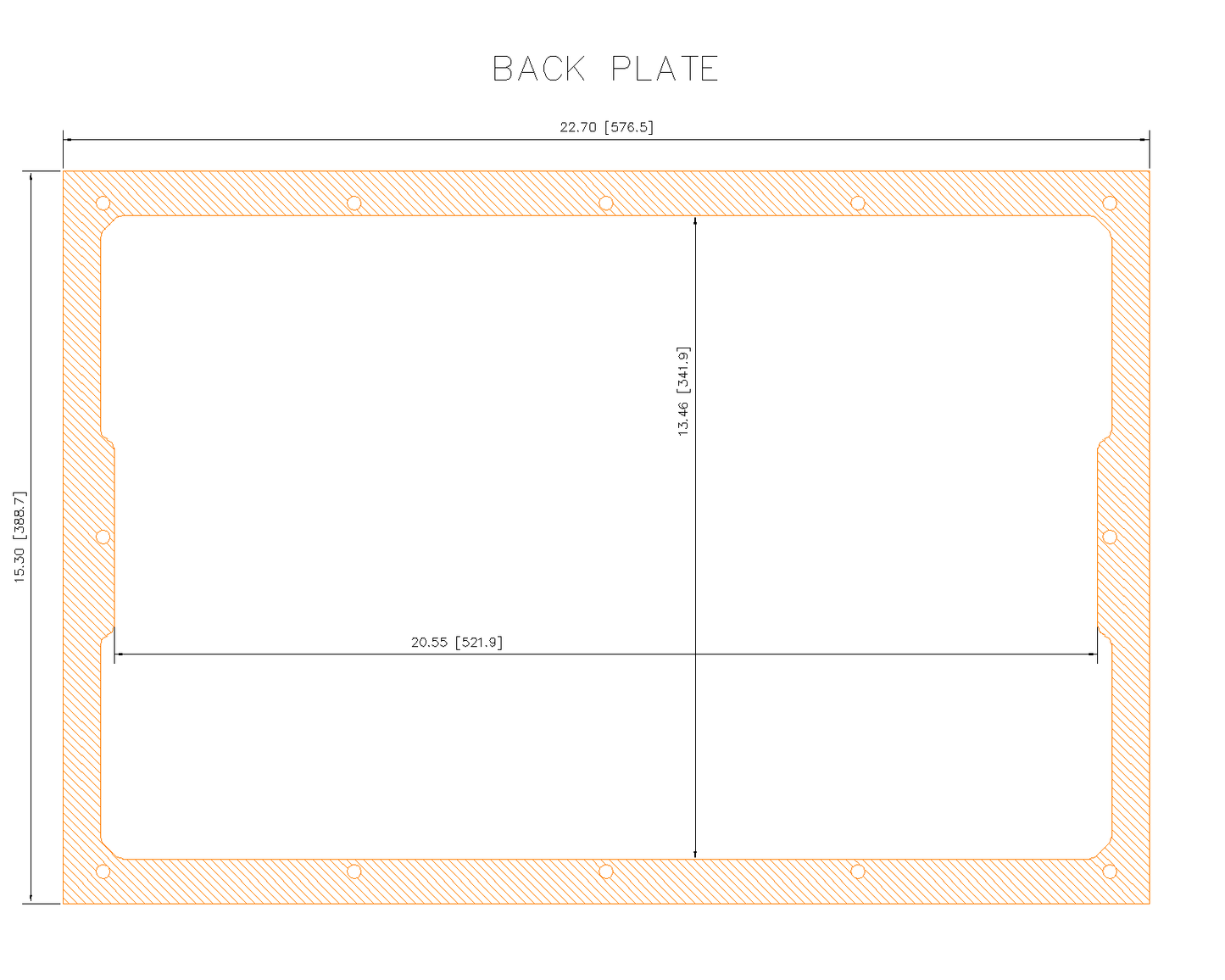

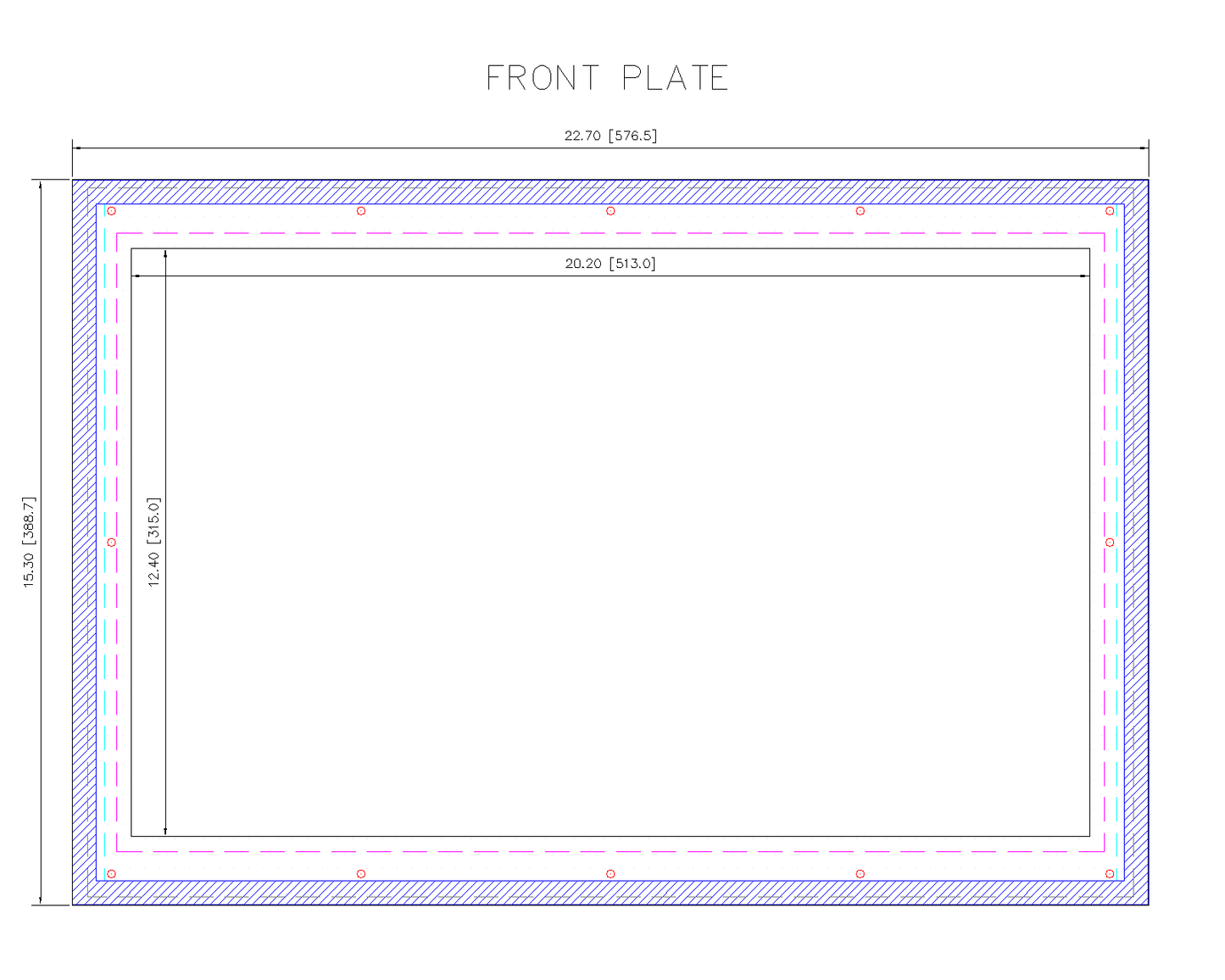

Drawing

Download DXF: D030807 AP5016-5015
Download PDF: D030807 AP5016-5015
