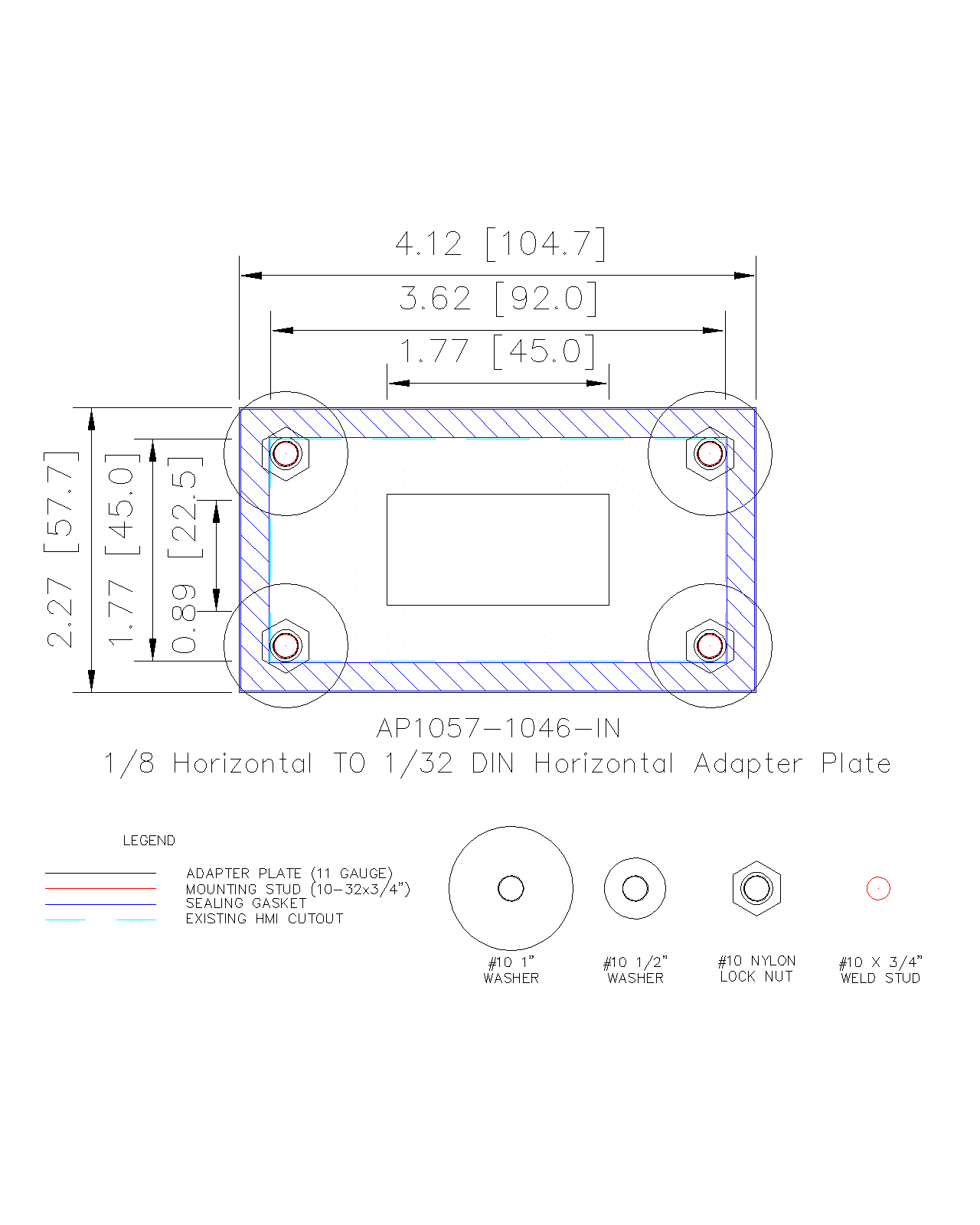

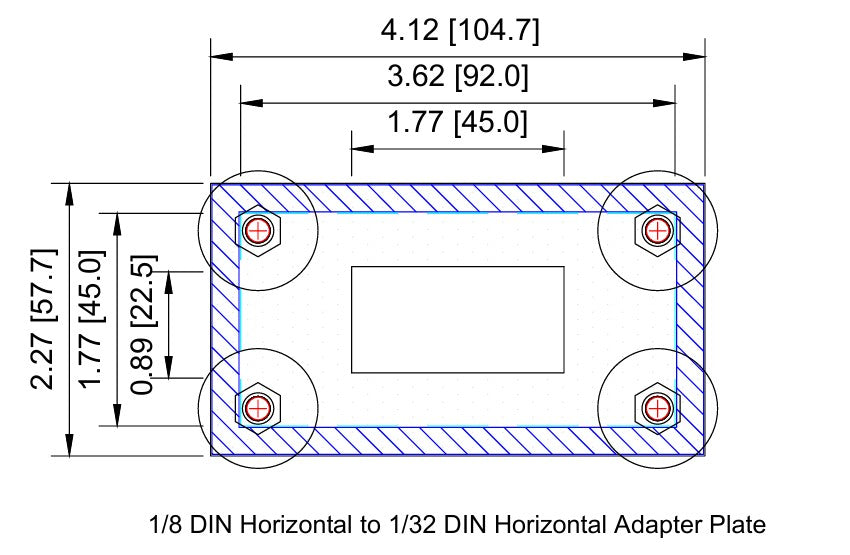

Adapter Plate - 1/8 DIN Horizontal to 1/32 DIN Horizontal

Model #:

Adapter Plate - 1/8 DIN Horizontal to 1/32 DIN Horizontal

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
Shipping calculated at checkout.
3 in stock, more available with 2 week leadtime
Need to Expedite?

Specifications:

  • Existing Size: 1/8 DIN Horizontal
  • New Size: 1/32 DIN Horizontal
  • 11 Gauge Heavy Duty Adapter Plate
  • No Drilling Required (Plate Mounts Inside Existing Cutout)
  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

Documents:


Rating:
  • Steel: NEMA 12, 13, 1
  • Stainless: NEMA 4X, 4, 12, 13, 1
  • IP66
