HMIAdapterPlate

Allen Bradley PanelView Plus 7 6.5" to Allen Bradley PanelView Plus 6 600 (AP2009-1024-IN)

Model #:

Allen Bradley PanelView Plus 7 6.5" to Allen Bradley PanelView Plus 6 600 (AP2009-1024-IN)

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
2 Week Manufacturing Leadtime
Need to Expedite?
  • Existing HMI:
    • Allen Bradley PanelView 5000 6.5" Touch
      • Models2715-T7CX, 2715P-T7CD
    • Allen Bradley PanelView Plus 7 6.5" Touch
      • Models: 2711P-T7C21D8S, 2711P-T7C21D8S-B, 2711P-T7C22A9P, 2711P-T7C22D8S, 2711P-T7C22D8S-B, 2711P-T7C22D9P
  • New HMI:
    • Allen Bradley PanelView 5000 6" Touch
      • Models2713P-T6CD1
    • Allen Bradley PanelView Plus 400 Keypad
      • Models2711P-K4****, 2711PC-B4C20D, 2711PC-K4M20D
    • Allen Bradley PanelView Plus 600 Touch
      • Models2711P-T6****, 2711PC-T6C20D, 2711PC-T6M20D
    • Allen Bradley PanelView Plus 6 400 Keypad
      • Models2711P-B4C20A8, 2711P-B4C20D8, 2711P-B4C5A8, 2711P-B4C5D8, 2711P-K4C20A8, 2711P-K4C20D8, 2711P-K4C5A8, 2711P-K4C5D8, 2711P-K4M20A8, 2711P-K4M20D8, 2711P-K4M5A8, 2711P-K4M5D8, 2711PC-B4C20D8, 2711PC-B4C20D8-LR, 2711PC-K4M20D8
    • Allen Bradley PanelView Plus 6 600 Touch
      • Models: 2711P-T6C20A8, 2711P-T6C20A9, 2711P-T6C20D8, 2711P-T6C20D9, 2711P-T6C5A8, 2711P-T6C5A9, 2711P-T6C5D8, 2711P-T6C5D9, 2711P-T6M20A8, 2711P-T6M20D8, 2711P-T6M5A8, 2711P-T6M5D8, 2711PC-T6C20D8, 2711PC-T6M20D8
    • Allen Bradley PanelView Plus 7 5.7" Touch
      • Models2711P-T6C21D8S, 2711P-T6C21D8S-B, 2711P-T6C22D8S, 2711P-T6C22D8S-B
  • 11 Gauge Heavy Duty Adapter Plate
  • No Drilling Required (Plate Mounts Inside Existing Cutout)
  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

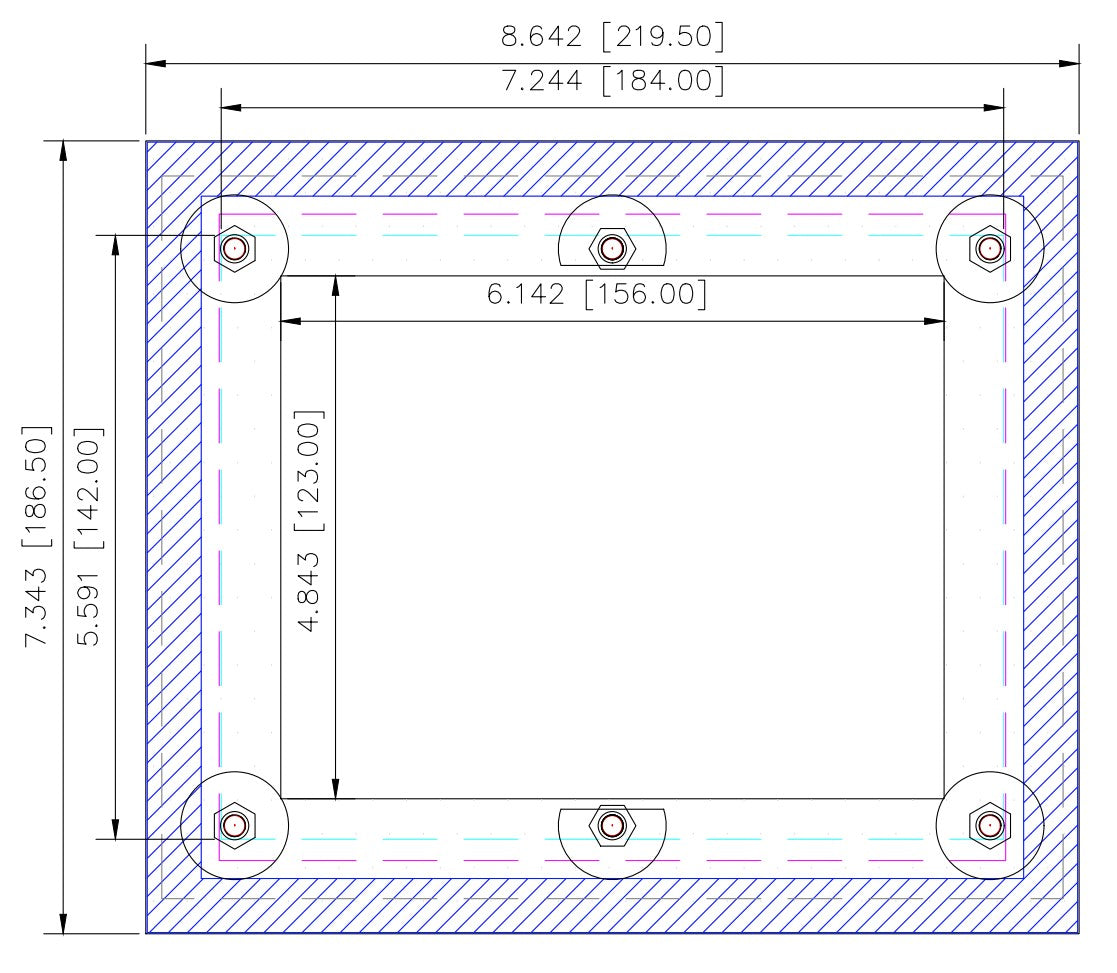

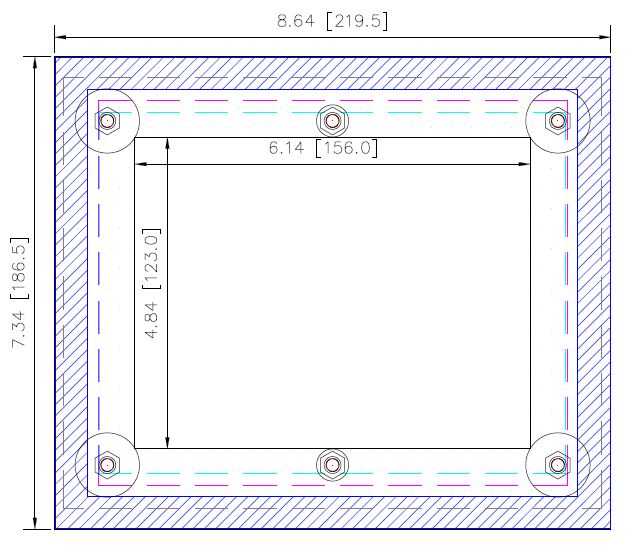

Download DXF: D043920 AP2009-1024-IN
Download PDF: D043920 AP2009-1024-IN


Rating:
  • Steel: NEMA 12, 13, 1
  • Stainless: NEMA 4X, 4, 12, 13, 1
  • IP66
