Allen Bradley PanelView Plus 700 Touch to Allen Bradley PanelView Plus 7 6.5" Touch (AP2011-2009-IN)

Specifications:

• Existing HMI:
  • Allen Bradley PanelView Plus 700 Touch
    • Models: 2711P-T7****
  • Allen Bradley PanelView Plus 6 700 Touch
    • Models: 2711P-T7C4A8, 2711P-T7C4A9, 2711P-T7C4D8, 2711P-T7C4D8K, 2711P-T7C4D9

• New HMI:
• Allen Bradley PanelView 5000 6.5" Touch
• Models: 2715-T7CX, 2715P-T7CD
• Allen Bradley PanelView Plus 7 6.5" Touch
• Models: 2711P-T7C21D8S, 2711P-T7C21D8S-B, 2711P-T7C22A9P, 2711P-T7C22D8S, 2711P-T7C22D8S-B, 2711P-T7C22D9P

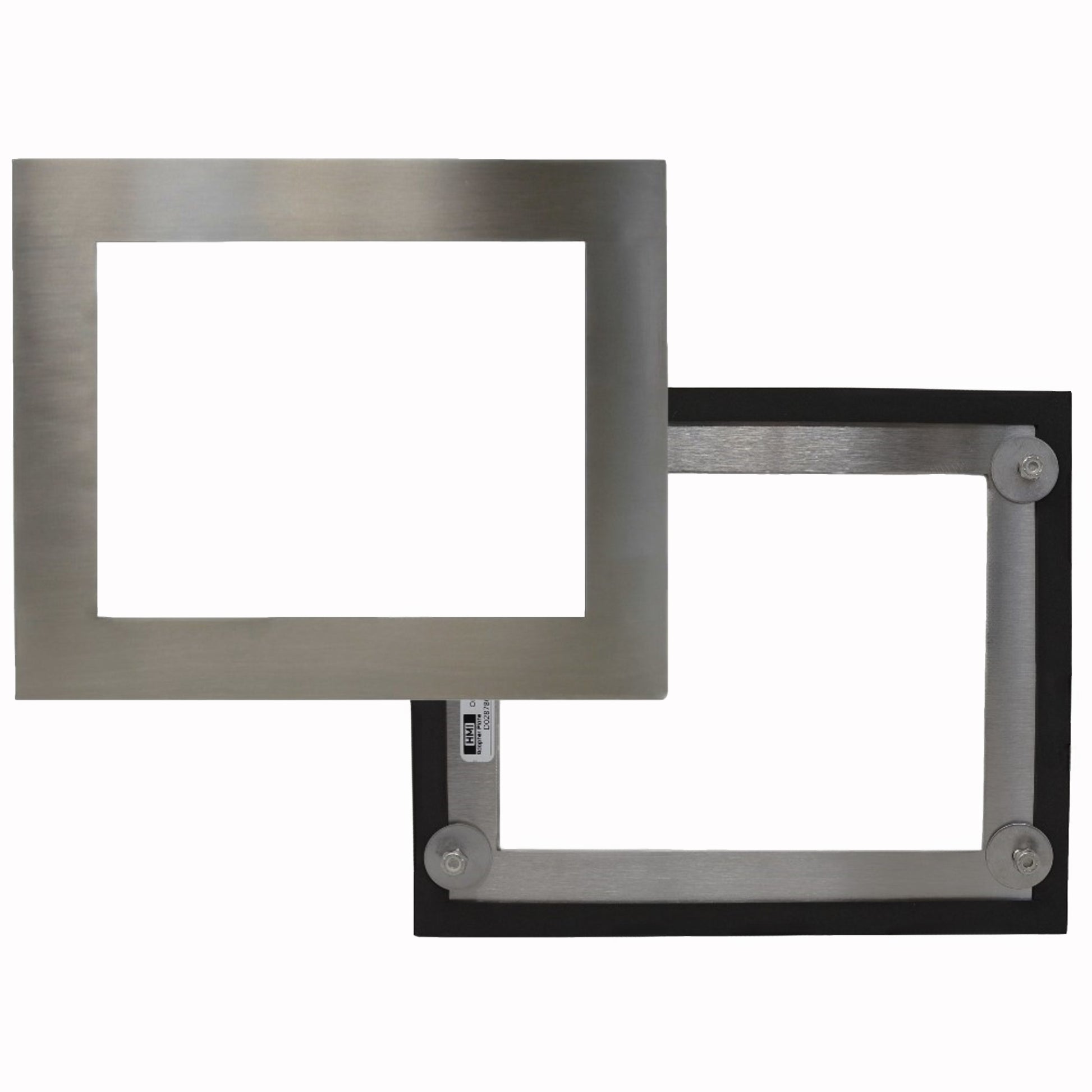

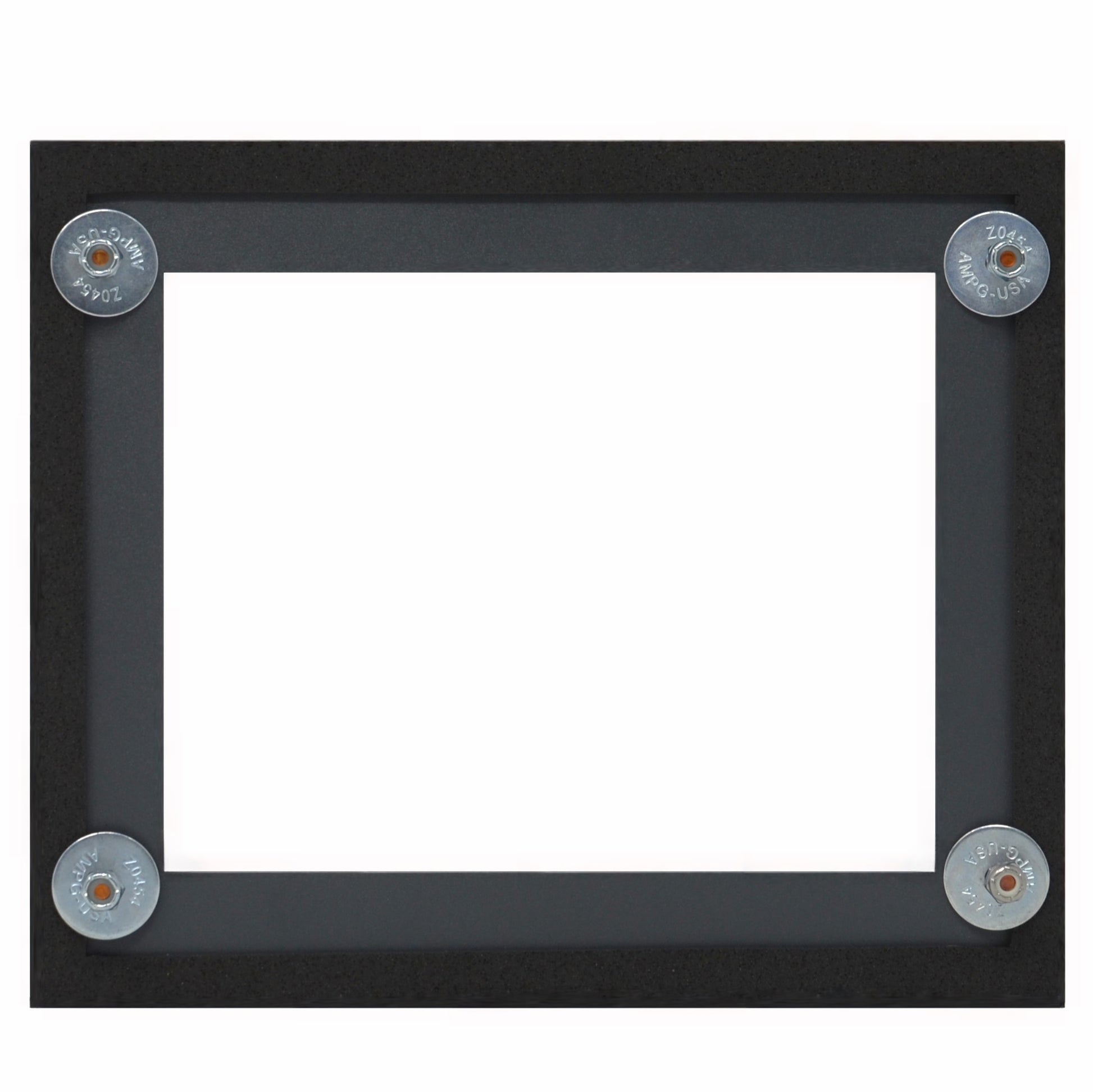

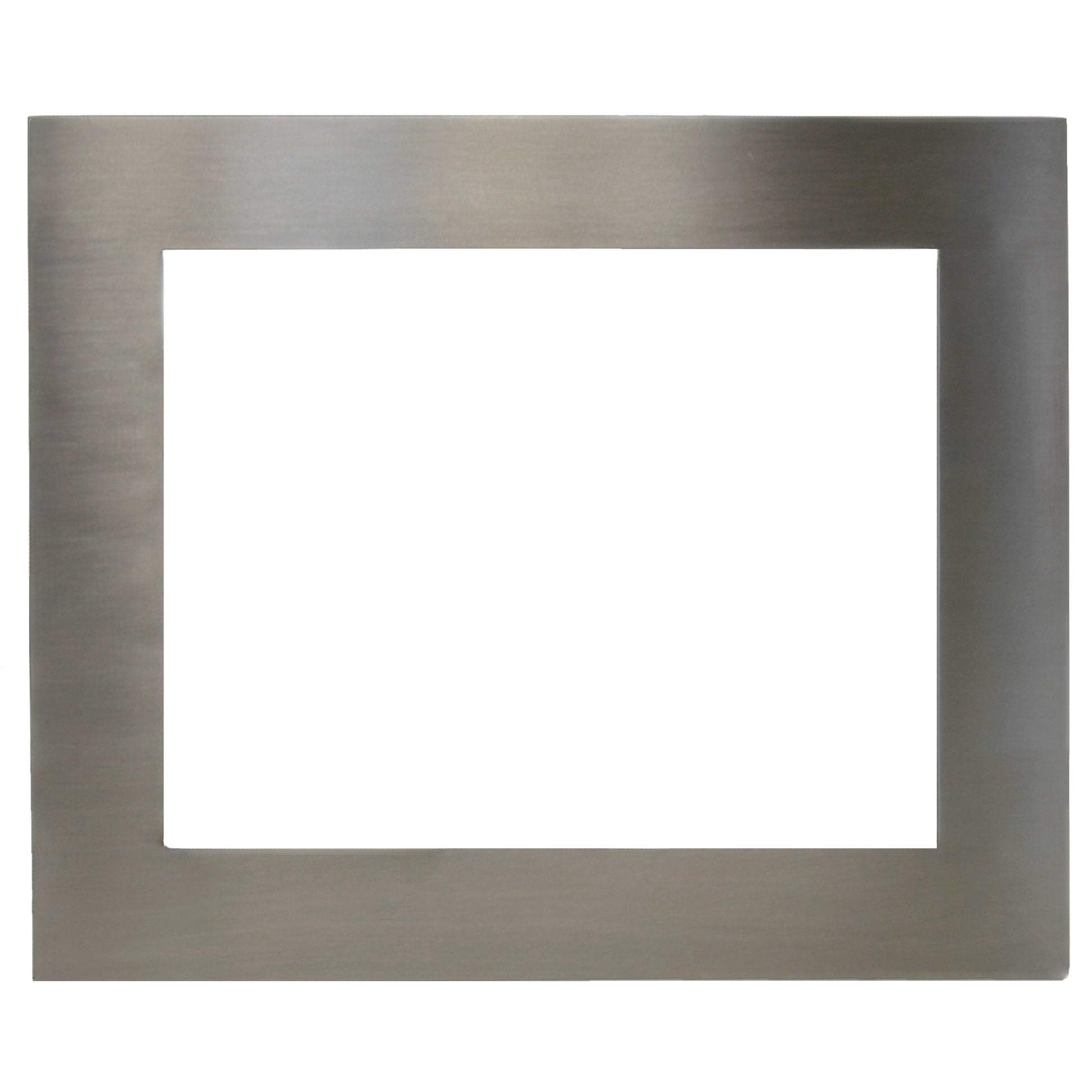

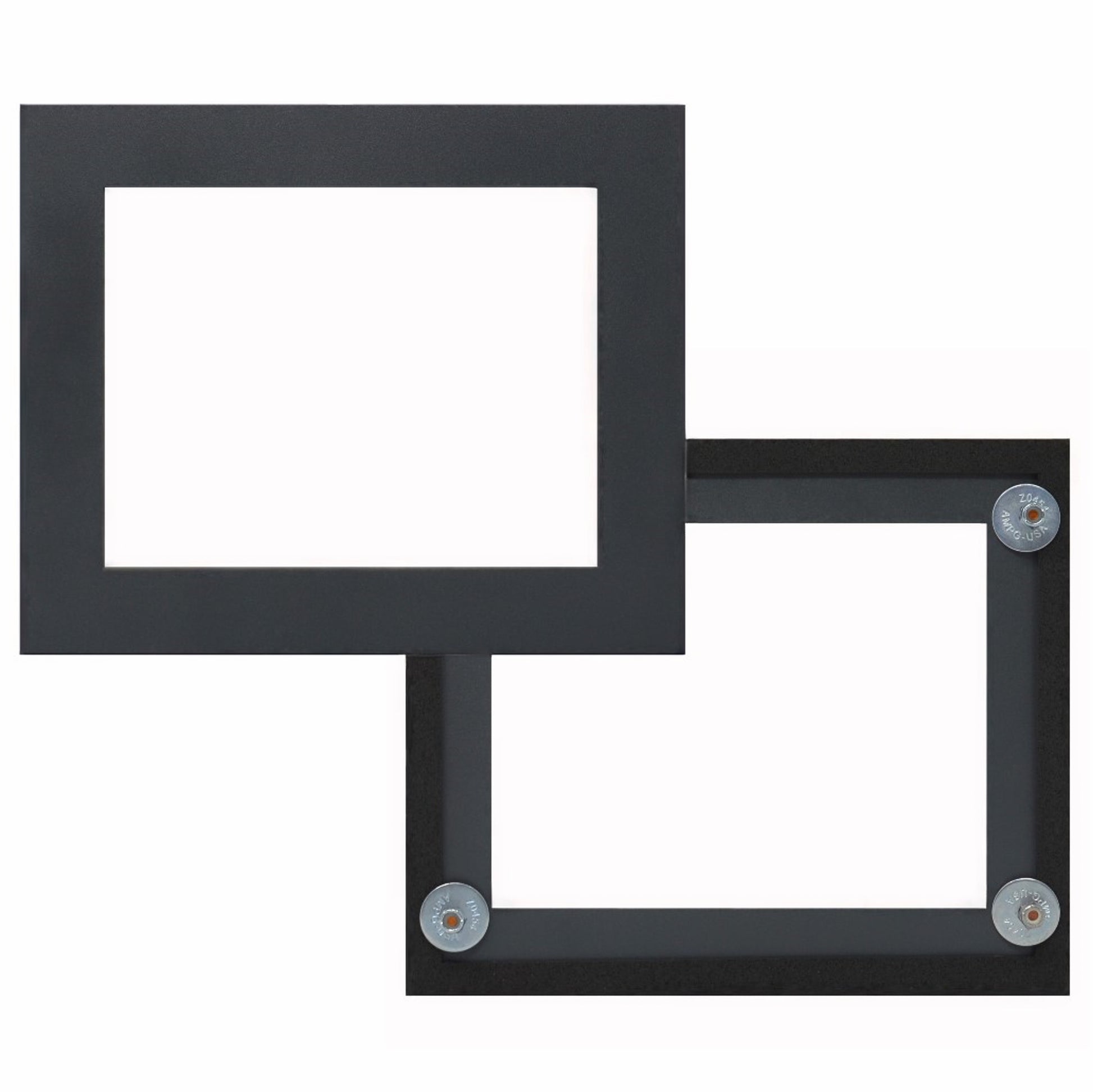

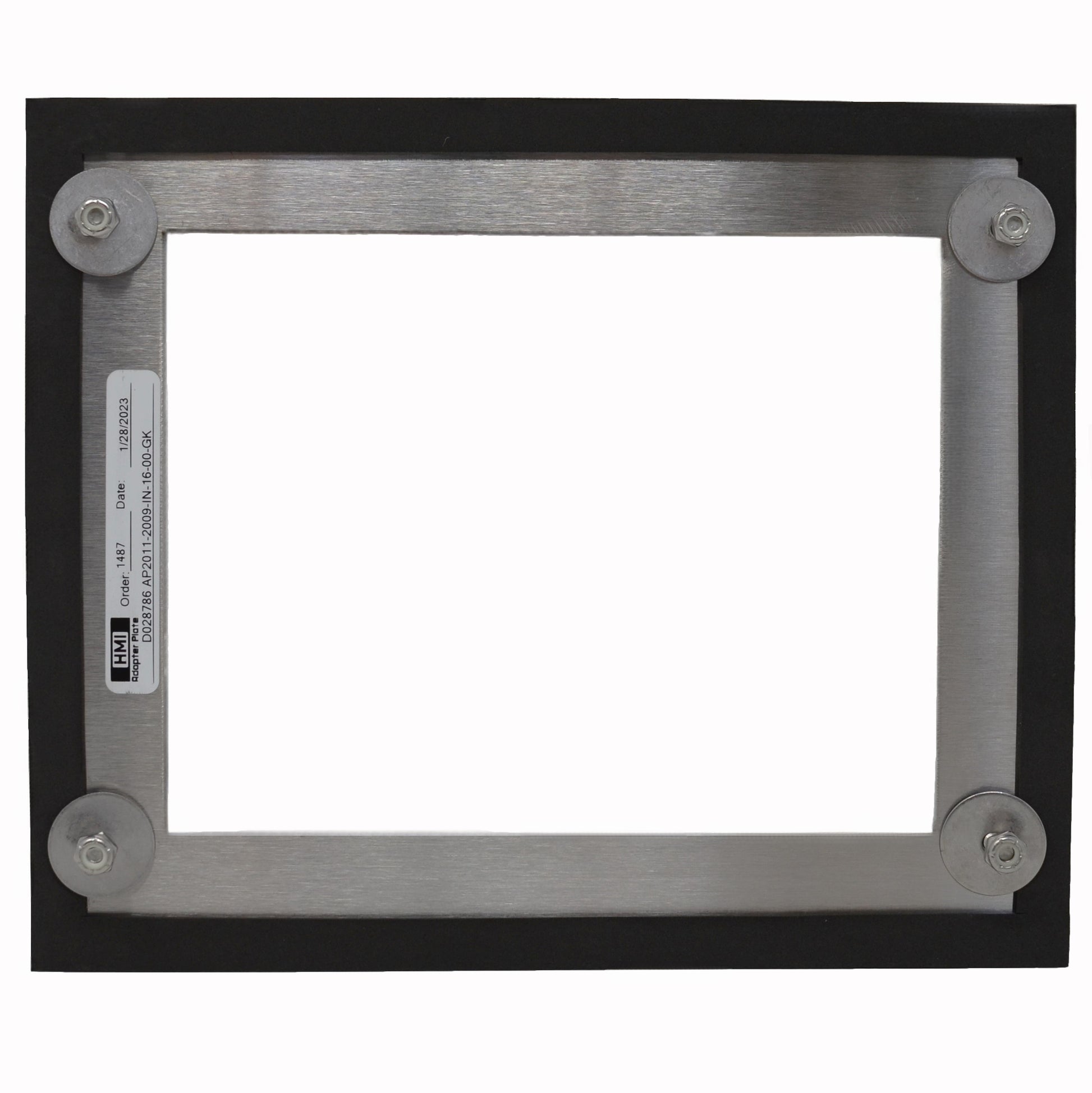

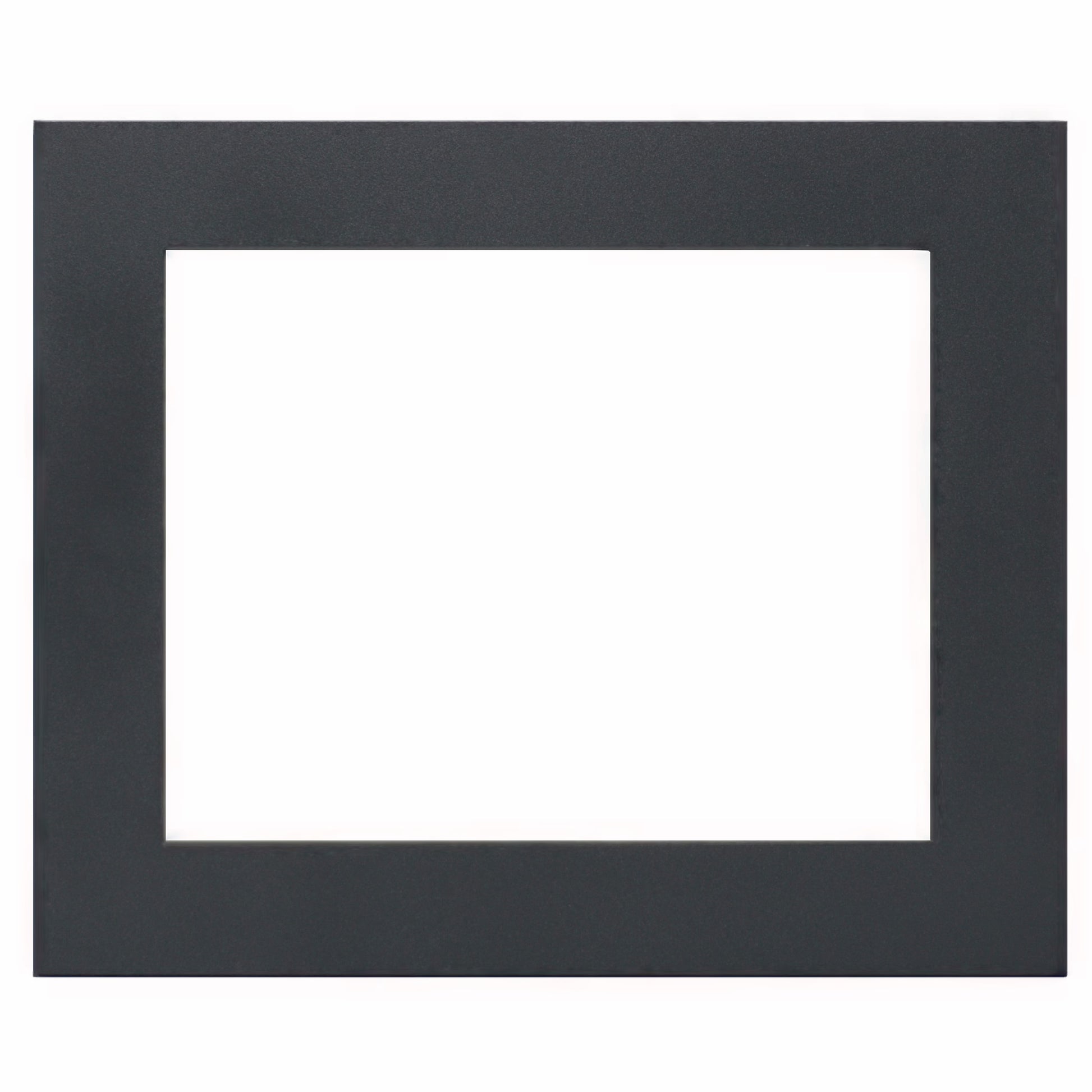

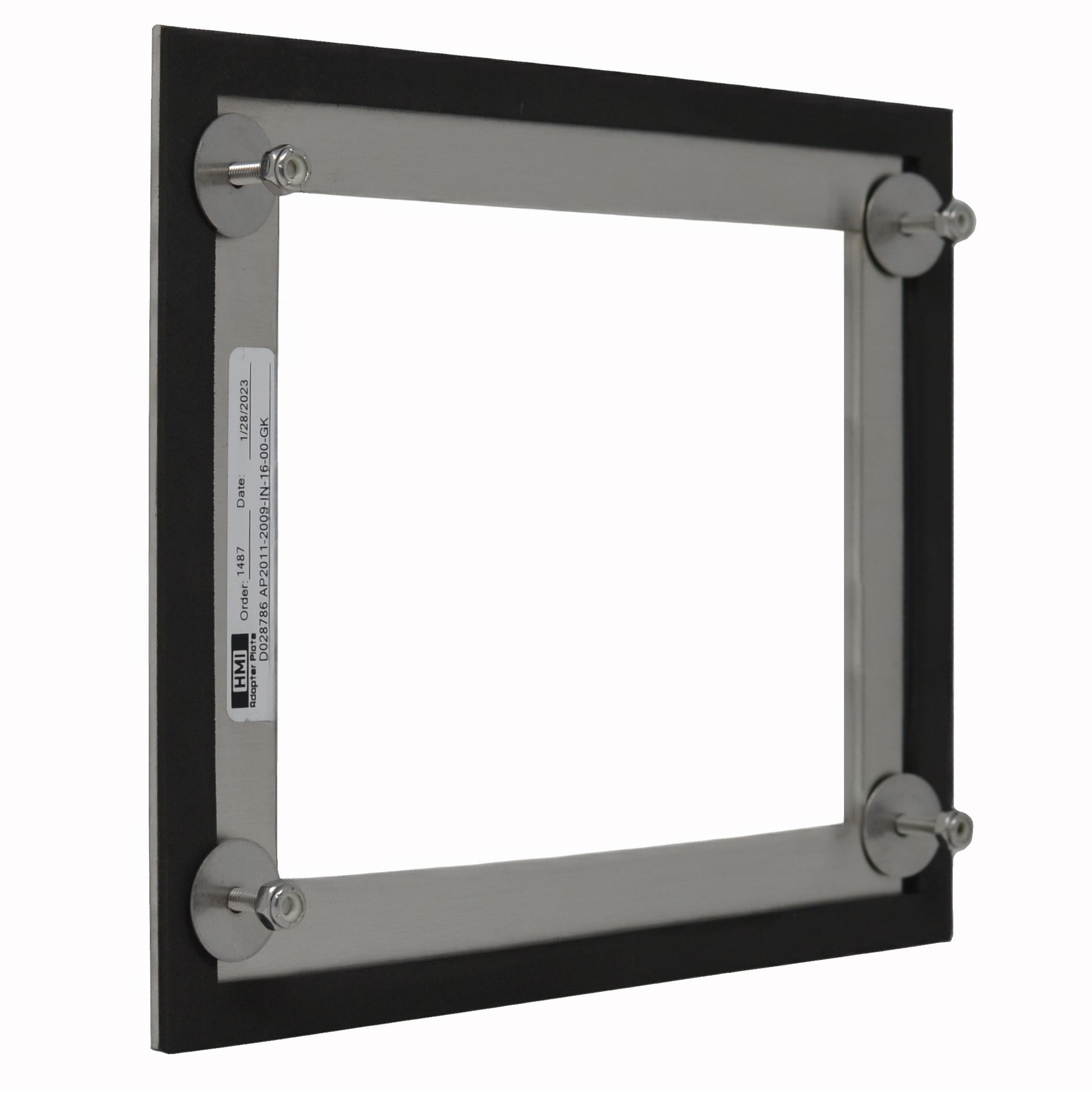

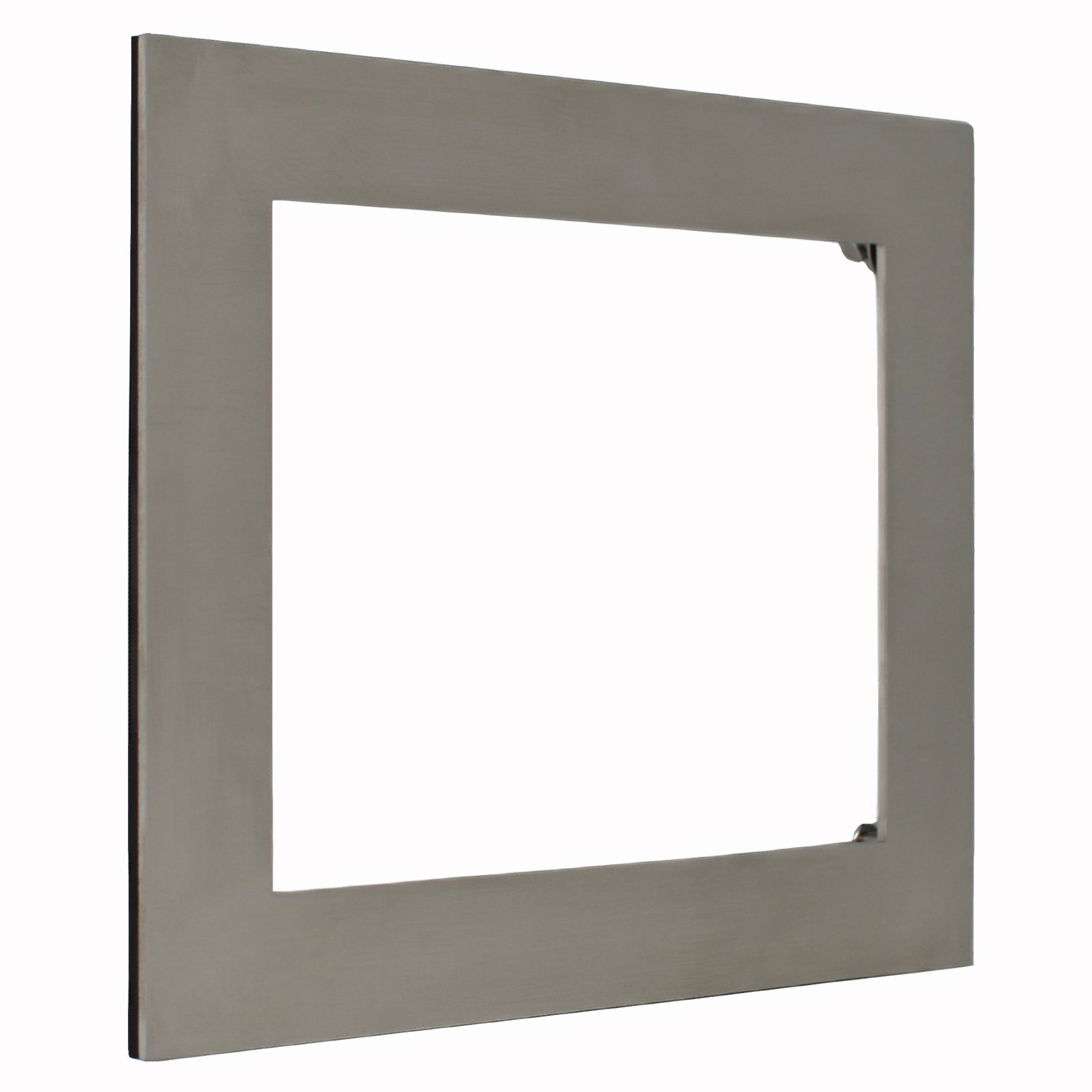

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

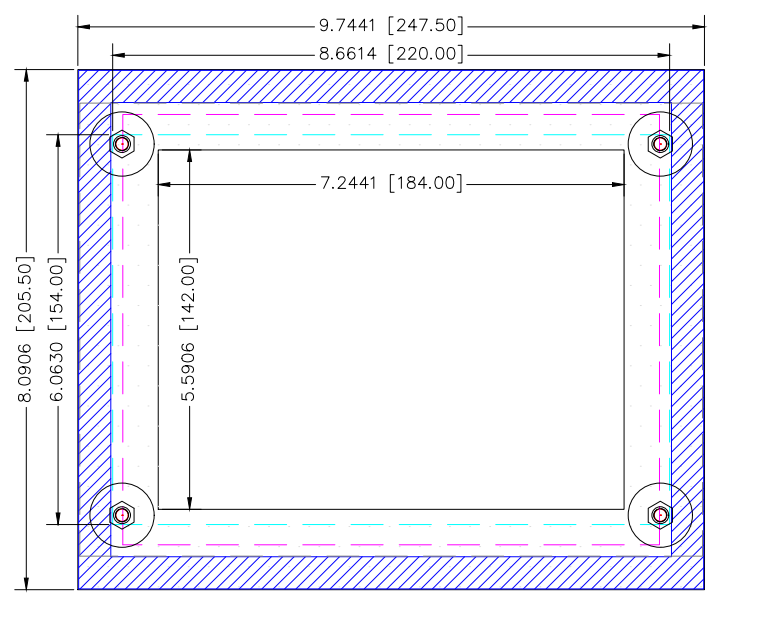

• Drawings: DXF, PDF

Cross-Reference:

• Allen Bradley #2711P-RAAT7
