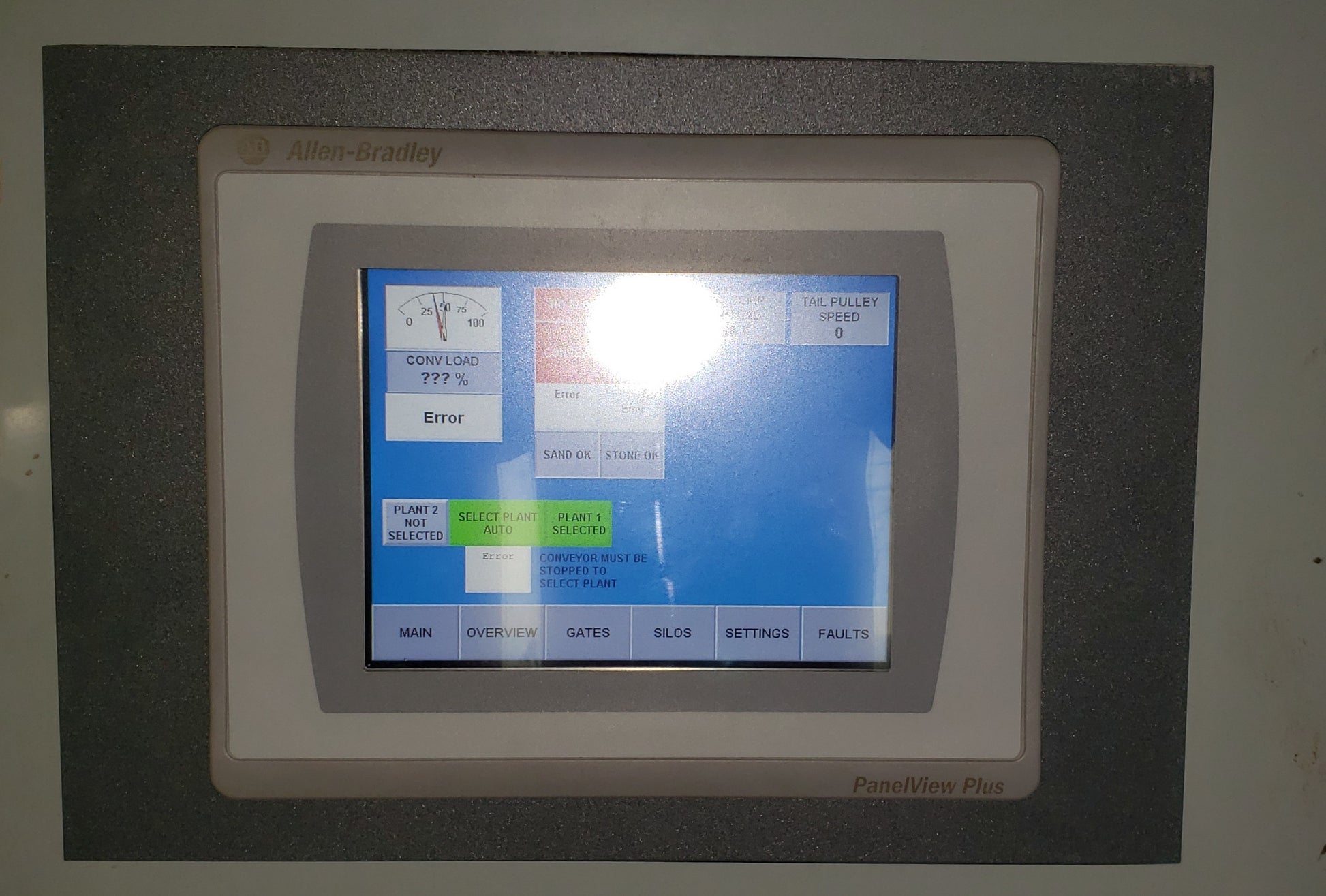

Allen Bradley PanelView Standard 600 to Allen Bradley PanelView Plus 7 7" Touch (AP2016-2009-IN)

• Existing HMI:
• Allen Bradley PanelView Standard 600 Keypad
• Models: 2711-B6C1, 2711-B6C10, 2711-B6C15, 2711-B6C16, 2711-B6C2, 2711-B6C20, 2711-B6C3, 2711-B6C5, 2711-B6C8, 2711-B6C9, 2711-K6C1, 2711-K6C10, 2711-K6C15, 2711-K6C16, 2711-K6C2, 2711-K6C20, 2711-K6C3, 2711-K6C5, 2711-K6C8, 2711-K6C9

• New HMI:
• Allen Bradley PanelView 5000 6.5" Touch
• Models: 2715-T7CX, 2715P-T7CD

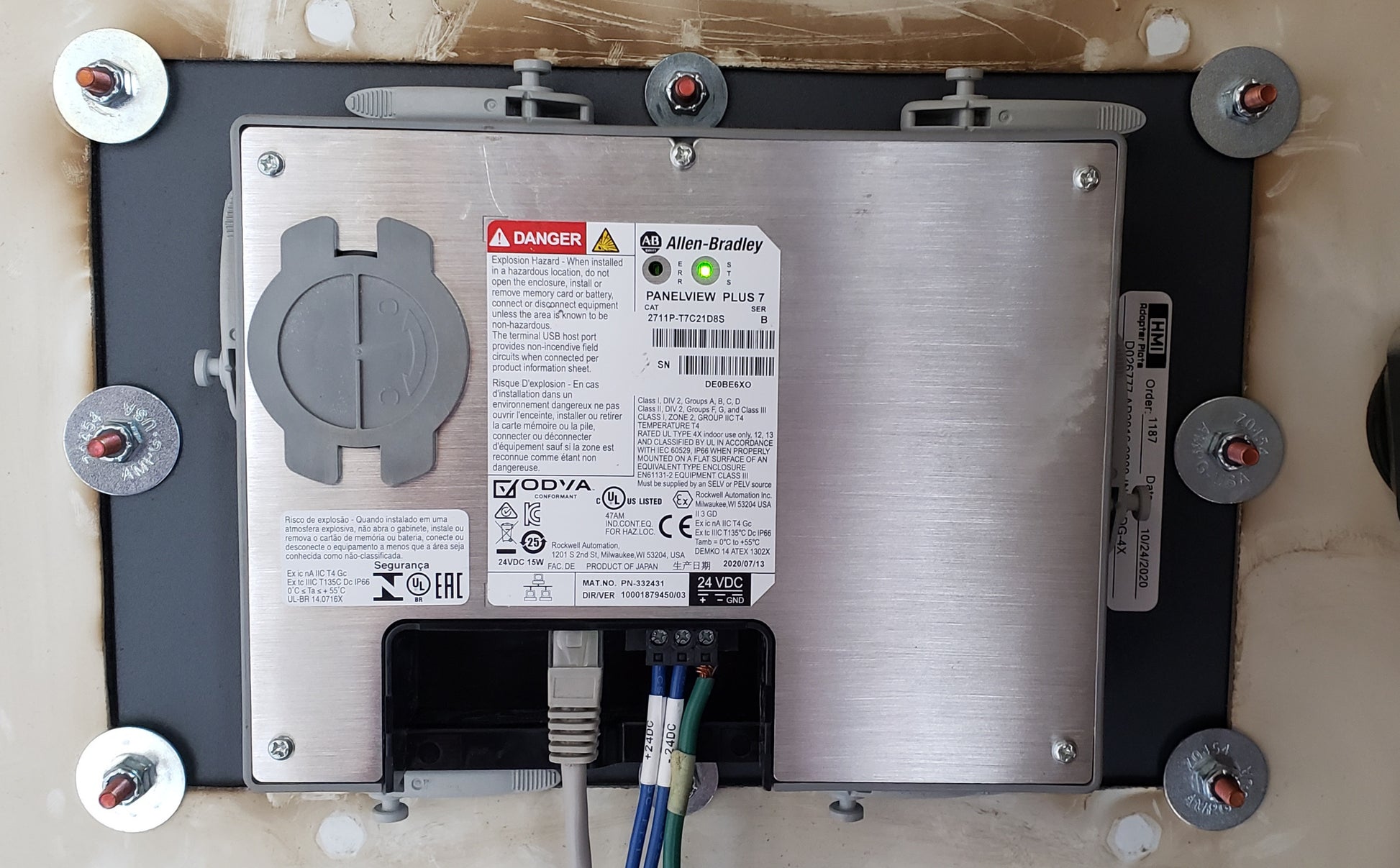

• Allen Bradley PanelView Plus 7 6.5" Touch
• Models: 2711P-T7C21D8S, 2711P-T7C21D8S-B, 2711P-T7C22A9P, 2711P-T7C22D8S, 2711P-T7C22D8S-B, 2711P-T7C22D9P

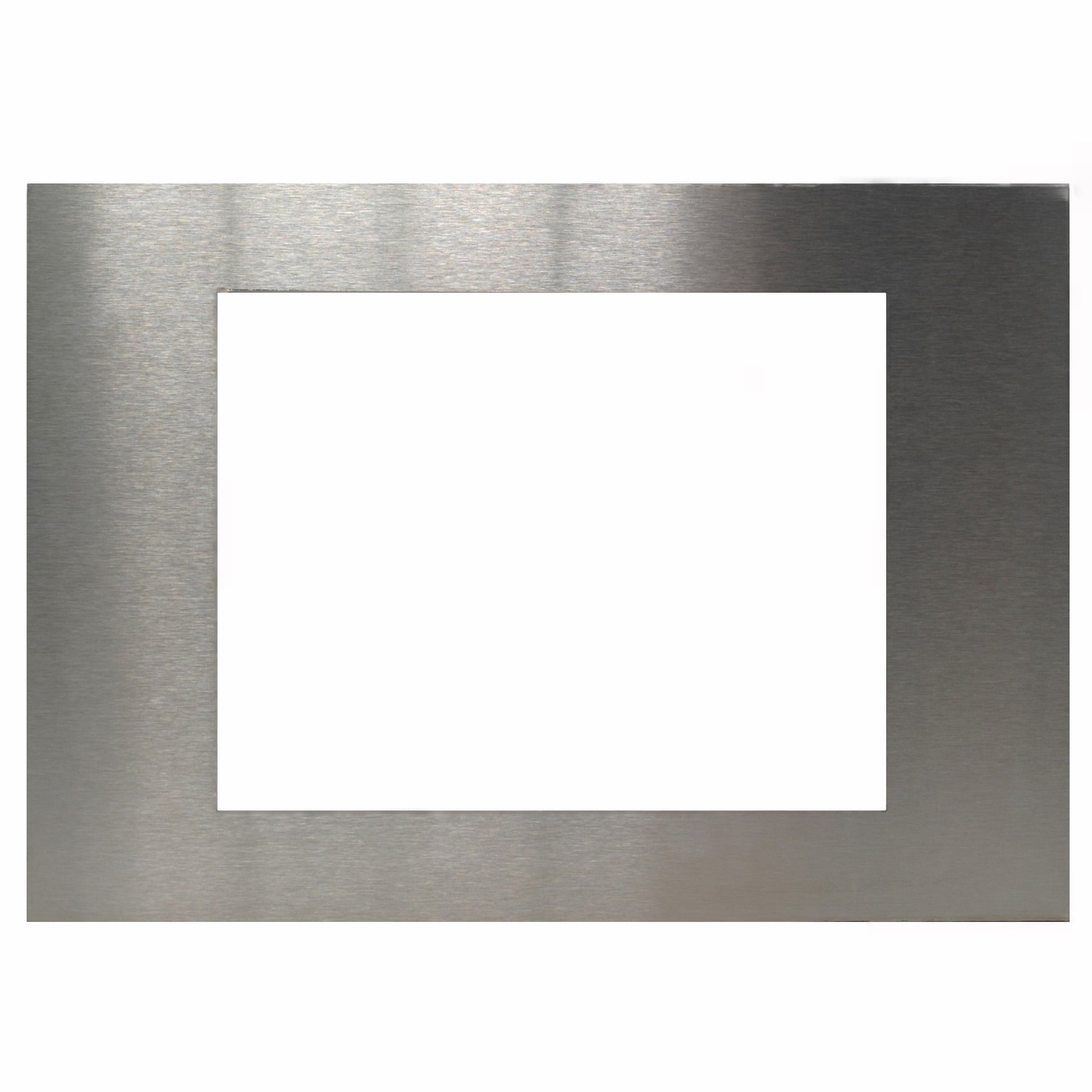

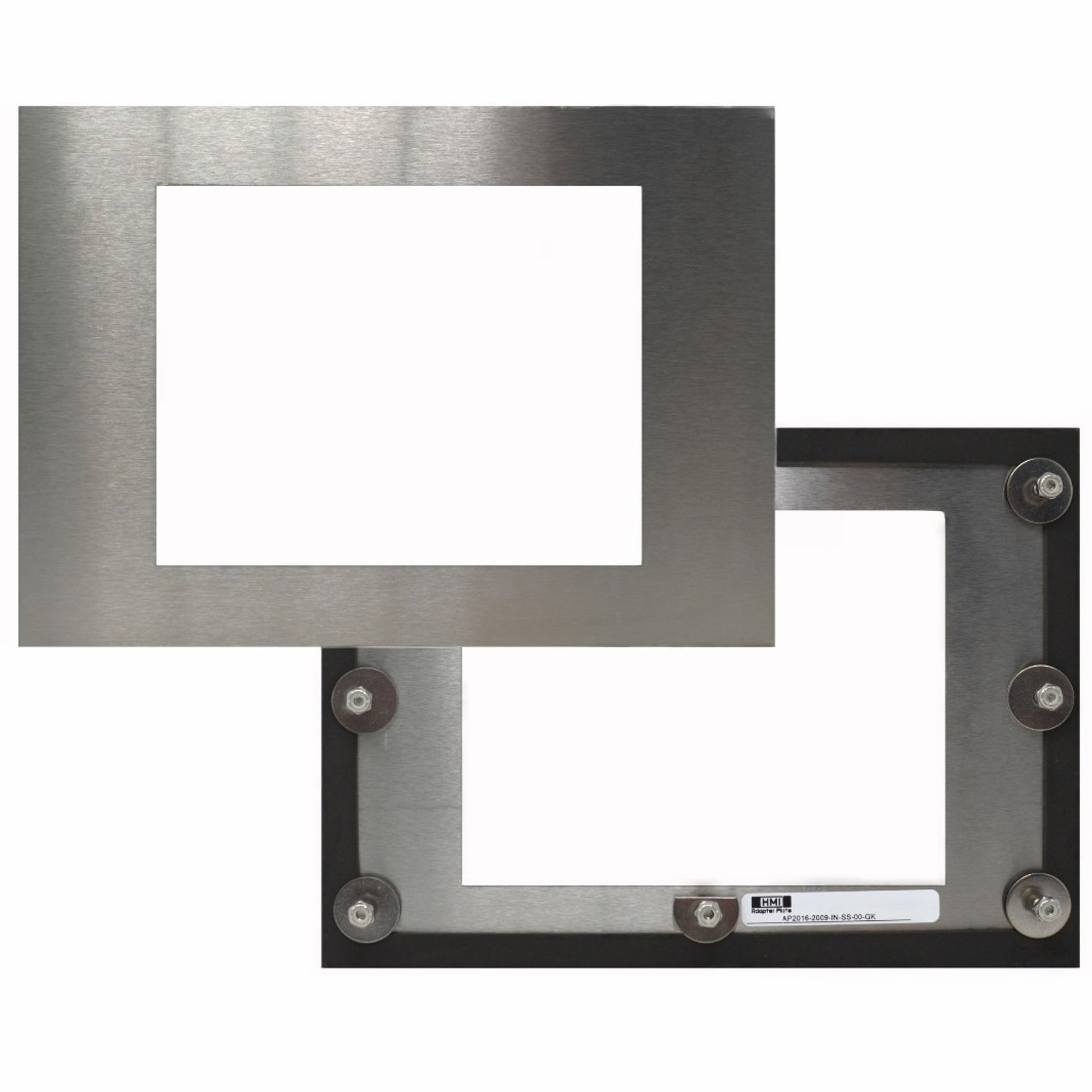

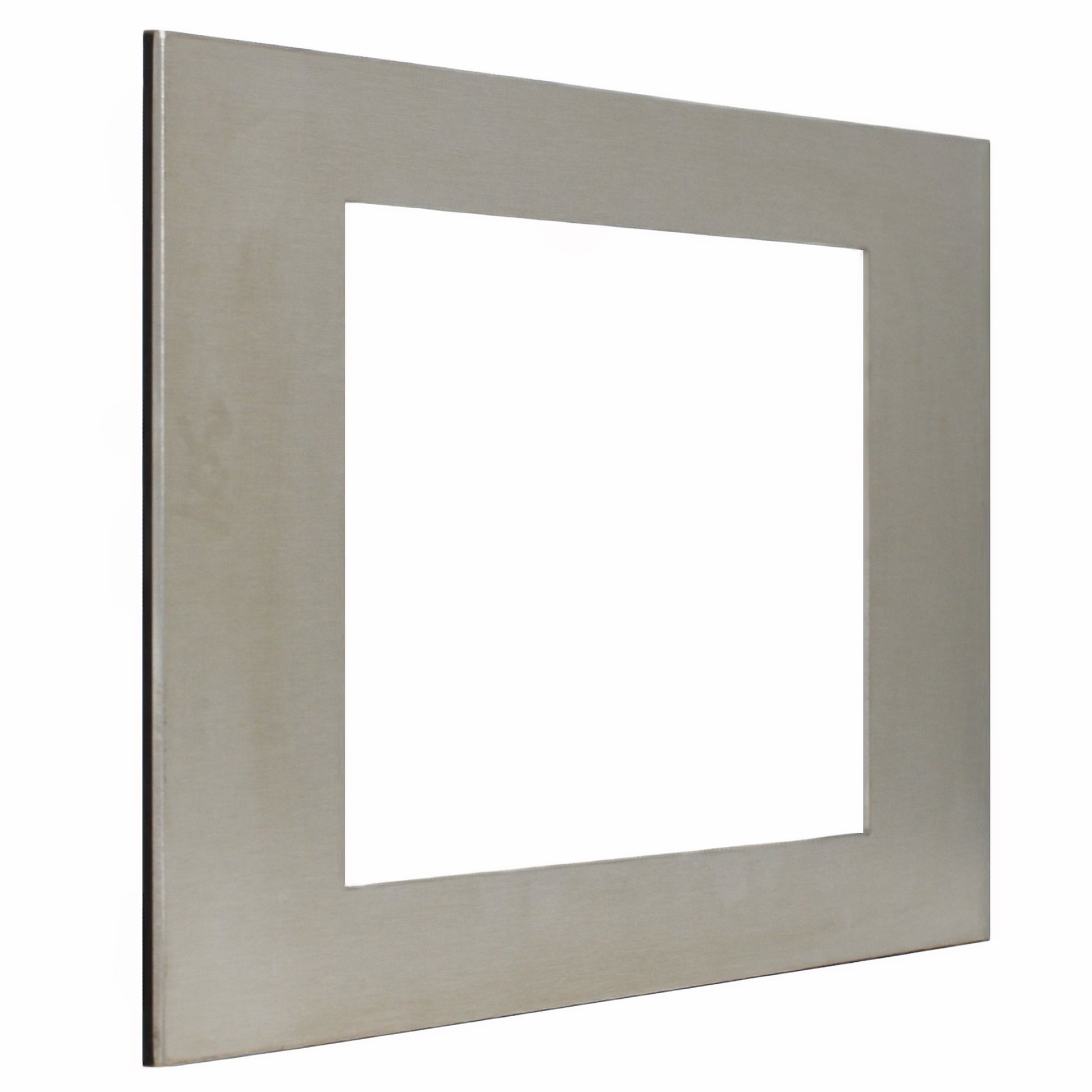

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)

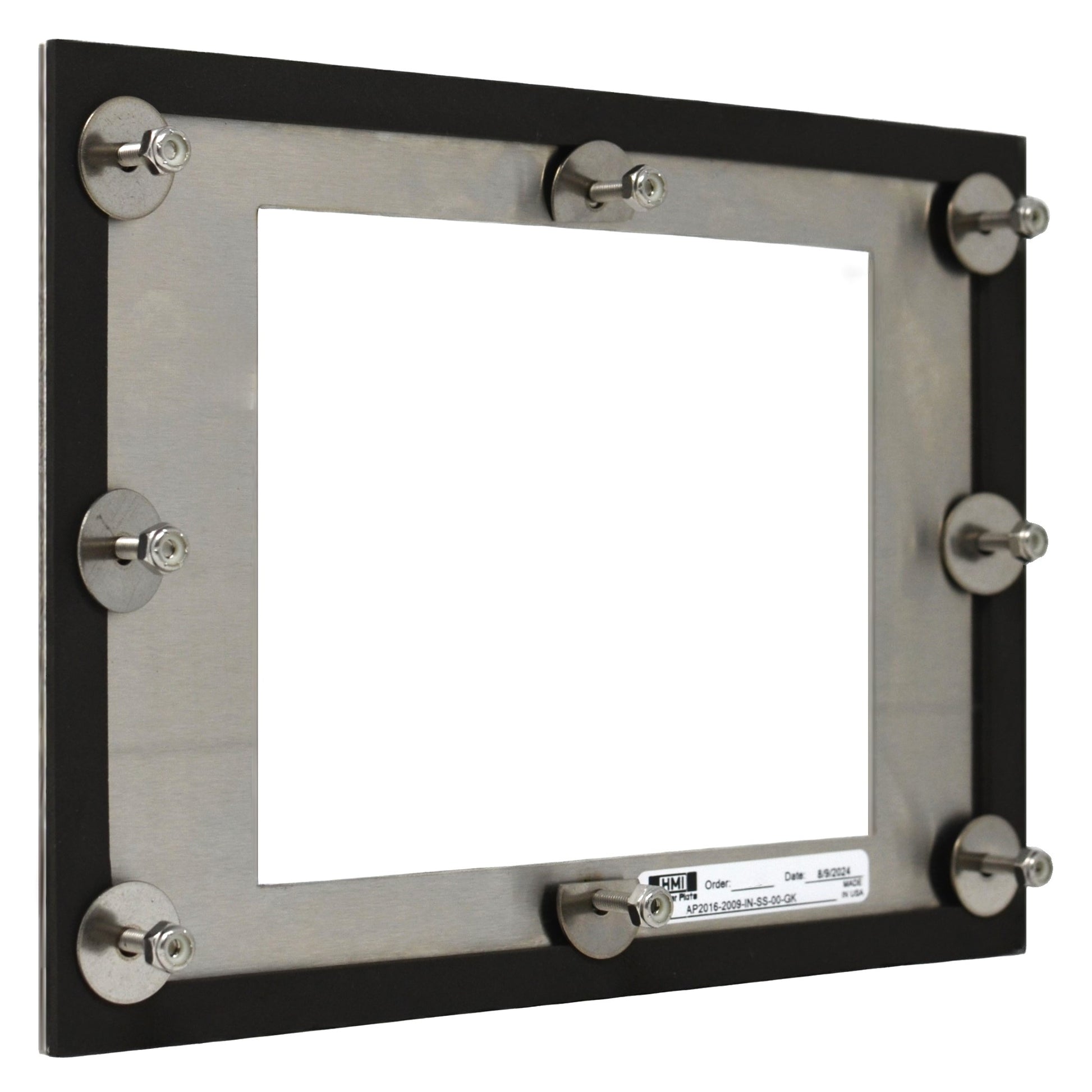

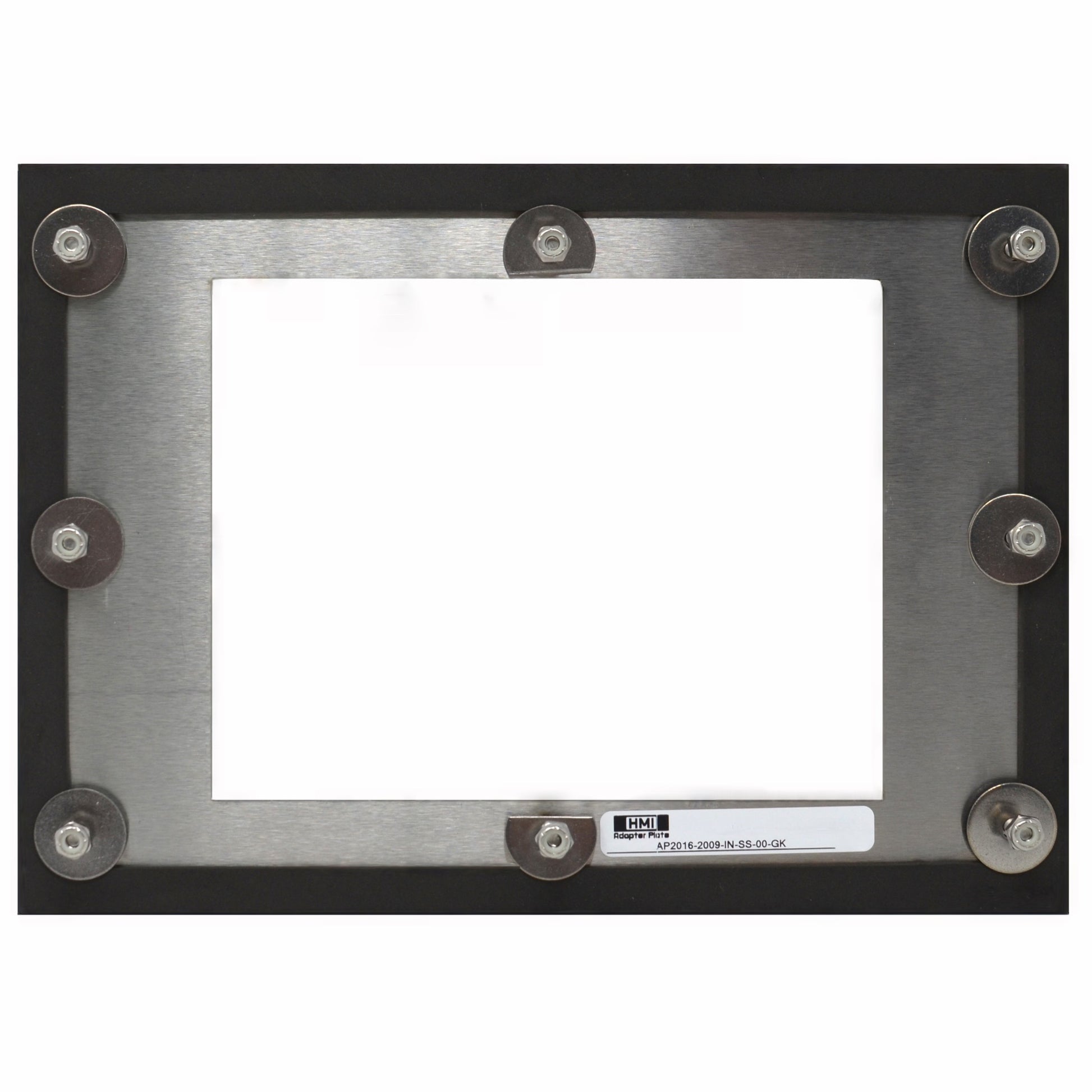

• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

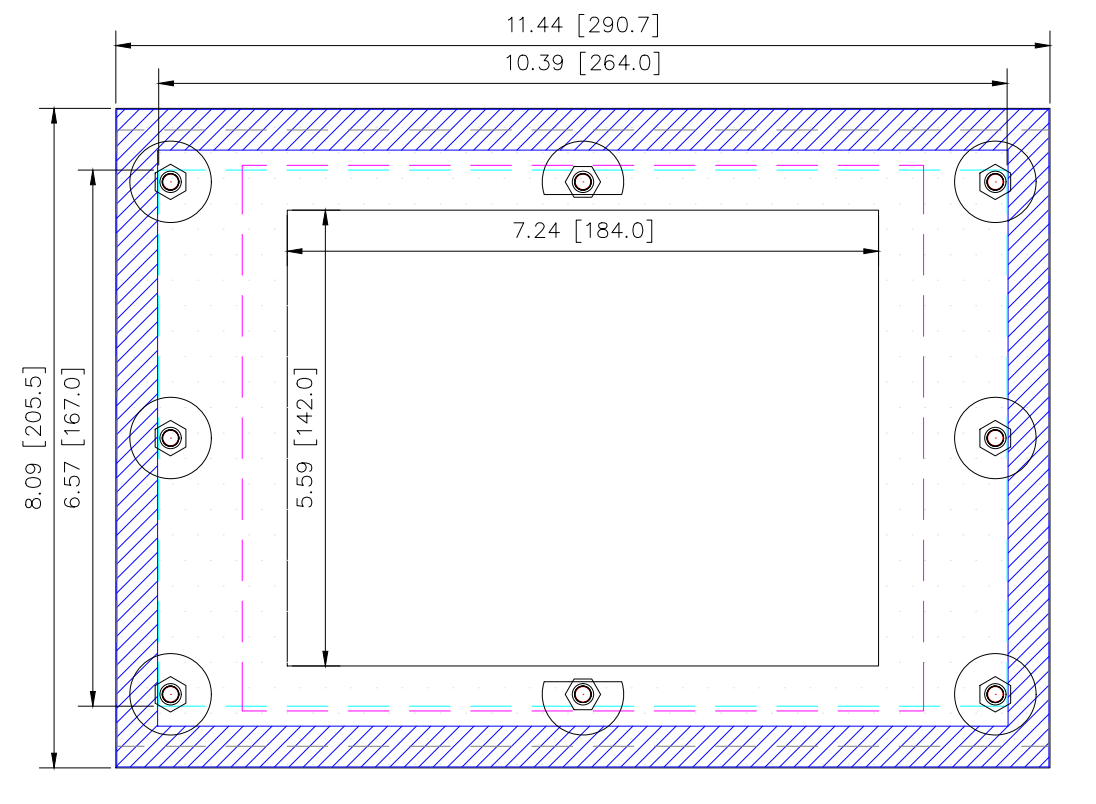

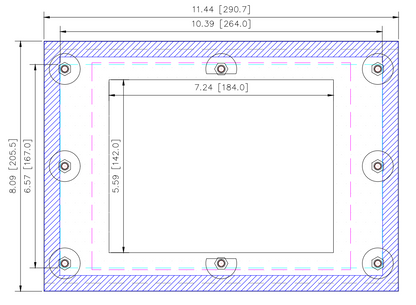

Download DXF: D026777 AP2016-2009-IN
Download PDF: D026777 AP2016-2009-IN

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
