Allen Bradley PanelView Plus 6 7" with Keypad to Allen Bradley PanelView Plus 7 7" Keypad (AP2019-2013-IN)

• Existing HMI:
• Allen Bradley PanelView Plus 700 Keypad
• Models: 2711P-B7****, 2711P-K7****
• Allen Bradley PanelView Plus 6 700 Keypad
• Models: 2711P-B7C4A8, 2711P-B7C4A9, 2711P-B7C4D8, 2711P-B7C4D9, 2711P-K7C4A8, 2711P-K7C4A9, 2711P-K7C4D8, 2711P-K7C4D9

• New HMI:
• Allen Bradley PanelView 5000 6.5" Keypad
• Models: 2715-B7CX, 2715P-B7CD
• Allen Bradley PanelView 7 6.5" Keypad
• Models: 2711P-B7C22A9P, 2711P-B7C22D9P

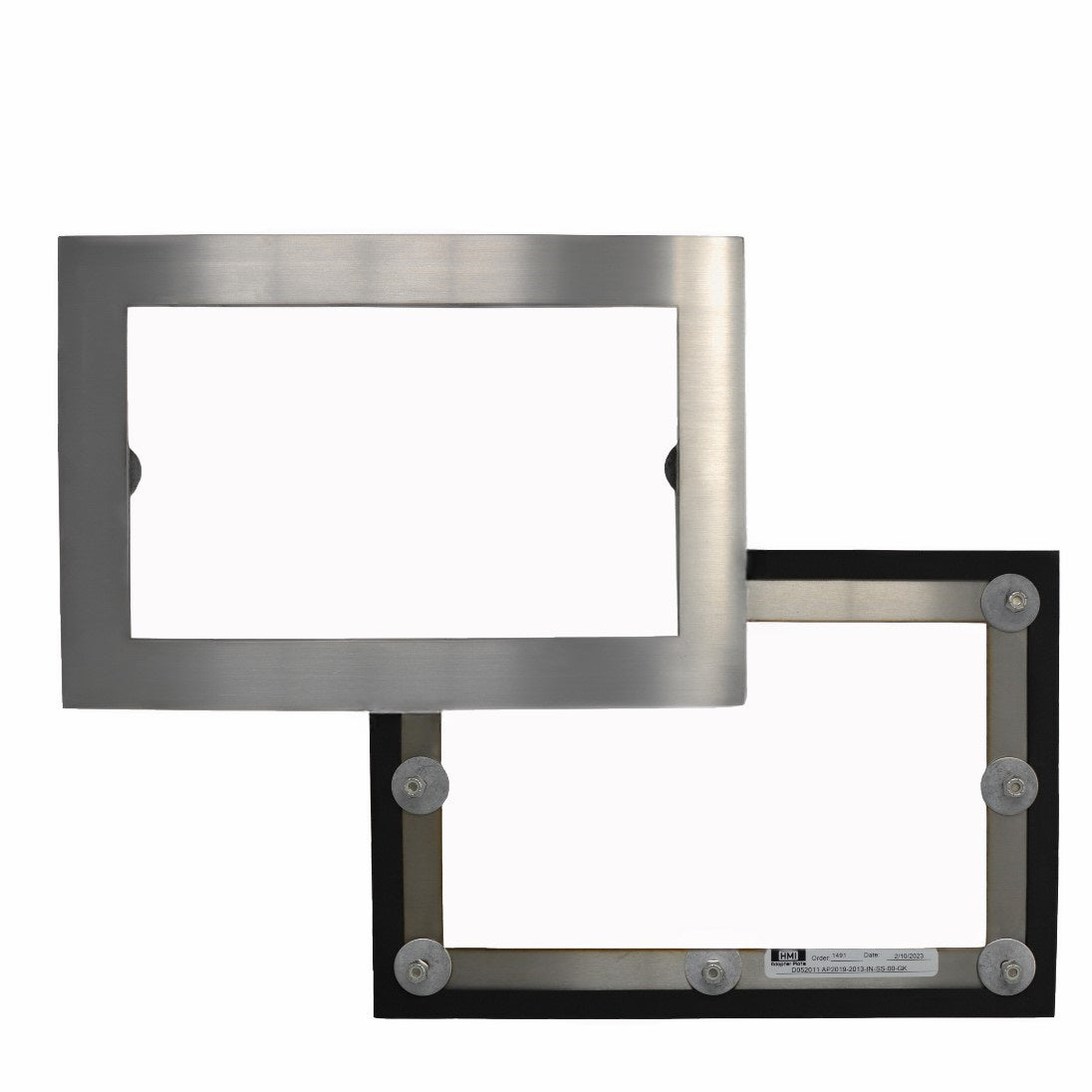

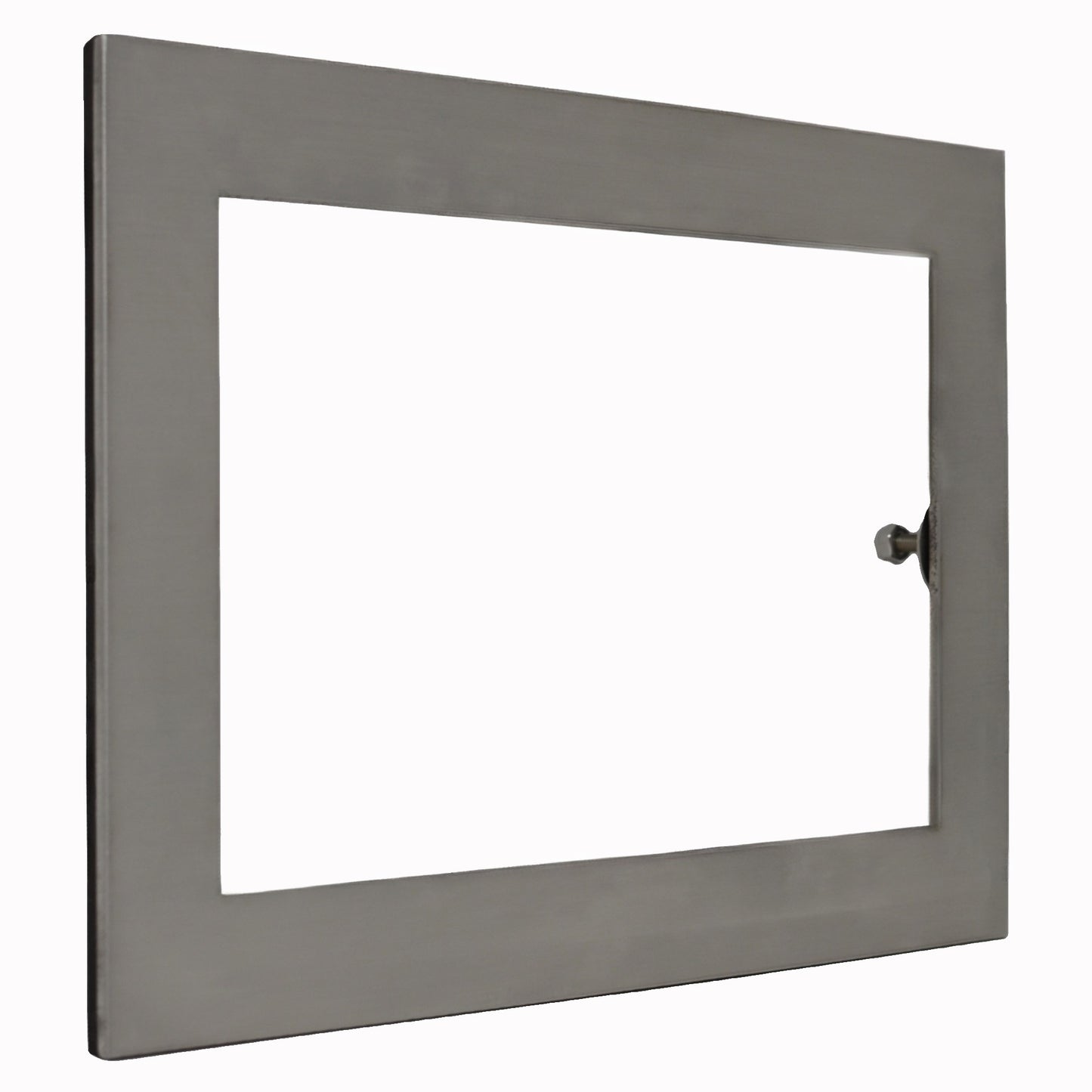

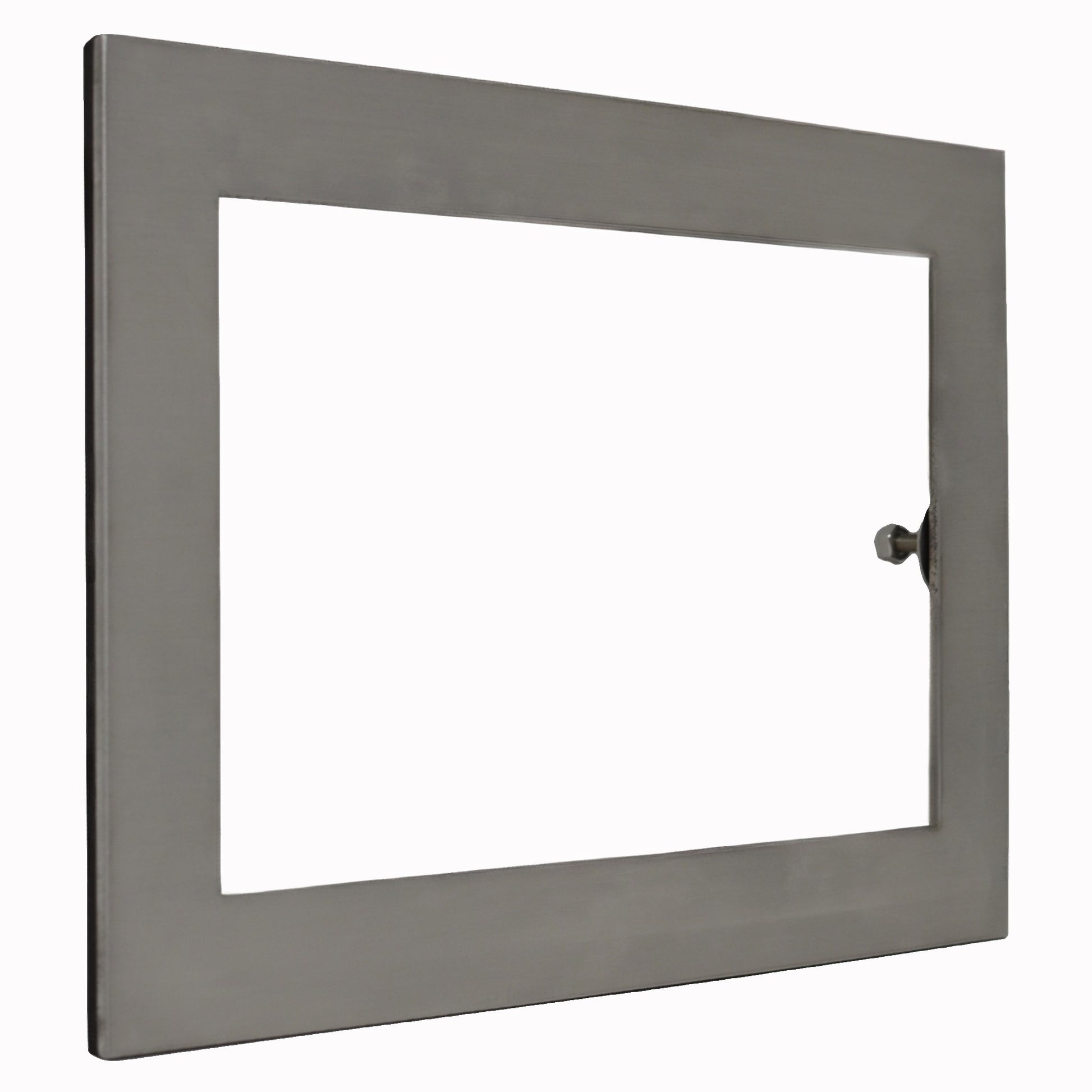

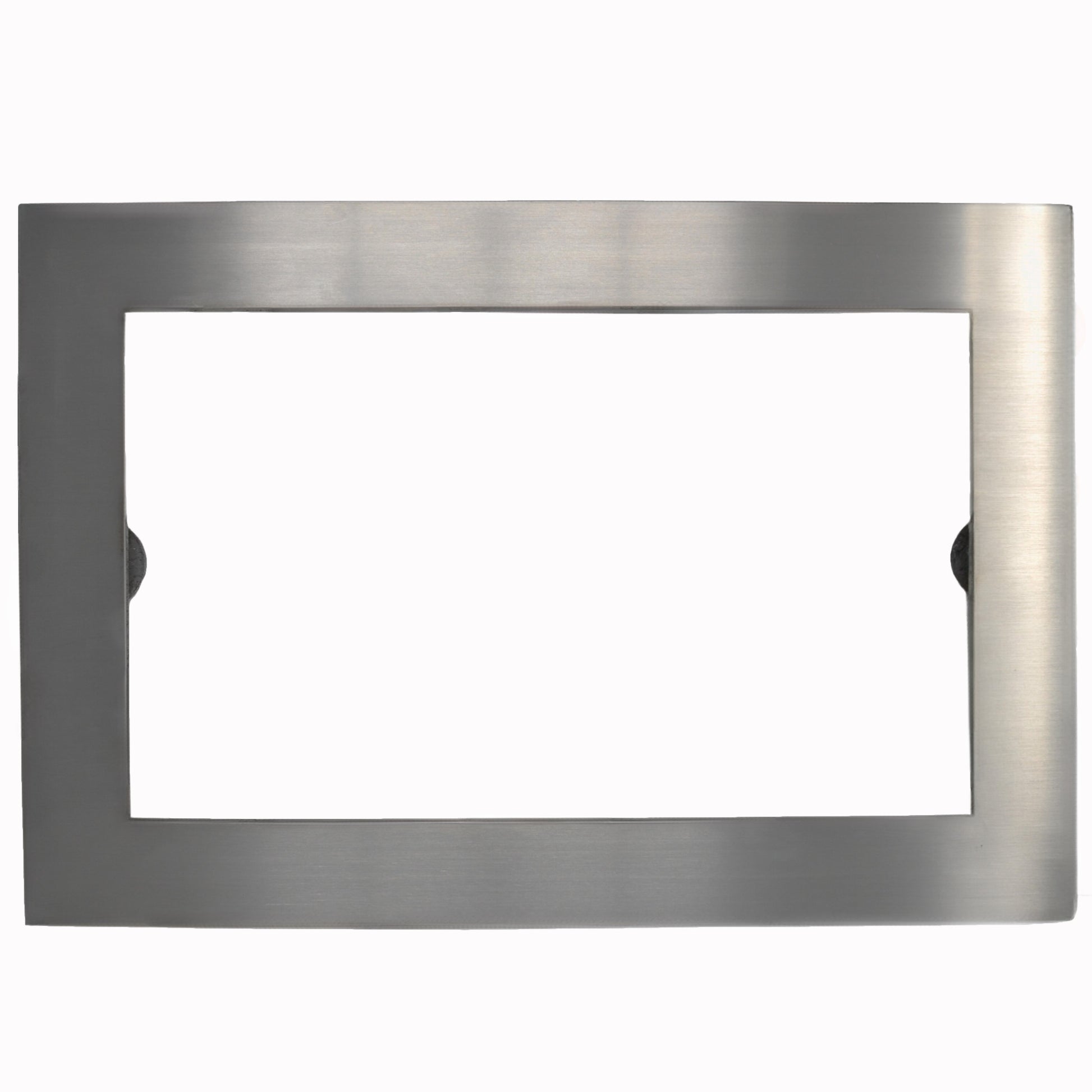

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)

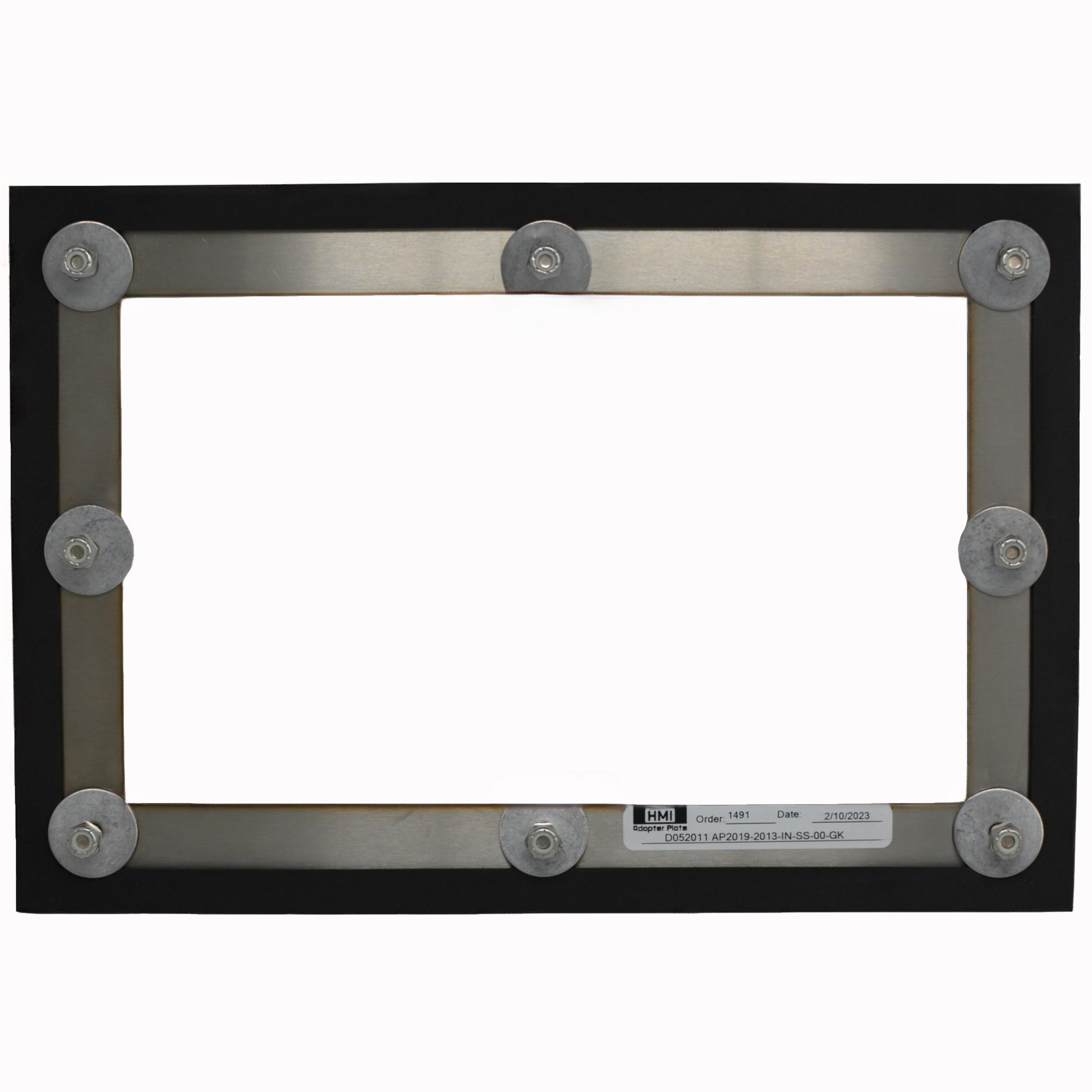

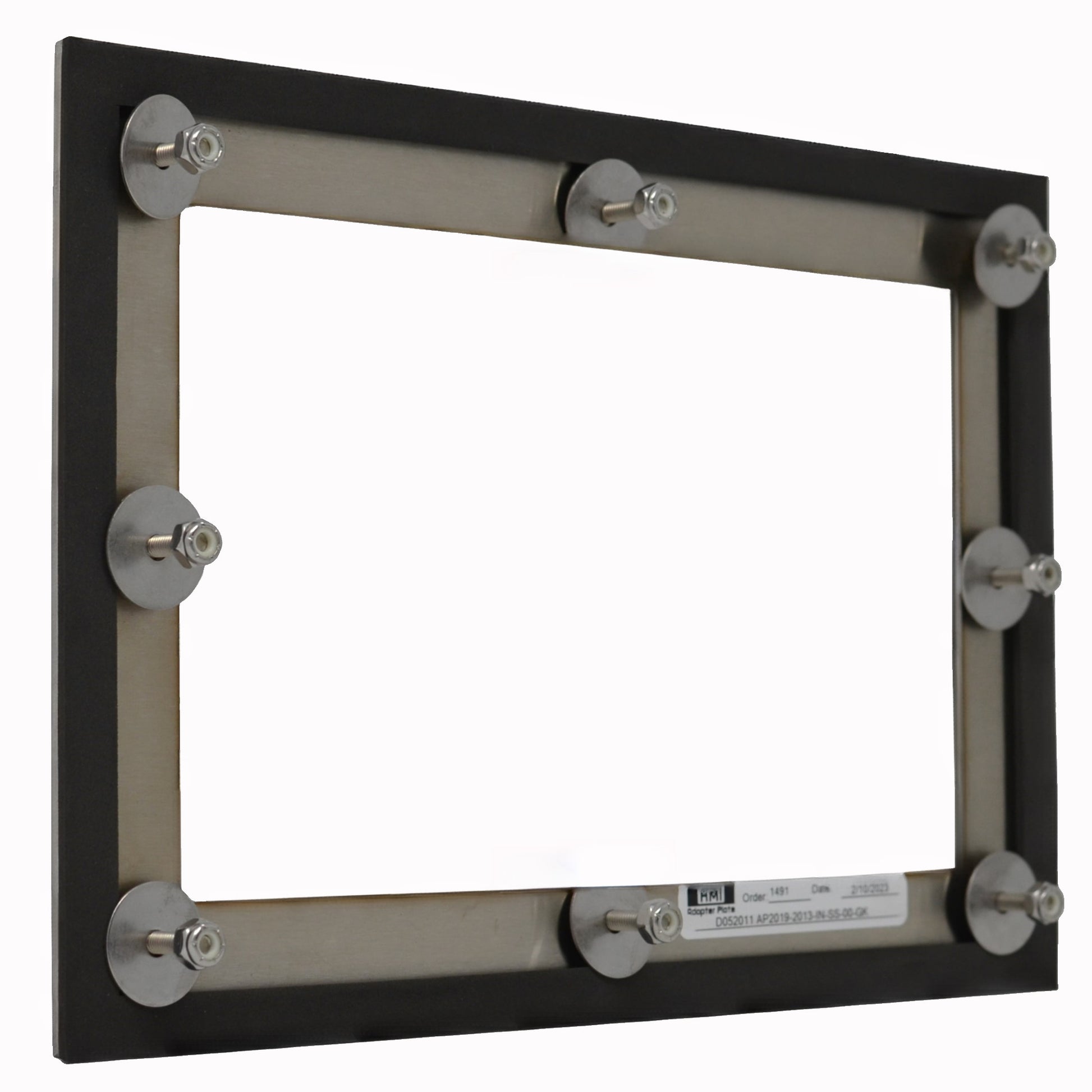

• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Download DXF: D052011 AP2019-2013-IN
Download PDF: D052011 AP2019-2013-IN

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
