Allen Bradley PanelView Plus 1000 Keypad to Allen Bradley PanelView Plus 7 10.4" Touch (AP3010-2028-IN)

Specifications:

• Existing HMI:
  • Allen Bradley PanelView Plus 1000 Keypad
    • Models:  2711P-B10****, 2711P-K10****
  • Allen Bradley PanelView Plus 6 1000 Keypad
    • Models:  2711P-B10C4A8, 2711P-B10C4A9, 2711P-B10C4D8, 2711P-B10C4D9, 2711P-K10C4A8, 2711P-K10C4A9, 2711P-K10C4D8, 2711P-K10C4D9

• New HMI:
  • Allen Bradley PanelView 5000 10.4" Touch
    • Models: 2713P-T10CD1, 2715-T10CX, 2715P-T10CD
  • Allen Bradley PanelView Plus 7 10.4" Touch
    • Models:  2711P-T10C21D8S, 2711P-T10C21D8S-B, 2711P-T10C22A9P, 2711P-T10C22D8S, 2711P-T10C22D8S-B, 2711P-T10C22D9P

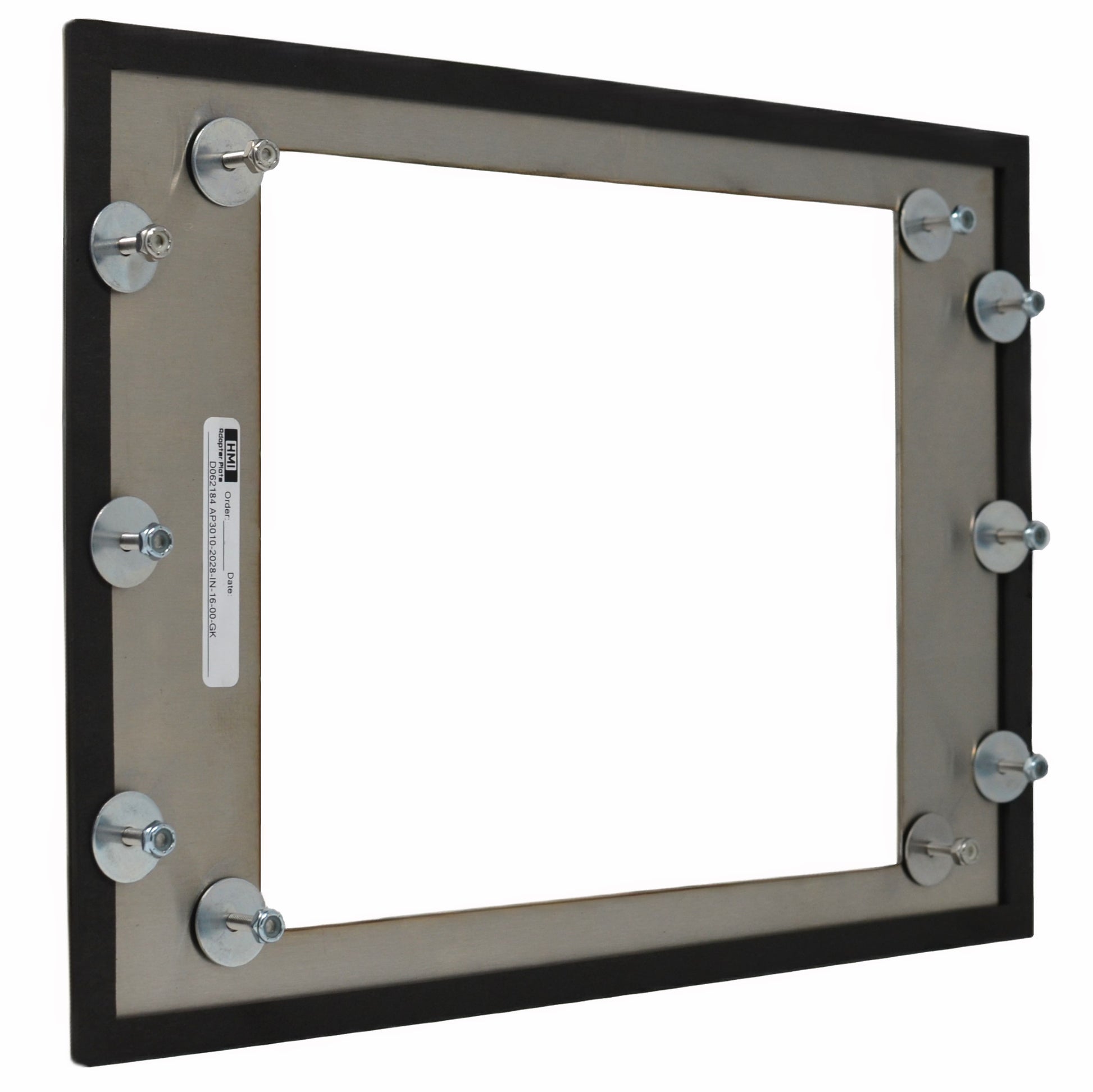

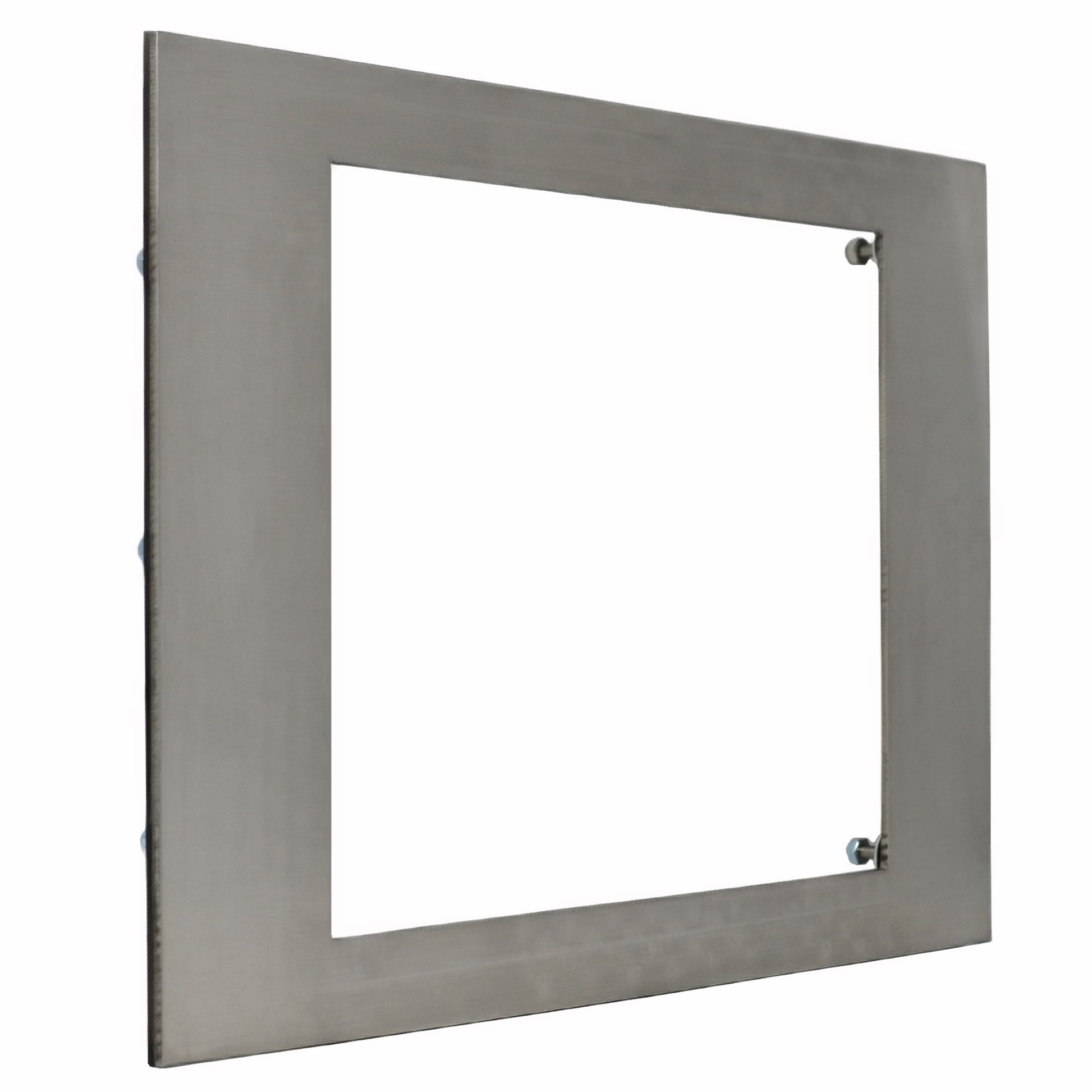

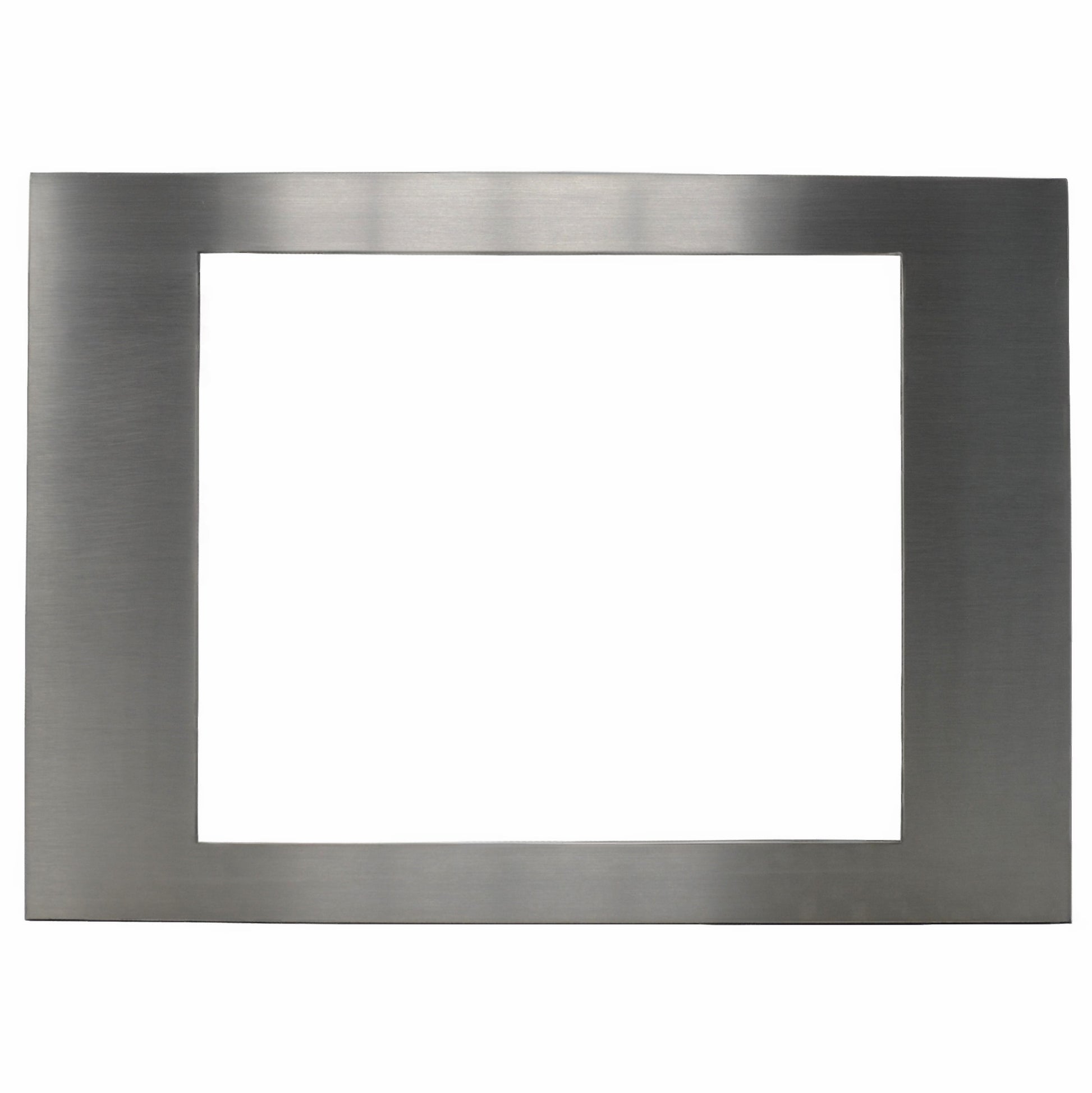

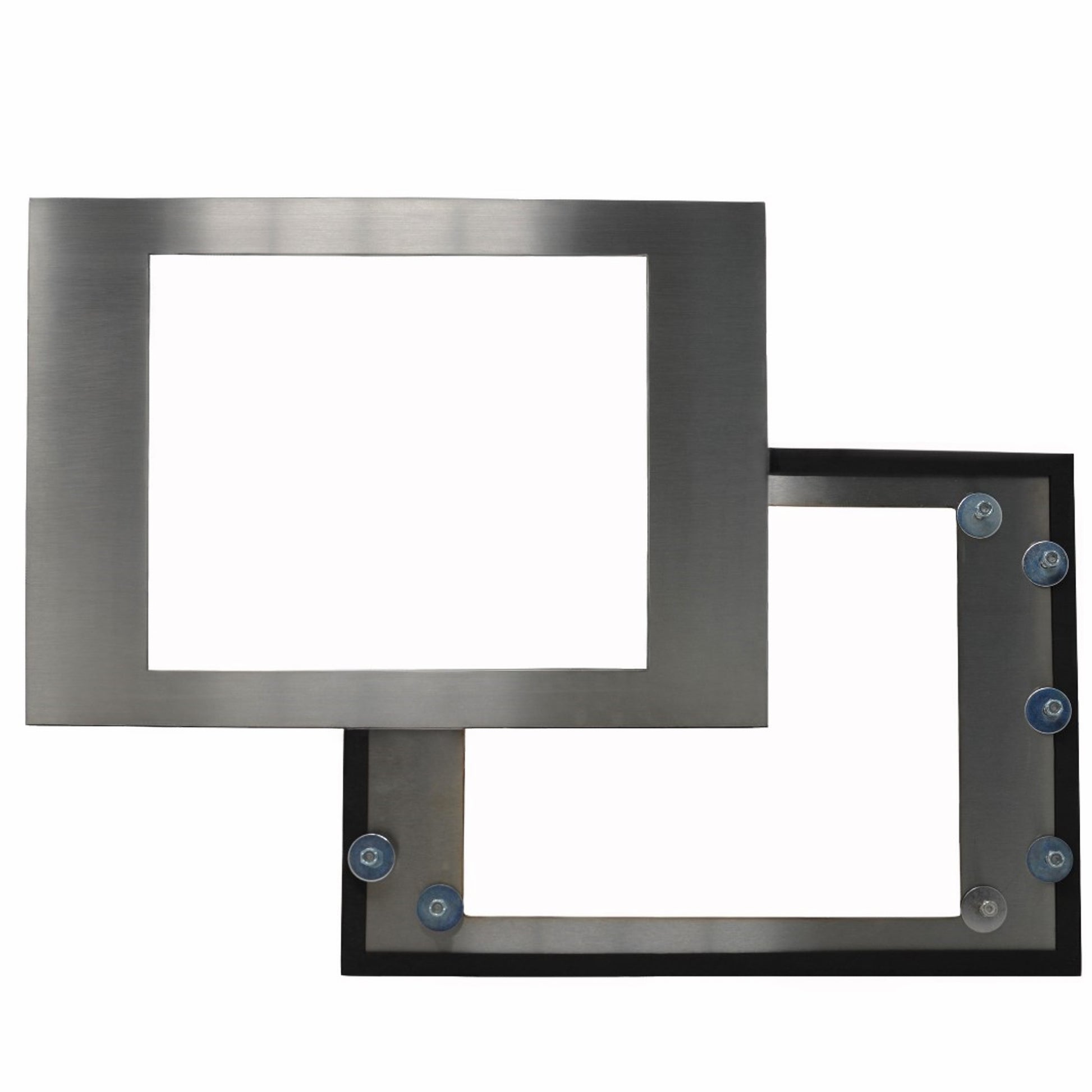

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)

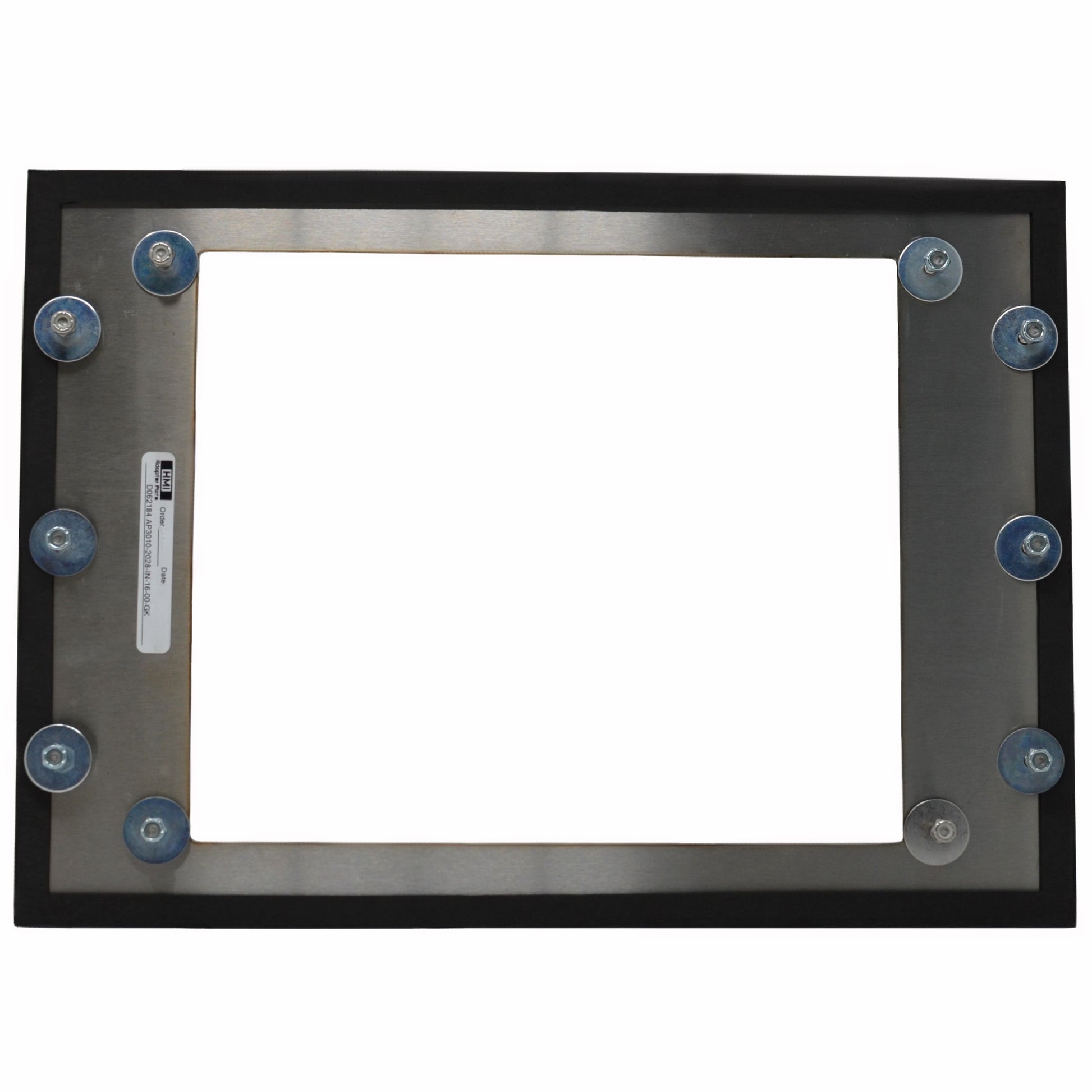

• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

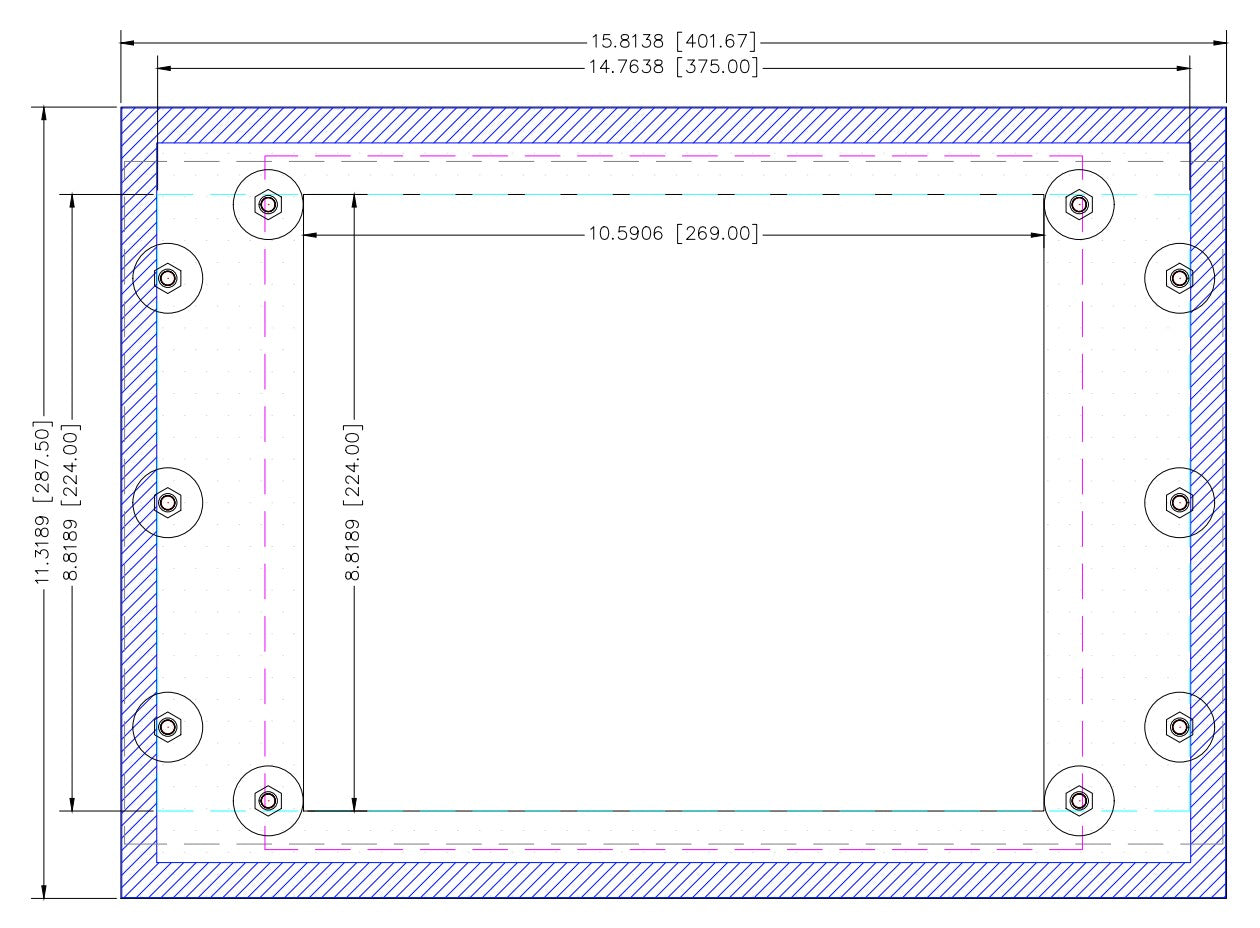

• Drawings: DXF, PDF
