Allen Bradley PanelView Plus 6 1000 Keypad to Allen Bradley PanelView Plus 7 10.4 " Keypad (AP3010-3013-SM)

• Existing HMI:
• Allen Bradley PanelView Plus 1000 Keypad

• Models: 2711P-B10****, 2711P-K10****
• Allen Bradley PanelView Plus 6 1000 Keypad

• Models: 2711P-B10C4A8, 2711P-B10C4A9, 2711P-B10C4D8, 2711P-B10C4D9, 2711P-K10C4A8, 2711P-K10C4A9, 2711P-K10C4D8, 2711P-K10C4D9

• New HMI:
• Allen Bradley PanelView 5000 10.4" Keypad

• Models: 2715-B10CX, 2715P-B10CD
• Allen Bradley PanelView Plus 7 10.4" Keypad

• Models: 2711P-B10C22A9P, 2711P-B10C22D9P

• 11 Gauge Heavy Duty Adapter Plate
• Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
• Includes a Paper Template for Drilling Around Existing Cutout
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

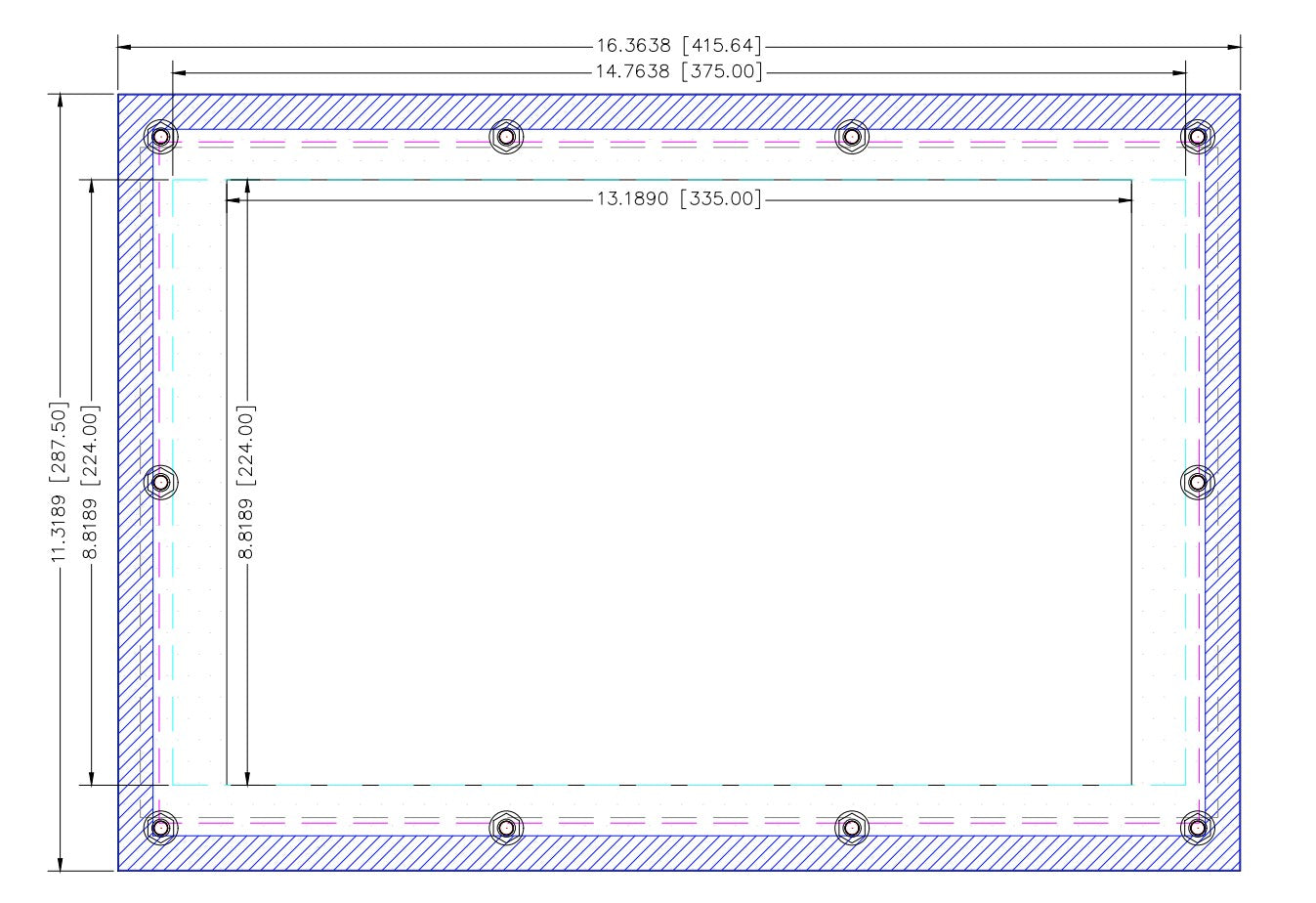

Download DXF: D061134 AP3010-3013-SM
Download PDF: D061134 AP3010-3013-SM

Cross-Reference

Alternative for Allen Bradley #2711P-RAAK10
