HMIAdapterPlate

Allen Bradley PanelView Standard 10" Touch to PanelView Plus 7 10" Touch (AP3017-2028-IN)

Model #:

Allen Bradley PanelView Standard 10" Touch to PanelView Plus 7 10" Touch (AP3017-2028-IN)

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
2 Week Manufacturing Leadtime
Need to Expedite?
  • Existing HMI:
    • Allen Bradley PanelView Standard 1000e Touch
      • Models:  2711E-T10C15, 2711E-T10C6, 2711E-T10C7
    • Allen Bradley PanelView Plus 1250 Touch
      • Models:  2711P-T12****
    • Allen Bradley PanelView Plus 6 1250 Touch
      • Models:  2711P-T12C4A8, 2711P-T12C4A9, 2711P-T12C4D8, 2711P-T12C4D8K, 2711P-T12C4D9
    • Allen Bradley PanelView Standard 1000 Touch
      • Models:  2711-T10C1, 2711-T10C10, 2711-T10C15, 2711-T10C16, 2711-T10C20, 2711-T10C3, 2711-T10C8, 2711-T10C9, 2711-T10G1, 2711-T10G10, 2711-T10G15, 2711-T10G16, 2711-T10G20, 2711-T10G3, 2711-T10G8, 2711-T10G9
    • New HMI:
      • Allen Bradley PanelView 5000 10.4" Touch
        • Models:  2713P-T10CD1, 2715-T10CX, 2715P-T10CD
      • Allen Bradley PanelView Plus 7 10.4" Touch
        • Models:  2711P-T10C21D8S, 2711P-T10C21D8S-B, 2711P-T10C22A9P, 2711P-T10C22D8S, 2711P-T10C22D8S-B, 2711P-T10C22D9P

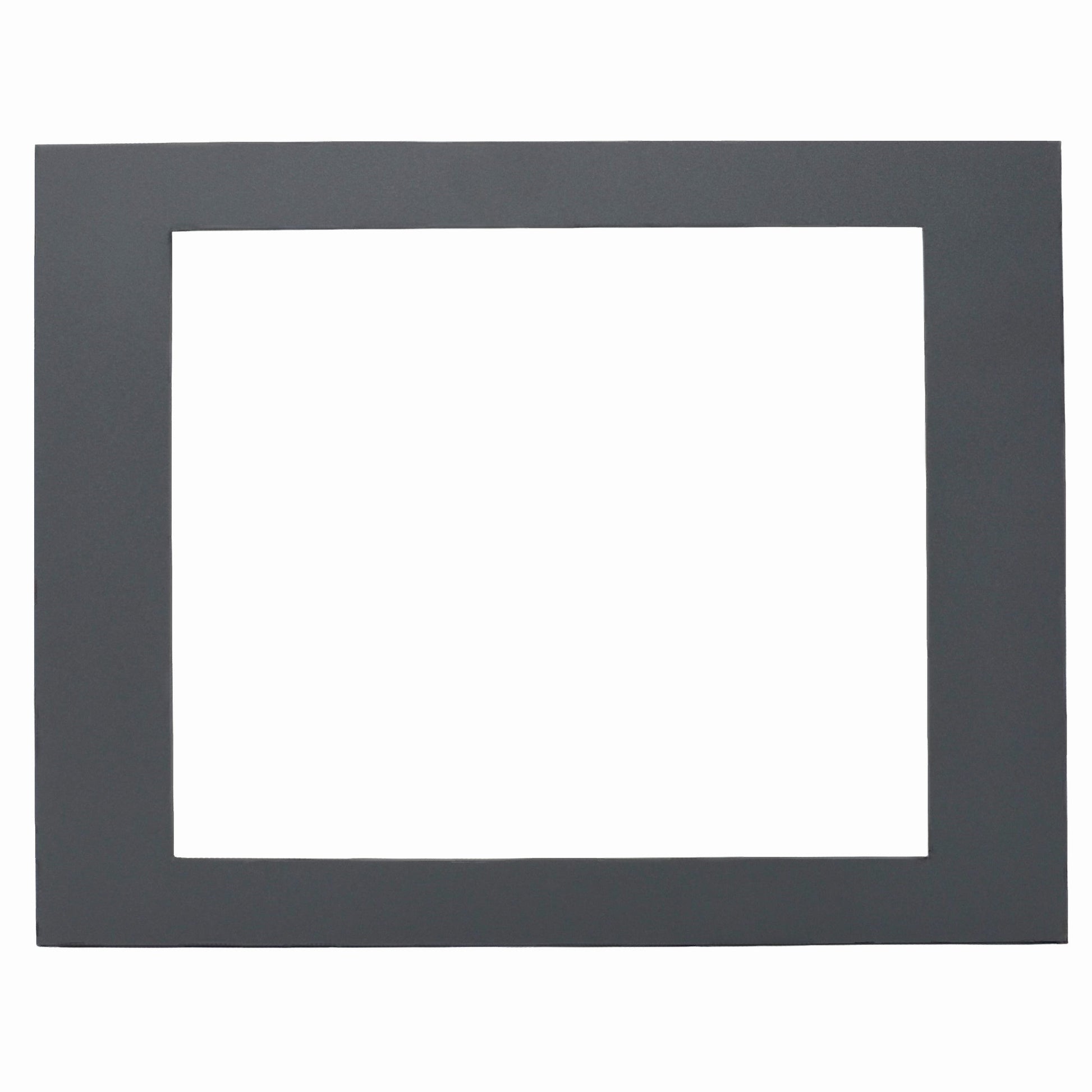

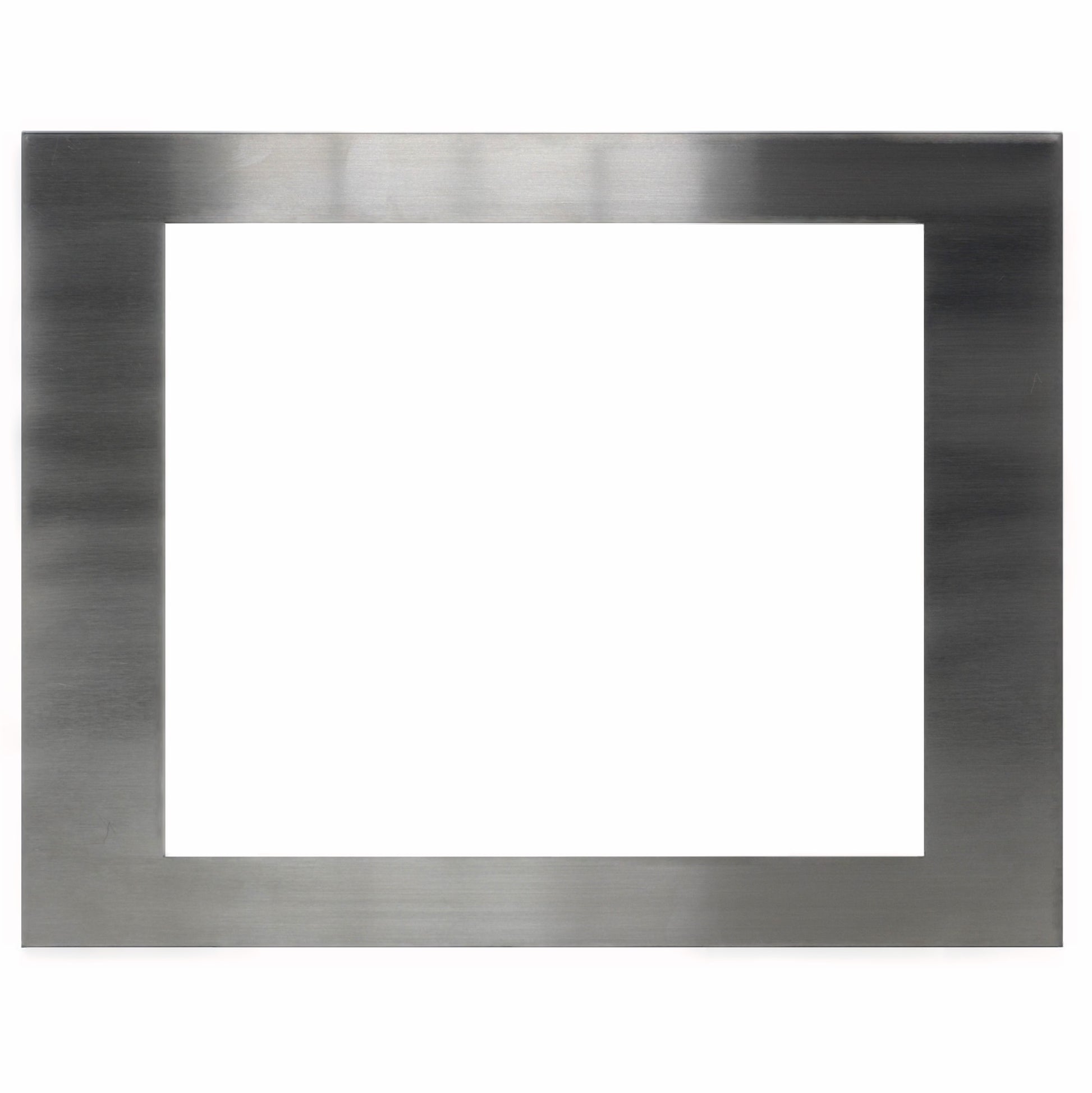

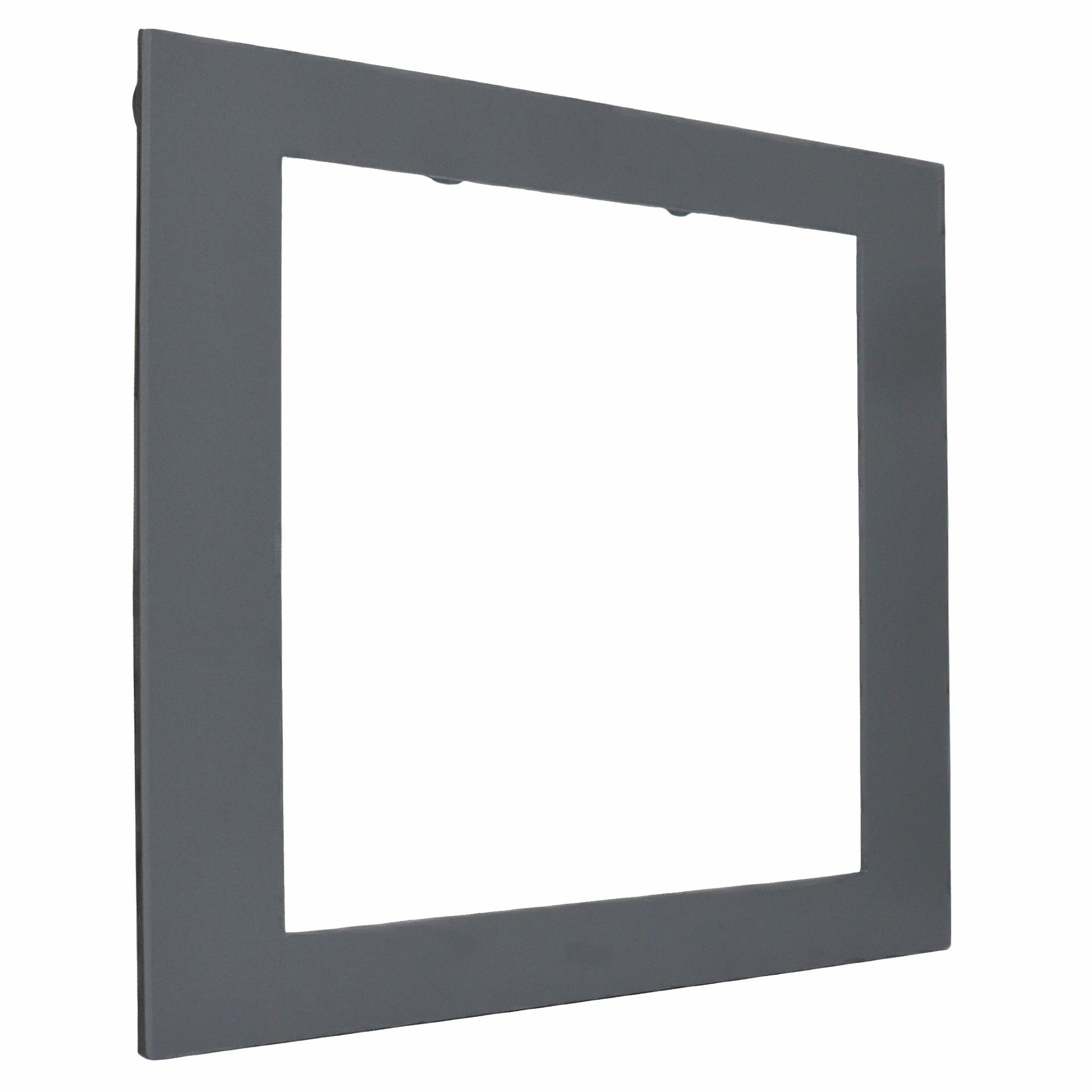

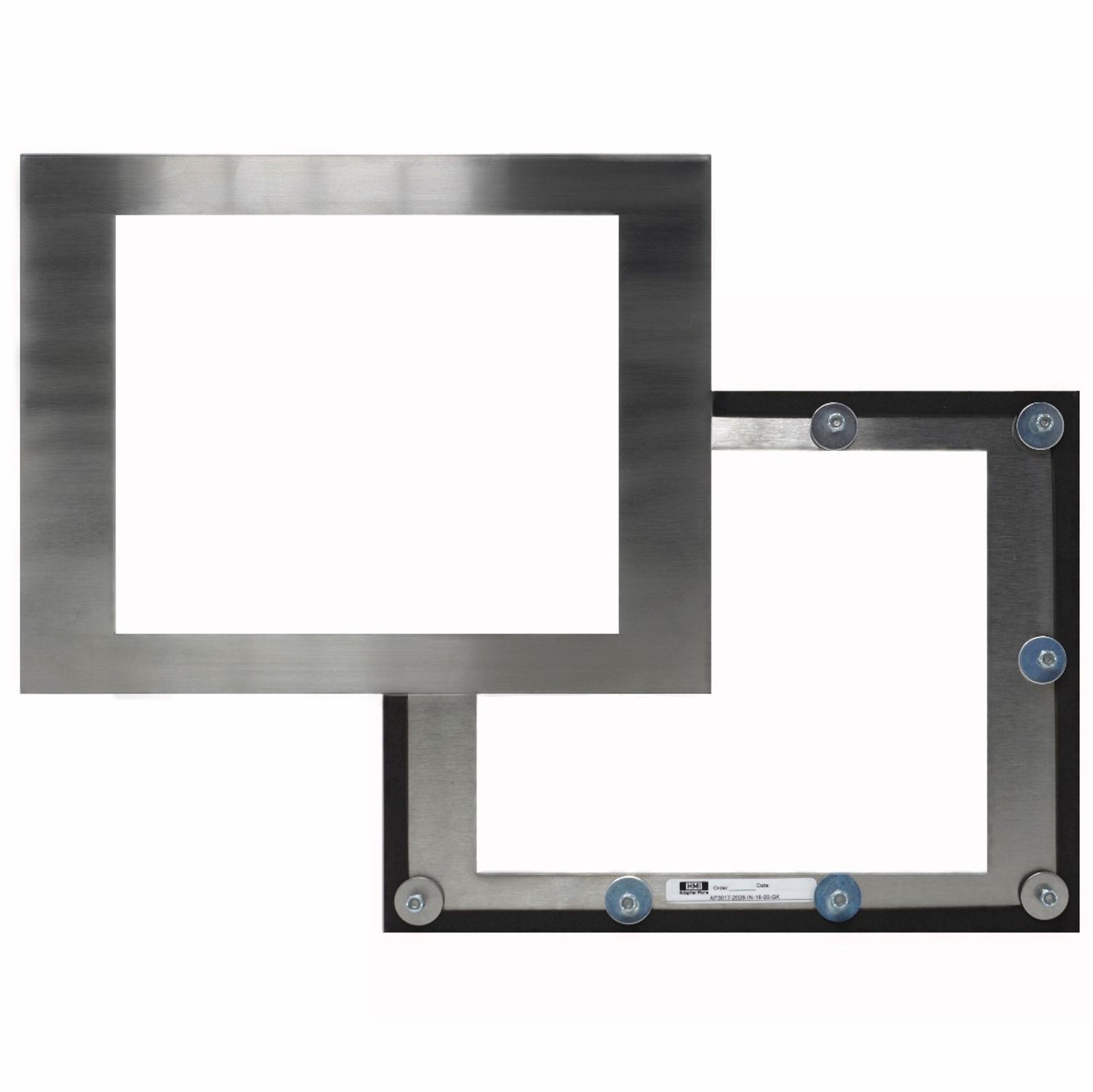

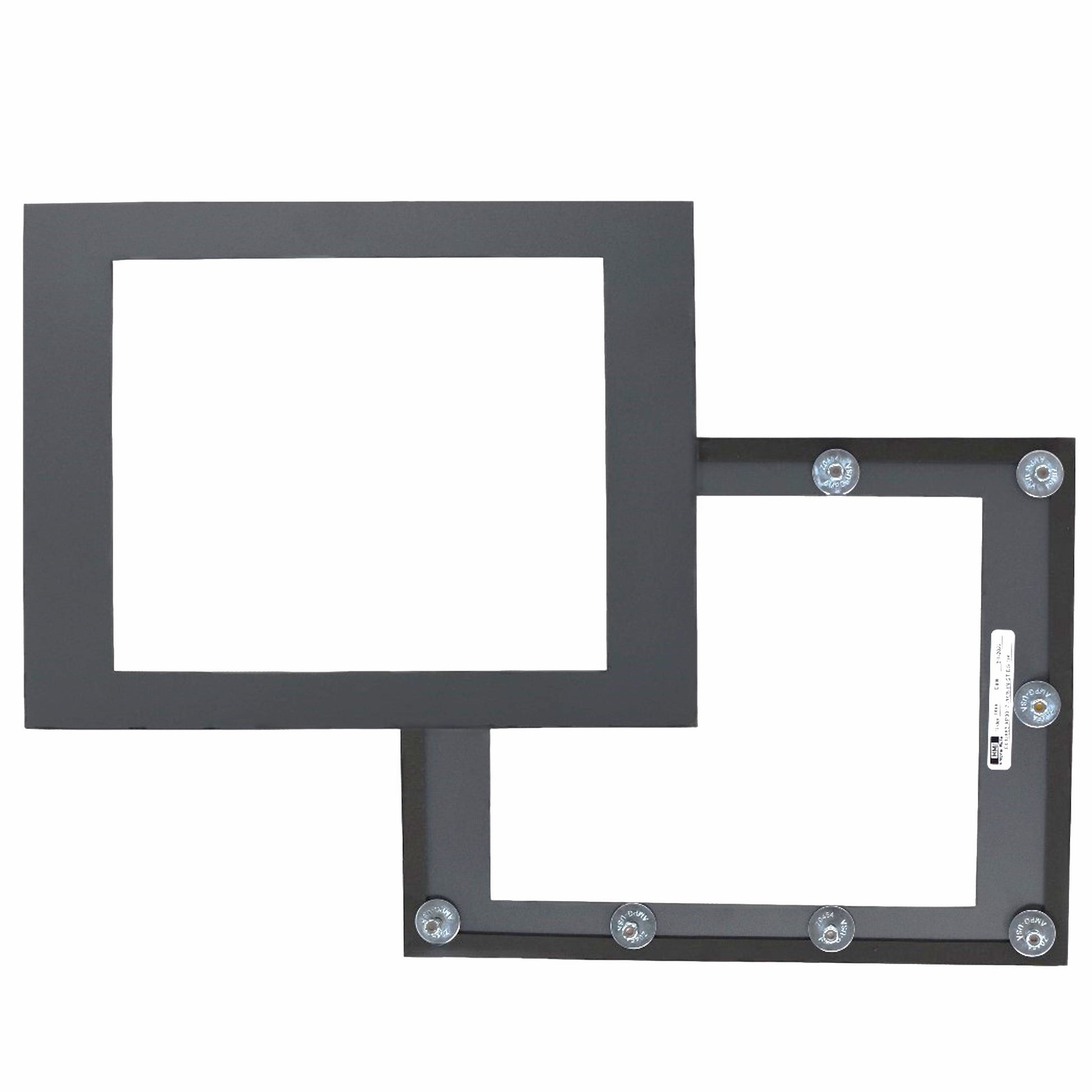

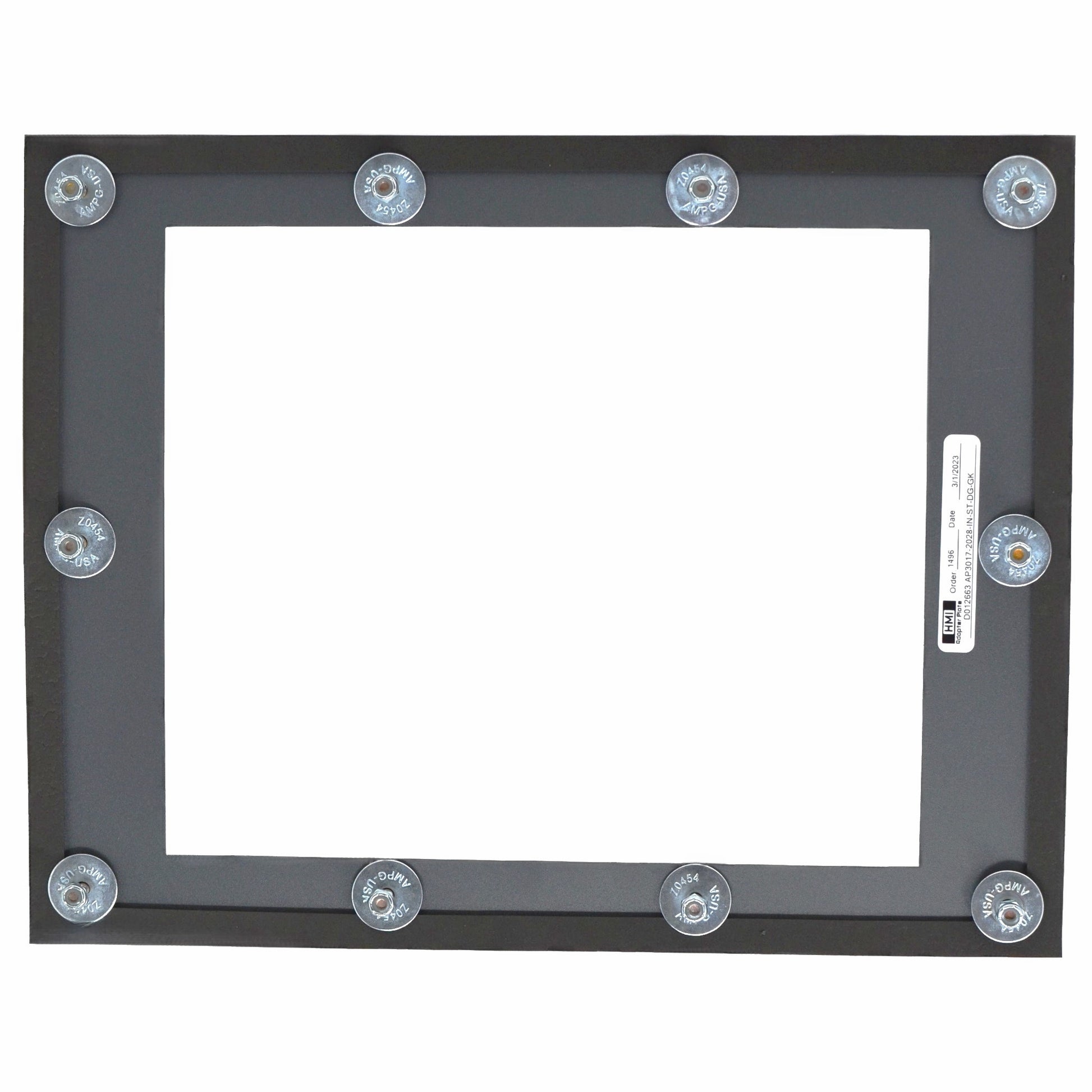

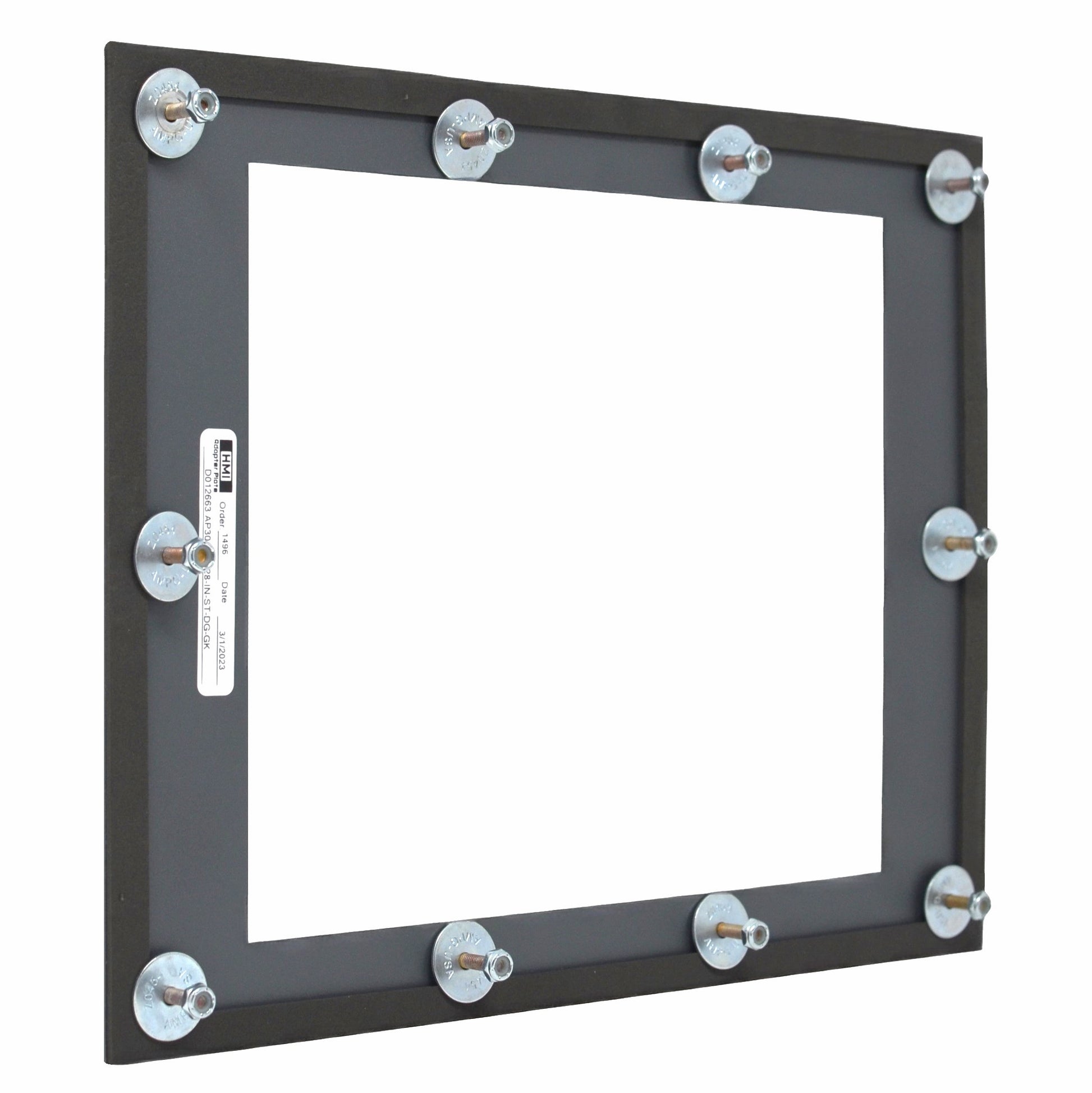

      • 11 Gauge Heavy Duty Adapter Plate
      • No Drilling Required (Plate Mounts Inside Existing Cutout)

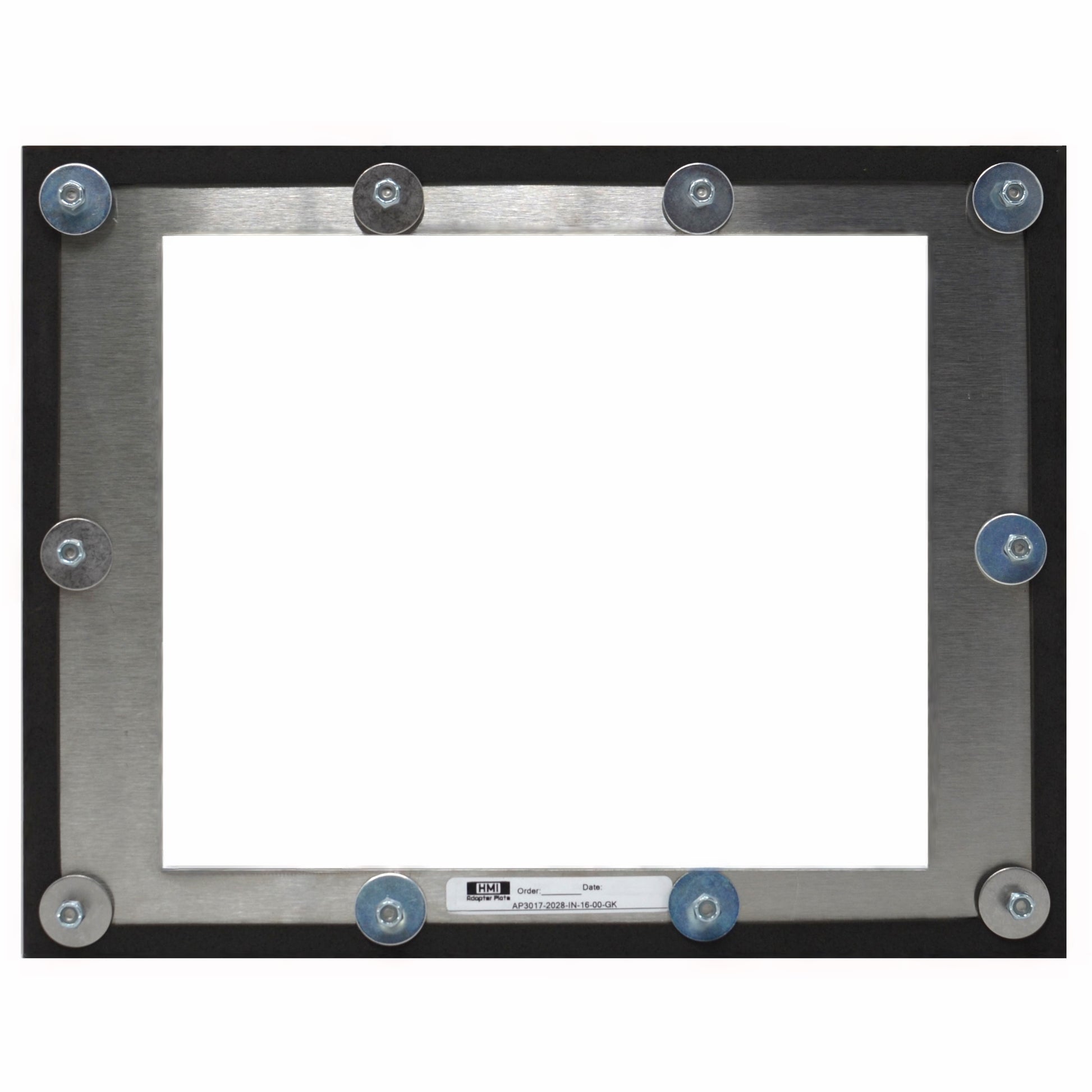

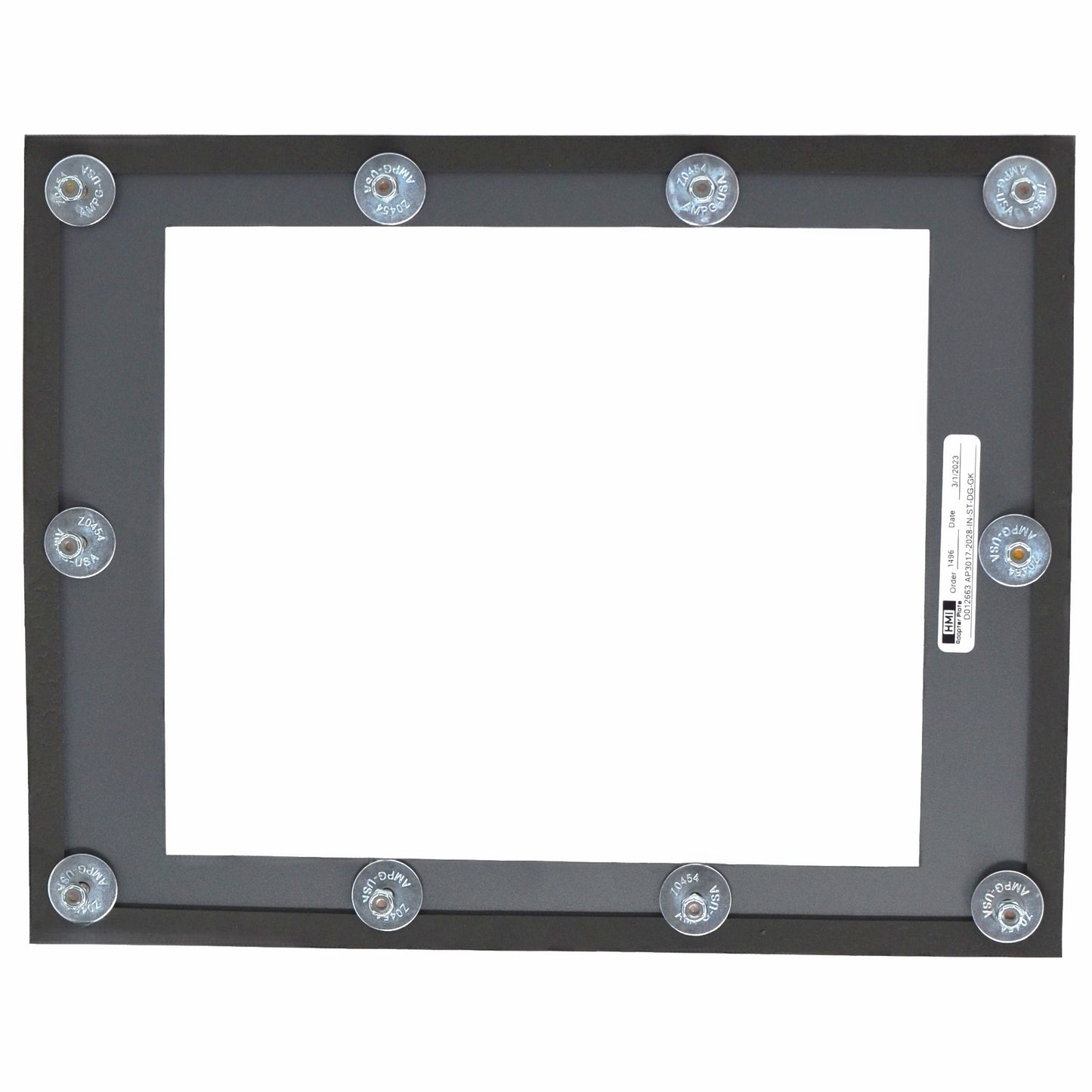

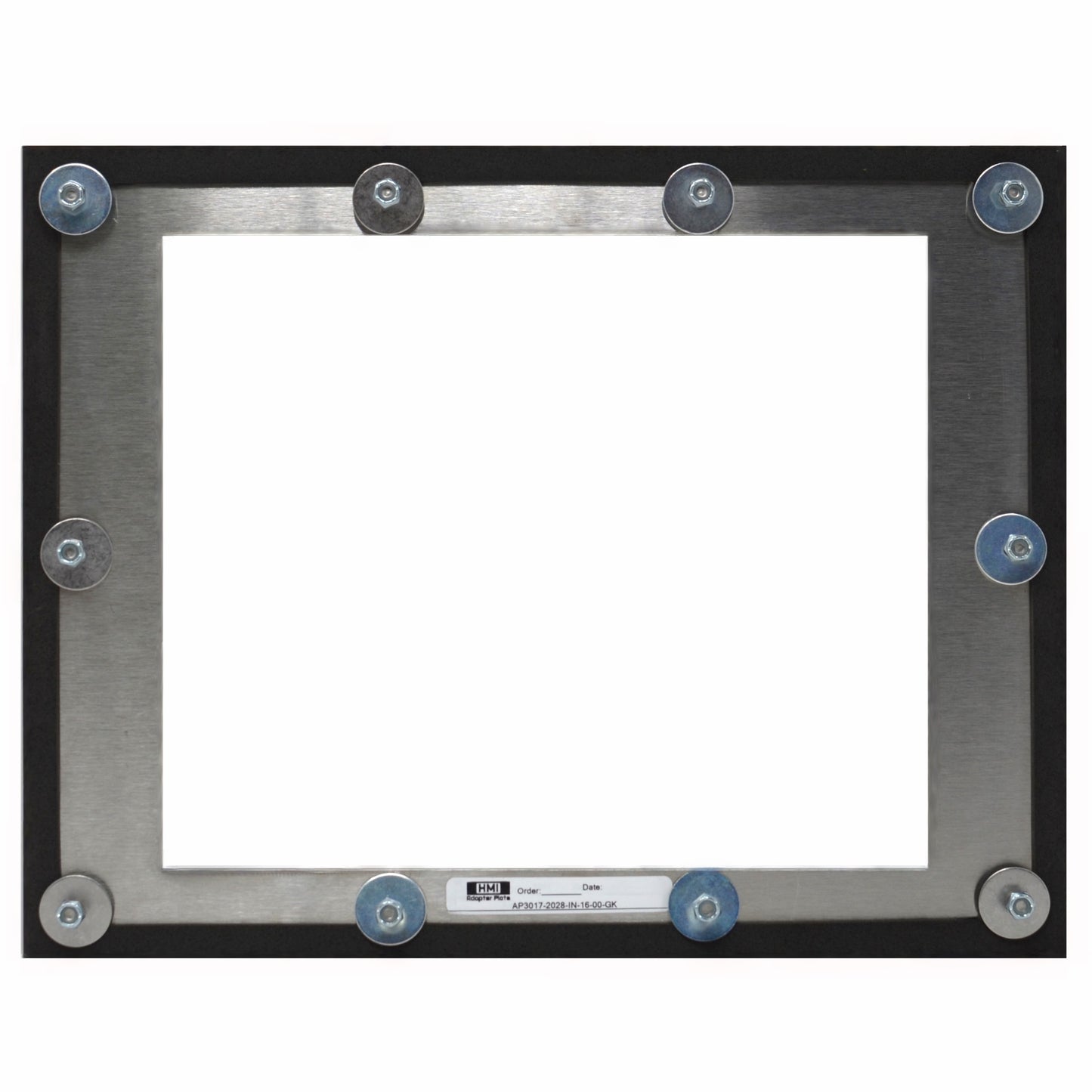

      • Includes Washers and Lock Nuts for Mounting
      • Includes a Seamless Closed-Cell Neoprene Gasket

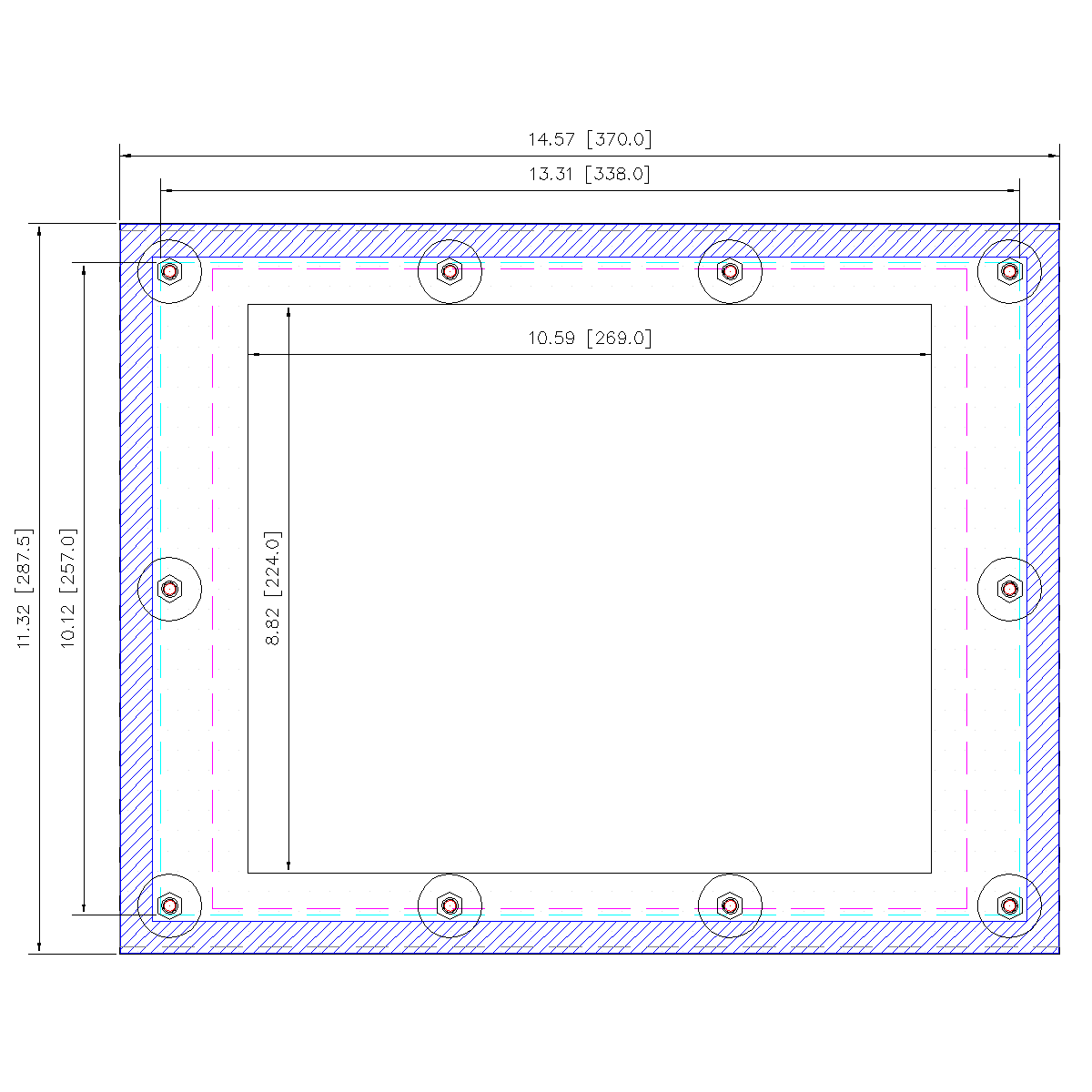

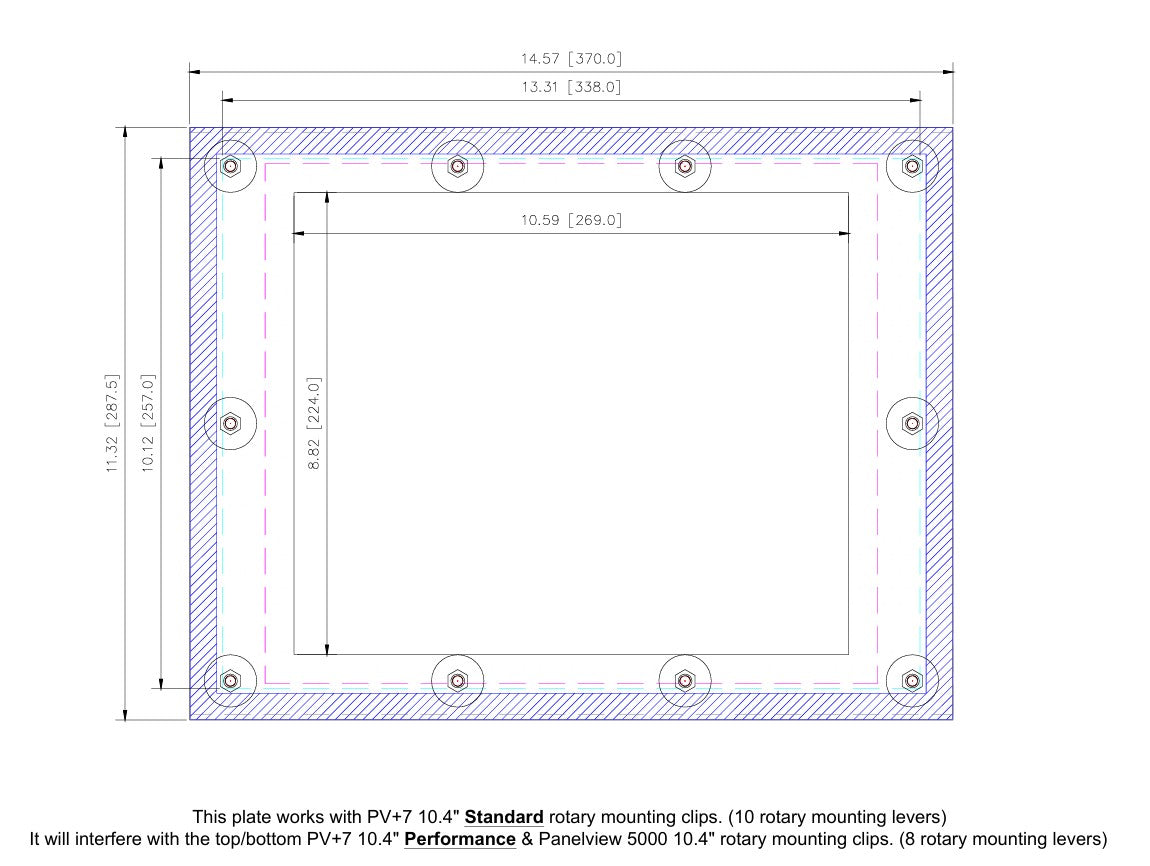

      Download DXF: D012663 AP3017-2028-IN
      Download PDF: D012663 AP3017-2028-IN

      Notes
      This plate replaces #AP3016-2028-IN


      Rating:
      • Steel: NEMA 12, 13, 1
      • Stainless: NEMA 4X, 4, 12, 13, 1
      • IP66
