Allen Bradley PanelView Standard 10" Touch to Allen Bradley PanelView Plus 7 12.1" Touch (AP3017-3005-IN)

• Existing HMI:
• Allen Bradley PanelView 1000e Touch
• Models: 2711E-T10C15, 2711E-T10C6, 2711E-T10C7
• Allen Bradley PanelView Plus 1250 Touch
• Models: 2711P-T12****
• Allen Bradley PanelView Plus 6 1250 Touch
• Models: 2711P-T12C4A8, 2711P-T12C4A9, 2711P-T12C4D8, 2711P-T12C4D8K, 2711P-T12C4D9
• Allen Bradley PanelView Standard 1000 Touch
• Models: 2711-T10C1, 2711-T10C10, 2711-T10C15, 2711-T10C16, 2711-T10C20, 2711-T10C3, 2711-T10C8, 2711-T10C9, 2711-T10G1, 2711-T10G10, 2711-T10G15, 2711-T10G16, 2711-T10G20, 2711-T10G3, 2711-T10G8, 2711-T10G9

• New HMI:
• Allen Bradley PanelView 5000 12.1" Touch
• Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
• Allen Bradley PanelView Plus 7 12.1" Touch
• Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

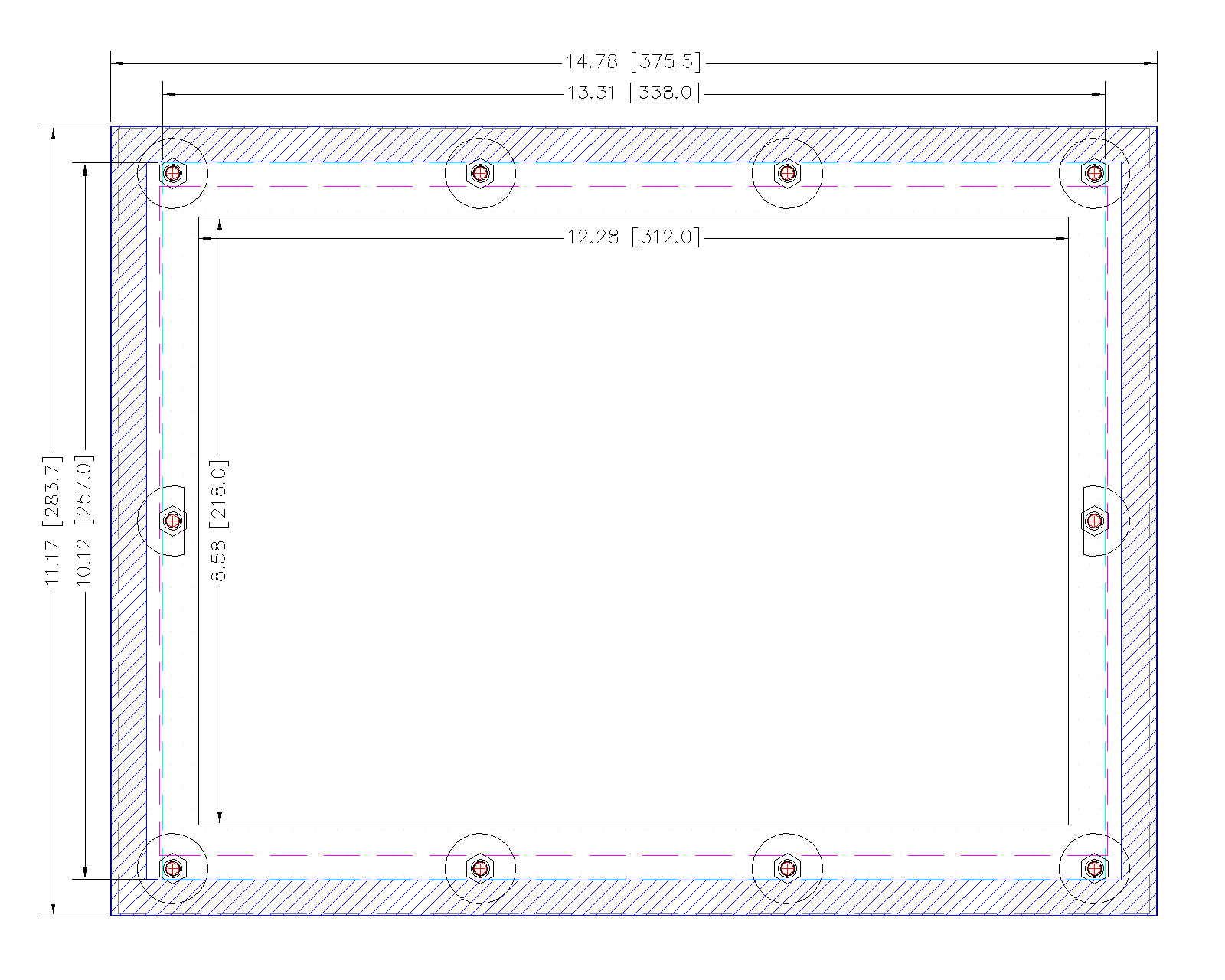

Download DXF: D028791 AP3017-3005-IN
Download PDF: D028791 AP3017-3005-IN

Notes
This plate replaces #AP3016-3005-IN

Cross-Reference
Allen Bradley #2711P-RAAT12
