Omron NS Series 10.4" and 12.1" Touch to Omron NA Series 12" Wide (AP3030-3141-SM)

Model #:

Omron NS Series 10.4" and 12.1" Touch to Omron NA Series 12" Wide (AP3030-3141-SM)

$250.00 USD
$250.00 USD
Sale Sold out
Shipping calculated at checkout.
2 Week Manufacturing Leadtime
Need to Expedite or Same-Day Ship?

Specifications:

  • Existing HMI:
    • Omron NS Series 10.4" Touch
      • Models: NS10-TV00-V2, NS10-TV00B-V2, NS10-TV01-V2, NS10-TV01B-V2
    • Omron NS Series 12.1" Touch
      • Models: NS12-TS00-V2, NS12-TS00B-V2, NS12-TS01-V2, NS12-TS01B-V2
  • New HMI:
    • Omron NA Series 12" Wide
      • Models: NA5-12W

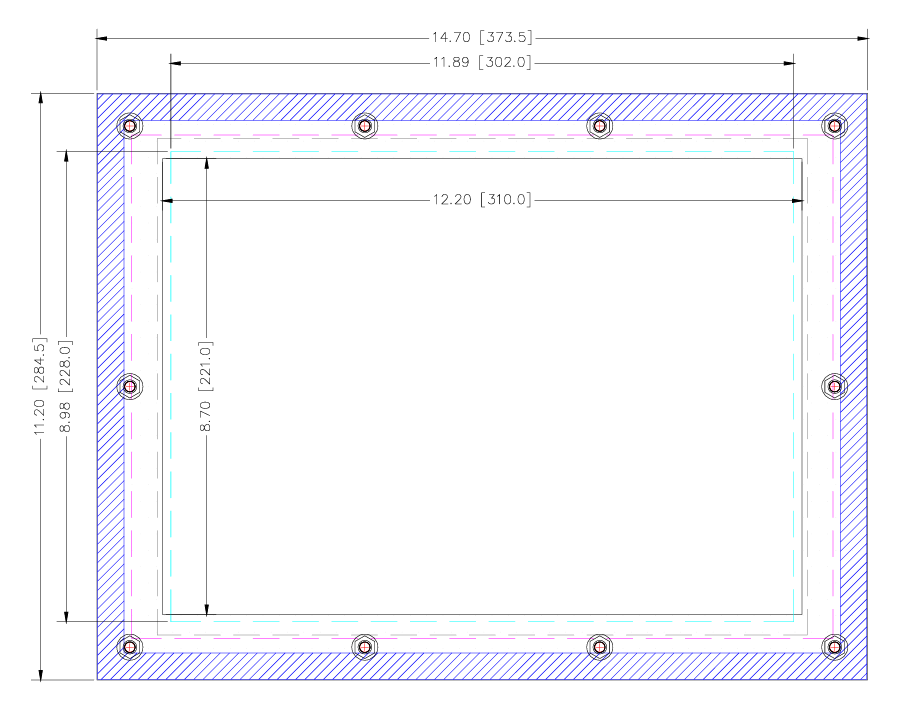

  • 11 Gauge Heavy Duty Adapter Plate
  • Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
  • Includes a Paper Template for Drilling Around Existing Cutout
  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

Documents:


Rating:
  • Steel: NEMA 12, 1
  • Stainless: NEMA 4X, 4, 12, 1
  • IP66
