Schneider Electric Magelis 12.1" Touch to Schneider Electric Magelis 12" Touch (AP3076-3078-SM)

Specifications:

• Existing HMI:
  • Schneider Electric Magelis 12.1" Touch
    • Models: HMIGTO6310

• New HMI:
• Schneider Electric Magelis 12" Touch
• Models: HMIDT65X

• 11 Gauge Heavy Duty Adapter Plate
• Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
• Includes a Paper Template for Drilling Around Existing Cutout
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

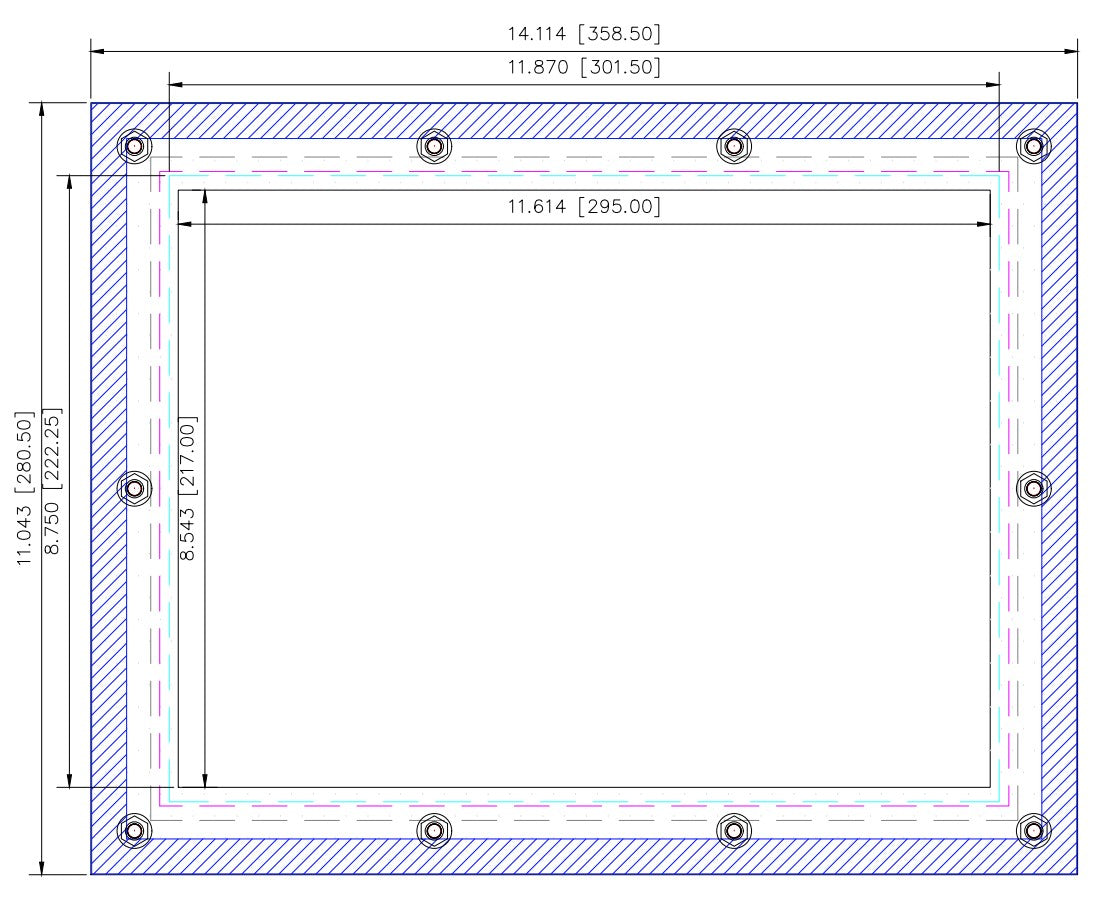

• Drawings: DXF, PDF


• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
