Allen Bradley Panel PC 6200P 12.1" Touch to Allen Bradley PanelView Plus 7 12" Touch (AP3083-3005-IN)

Specifications:

• Existing HMI:
  • Allen Bradley Panel PC 6200P (VersaView 5400) 12.1" Touch
    • Models: 6200P-12WS3*1

• New HMI:
  • Allen Bradley PanelView 5000 12.1" Touch
    • Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
  • Allen Bradley PanelView Plus 7 12" Touch
    • Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

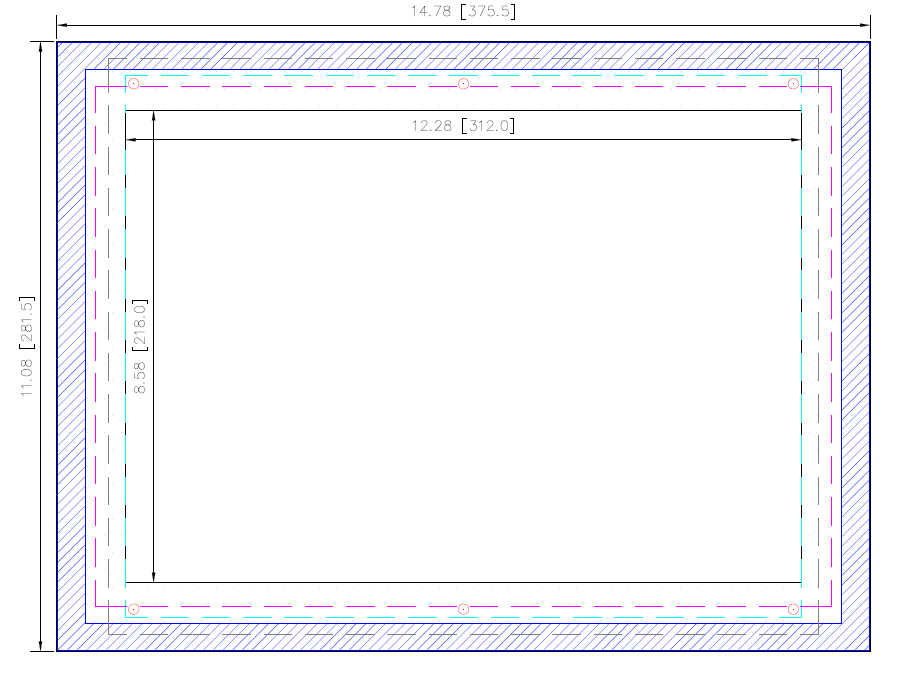

• Drawings: DXF, PDF
