Allen Bradley PanelView Plus 6 1250 Keypad to Allen Bradley PanelView Plus 7 15" Touch (AP4003-3021-SM)
Model #:
Allen Bradley PanelView Plus 6 1250 Keypad to Allen Bradley PanelView Plus 7 15" Touch (AP4003-3021-SM)
Regular price
$285.00 USD
Regular price
Sale price
$285.00 USD
Unit price
per
Shipping calculated at checkout.
2 Week Manufacturing Leadtime
Need to Expedite?
Need to Expedite?
Couldn't load pickup availability
Specifications:
- Existing HMI:
- Allen Bradley PanelView Plus 1250 Keypad
- Models: 2711P-B12****, 2711P-K12****
- Allen Bradley PanelView Plus 6 1250 Keypad
- Models: 2711P-B12C4A8, 2711P-B12C4A9, 2711P-B12C4D8, 2711P-B12C4D9, 2711P-K12C4A8, 2711P-K12C4A9, 2711P-K12C4D8, 2711P-K12C4D9
- Allen Bradley PanelView Plus 1250 Keypad
- New HMI:
- Allen Bradley PanelView 5000 15" Touch
- Models: 2715-T15CX, 2715P-T15CD
- Allen Bradley PanelView Plus 7 15" Touch
-
Models: 2711P-T15C21D8S, 2711P-T15C21D8S-B, 2711P-T15C22A9P, 2711P-T15C22D8S, 2711P-T15C22D8S-B, 2711P-T15C22D9P
-
Models: 2711P-T15C21D8S, 2711P-T15C21D8S-B, 2711P-T15C22A9P, 2711P-T15C22D8S, 2711P-T15C22D8S-B, 2711P-T15C22D9P
- Allen Bradley PanelView 5000 15" Touch

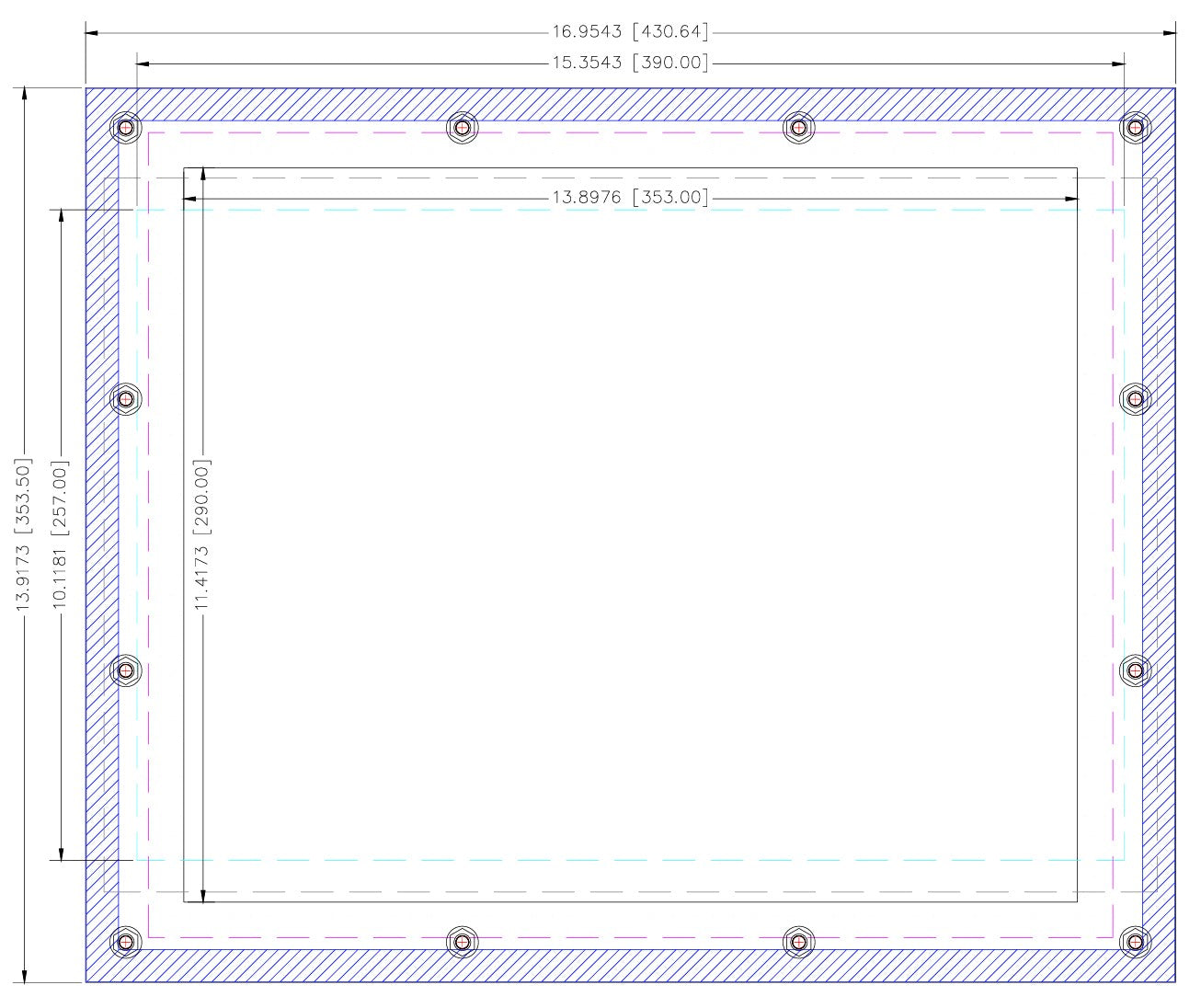

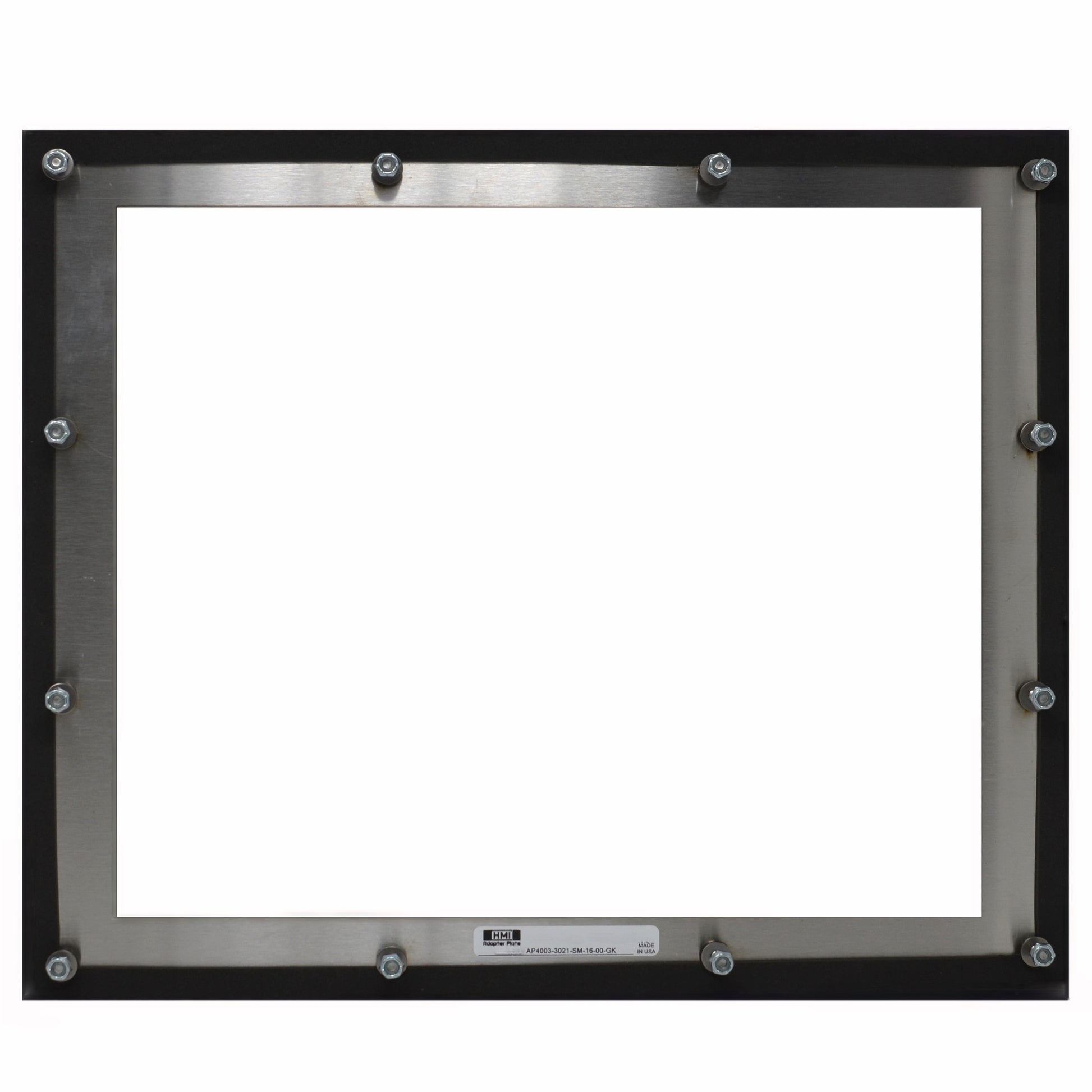

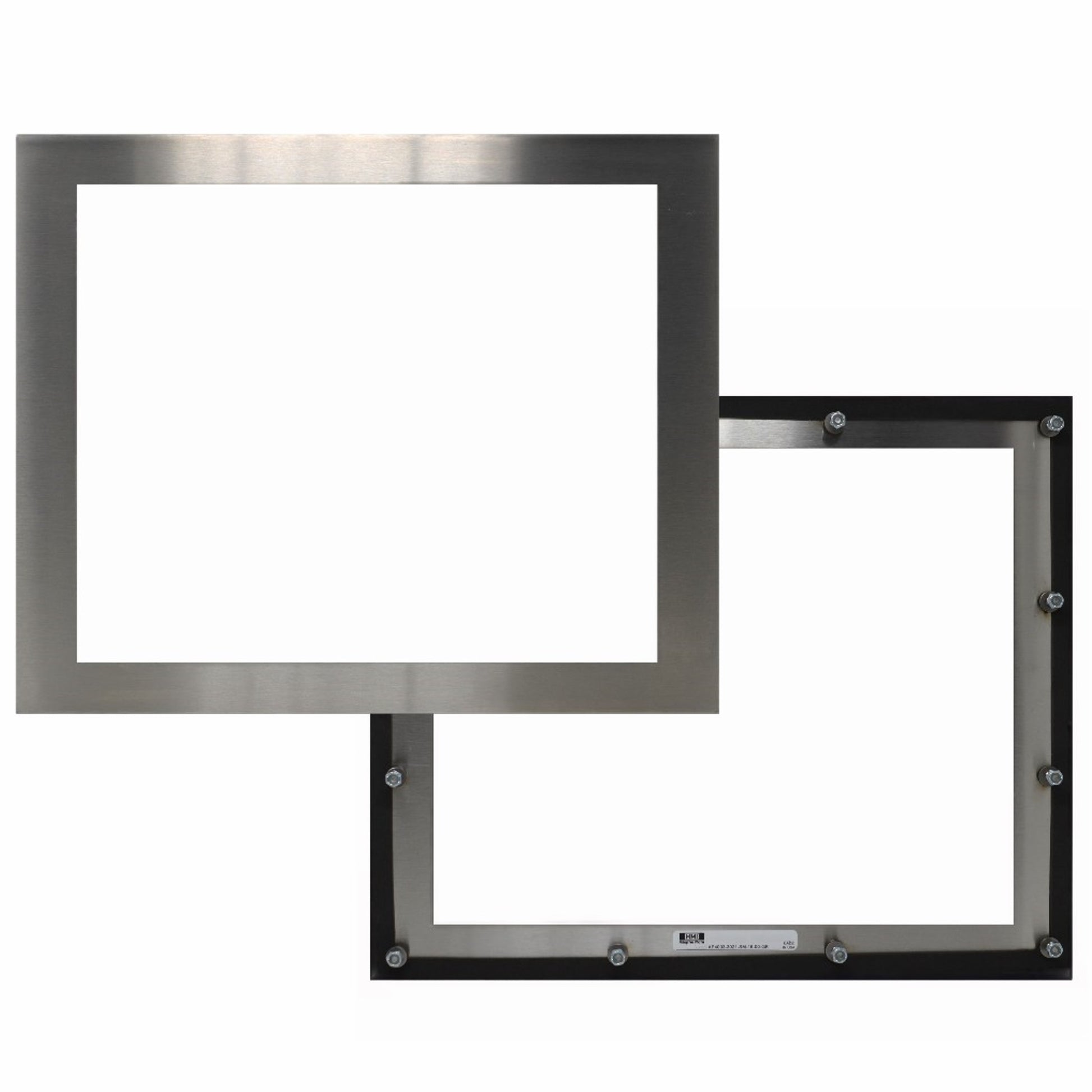

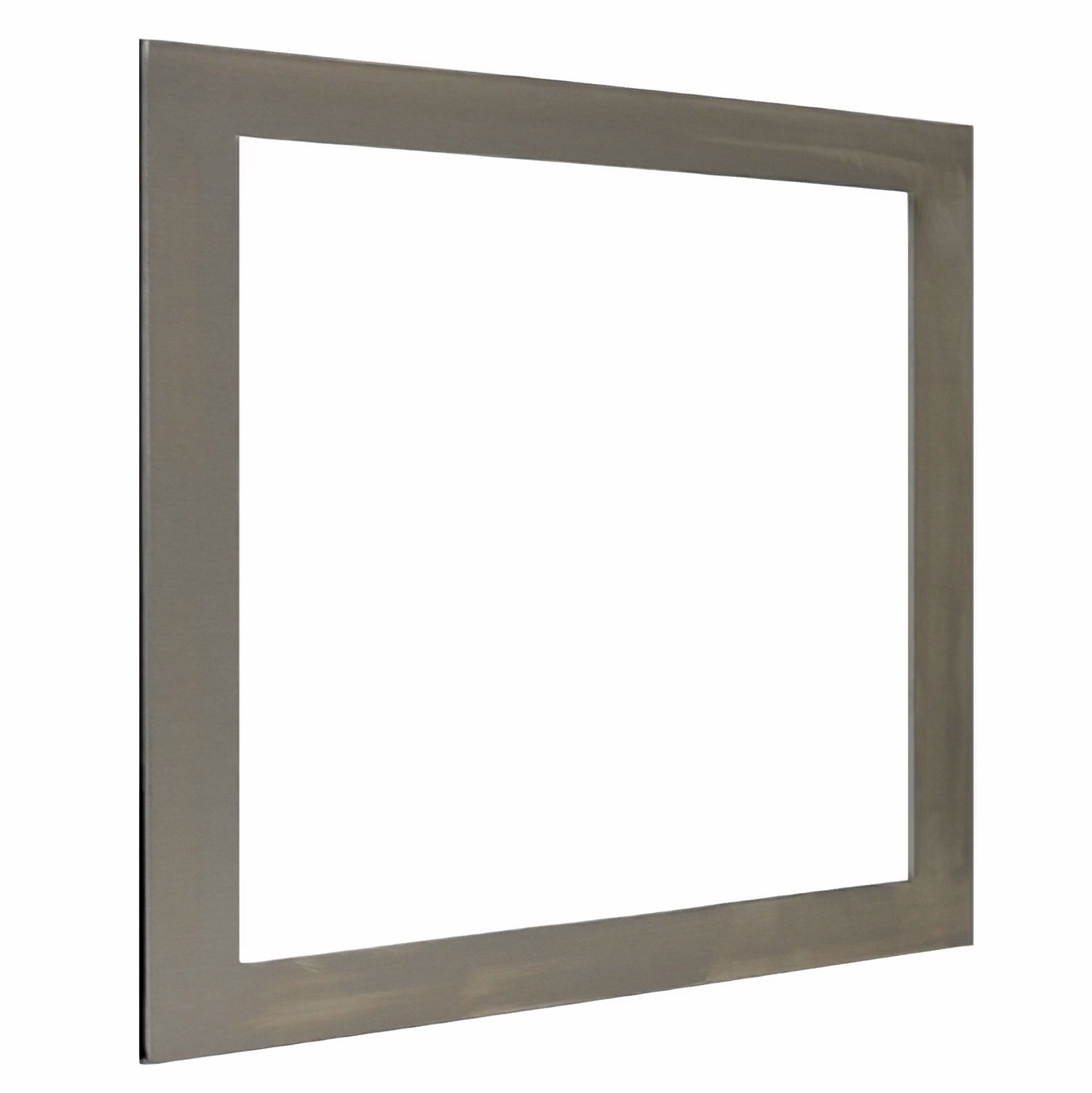

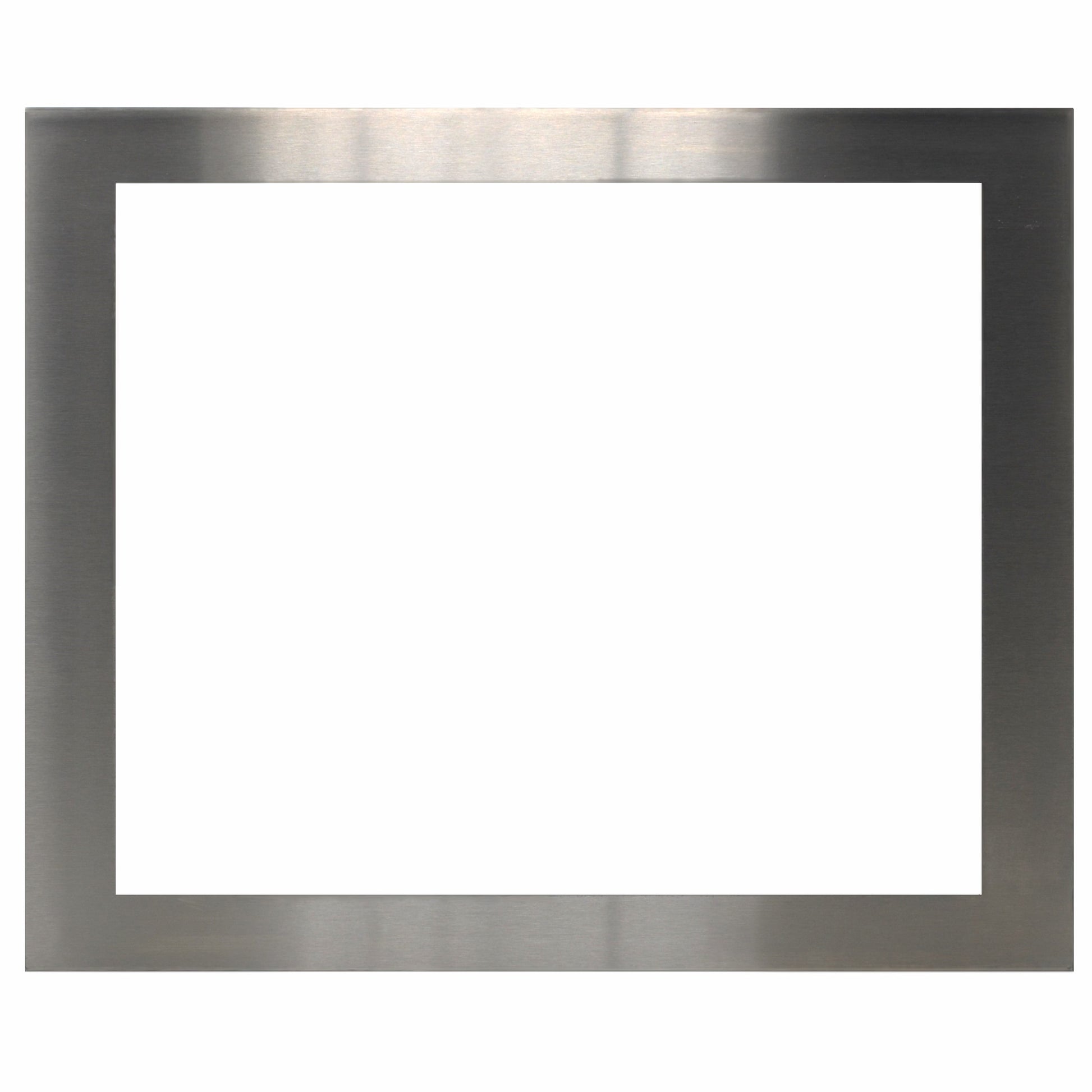

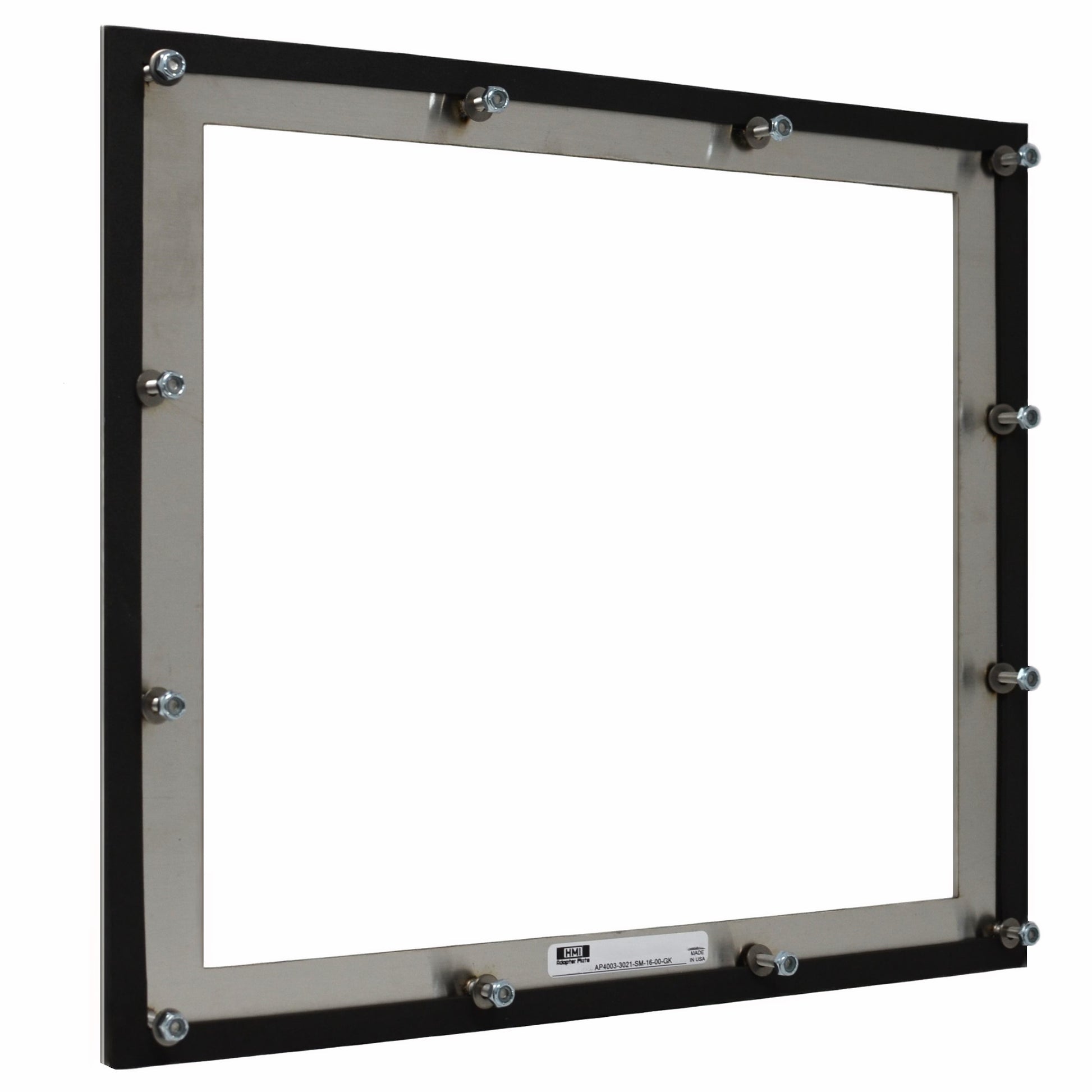

- 11 Gauge Heavy Duty Adapter Plate
- Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
- Includes a Paper Template for Drilling Around Existing Cutout
- Includes Washers and Lock Nuts for Mounting
- Includes a Seamless Closed-Cell Neoprene Gasket
Documents:
Rating:
- Steel: NEMA 12, 13, 1
- Stainless: NEMA 4X, 4, 12, 13, 1
- IP66
