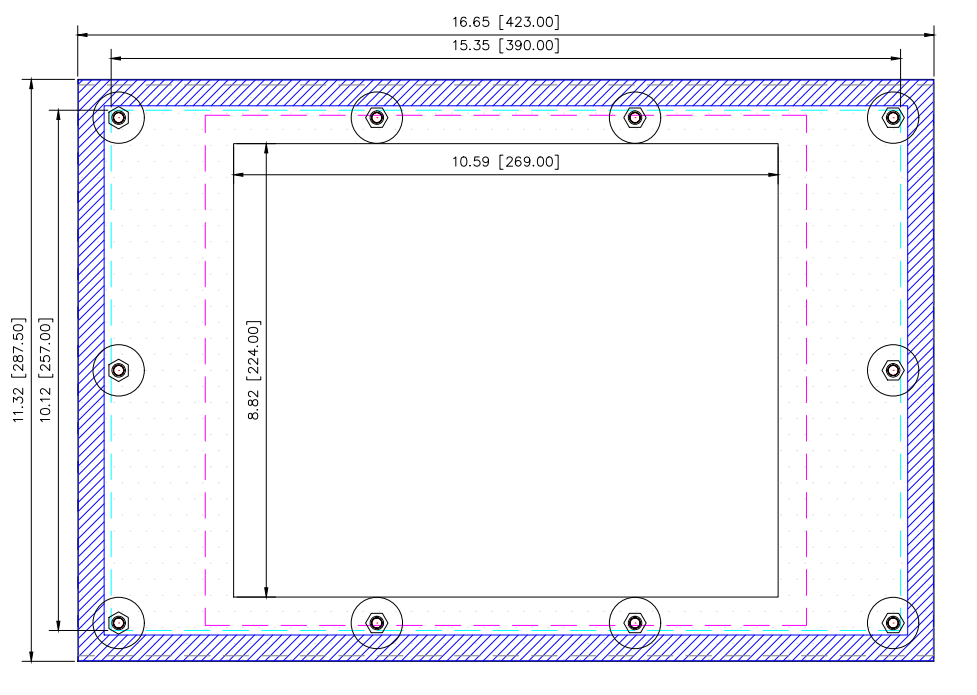

Allen Bradley PanelView Standard 10" Keypad to Allen Bradley PanelView Plus 7 10" Touch (AP4004-2028)

• Existing HMI:
• Allen Bradley PanelView 1000e Keypad
• Models: 2711E-K10C15, 2711E-K10C6, 2711E-K10C7
• Allen Bradley PanelView Standard 1000 10" Keypad
• Models: 2711-K10C1, 2711-K10C10, 2711-K10C15, 2711-K10C16, 2711-K10C20, 2711-K10C3, 2711-K10C8, 2711-K10C9, 2711-K10G1, 2711-K10G10, 2711-K10G15, 2711-K10G16, 2711-K10G20, 2711-K10G3, 2711-K10G8, 2711-K10G9

• New HMI:
• Allen Bradley PanelView 5000 10.4' Touch
• Models: 2713P-T10CD1, 2715-T10CX, 2715P-T10CD
• Allen Bradley PanelView Plus 7 10" Touch
• Models: 2711P-T10C21D8S, 2711P-T10C21D8S-B, 2711P-T10C22A9P, 2711P-T10C22D8S, 2711P-T10C22D8S-B, 2711P-T10C22D9P

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes a Seamless Closed-Cell Neoprene Gasket
• Includes Washers and Lock Nuts for Mounting

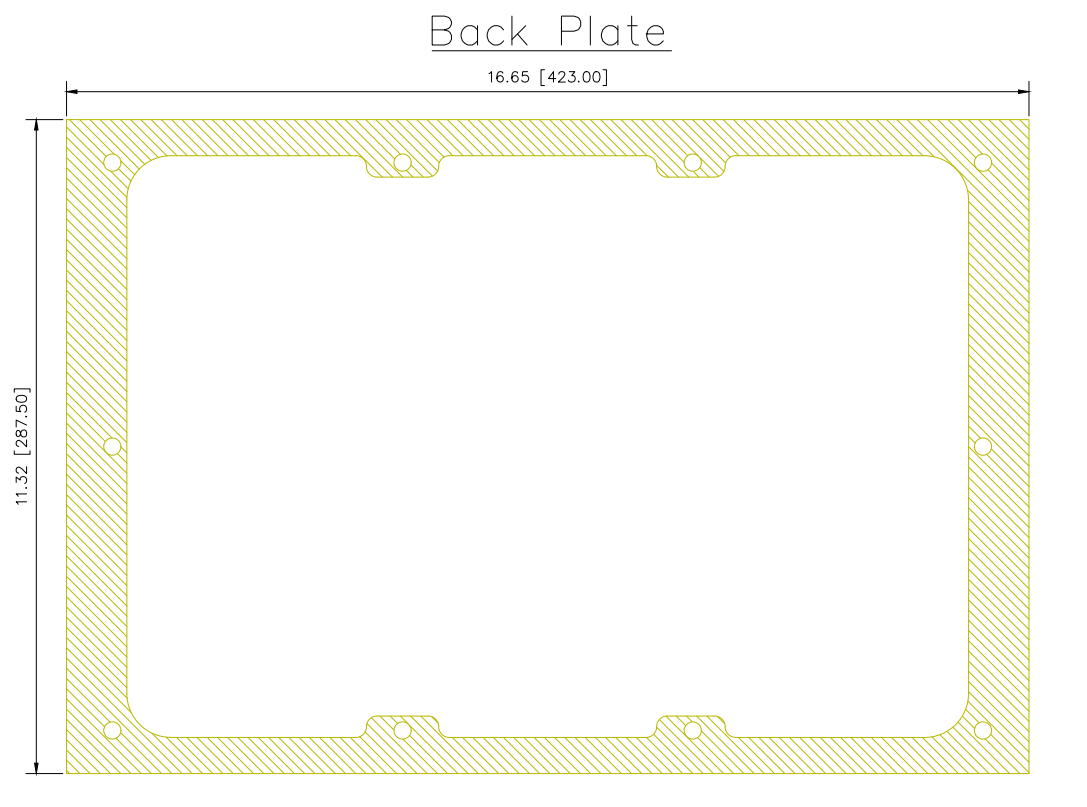

• Backplate Mount Option
• 11 Gauge Powder Coated Steel Back Plate

Download DXF:  D030806 AP4004-2028-IN
Download PDF: D030806 AP4004-2028-IN

Download DXF:  D019699 AP4004-2028-BP
Download PDF: D019699 AP4004-2028-BP

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
