Allen Bradley PanelView Standard 10" Keypad to Allen Bradley PanelView Plus 7 12.1" Touch (AP4004-3005-IN)

Specifications:

• Existing HMI:
  • Allen Bradley PanelView 1000e Keyboard
    • Models: 2711E-K10C15, 2711E-K10C6, 2711E-K10C7
  • Allen Bradley PanelView Standard 1000 10" Keypad
    • Models: 2711-K10C1, 2711-K10C10, 2711-K10C15, 2711-K10C16, 2711-K10C20, 2711-K10C3, 2711-K10C8, 2711-K10C9, 2711-K10G1, 2711-K10G10, 2711-K10G15, 2711-K10G16, 2711-K10G20, 2711-K10G3, 2711-K10G8, 2711-K10G9

• New HMI:
• Allen Bradley PanelView 5000 12.1" Touch
• Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
• Allen Bradley PanelView Plus 7 12.1" Touch
• Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

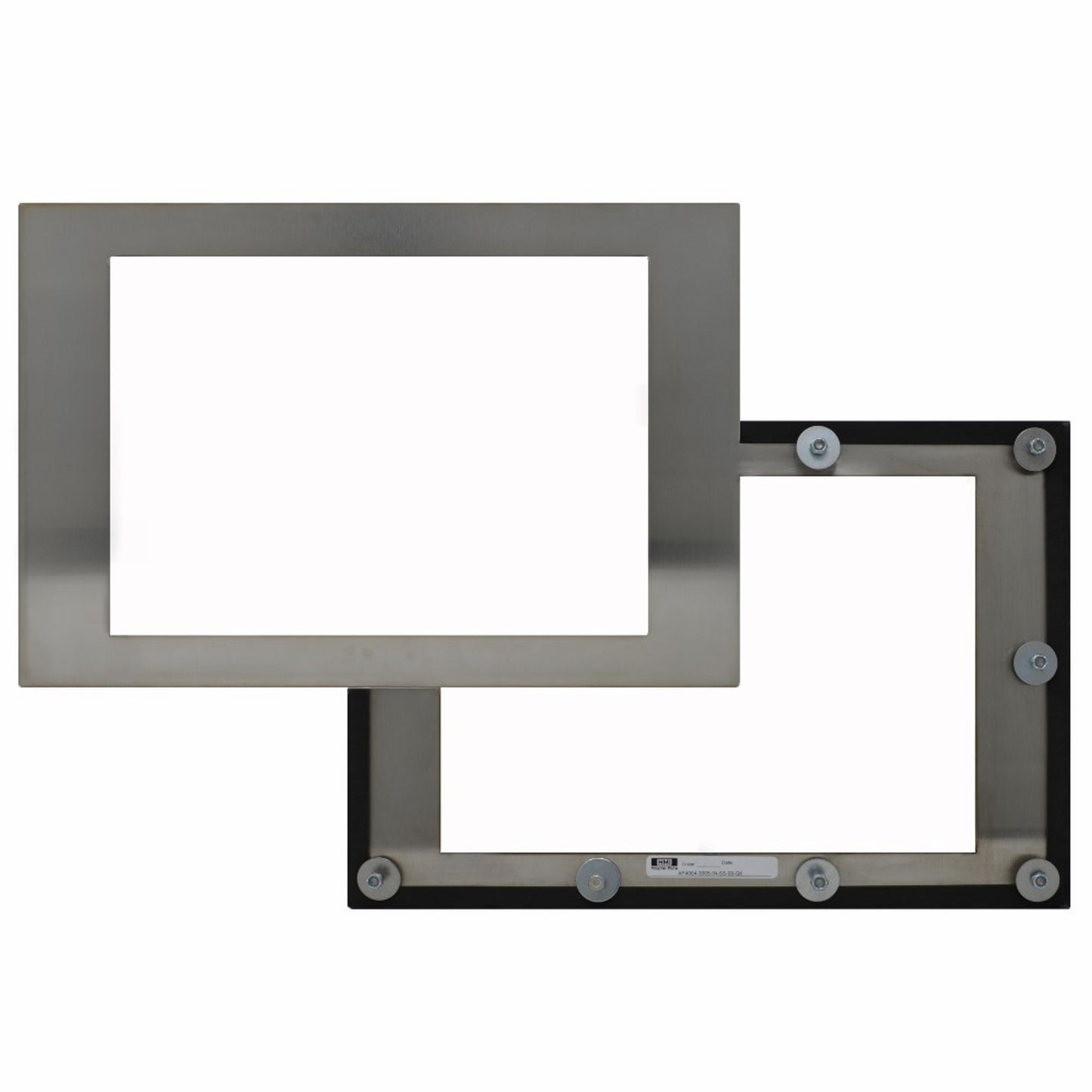

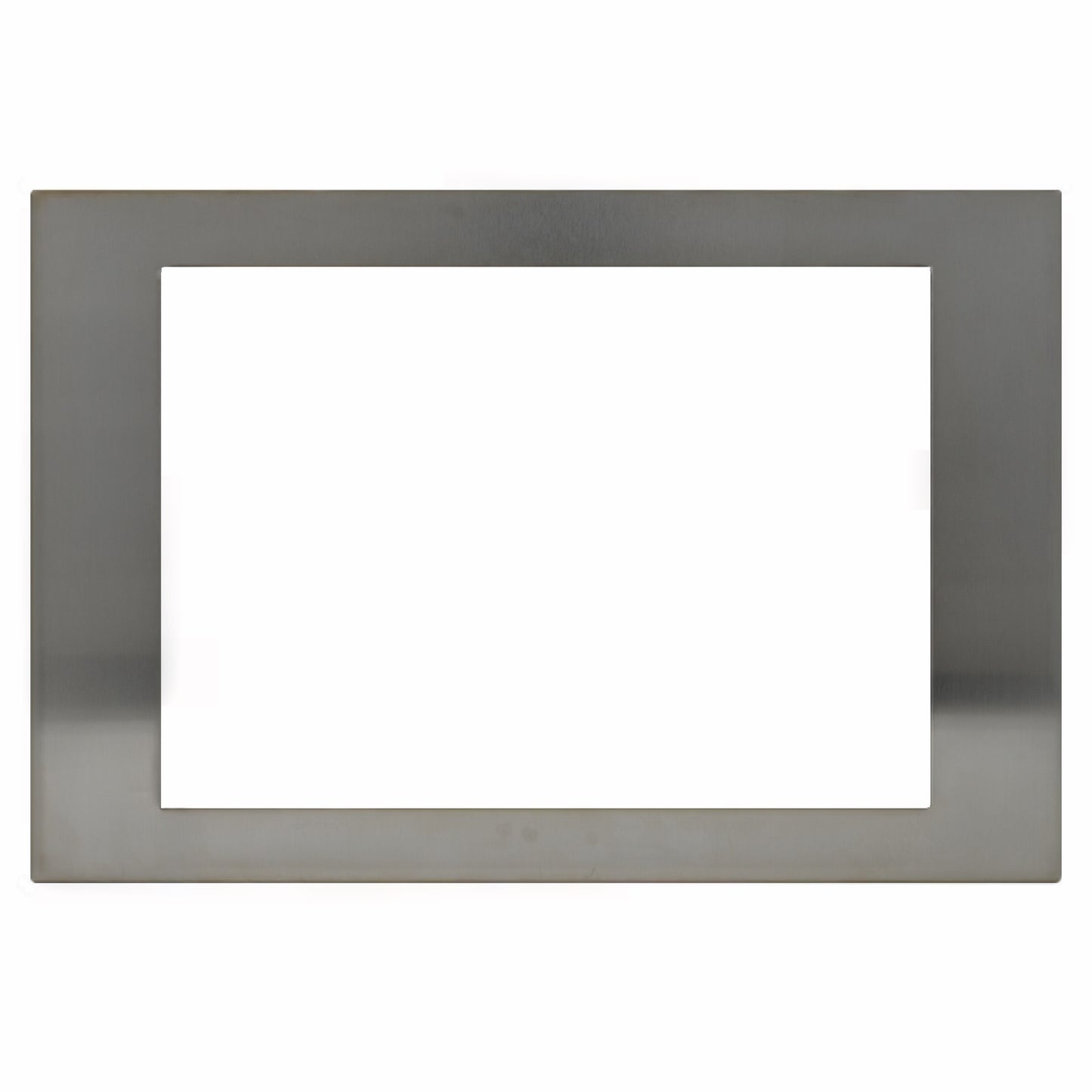

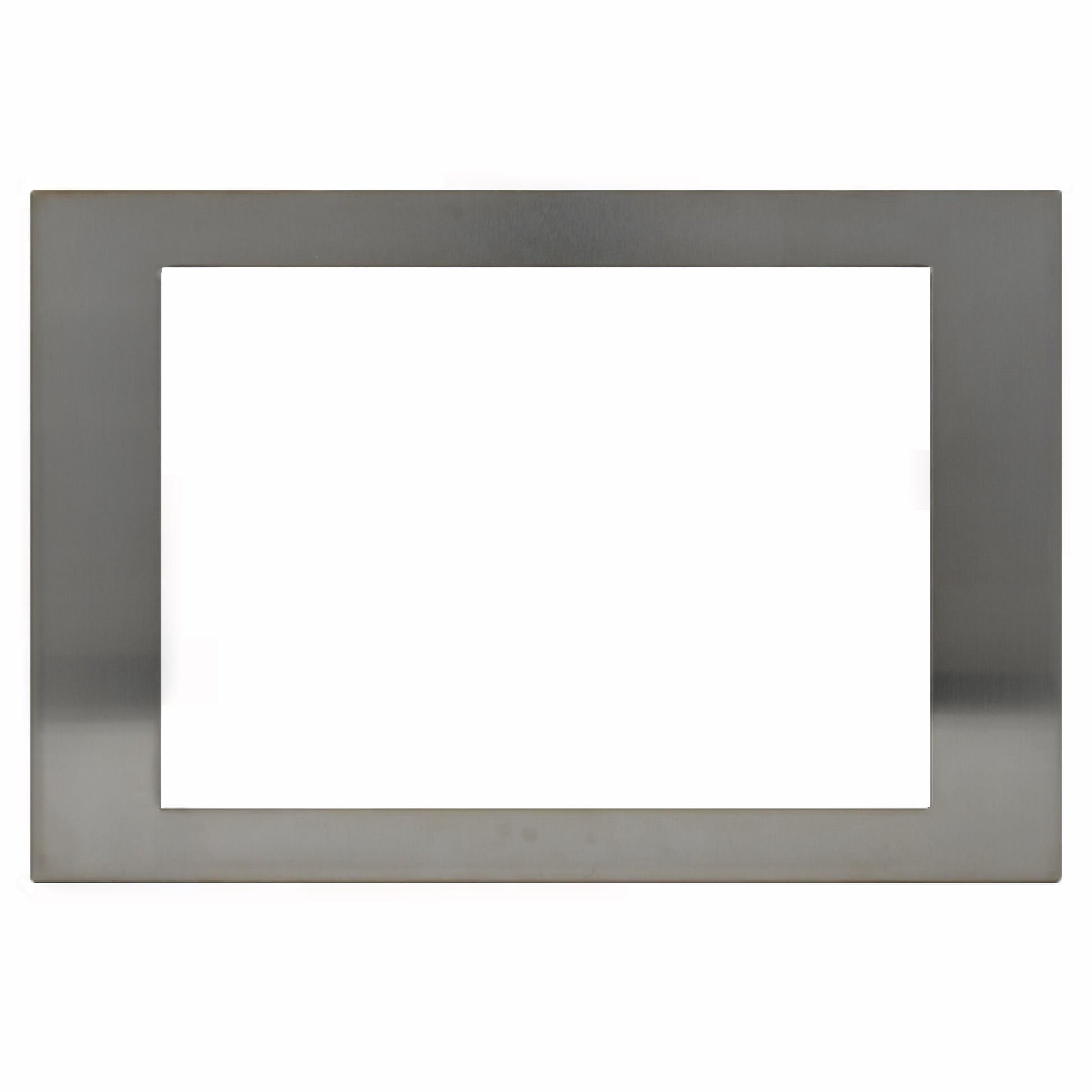

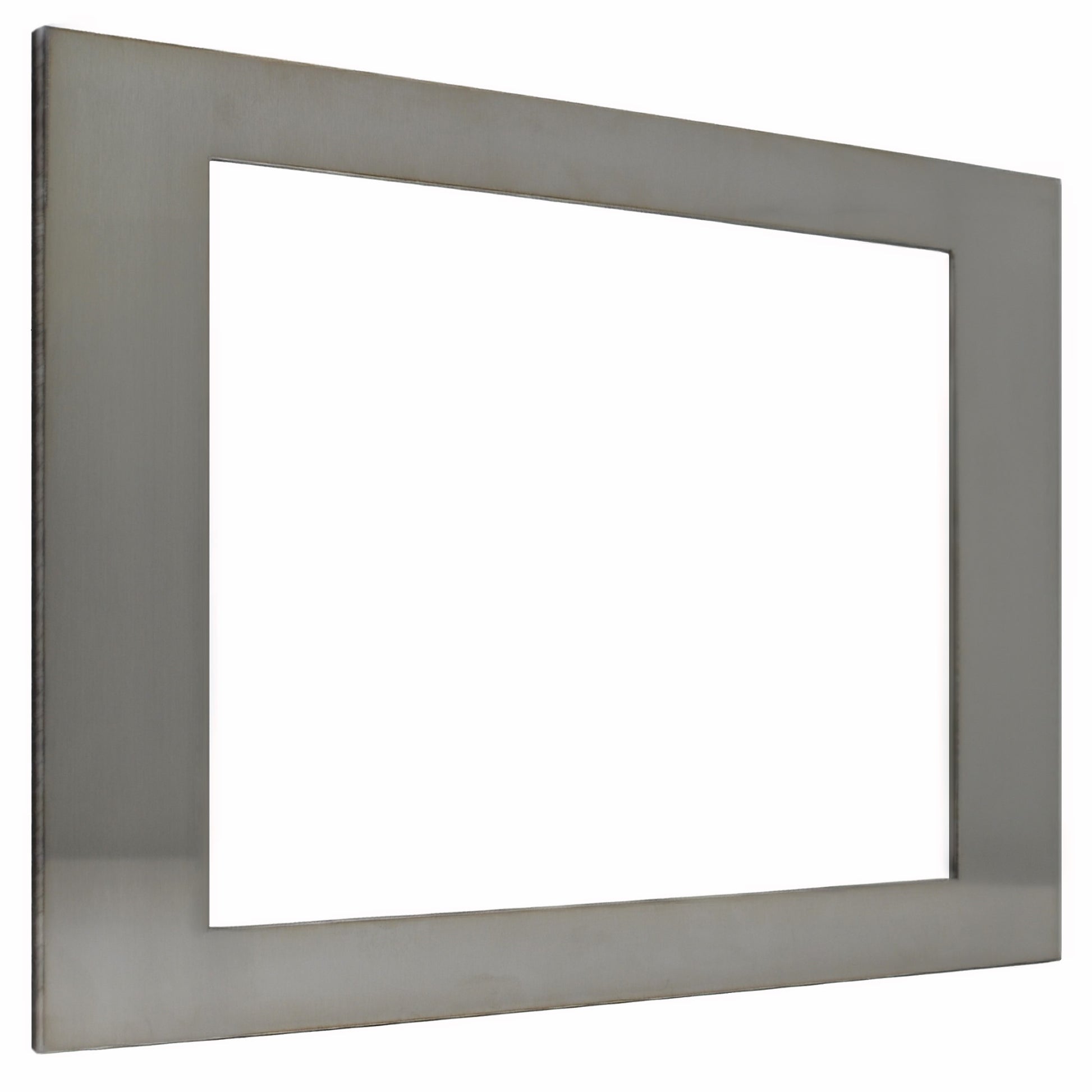

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)

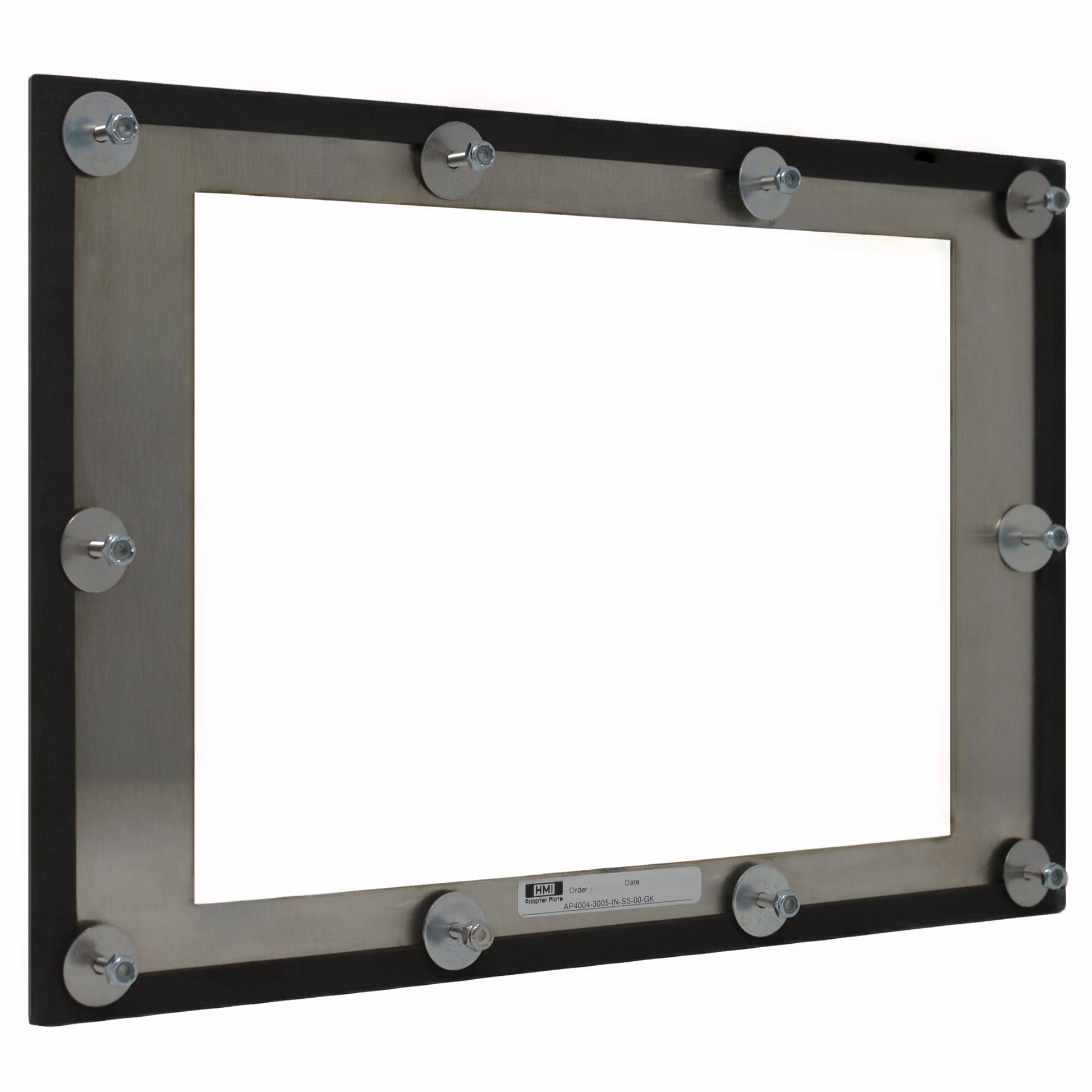

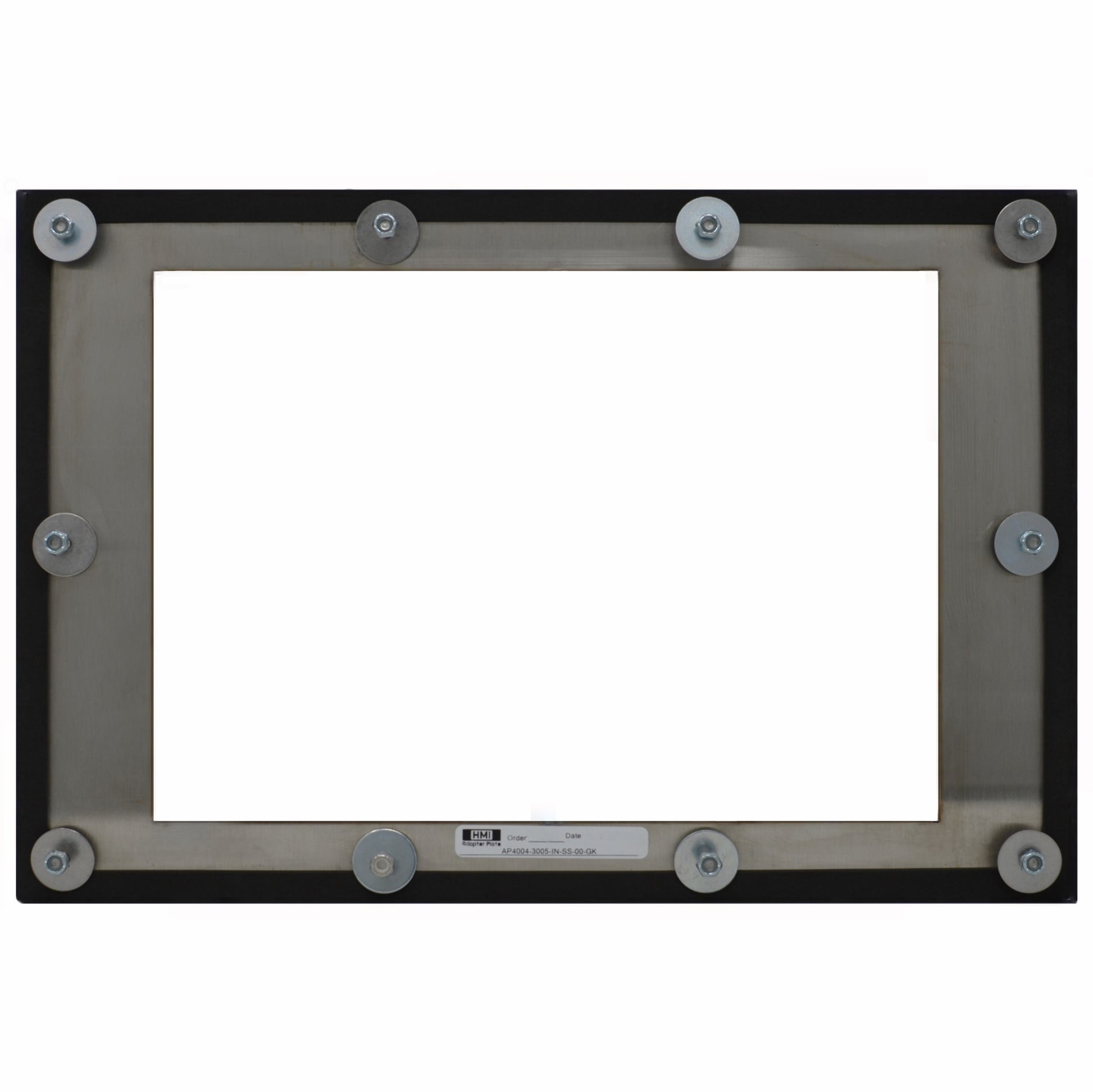

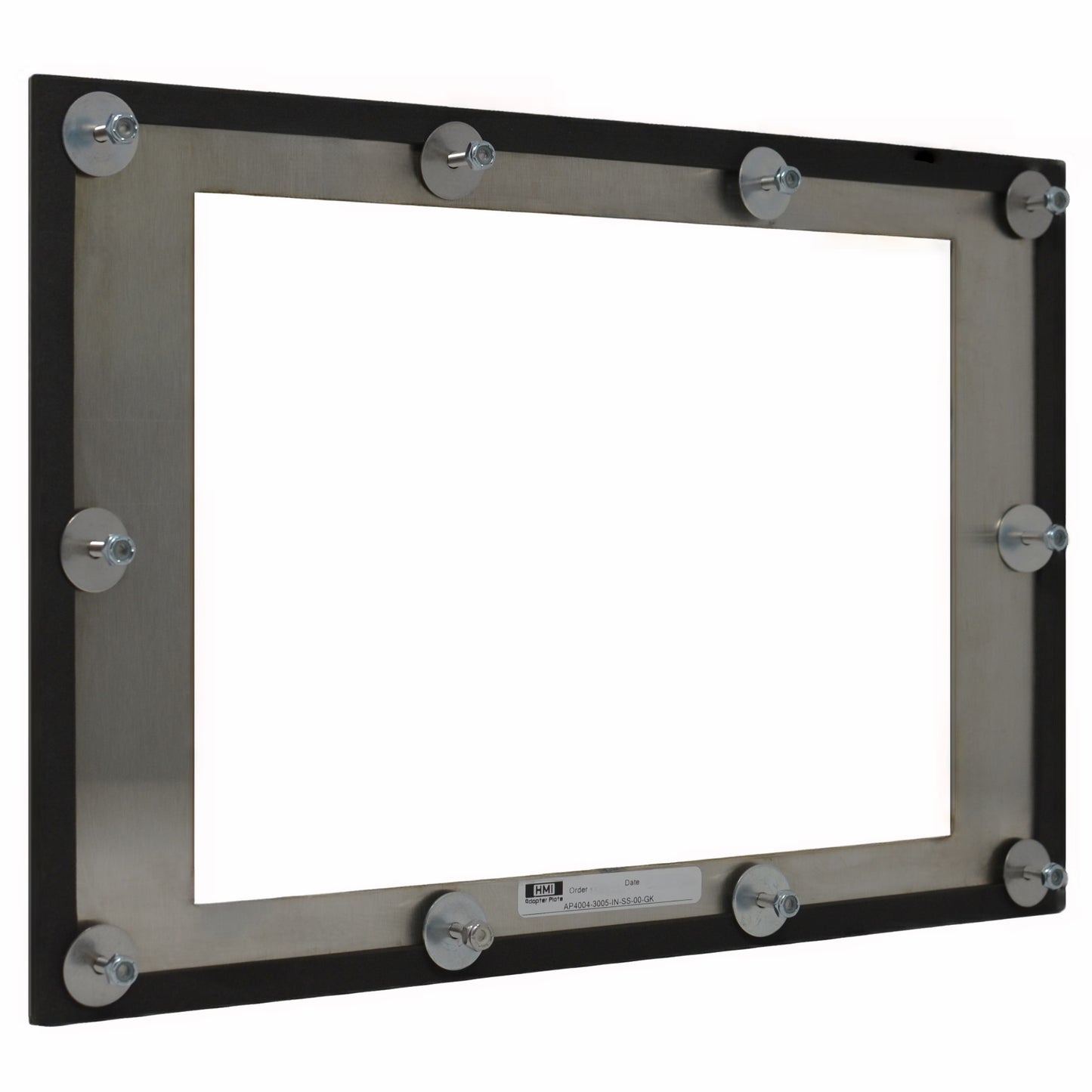

• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

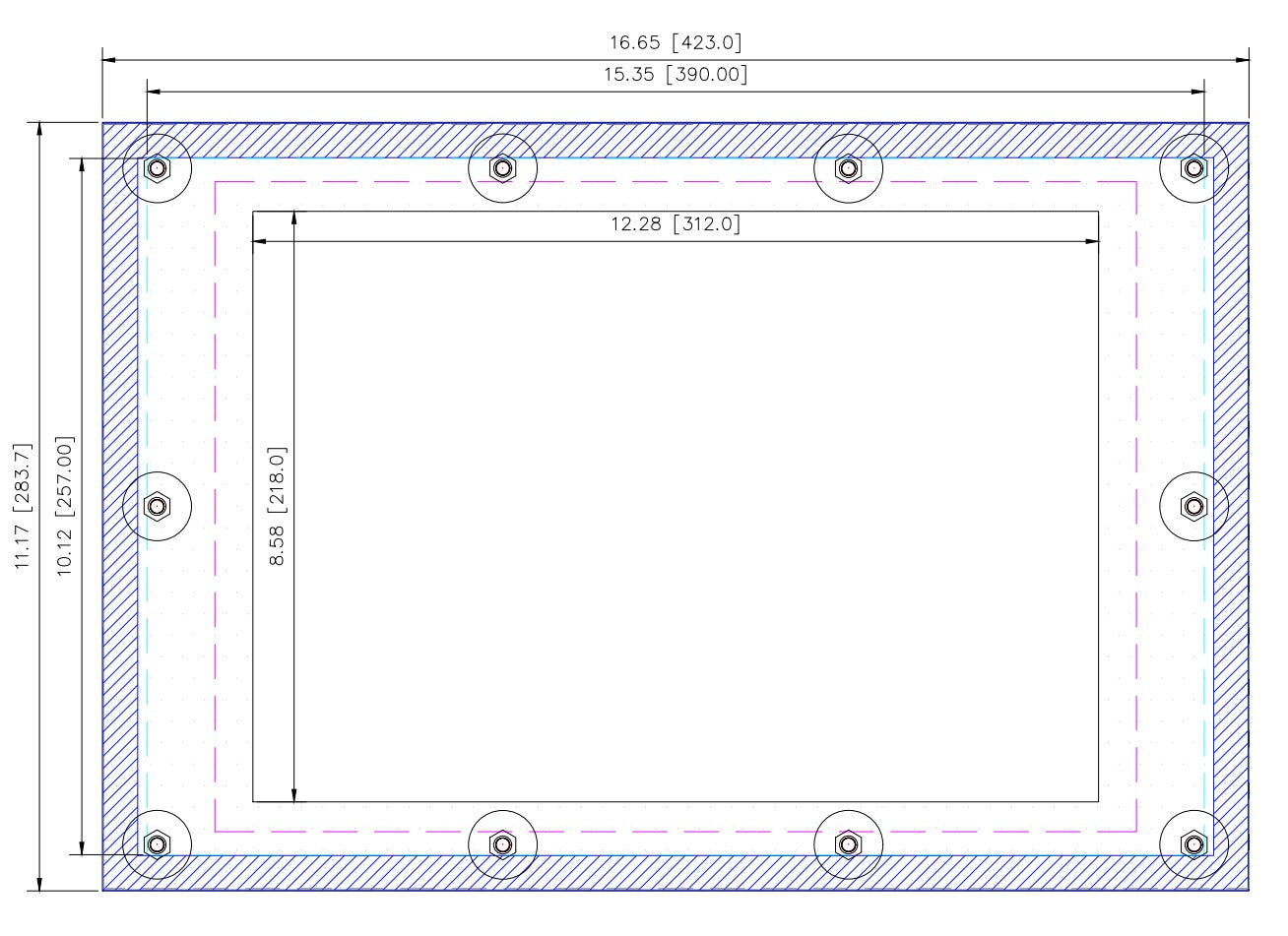

• Drawings: DXF, PDF

Cross-Reference:

Allen Bradley #2711P-RAAT12K

Notes:

• This same conversion is also available as a Stud Mount (SM) (AP4004-3005-SM)

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
