HMIAdapterPlate

Allen Bradley PanelView Standard 10" Keypad to Allen Bradley PanelView Plus 7 12.1" Touch (AP4004-3005-SM)

Model #:

Allen Bradley PanelView Standard 10" Keypad to Allen Bradley PanelView Plus 7 12.1" Touch (AP4004-3005-SM)

Regular price $270.00 USD
Regular price Sale price $270.00 USD
Sale Sold out
2 Week Manufacturing Leadtime
Need to Expedite?
  • Existing HMI:
    • Allen Bradley PanelView 1000e Keypad
      • Models2711E-K10C15, 2711E-K10C6, 2711E-K10C7
    • Allen Bradley PanelView Standard 1000 10" Keypad
      • Models2711-K10C1, 2711-K10C10, 2711-K10C15, 2711-K10C16, 2711-K10C20, 2711-K10C3, 2711-K10C8, 2711-K10C9, 2711-K10G1, 2711-K10G10, 2711-K10G15, 2711-K10G16, 2711-K10G20, 2711-K10G3, 2711-K10G8, 2711-K10G9
  • New HMI:
    • Allen Bradley PanelView 5000 12.1" Touch
      • Models2713P-T12WD1, 2715-T12WX, 2715P-T12WD
    • Allen Bradley PanelView Plus 7 12.1" Touch
      • Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P
  • 11 Gauge Heavy Duty Adapter Plate
  • Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
  • Includes a Paper Template for Drilling Around Existing Cutout
  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

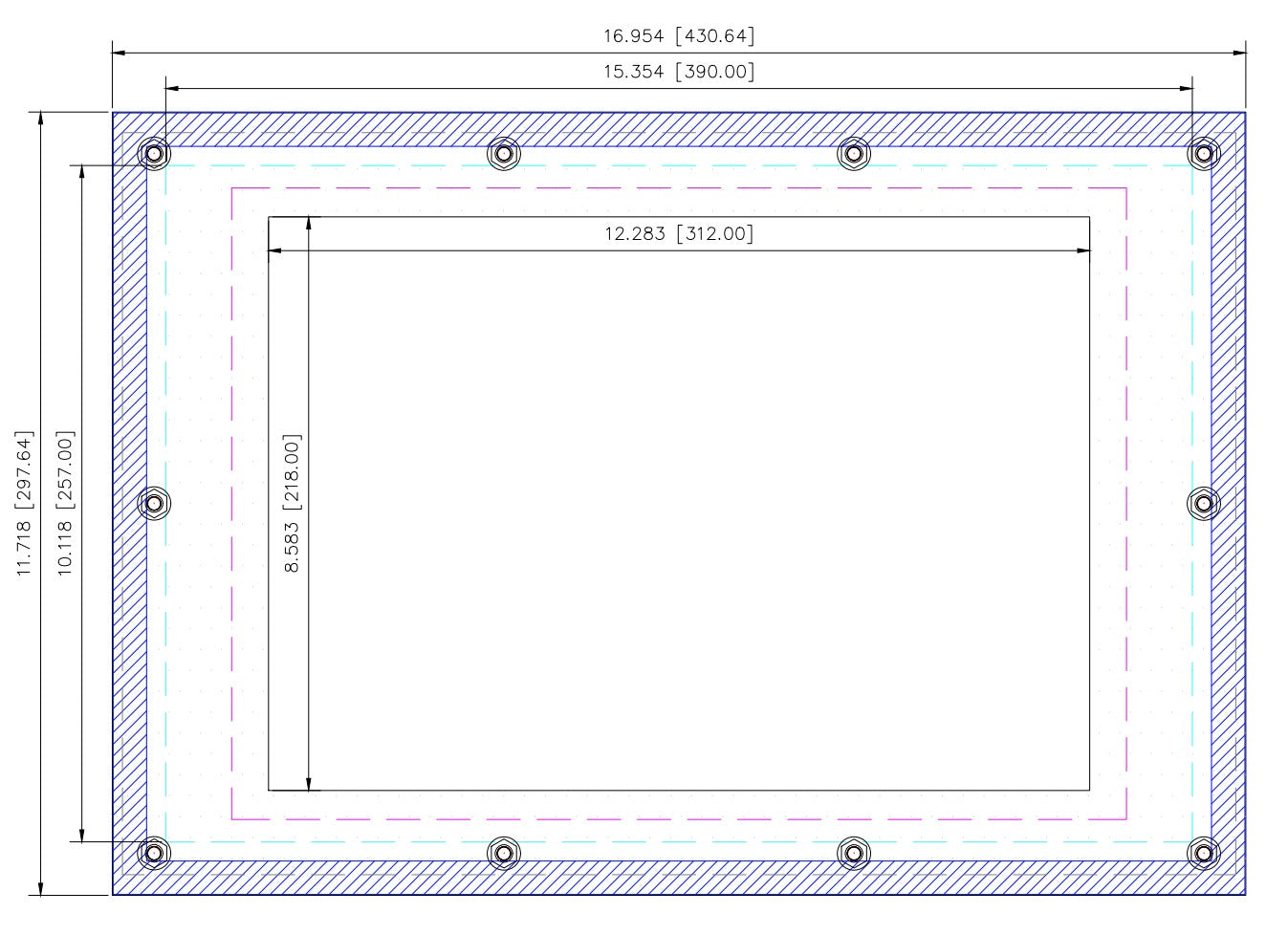

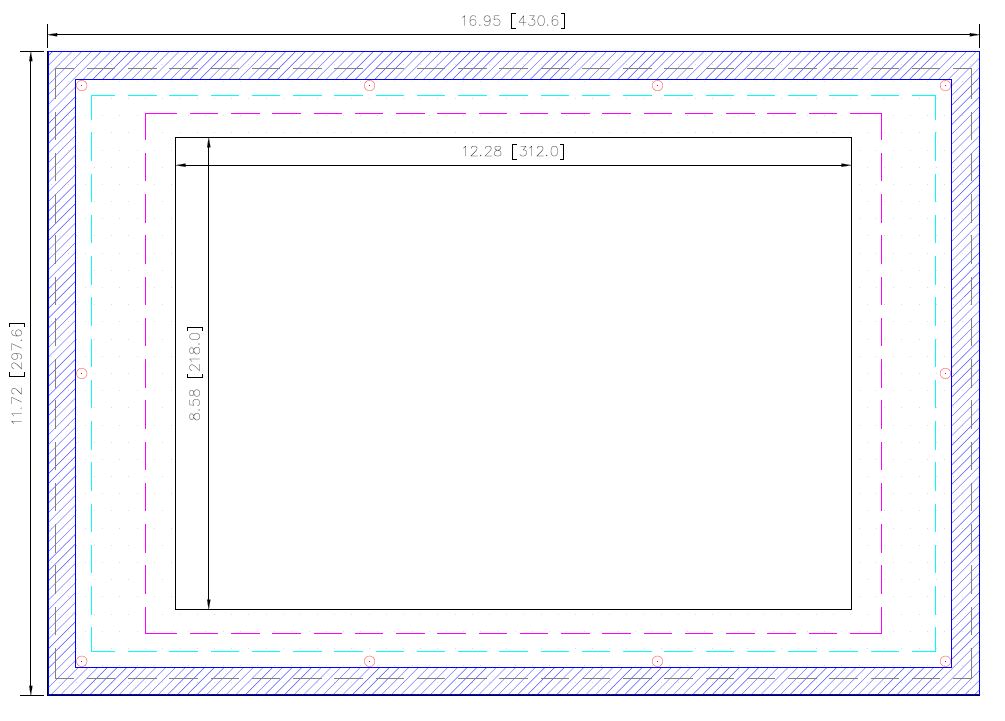

Download DXF: D048964 AP4004-3005-SM
Download PDF: D048964 AP4004-3005-SM

Cross-Reference
Allen Bradley #2711P-RAAT12K


Rating:
  • Steel: NEMA 12, 13, 1
  • Stainless: NEMA 4X, 4, 12, 13, 1
  • IP66
