HMIAdapterPlate

Allen Bradley PanelView Standard 1400 Touch & Allen Bradley PanelView Plus 1500 & Allen Bradley PanelView Plus 6 1500 to Allen Bradley PanelView Plus 7 15" (AP4007-3021-SM)

Model #:

Allen Bradley PanelView Standard 1400 Touch & Allen Bradley PanelView Plus 1500 & Allen Bradley PanelView Plus 6 1500 to Allen Bradley PanelView Plus 7 15" (AP4007-3021-SM)

Regular price $270.00 USD
Regular price Sale price $270.00 USD
Sale Sold out
10 in stock, more available with 2 week leadtime
Need to Expedite?
  • Existing HMIs:
    • Allen Bradley PanelView Standard 1400 Touch
      • Models: 2711-T14C1, 2711-T14C10, 2711-T14C15, 2711-T14C16, 2711-T14C20, 2711-T14C3, 2711-T14C8, 2711-T14C9 (SizeCode 4012)
    • Allen Bradley PanelView Plus 1500 Touch
      • Models2711P-T15**** (SizeCode 4007)
    • Allen Bradley PanelView Plus 6 1500 Touch
      • Models: 2711P-T15C4A8, 2711P-T15C4A9, 2711P-T15C4D8, 2711P-T15C4D9 (SizeCode 4007)
  • New HMI:
    • Allen Bradley PanelView 5000 15" Touch
      • Models: 2715-T15CX, 2715P-T15CD
    • Allen Bradley PanelView Plus 7 15" Touch
      • Models2711P-T15C21D8S, 2711P-T15C21D8S-B, 2711P-T15C22A9P, 2711P-T15C22D8S, 2711P-T15C22D8S-B, 2711P-T15C22D9P

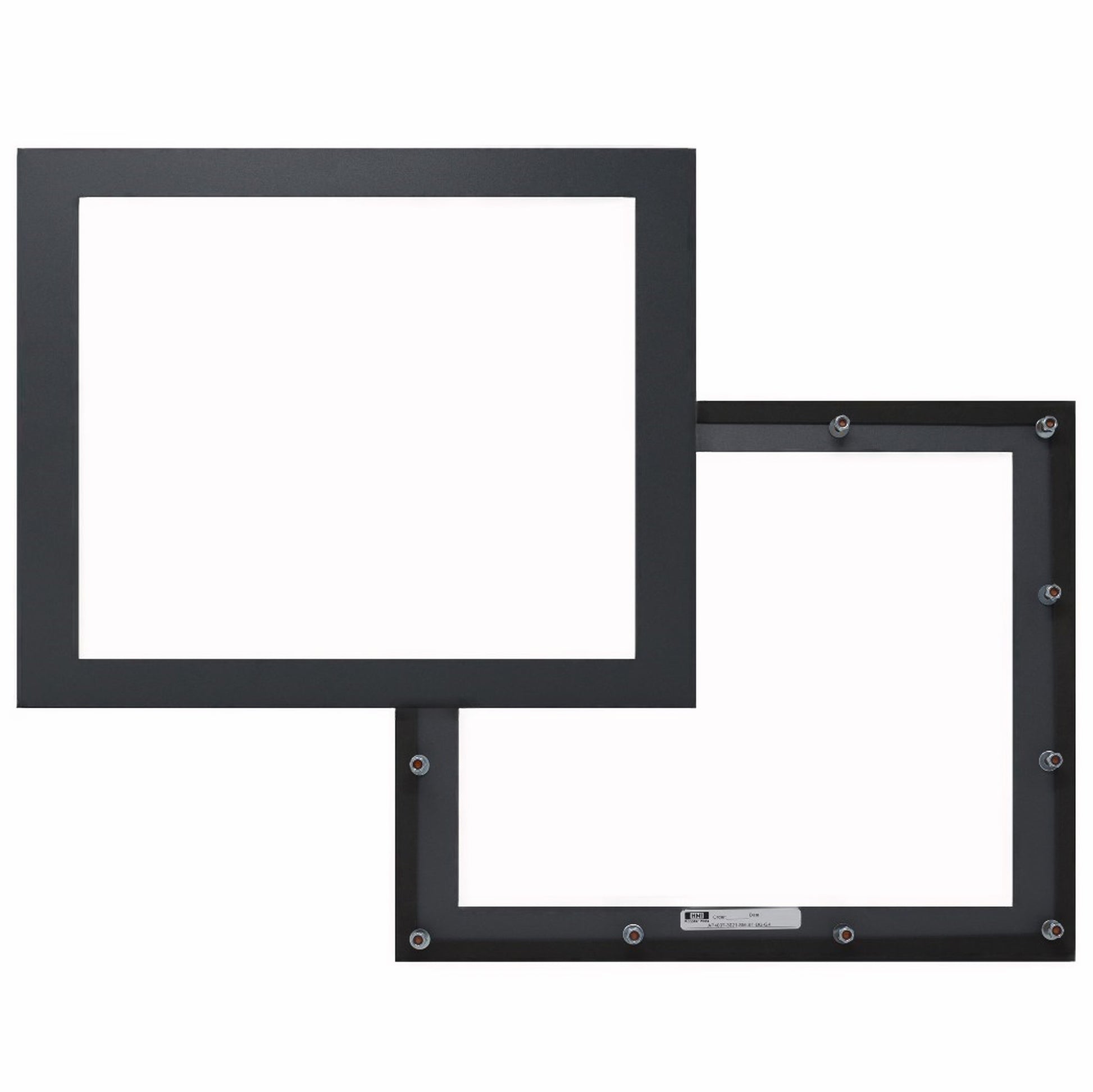

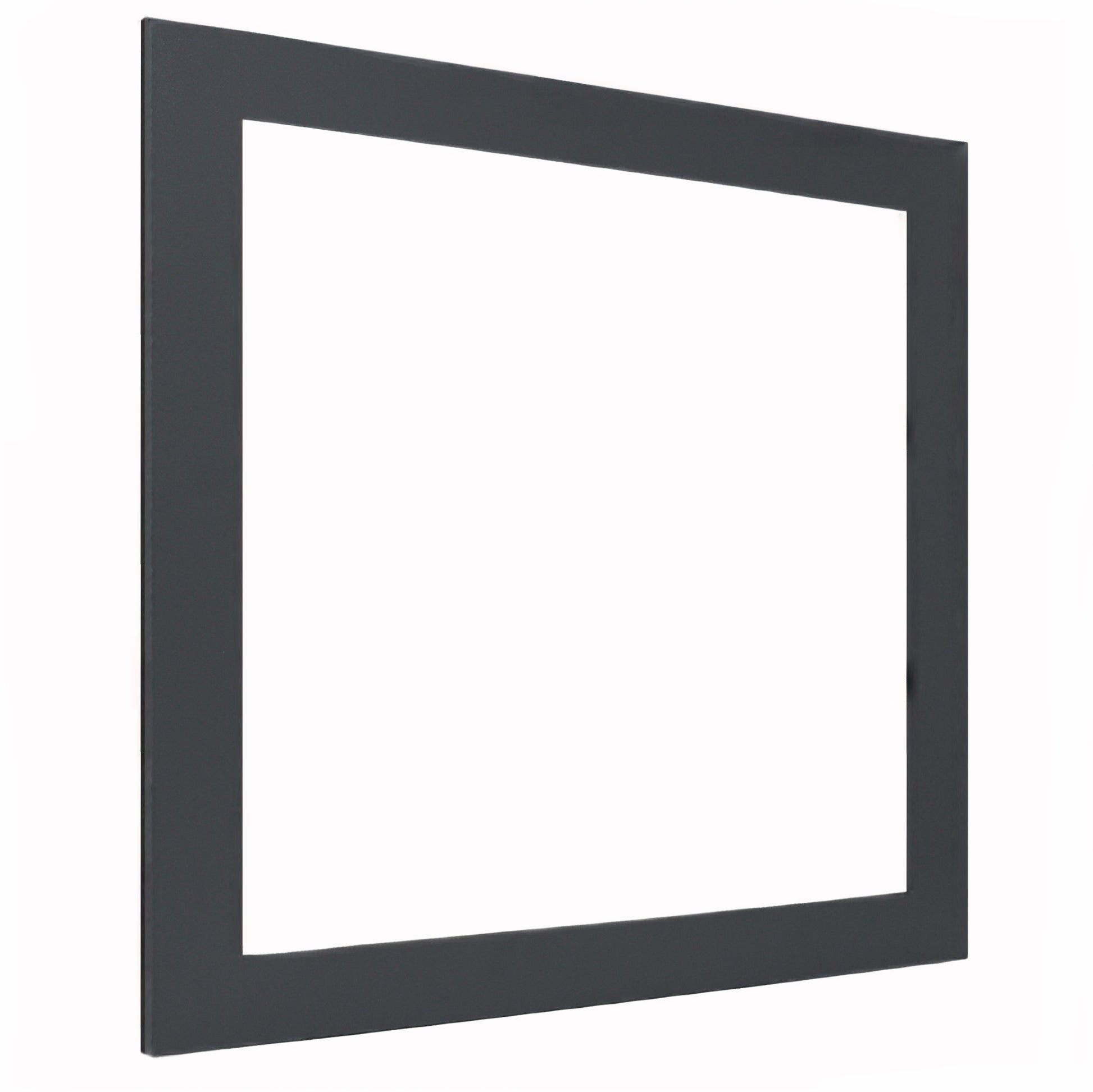

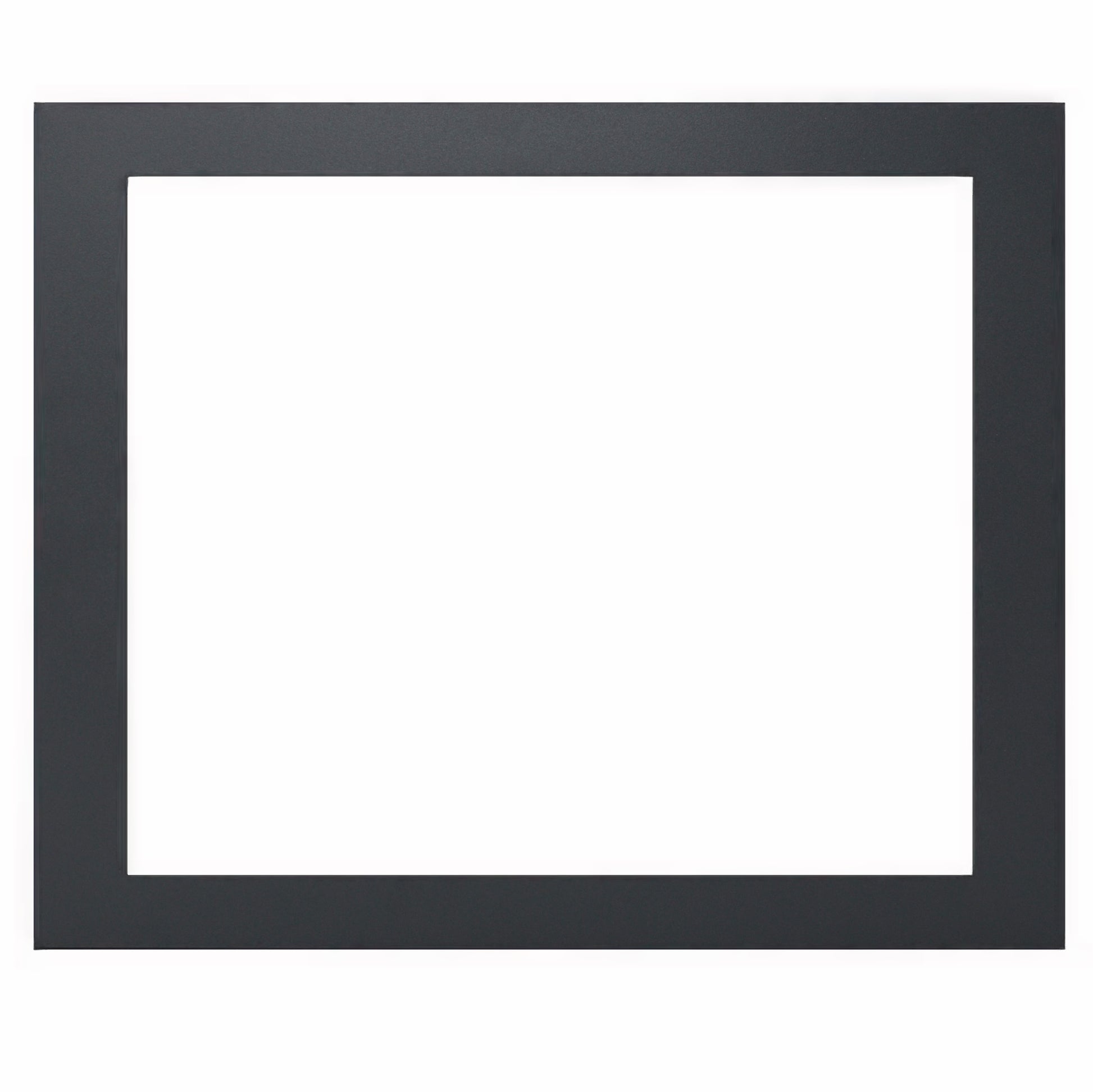

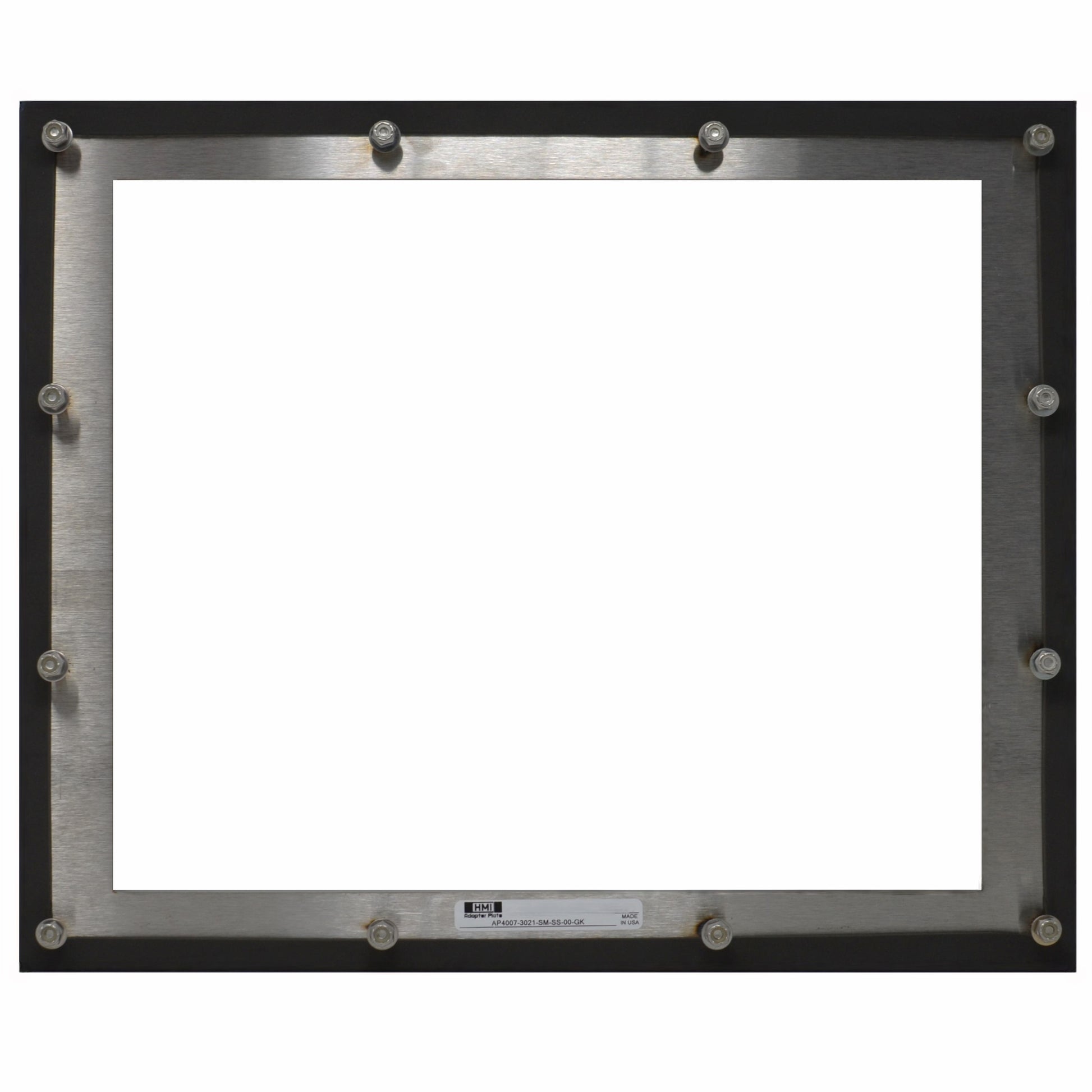

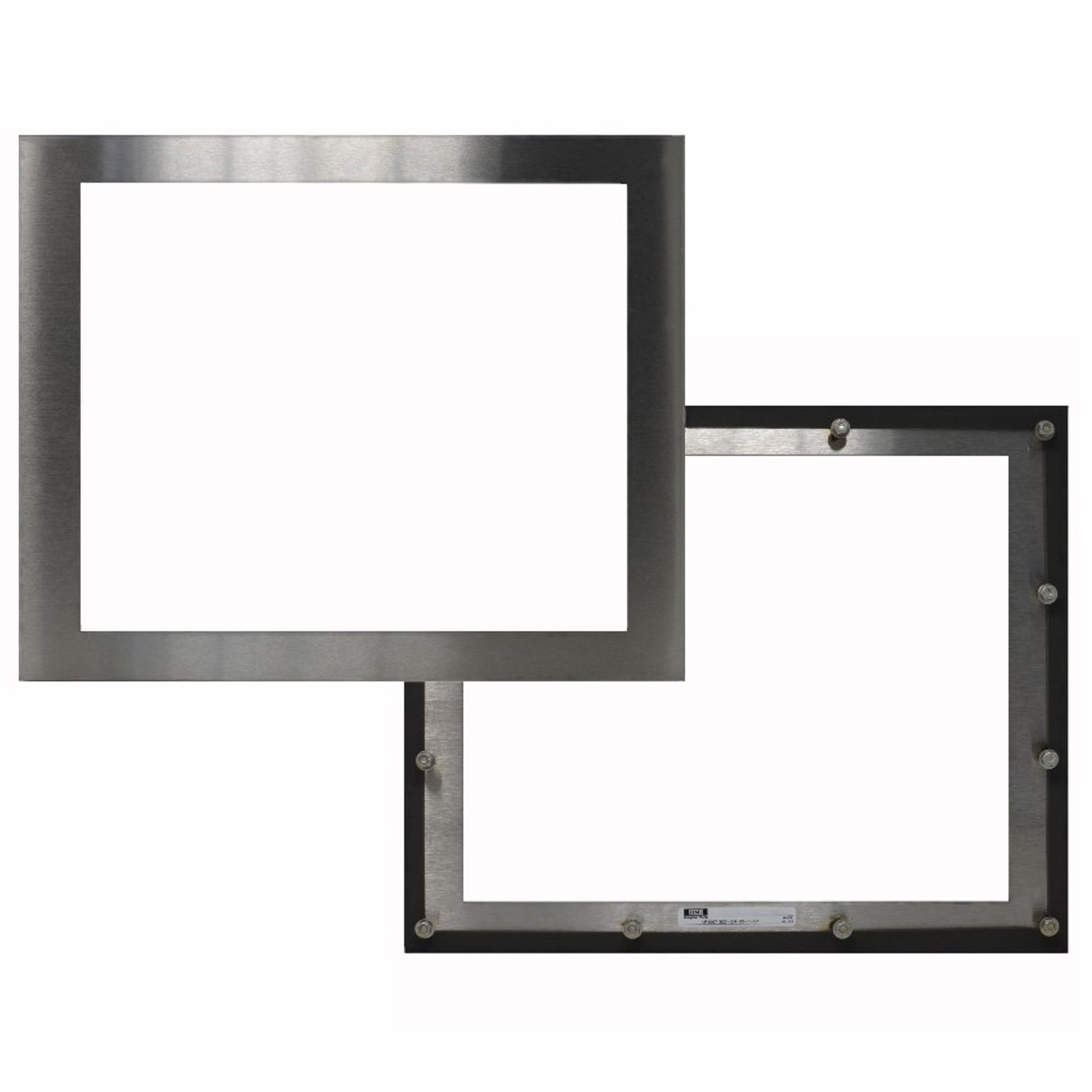

    • 11 Gauge Heavy Duty Adapter Plate

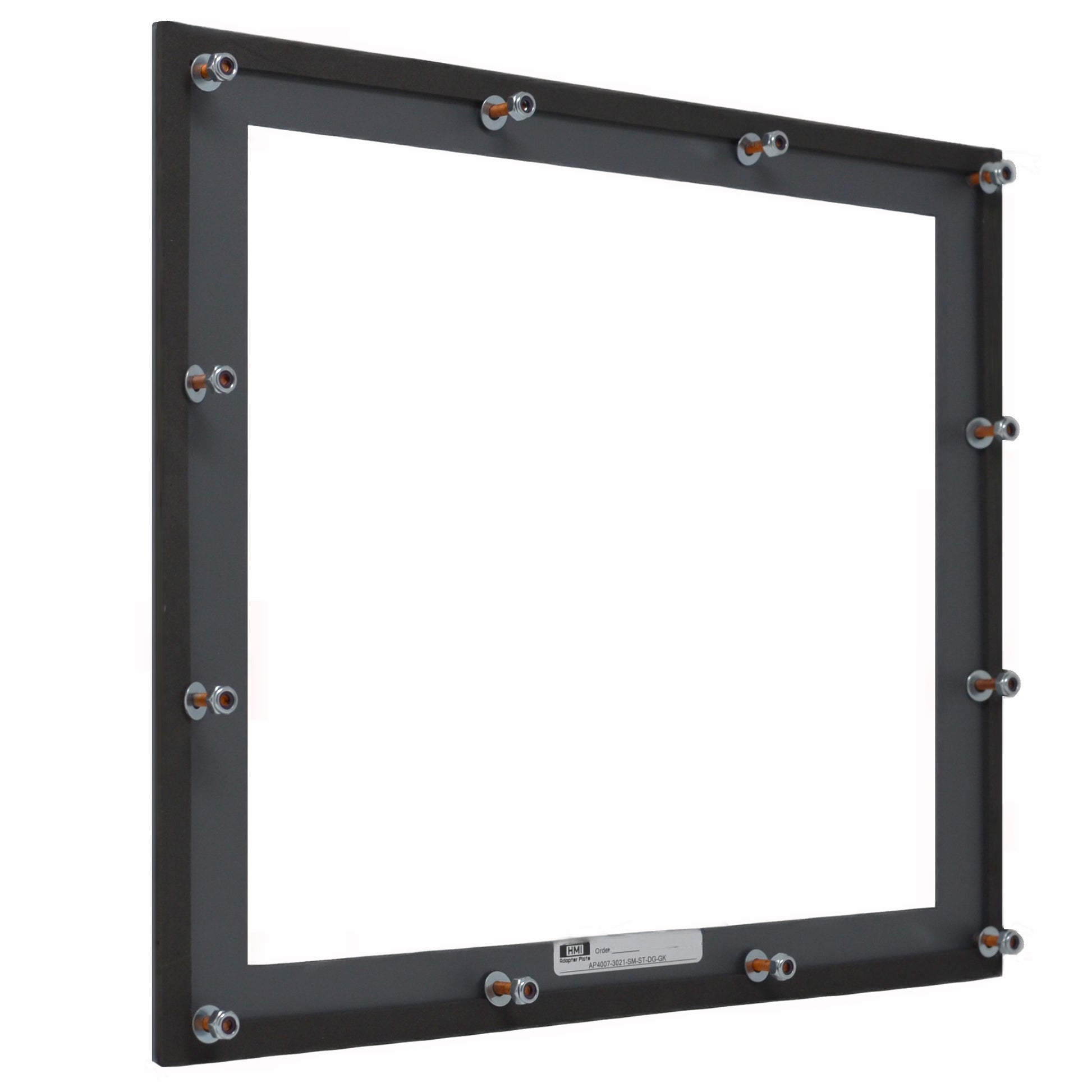

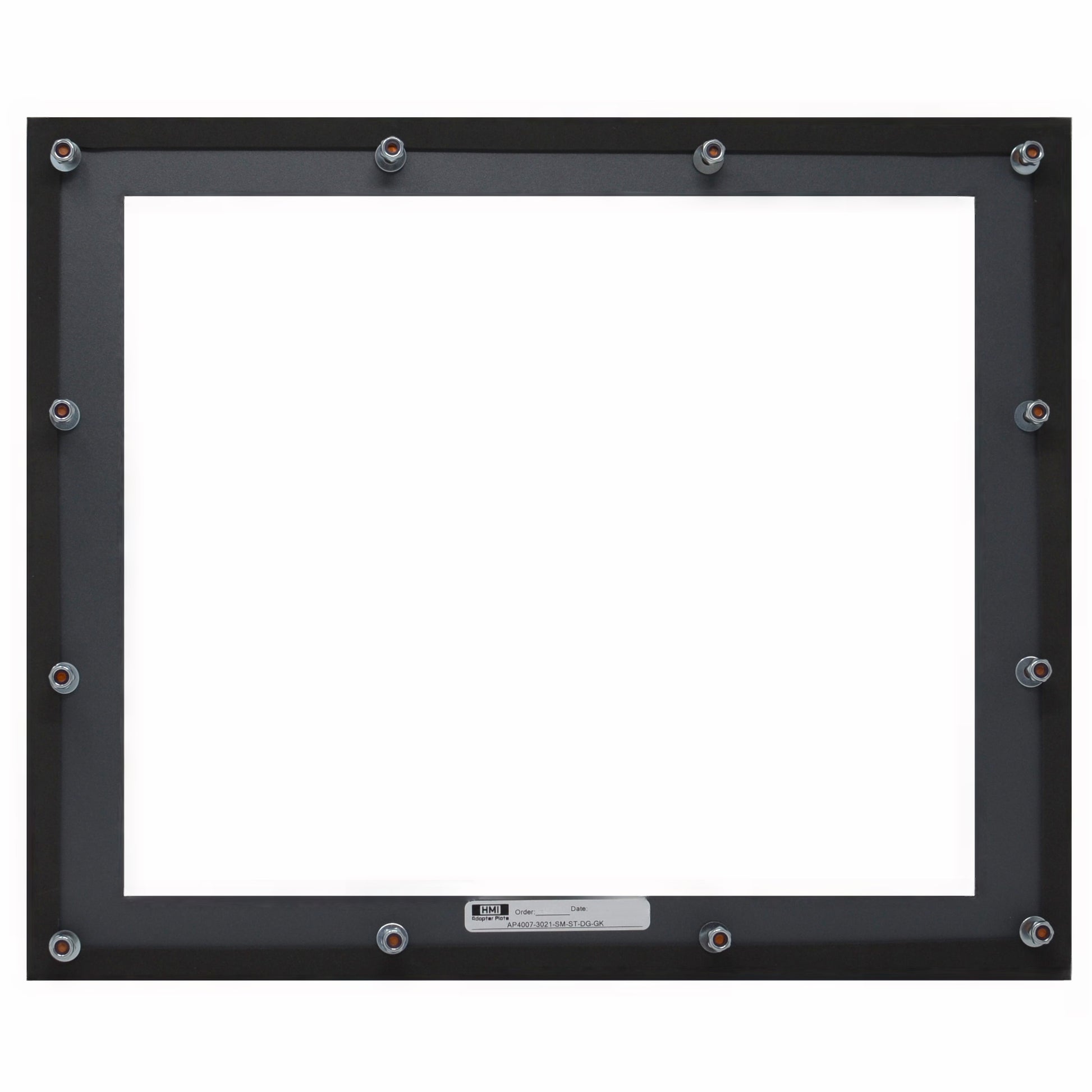

    • Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
    • Includes a Paper Template for Drilling Around Existing Cutout
    • Includes Washers and Lock Nuts for Mounting
    • Includes a Seamless Closed-Cell Neoprene Gasket

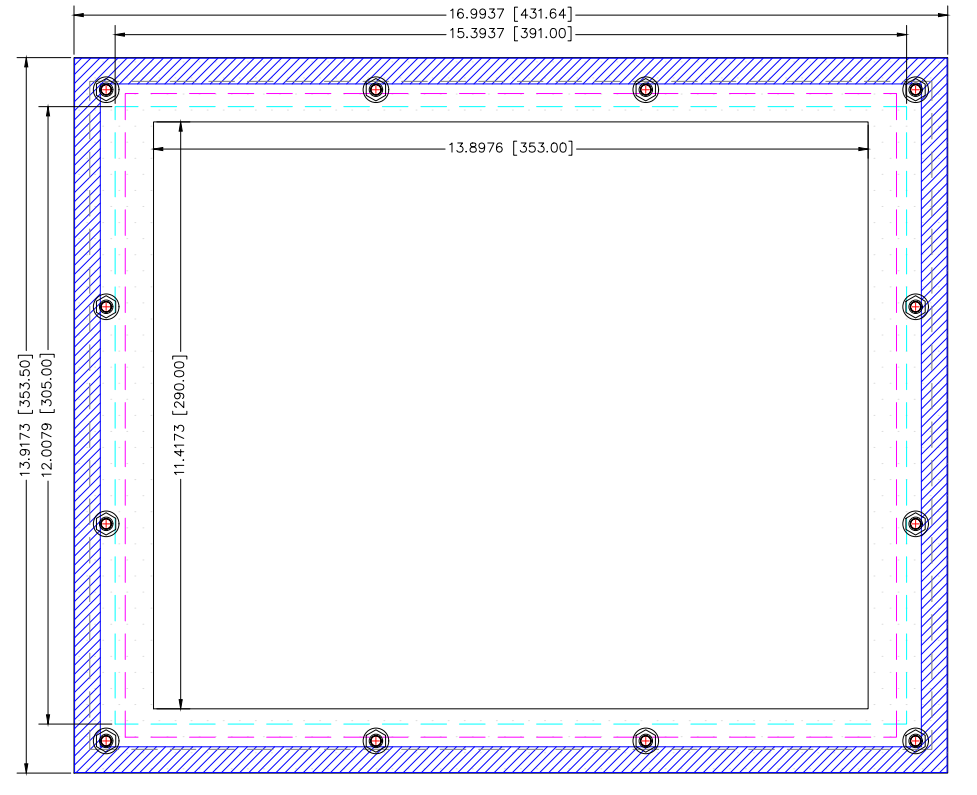

    Download DXF: D067264 AP4007-3021-SM
    Download PDF: D067264 AP4007-3021-SM



    Cross-Reference
    Allen Bradley Adapter Plate 2711P-RAAT15


    Rating:
    • Steel: NEMA 12, 13, 1

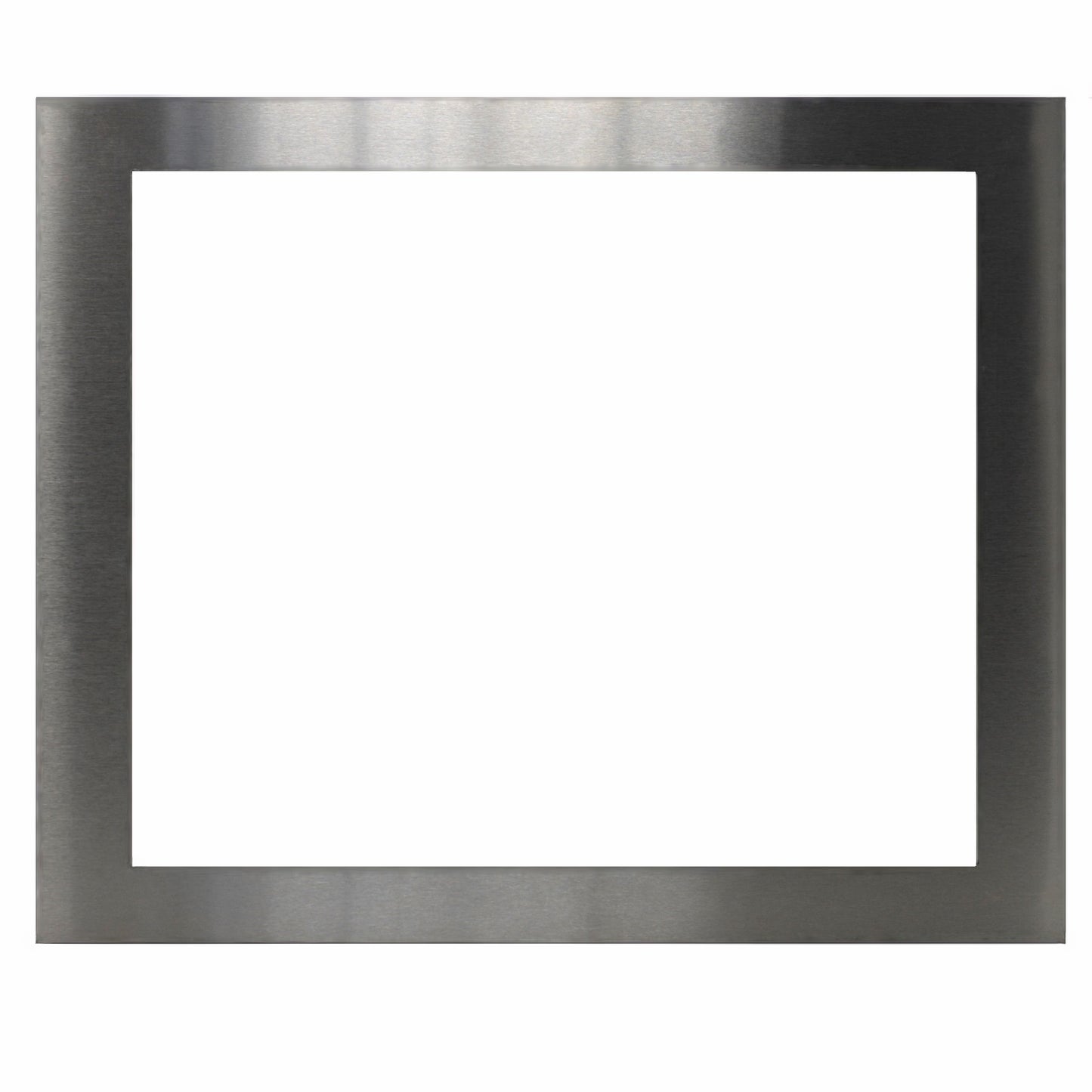

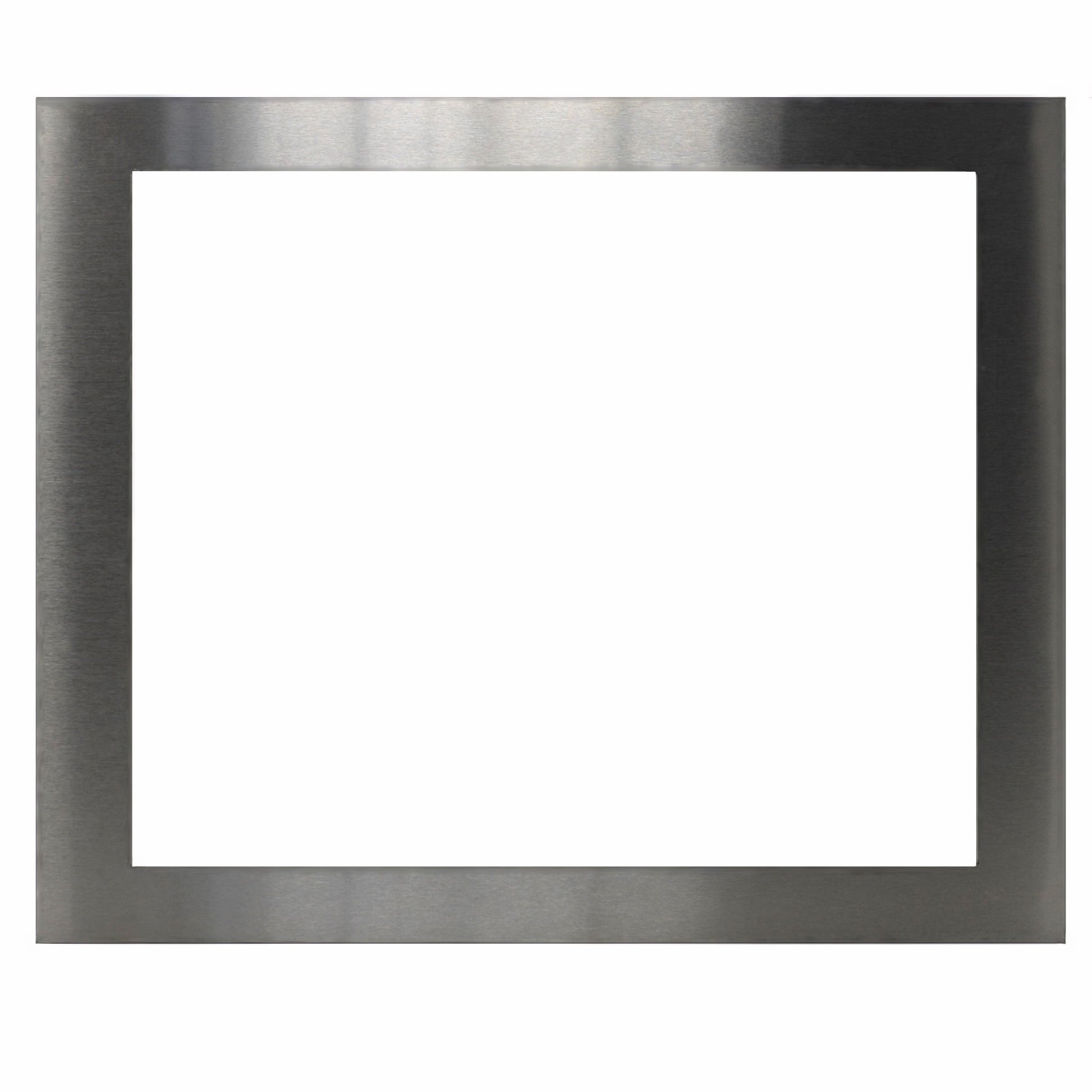

    • Stainless: NEMA 4X, 4, 12, 13, 1
    • IP66
