Allen Bradley PanelView Plus 1500 Keypad to Allen Bradley PanelView Plus 7 12.1" Touch (AP4008-3005-IN)

Specifications:

• Existing HMI:
  • Allen Bradley PanelView Plus 1500 Keypad
    • 2711P-B15****, 2711P-K15****
  • Allen Bradley PanelView Plus 6 1500 Keypad
    • Models:  2711P-B15C4A8, 2711P-B15C4A9, 2711P-B15C4D8, 2711P-B15C4D9, 2711P-K15C4A8, 2711P-K15C4A9, 2711P-K15C4D8, 2711P-K15C4D9
• New HMI:
  • Allen Bradley PanelView 5000 12.1" Touch
    • Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
  • Allen Bradley PanelView Plus 7 12.1" Touch
    • Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

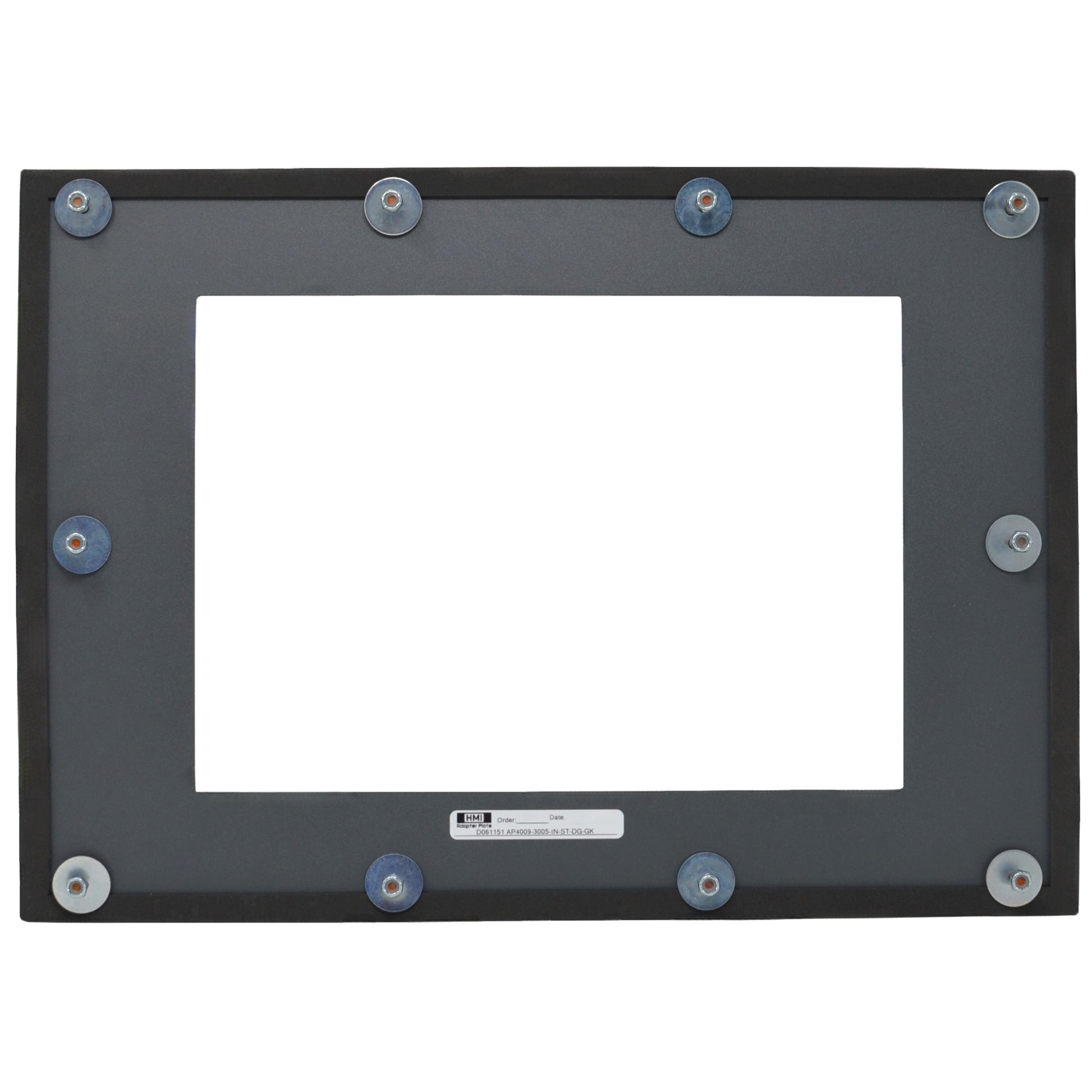

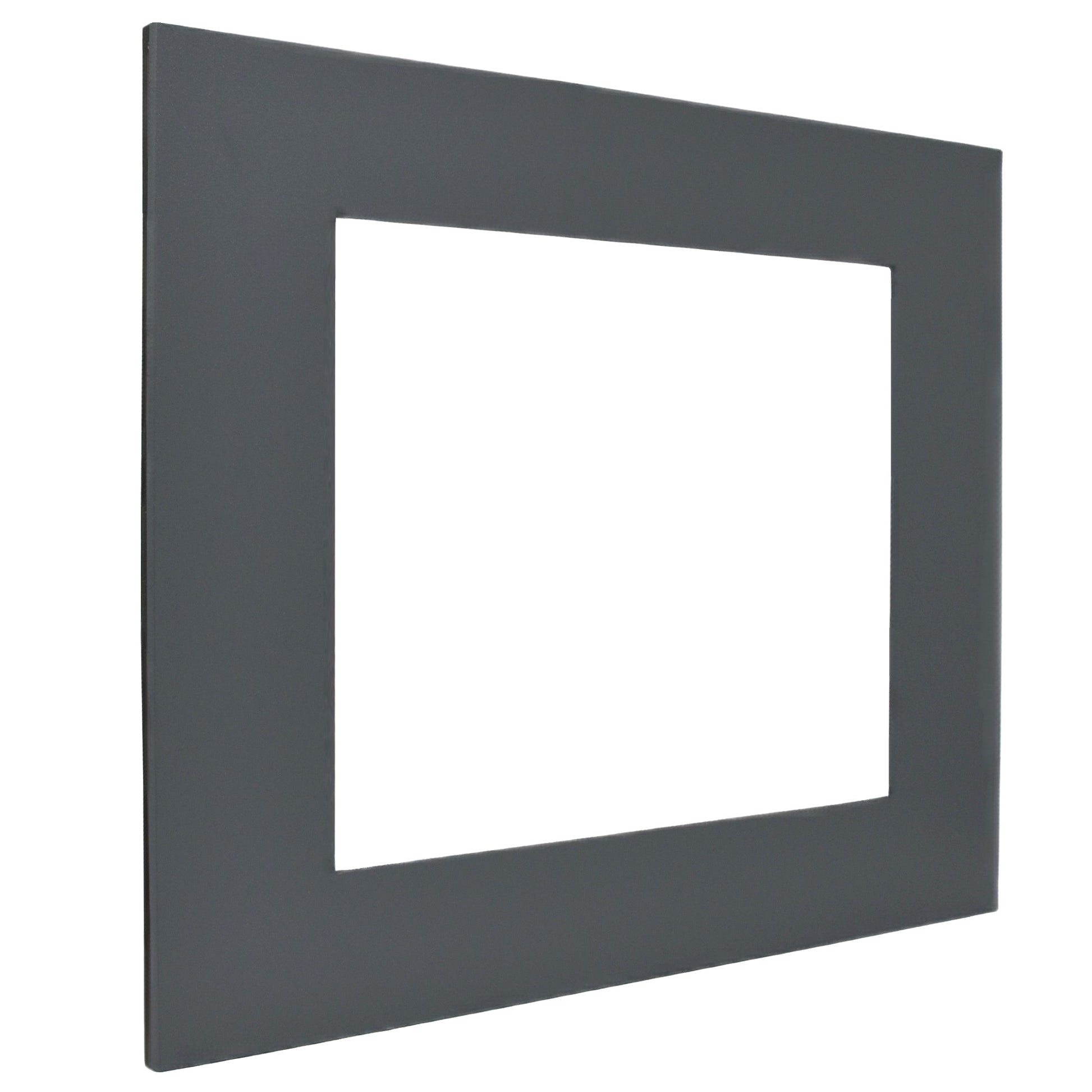

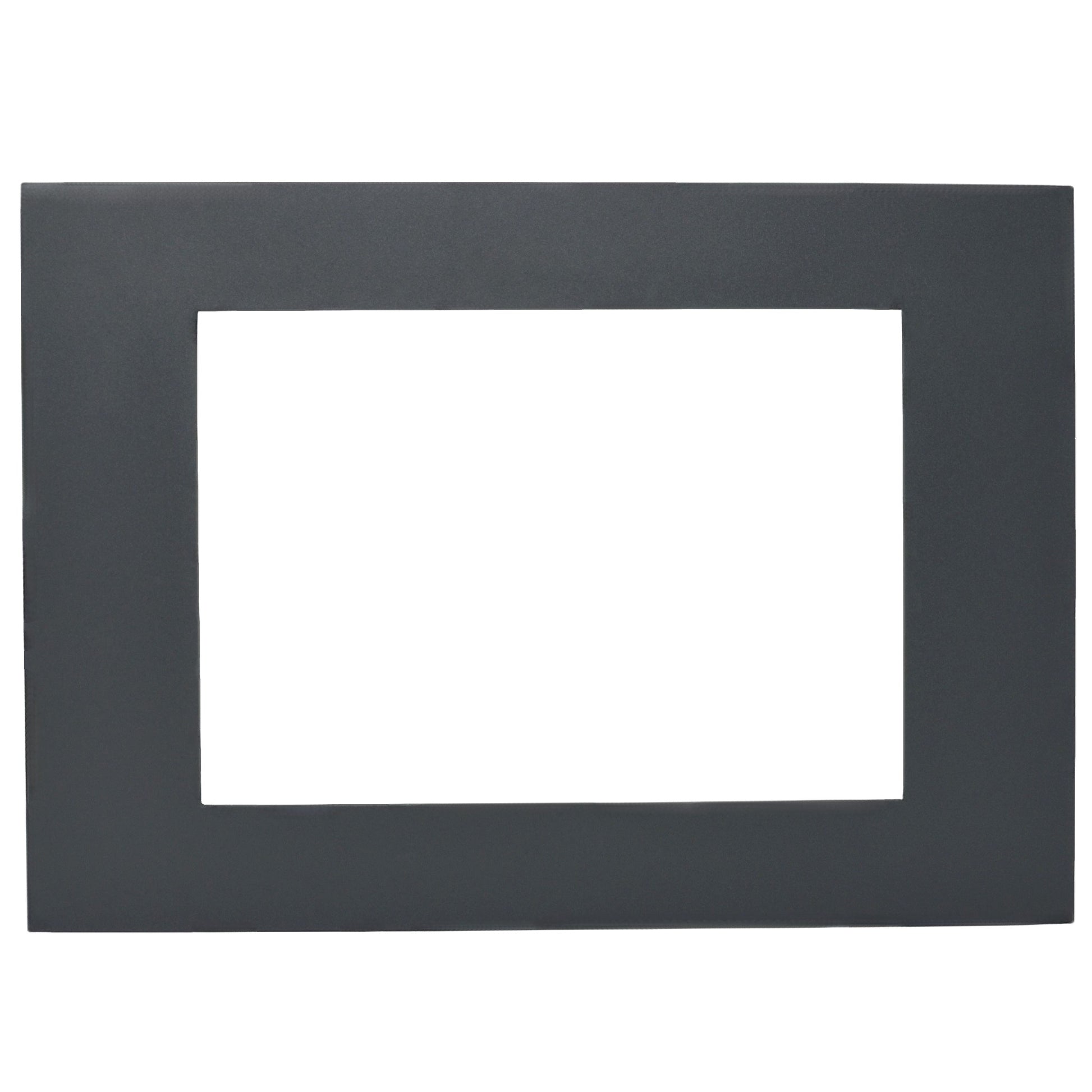

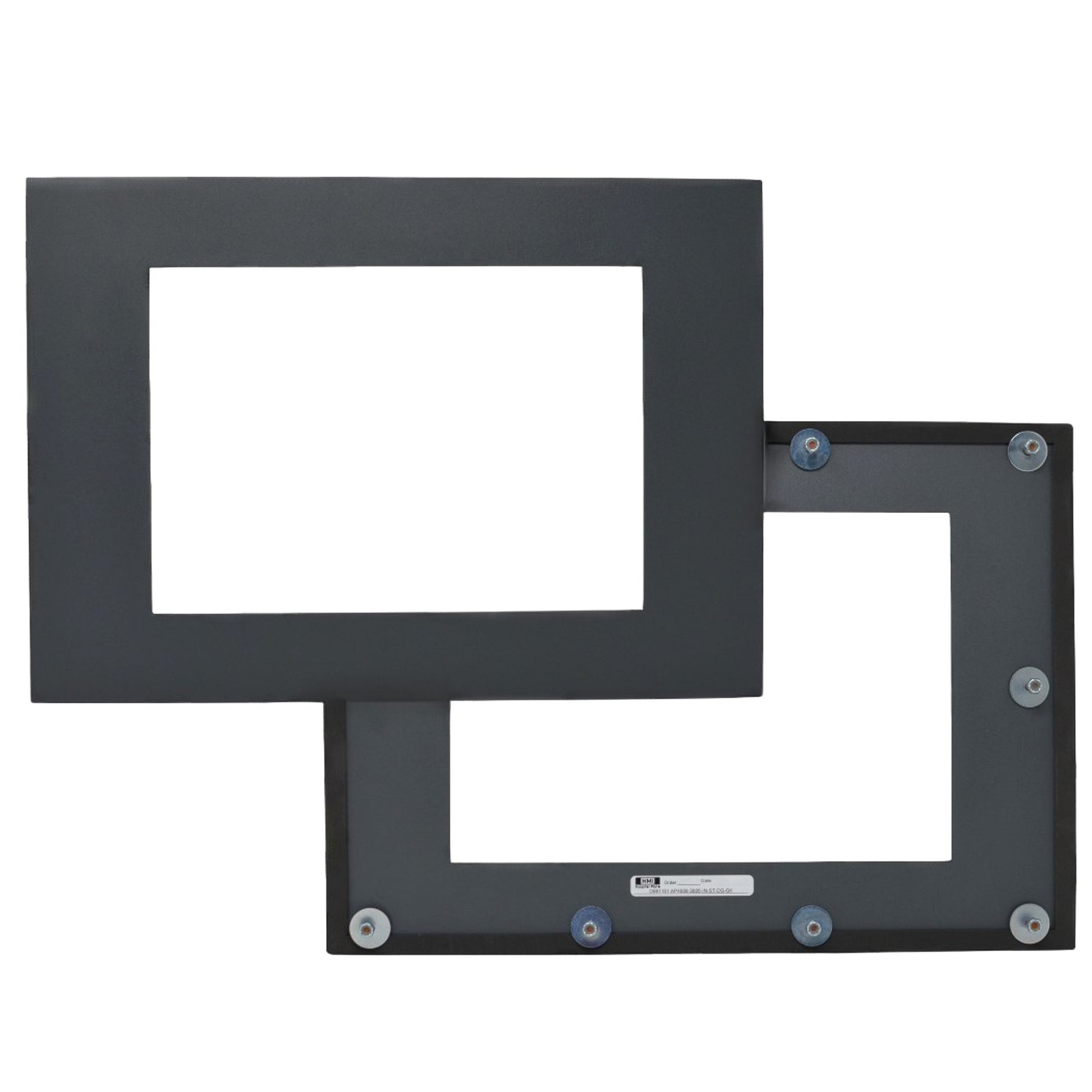

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)

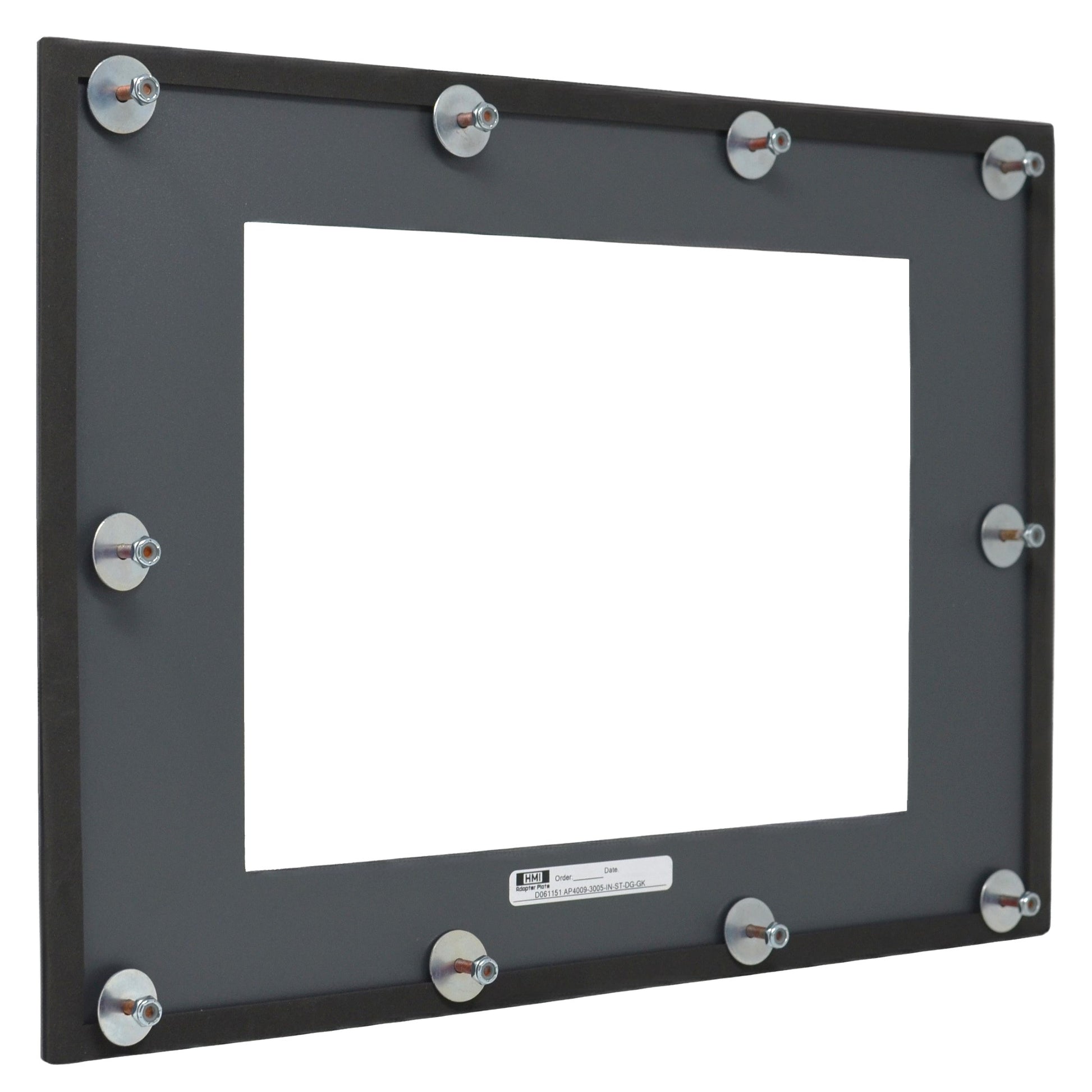

• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

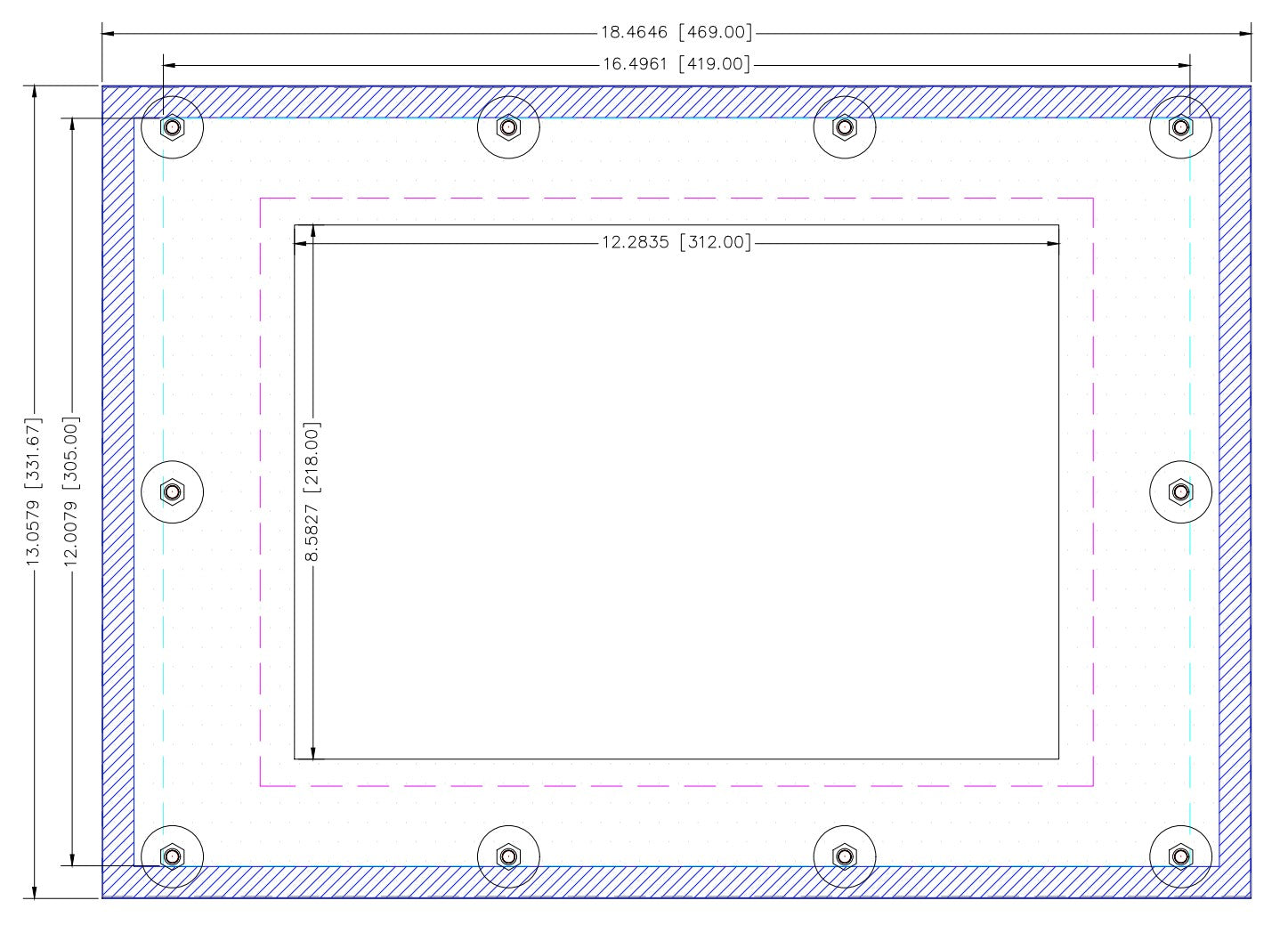

• Drawings: DXF, PDF

Notes:

• This plate replaces AP4009-3005-IN

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
