Allen Bradley Panel PC 6181 1500P 15" Touch to Allen Bradley PanelView Plus 7 12.1" Touch (AP4020-3005-IN)

Specifications:

• Existing HMI:
  • Allen Bradley Panel PC 6181 1500P 15" Touch
    • Models: 6181F-15*****, 6181P-15*****

• New HMI:
• Allen Bradley PanelView 5000 12.1" Touch
• Models: 2713P-T12WD1, 2715-T12WX, 2715P-T12WD
• Allen Bradley PanelView Plus 7 12.1" Touch
• Models: 2711P-T12W21D8S, 2711P-T12W21D8S-B, 2711P-T12W22A9P, 2711P-T12W22D8S, 2711P-T12W22D8S-B, 2711P-T12W22D9P

• 11 Gauge Heavy Duty Adapter Plate
• No Drilling Required (Plate Mounts Inside Existing Cutout)
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

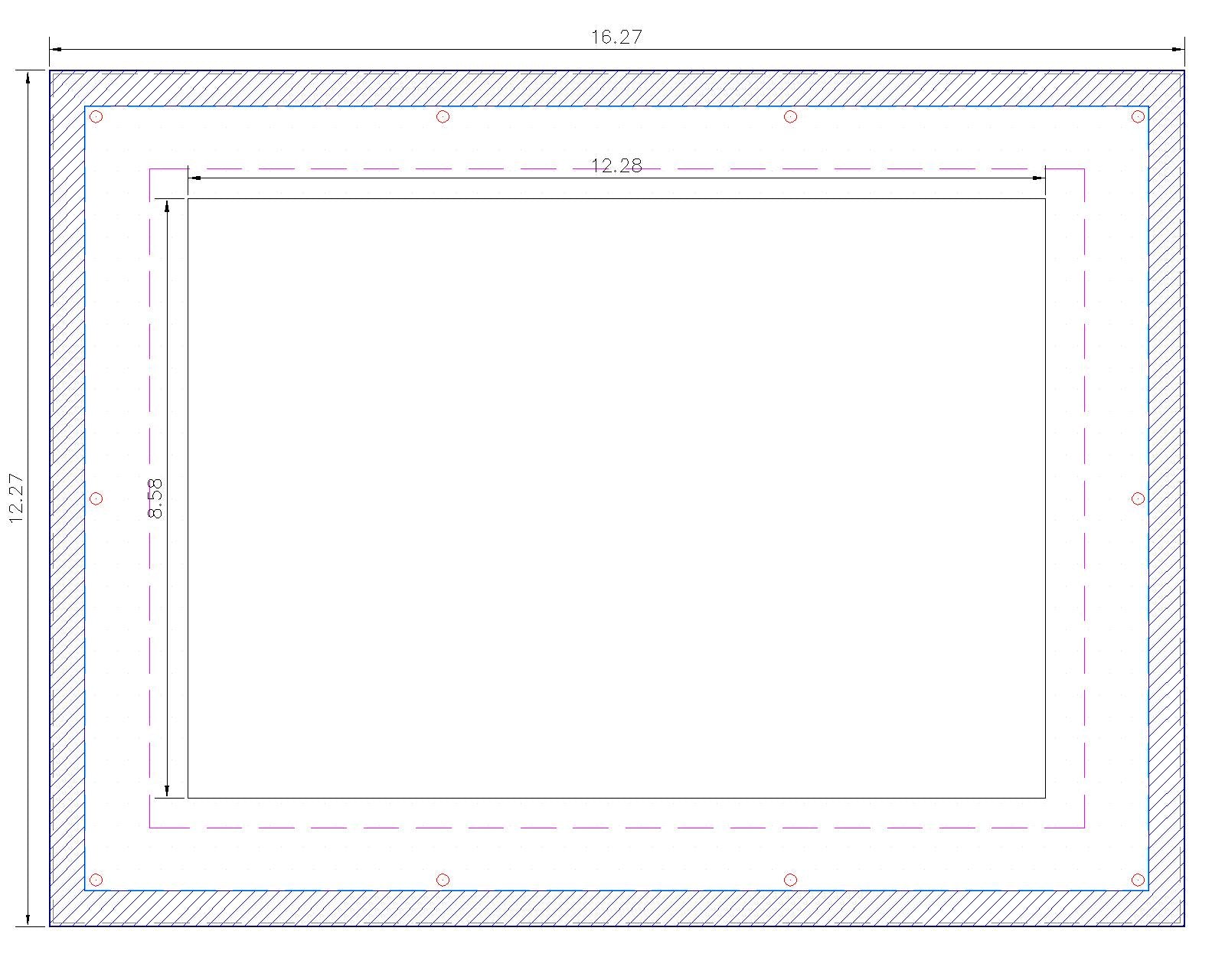

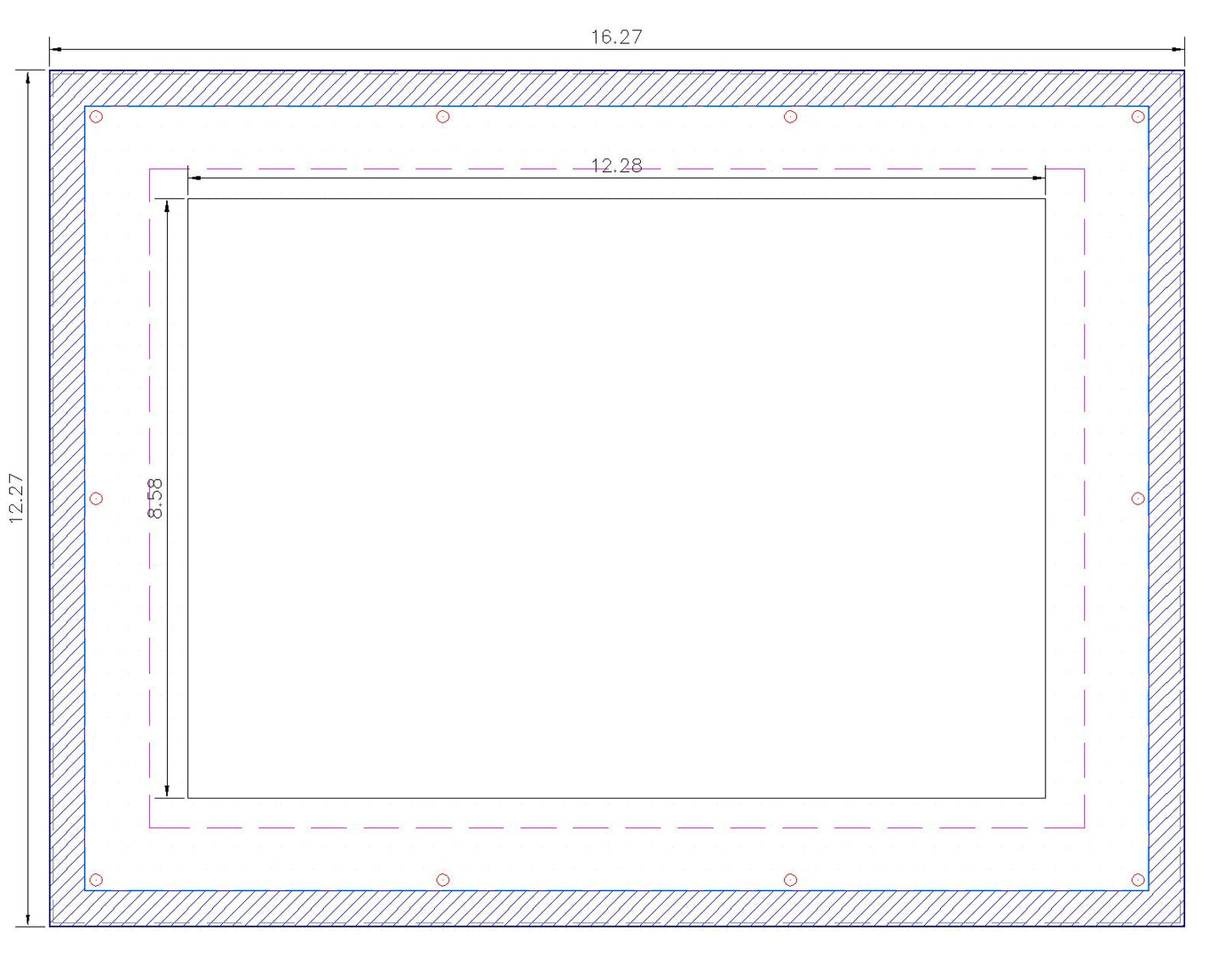

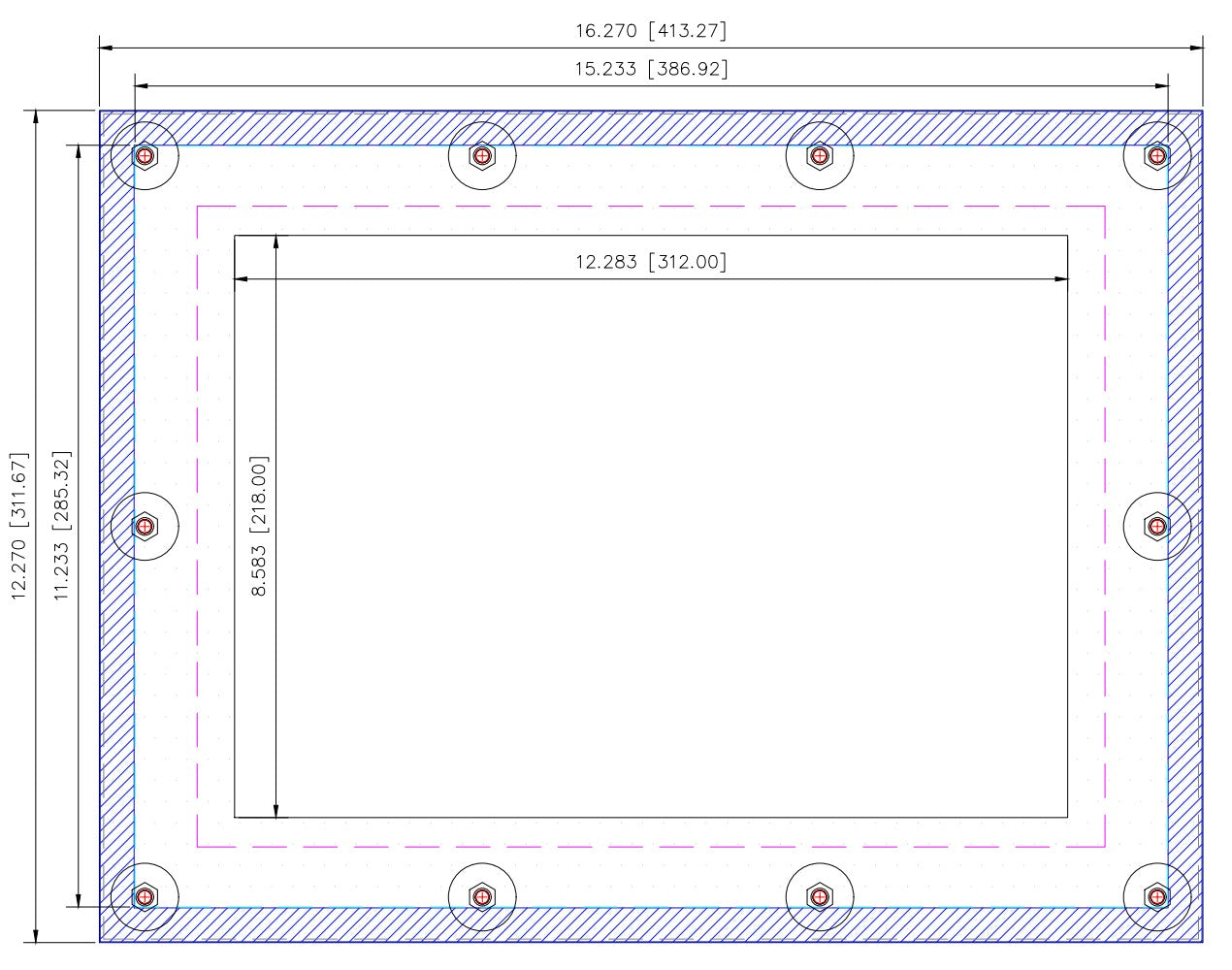

• Drawings:  DXF, PDF


• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
