Allen Bradley Panel PC 6181 1500P 15" Touch to Allen Bradley PanelView Plus 7 15" Touch (AP4020-3021-IN)
Model #:
Allen Bradley Panel PC 6181 1500P 15" Touch to Allen Bradley PanelView Plus 7 15" Touch (AP4020-3021-IN)
Regular price
$270.00 USD
Regular price
Sale price
$270.00 USD
Unit price
per
Shipping calculated at checkout.
2 Week Manufacturing Leadtime
Need to Expedite?
Need to Expedite?
Couldn't load pickup availability
Specifications:
-
Existing HMI:
- Allen Bradley Panel PC 6181 1500P 15" Touch
- Models: 6181F-15*****, 6181P-15*****
- Allen Bradley Panel PC 6181 1500P 15" Touch
- New HMI:
- Allen Bradley PanelView Plus 7 15" Touch Standard
- Models: 2711P-T15C21D8S, 2711P-T15C21D8S-B, 2711P-T15C22D8S, 2711P-T15C22D8S-B
** This adapter plate does not work for the following models due to side clip interference with adapter plate studs. The following models should use AP4020-3021-SM.
-
- Allen Bradley PanelView Plus 7 15" Touch Performance
- Models: 2711P-T15C22A9P, 2711P-T15C22D9P
- Allen Bradley PanelView 5000 15" Touch
- Models: 2715-T15CX, 2715P-T15CD
- Allen Bradley PanelView Plus 7 15" Touch Performance

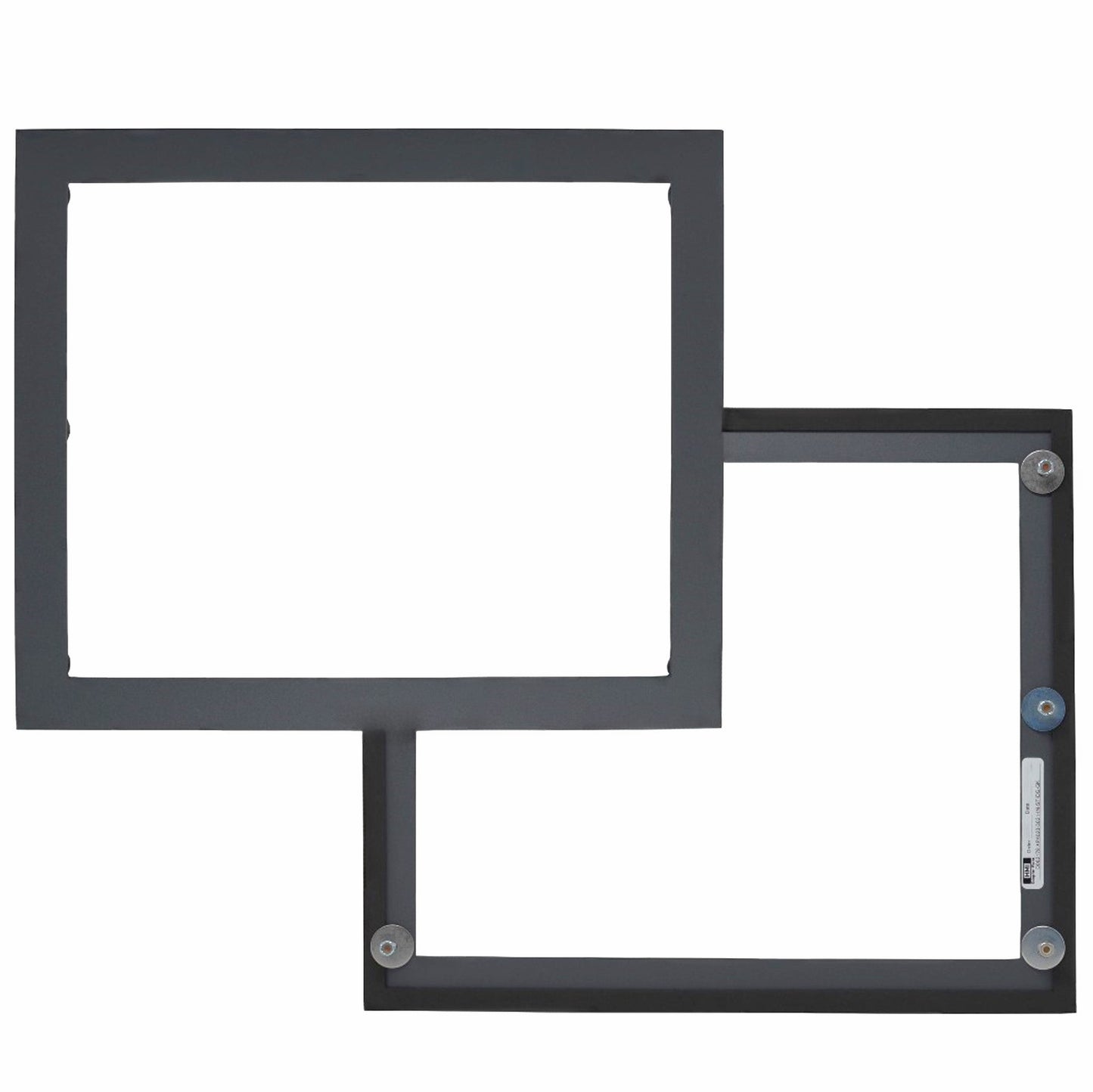

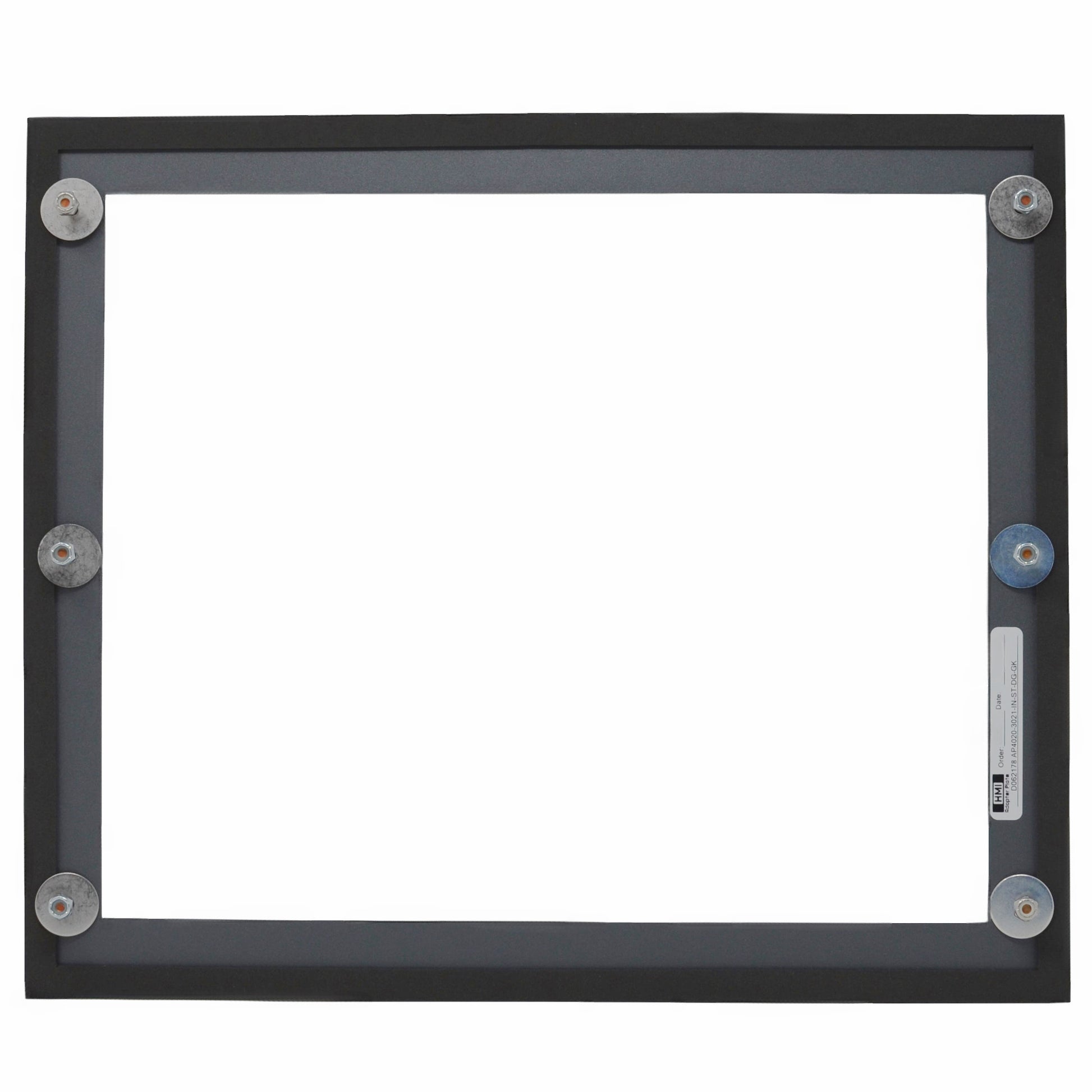

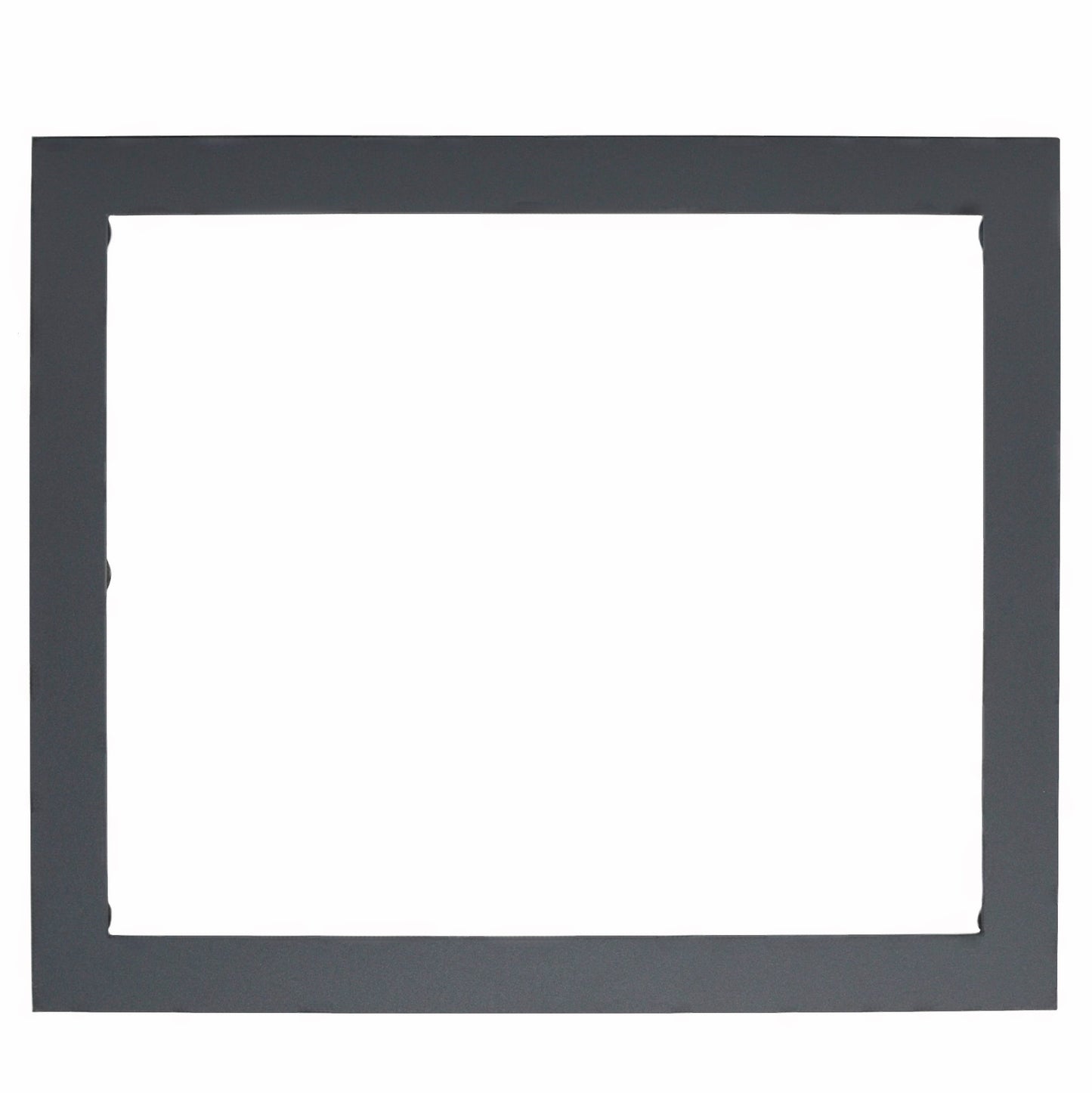

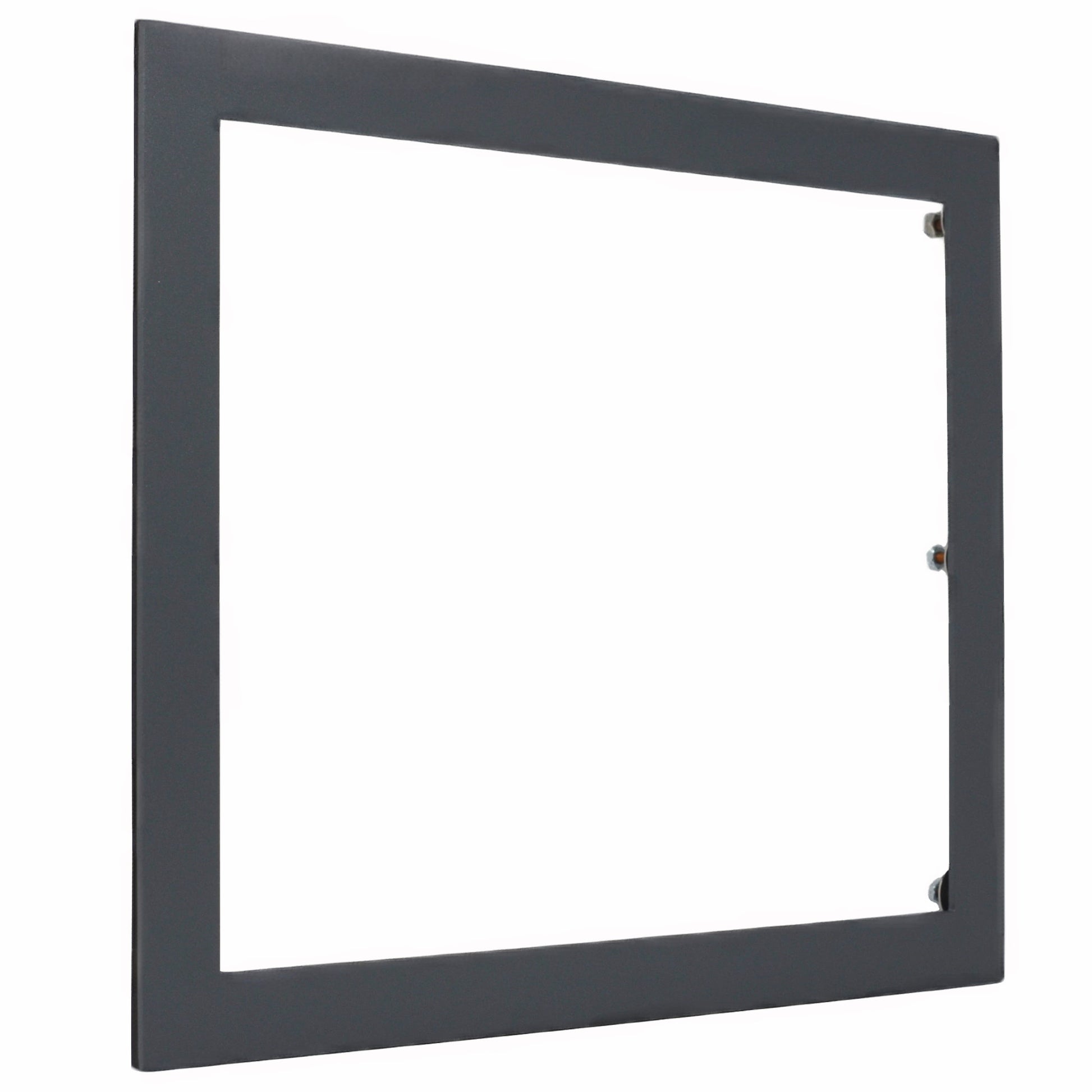

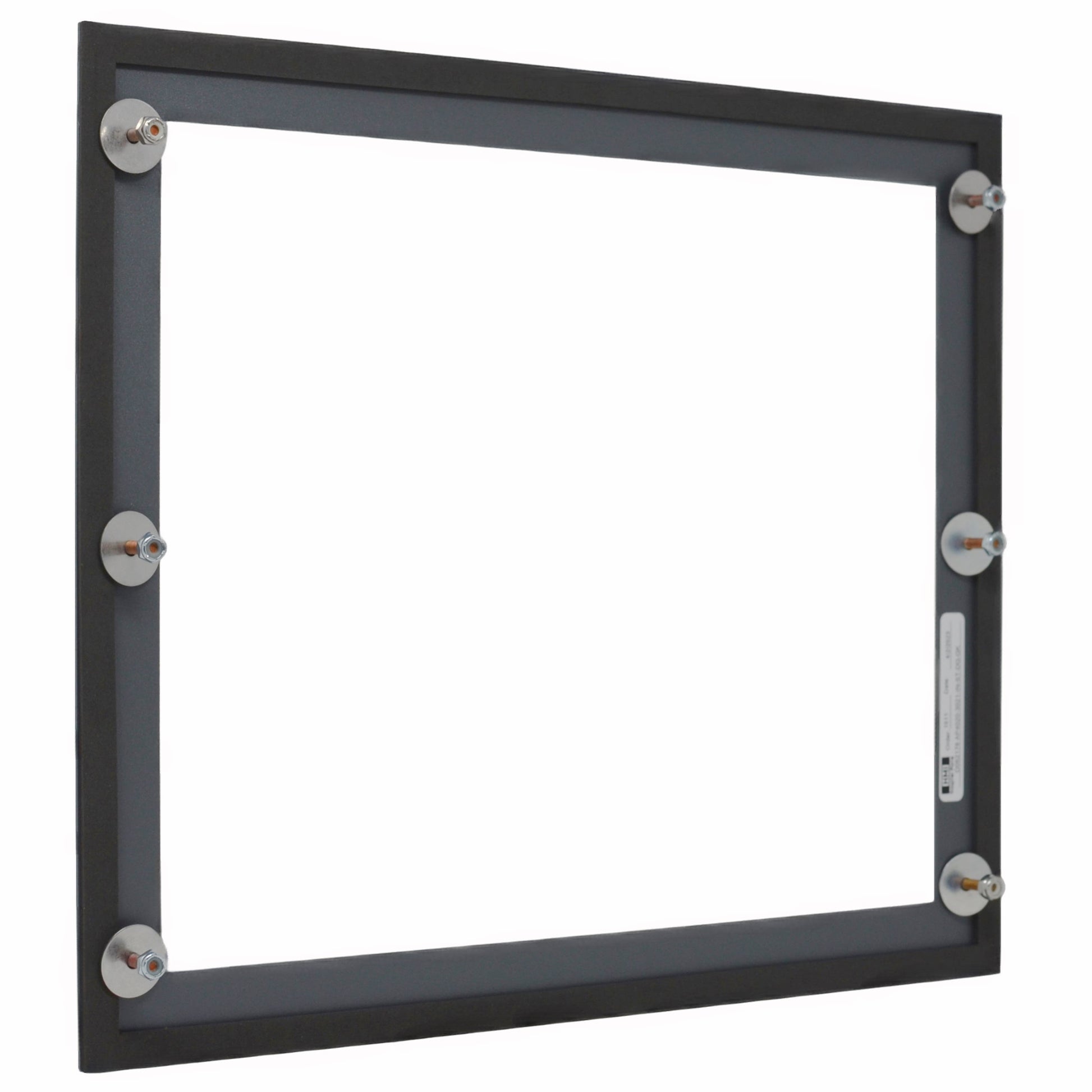

- 11 Gauge Heavy Duty Adapter Plate
- No Drilling Required (Plate Mounts Inside Existing Cutout)
- Includes Washers and Lock Nuts for Mounting
- Includes a Seamless Closed-Cell Neoprene Gasket
Documents:
Notes:
- This same conversion is also available as a Stud Mount (SM) (AP4020-3021-SM)
