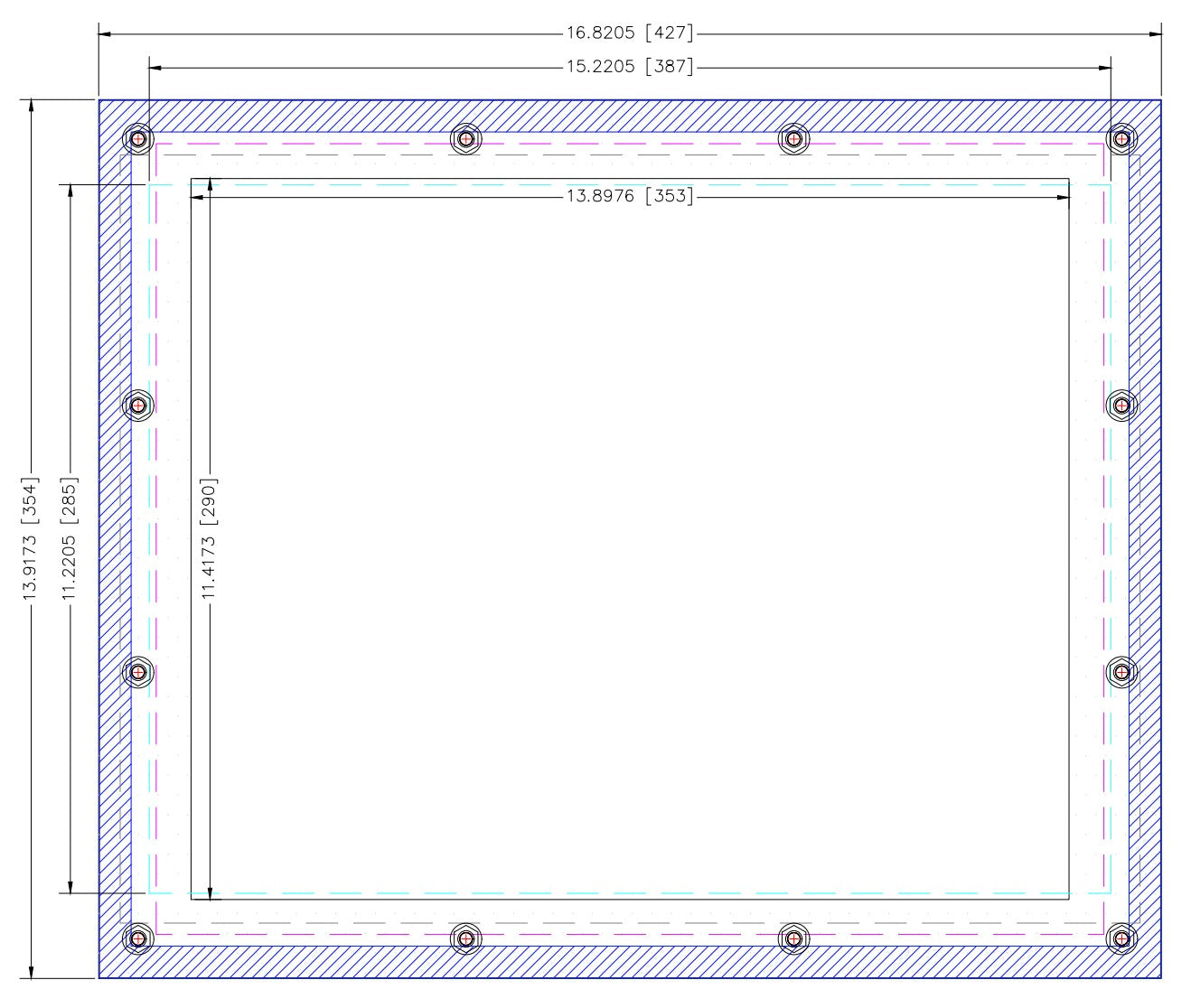

Allen Bradley Integrated Display 15" to Allen Bradley PanelView Plus 7 15" Touch (AP4020-3021-SM)

• Existing HMI:
• Allen Bradley Integrated Display Computers 1500P 15" Touch
• Models: 6181F-15*****, 6181P-15*****

• New HMI:
• Allen Bradley PanelView 5000 15" Touch
• Models: 2715-T15CX, 2715P-T15CD
• Allen Bradley PanelView Plus 7 15"
• Models: 2711P-T15C21D8S, 2711P-T15C21D8S-B, 2711P-T15C22A9P, 2711P-T15C22D8S, 2711P-T15C22D8S-B, 2711P-T15C22D9P

• 11 Gauge Heavy Duty Adapter Plate
• Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
• Includes a Paper Template for Drilling Around Existing Cutout
• Includes Washers and Lock Nuts for Mounting
• Includes a Seamless Closed-Cell Neoprene Gasket

Download DXF: D028804 AP4020-3021-SM
Download PDF: D028804 AP4020-3021-SM

• Steel: NEMA 12, 13, 1
• Stainless: NEMA 4X, 4, 12, 13, 1
• IP66
