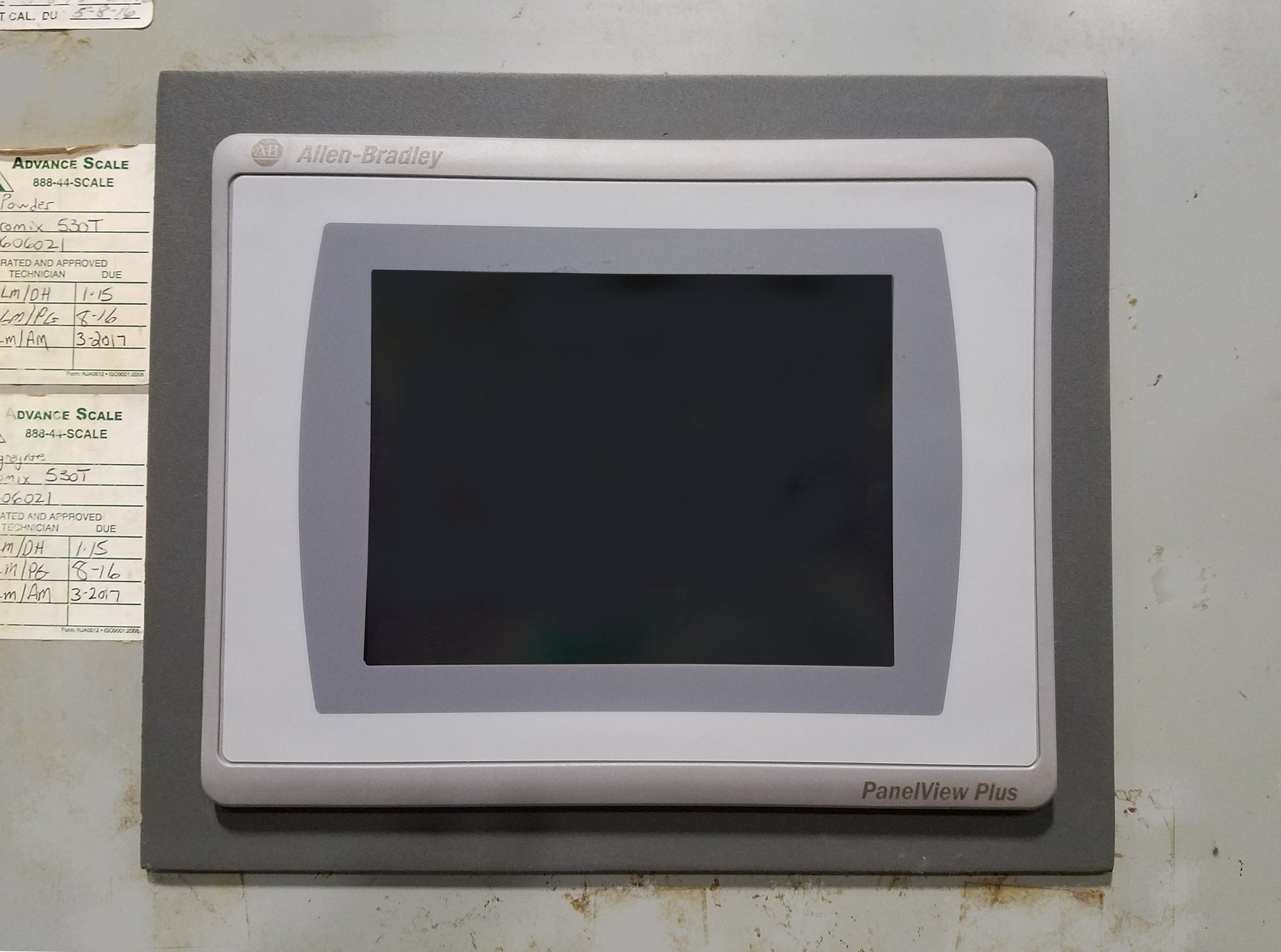

Custom HMI Adapter or Cover Plate

Model #:

Custom HMI Adapter or Cover Plate

Regular price $160.00 USD
Regular price Sale price $160.00 USD
Sale Sold out
Shipping calculated at checkout.
2 Week Manufacturing Leadtime
Need to Expedite?

Custom Plate Design
Please use the link below to configure your custom HMI Adapter or Cover Plate.

Link for Adapter & Cover Plate Builder

The website will help you build a plate and generate a drawing. We will review the drawing to make sure it is valid before purchasing. You may also email your requirements to sales@hmiadapterplate.com and we can assist in designing your plate.

Plate Overview

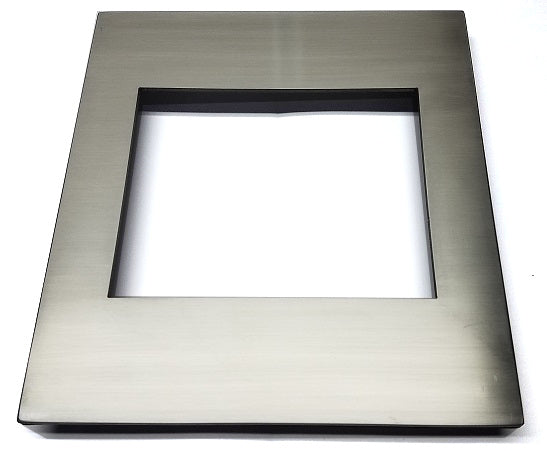

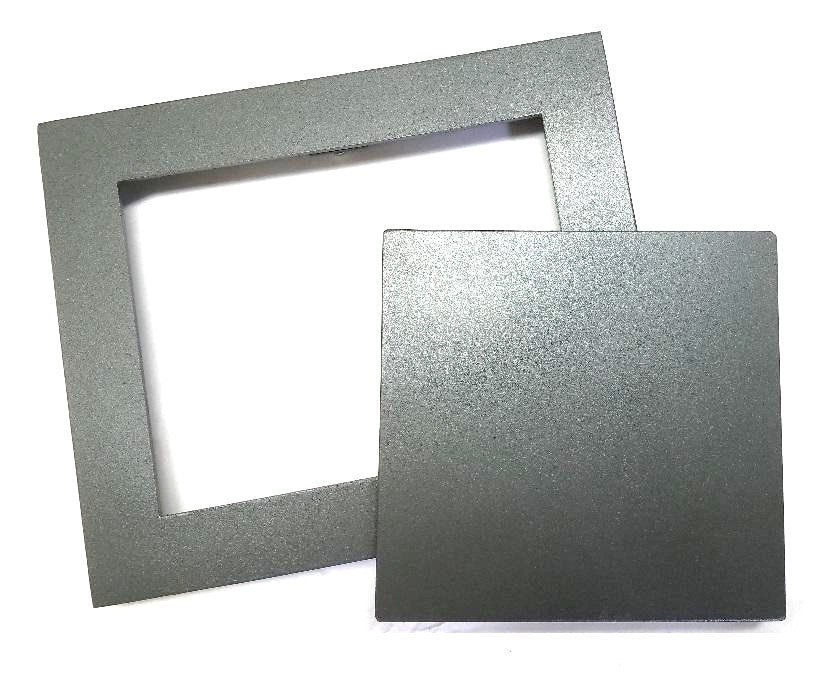

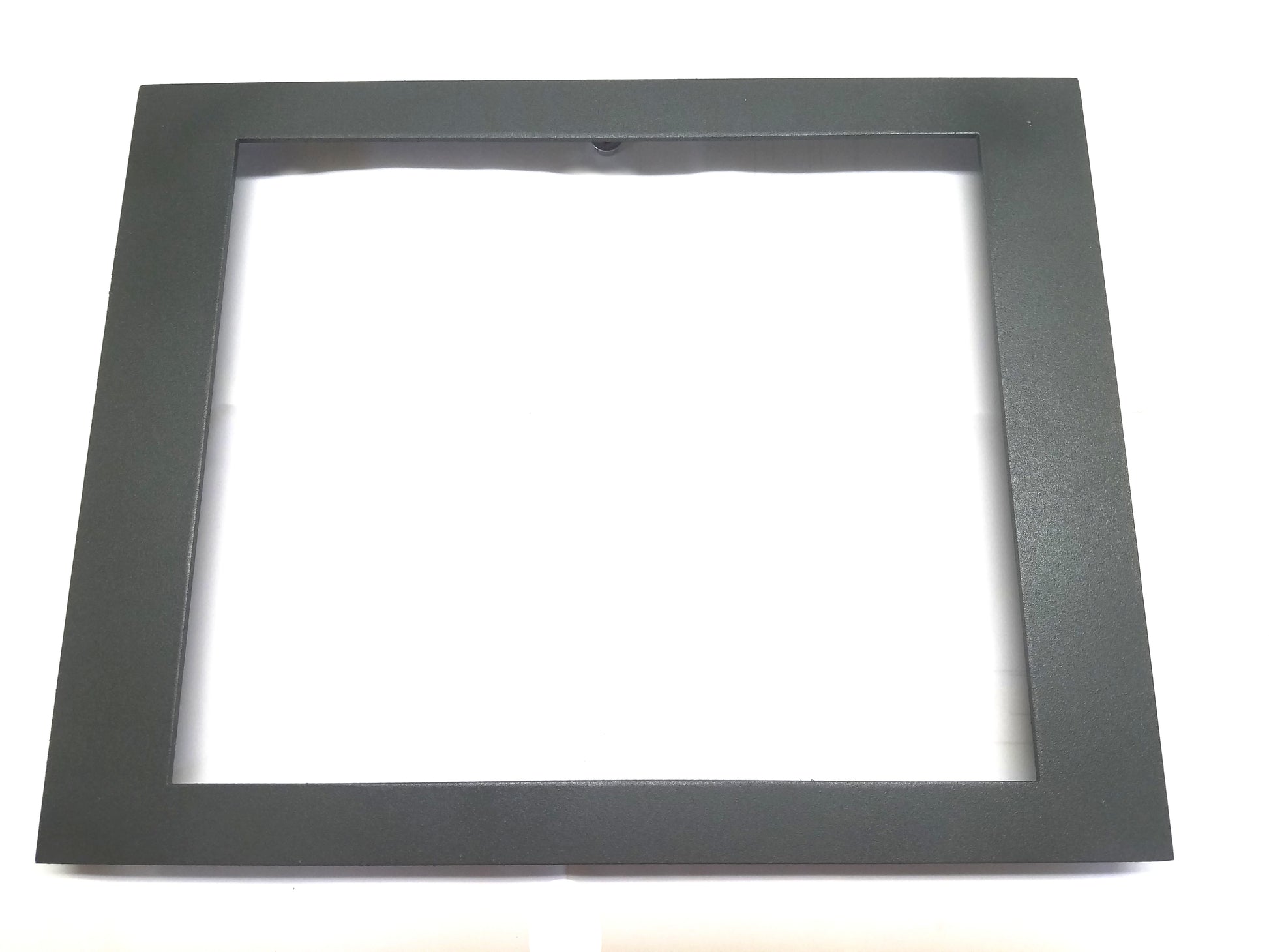

Our plates are made from heavy duty 11-gauge steel. Plates are available in Powder Coated Dark Gray Steel, 304 Stainless Steel, or 316 Stainless Steel. All plates include a seamless closed-cell neoprene gasket to seal the opening. Hardware and paper templates are included to mount the plate to your existing opening. We have 3 different mounting designs: Stud Mount (SM), Inside Mount (IN), and Backplate (BP).

With the Stud Mount (SM) option you will receive a paper template to locate and drill holes on your existing enclosure. The plate's studs will insert into the drilled holes and be secured with supplied washers and lock nuts.

With the Inside Mount (IN) option there is no drilling required. The adapter plate studs will fit inside the existing cutout. We will supply large washers and lock nuts to secure the plate.

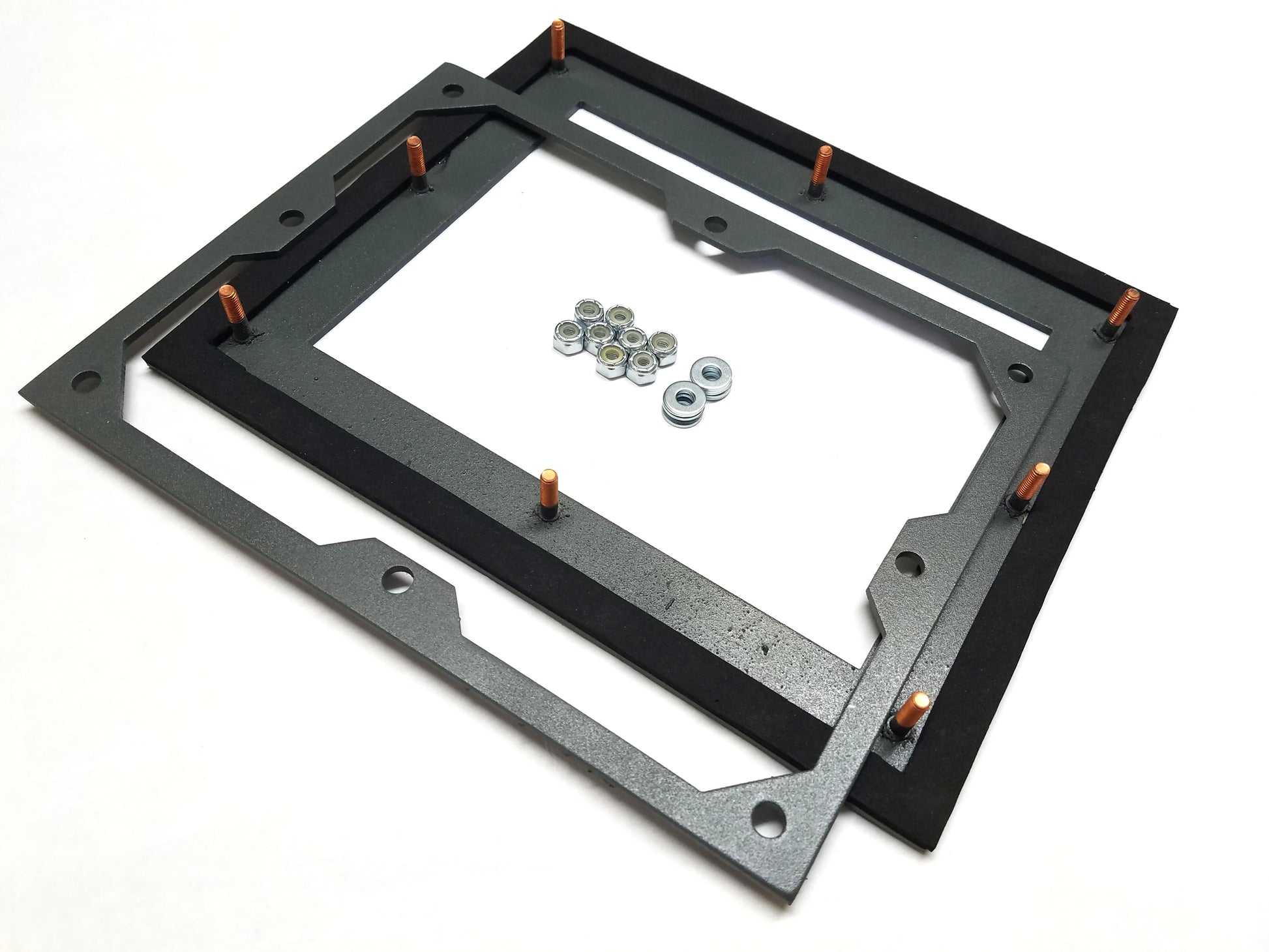

With the Backplate (BP) option there is no drilling required. The adapter plate studs will fit inside the existing cutout. A custom backplate and lock nuts are supplied to fit over the studs from the inside the enclosure.
