HMIAdapterPlate

Allen Bradley PanelView Plus 1000 Touch to Allen Bradley PanelView Plus 7 10.4" Touch (AP3011-2028-IN)

Model #:

Allen Bradley PanelView Plus 1000 Touch to Allen Bradley PanelView Plus 7 10.4" Touch (AP3011-2028-IN)

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
Shipping calculated at checkout.
10 in stock, more available with 2 week leadtime
Need to Expedite?

Specifications:

  • Existing HMI:
    • Allen Bradley PanelView Plus 6 1000 Touch
      • Models: 2711P-T10C4A8, 2711P-T10C4A9, 2711P-T10C4D8, 2711P-T10C4D9, 2711PC-T10C4D8 (Size Code: 3009)
    • Allen Bradley PanelView Plus 1000 Touch
      • Models: 2711P-T10****, 2711PC-T10C4D1 (Size Code: 3009)
    • Allen Bradley PanelView Standard 900 Touch
      • Models: 2711-T9A1, 2711-T9A10, 2711-T9A15, 2711-T9A16, 2711-T9A2, 2711-T9A3, 2711-T9A5, 2711-T9A8, 2711-T9A9, 2711-T9C1, 2711-T9C10, 2711-T9C15, 2711-T9C16, 2711-T9C20, 2711-T9C3, 2711-T9C8, 2711-T9C9 (Size Code: 3011)
  • New HMI:
    • Allen Bradley PanelView 5000 10.4" Touch
      • Models: 2713P-T10CD1, 2715-T10CX, 2715P-T10CD
    • Allen Bradley PanelView Plus 7 10.4" Touch
      • Models: 2711P-T10C21D8S, 2711P-T10C21D8S-B, 2711P-T10C22A9P, 2711P-T10C22D8S, 2711P-T10C22D8S-B, 2711P-T10C22D9P

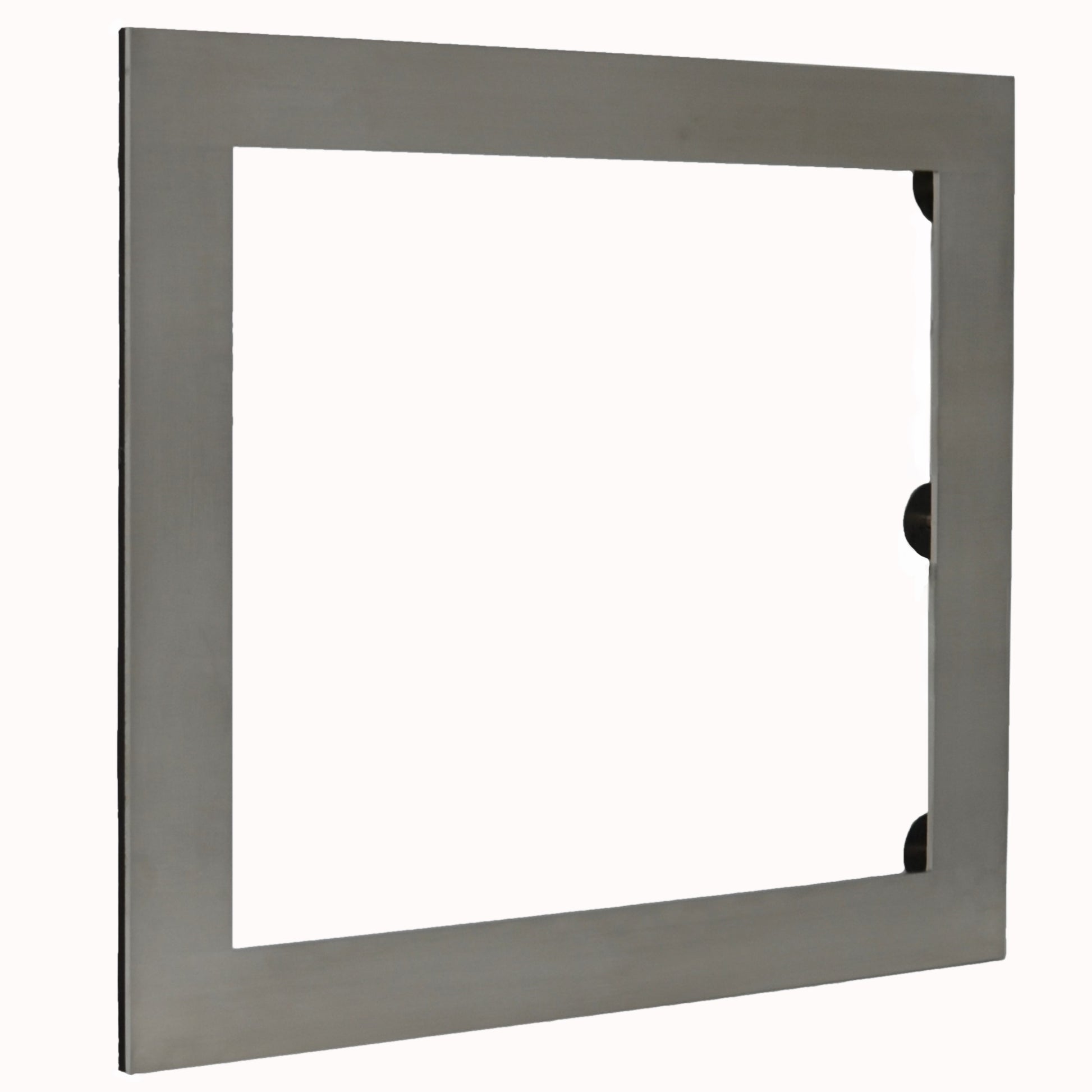

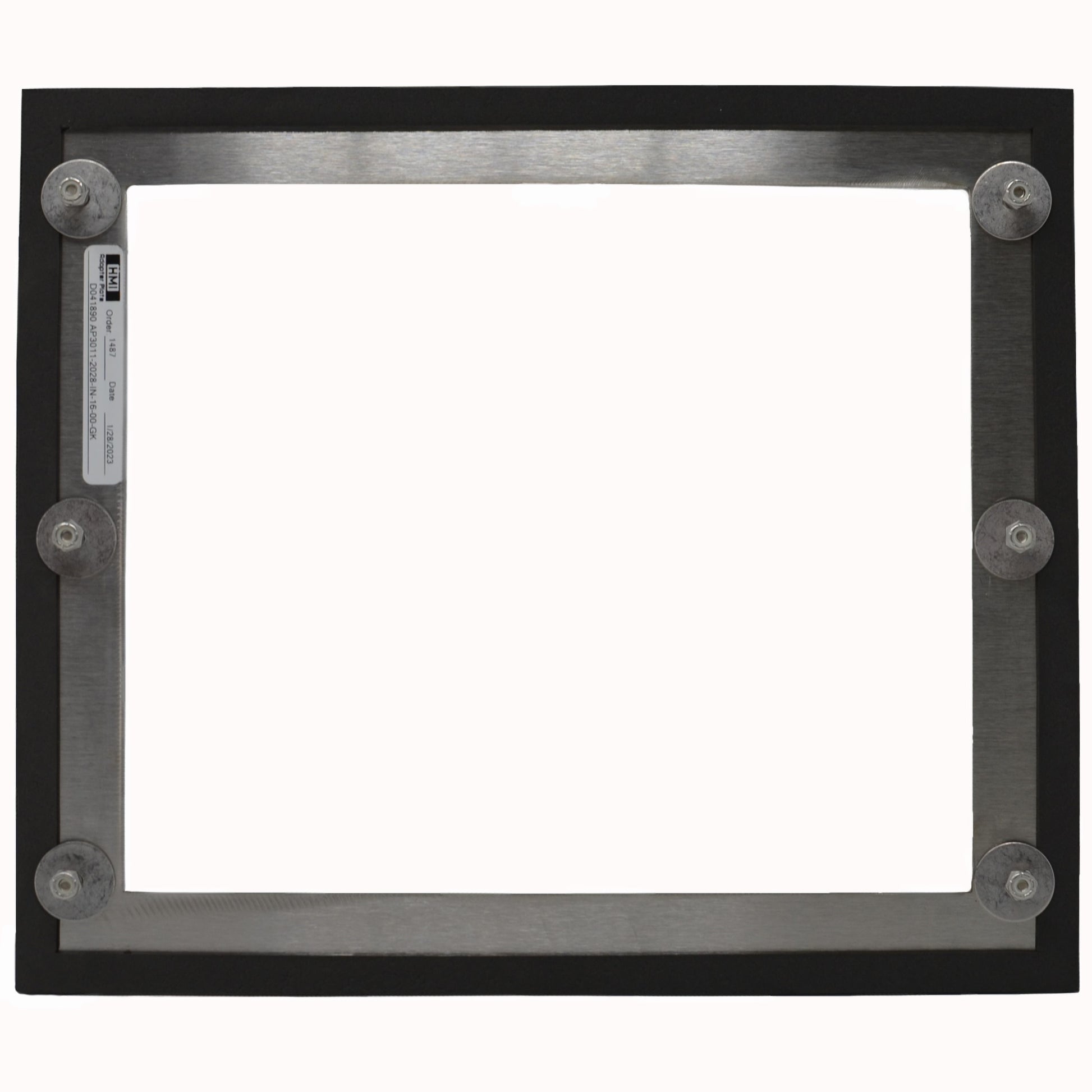

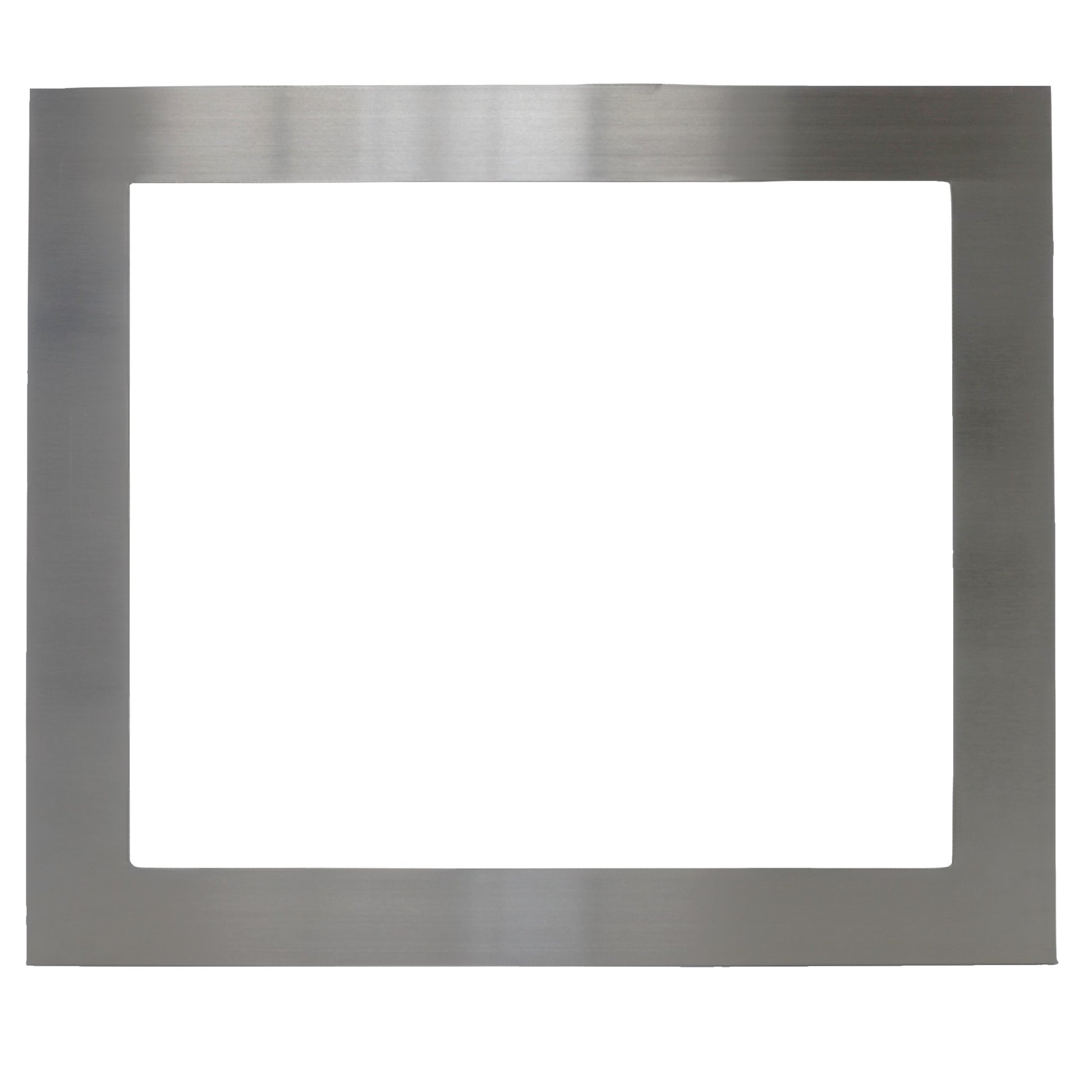

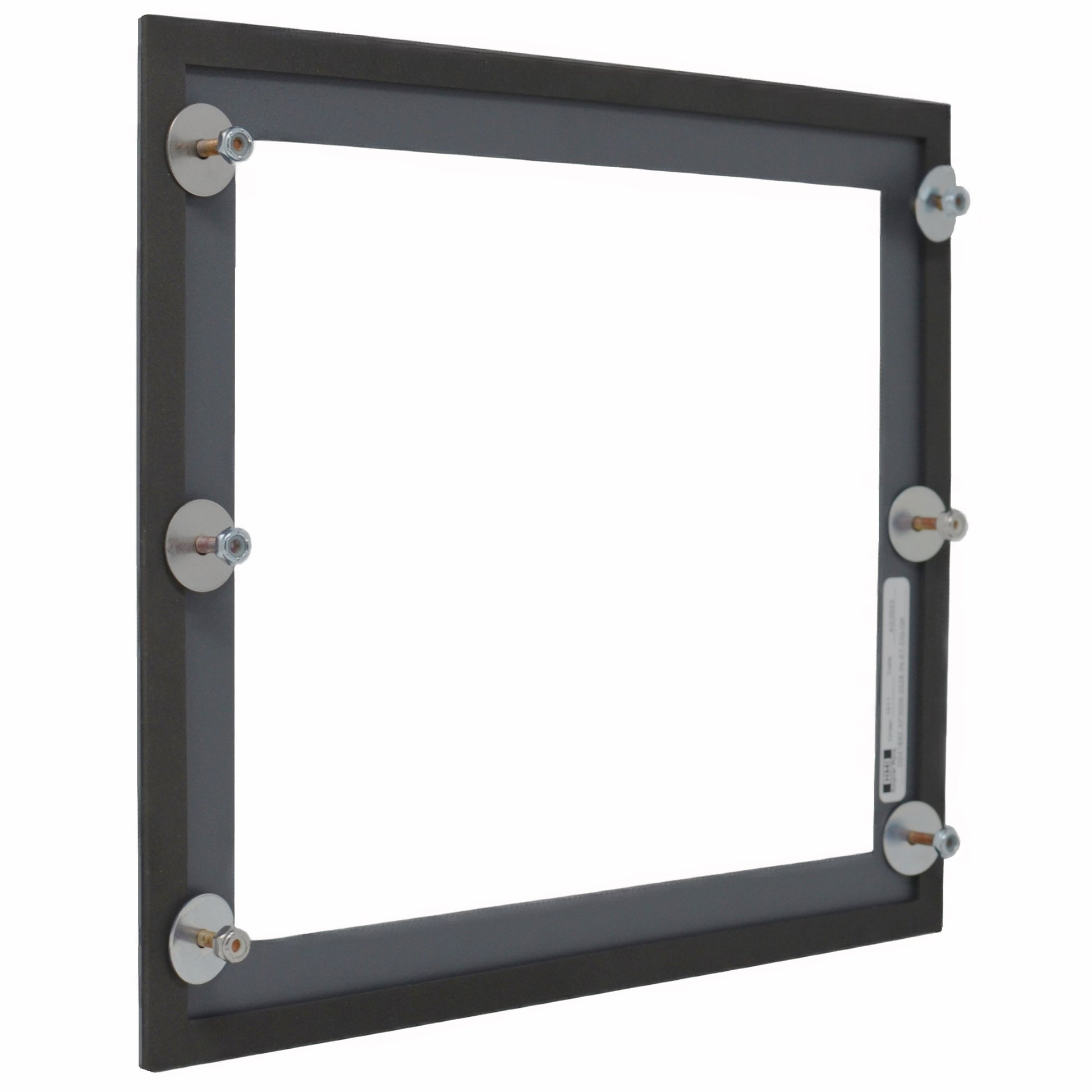

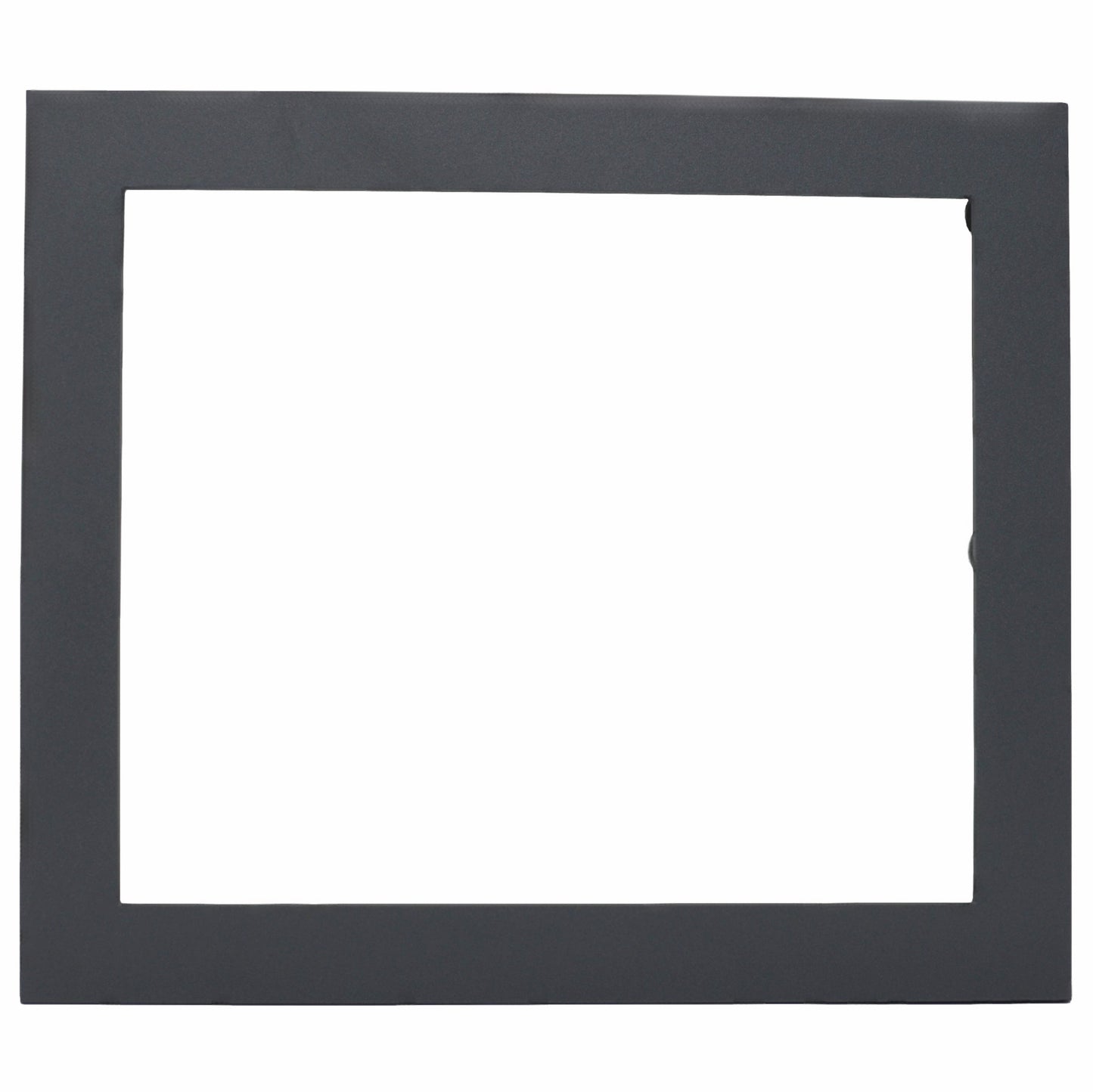

  • 11 Gauge Heavy Duty Adapter Plate
  • No Drilling Required (Plate Mounts Inside Existing Cutout)

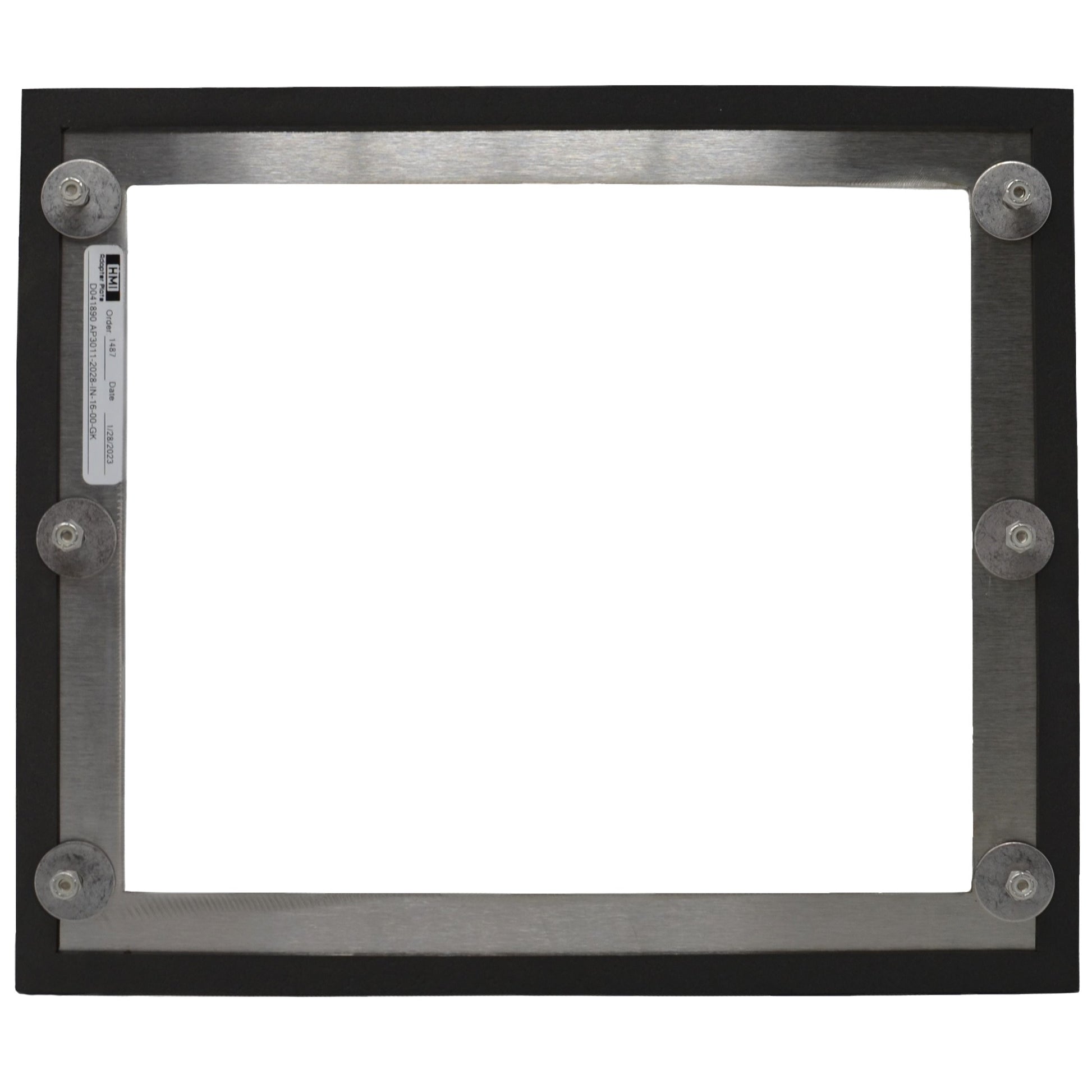

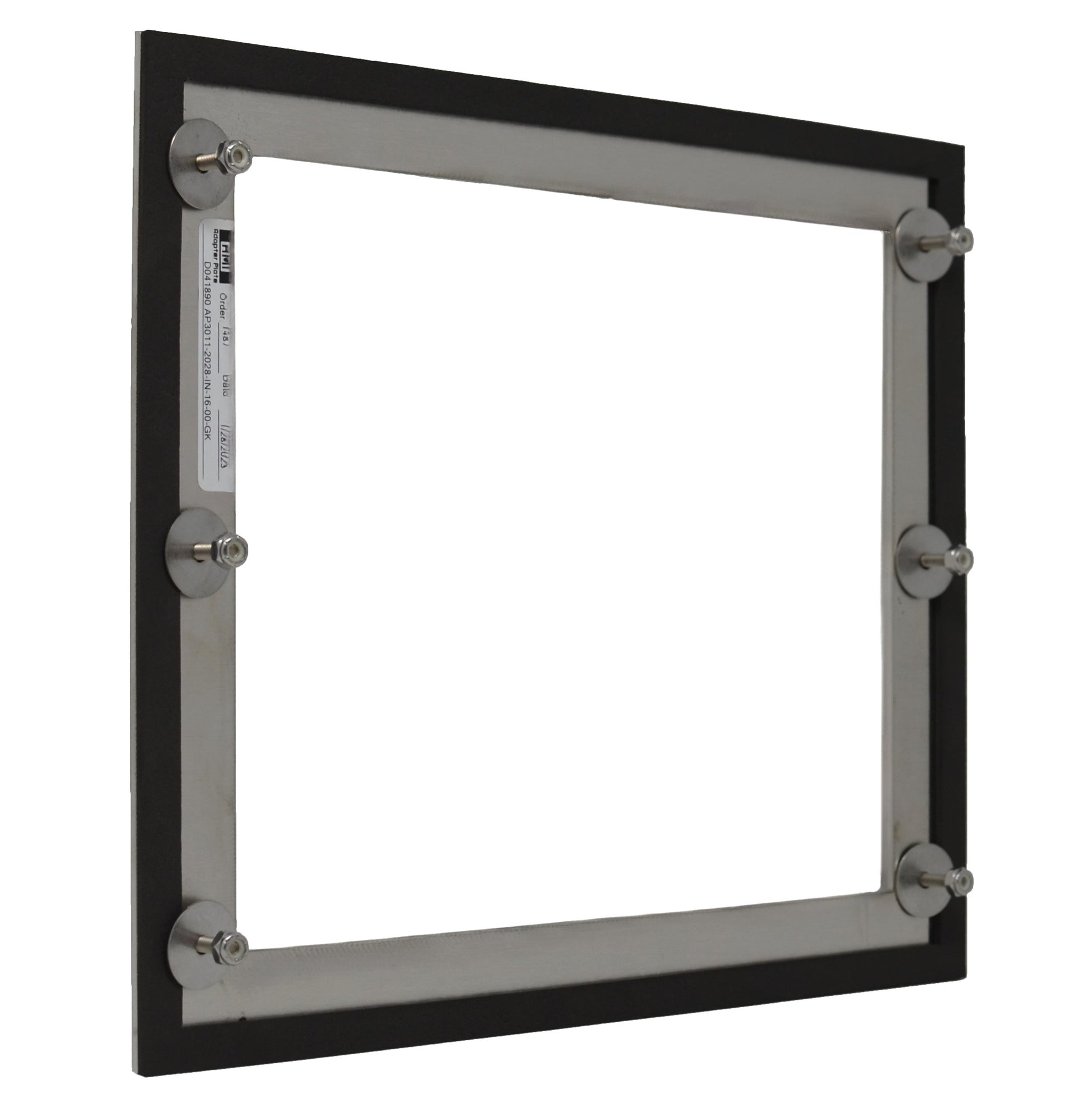

  • Includes Washers and Lock Nuts for Mounting
  • Includes a Seamless Closed-Cell Neoprene Gasket

Documents:

Cross-Reference:
Allen Bradley #2711P-RAAT10

Notes:

  • This same conversion is also available as a Stud Mount (SM) (AP3011-2028-SM)
  • This plate replaces #AP3009-2028-IN
