Allen Bradley PanelView Plus 1000 Touch to Allen Bradley PanelView Plus 7 10.4" Touch (AP3011-2028-SM)
Model #:
Allen Bradley PanelView Plus 1000 Touch to Allen Bradley PanelView Plus 7 10.4" Touch (AP3011-2028-SM)
Regular price
$240.00 USD
Regular price
Sale price
$240.00 USD
Unit price
per
2 in stock, more available with 2 week leadtime
Need to Expedite?
Need to Expedite?
Couldn't load pickup availability
- Existing HMI:
- Allen Bradley PanelView Plus 1000 Touch
- Models: 2711P-T10****, 2711PC-T10C4D1
- Allen Bradley PanelView Plus 6 1000 Touch
-
Models: 2711P-T10C4A8, 2711P-T10C4A9, 2711P-T10C4D8, 2711P-T10C4D9, 2711PC-T10C4D8
- Allen Bradley PanelView Standard 900 Touch
- Models: 2711-T9A1, 2711-T9A10, 2711-T9A15, 2711-T9A16, 2711-T9A2, 2711-T9A3, 2711-T9A5, 2711-T9A8, 2711-T9A9, 2711-T9C1, 2711-T9C10, 2711-T9C15, 2711-T9C16, 2711-T9C20, 2711-T9C3, 2711-T9C8, 2711-T9C9
- New HMI:
- Allen Bradley PanelView 5000 10.4" Touch
- Models: 2713P-T10CD1, 2715-T10CX, 2715P-T10CD
- Allen Bradley PanelView 7 10.4" Touch
- Models: 2711P-T10C21D8S, 2711P-T10C21D8S-B, 2711P-T10C22A9P, 2711P-T10C22D8S, 2711P-T10C22D8S-B, 2711P-T10C22D9P

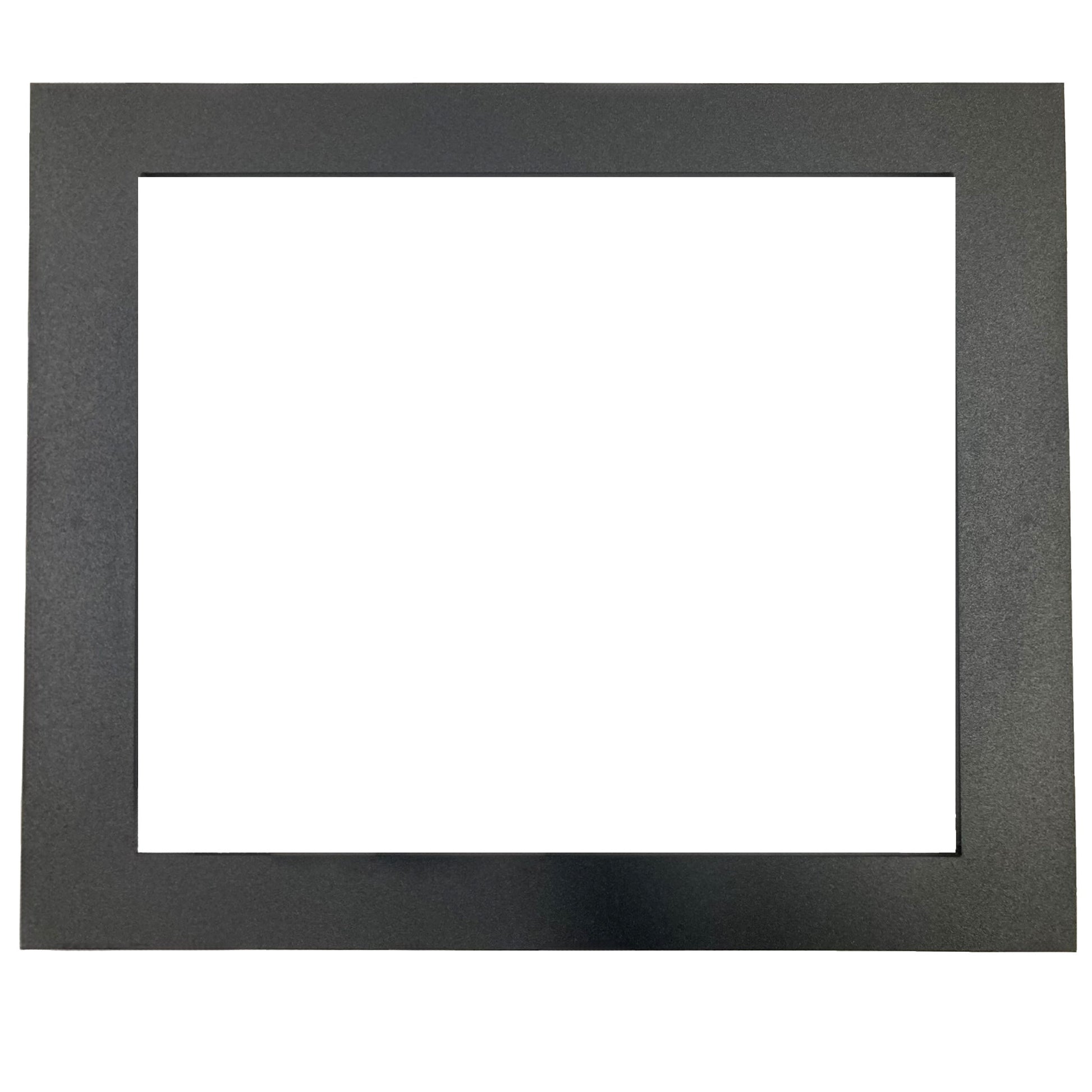

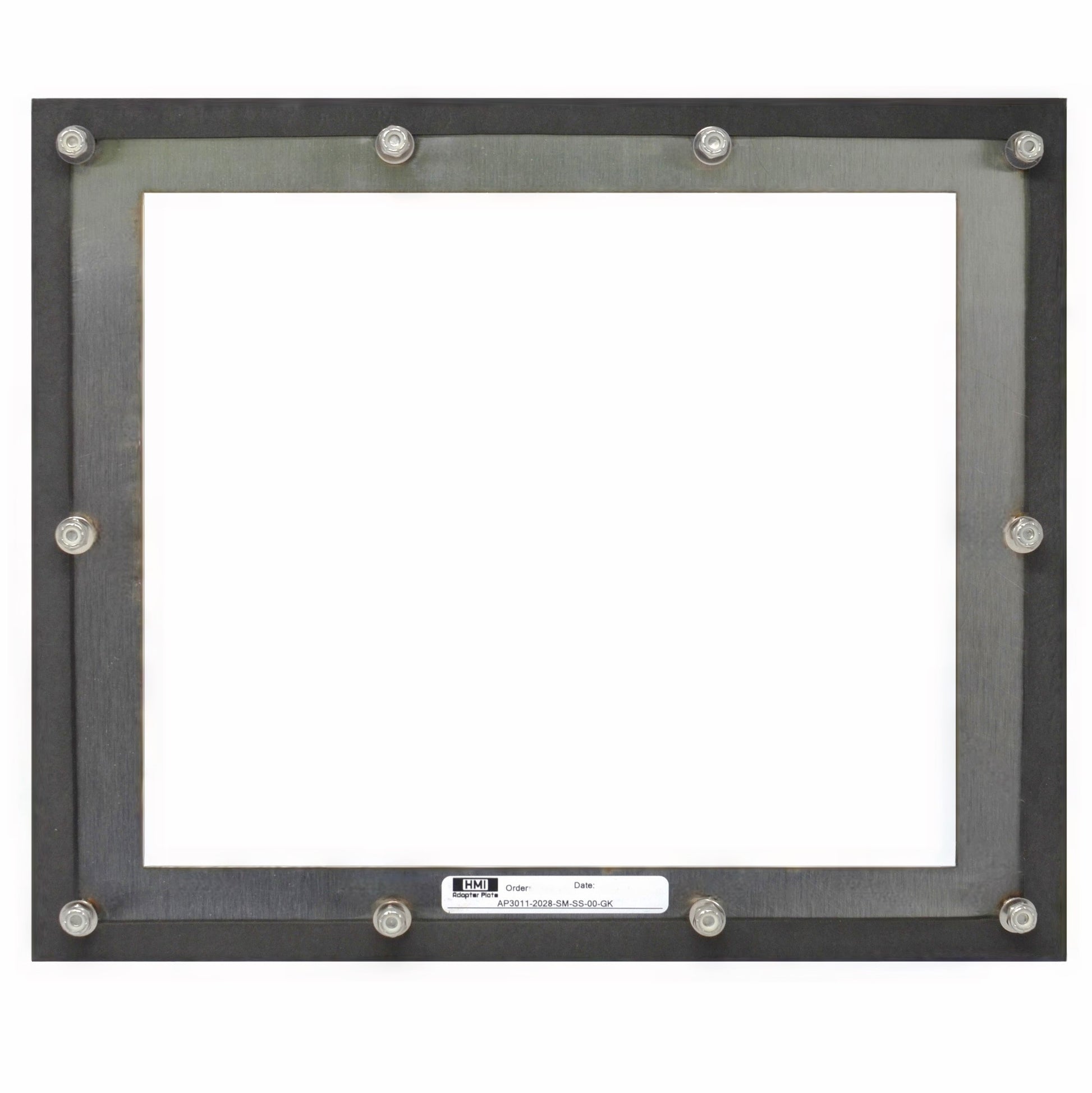

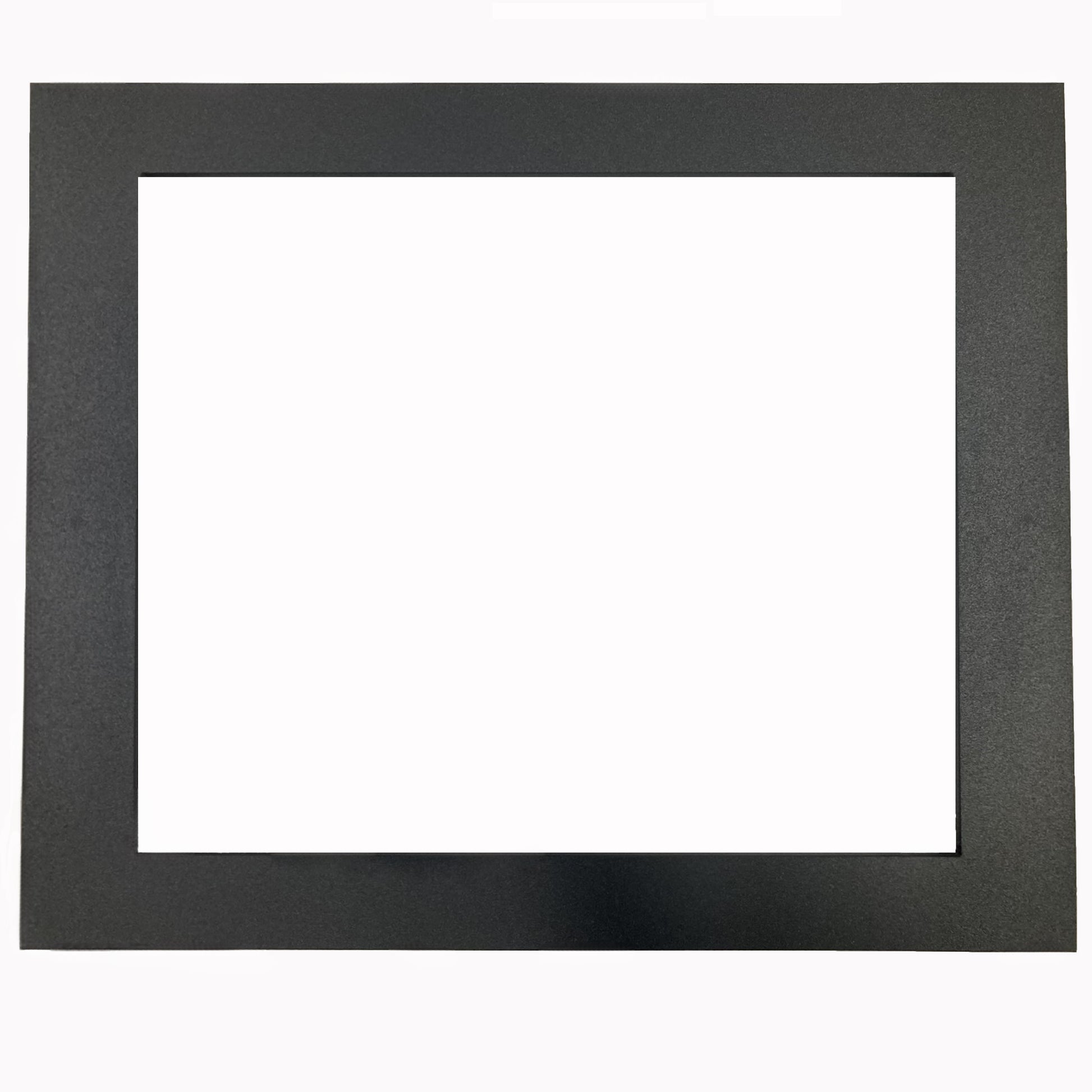

- 11 Gauge Heavy Duty Adapter Plate

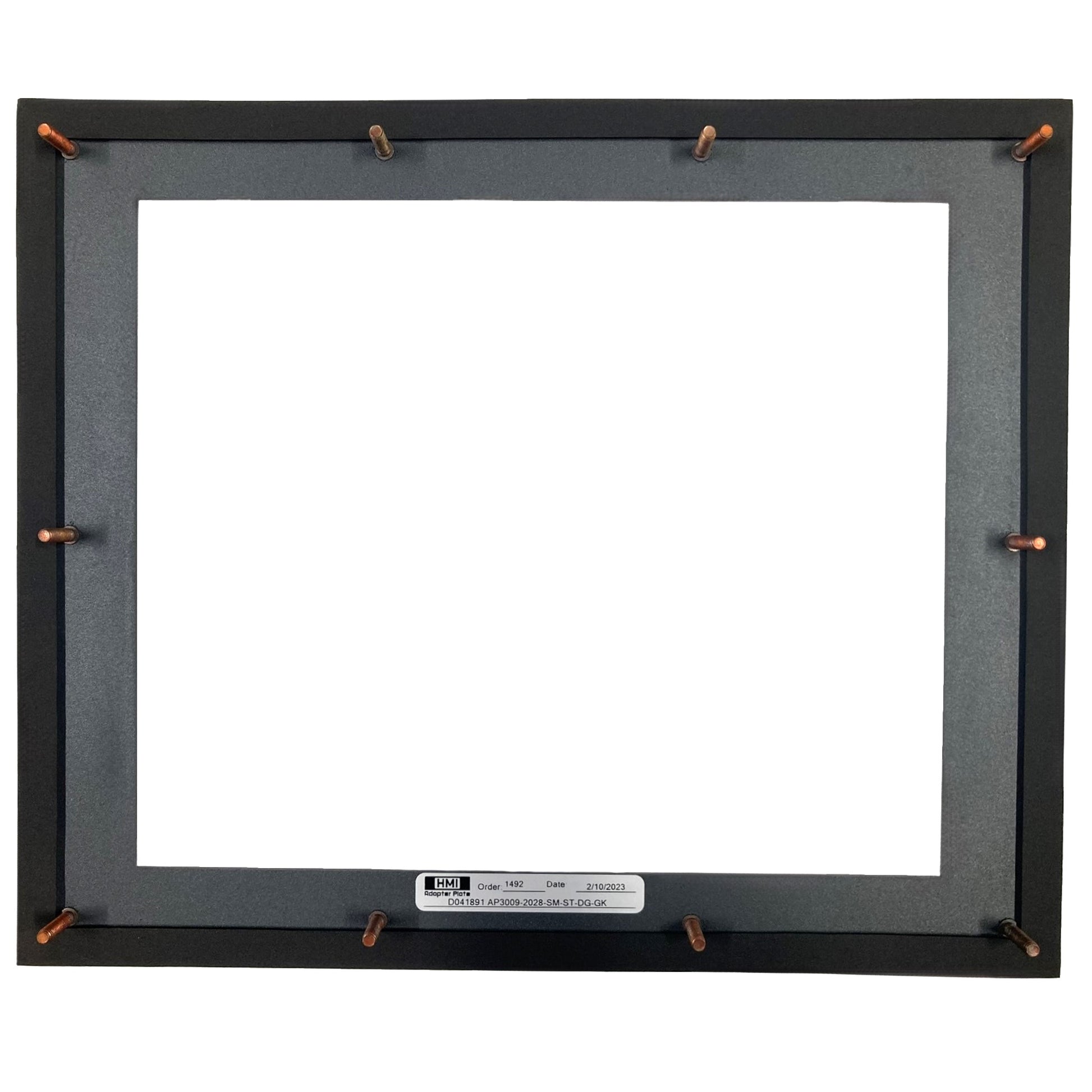

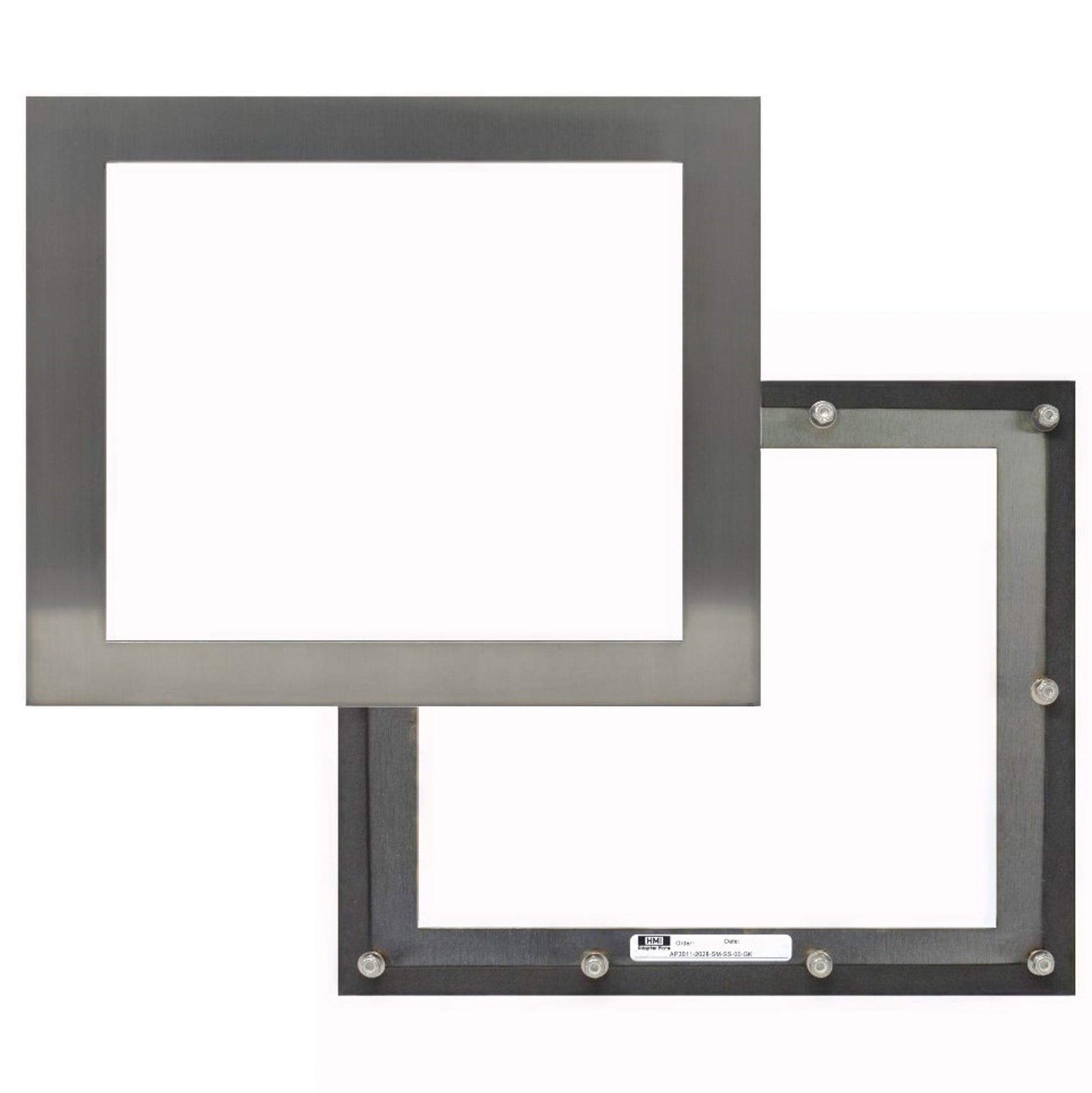

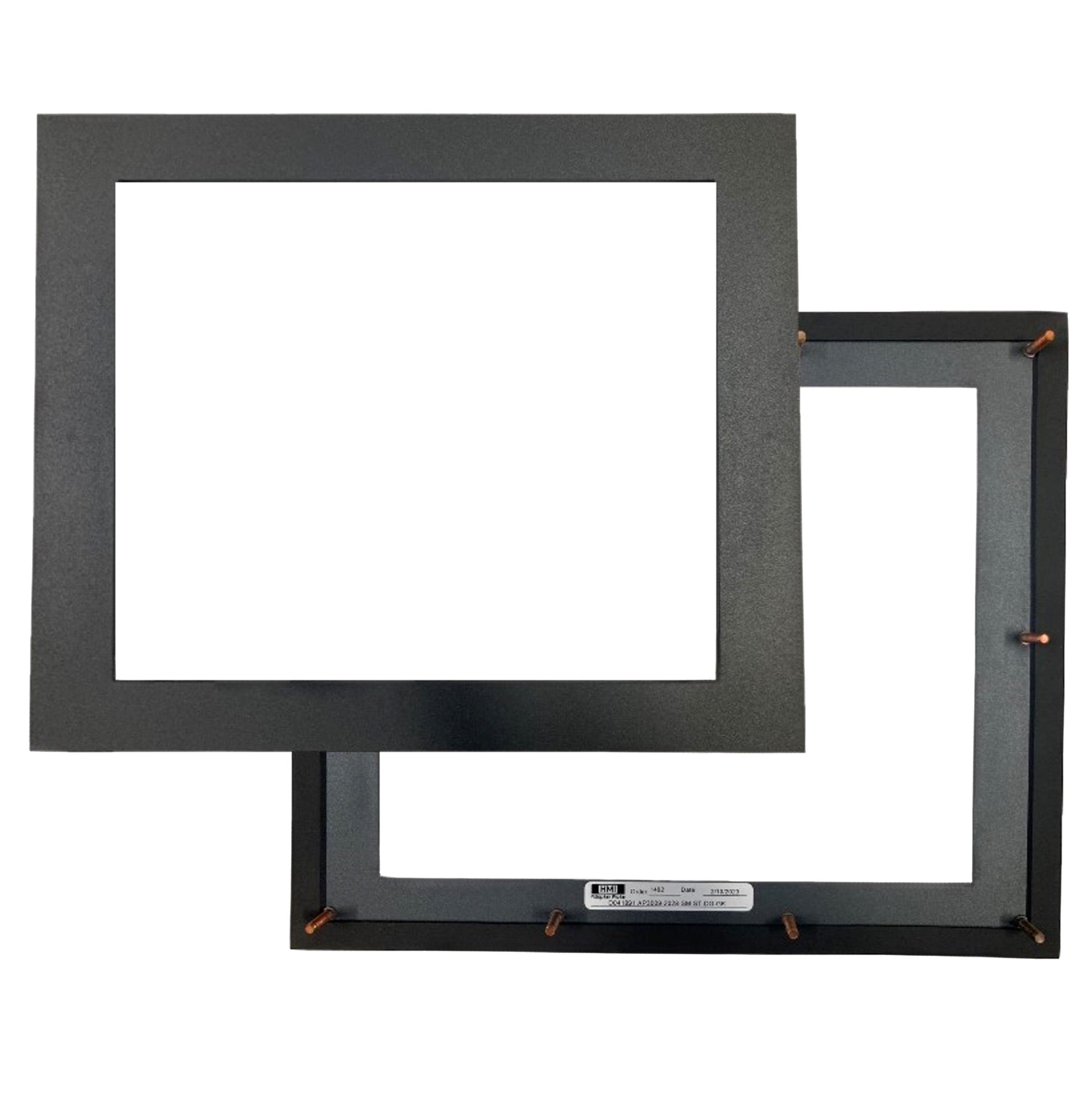

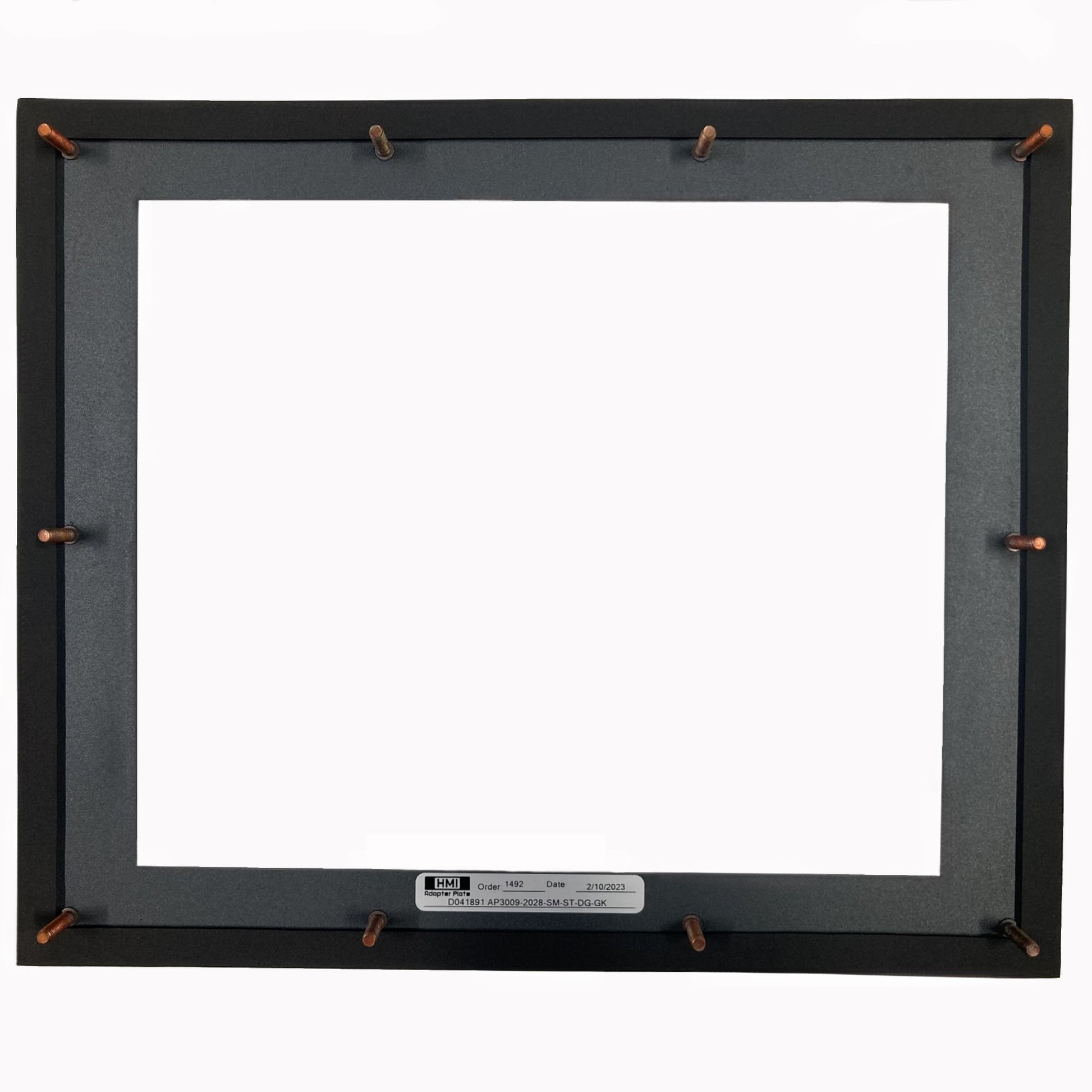

- Stud Mount Design (Requires Drilling for Studs Around the Existing Cutout)
- Includes a Paper Template for Drilling Around Existing Cutout
- Includes Washers and Lock Nuts for Mounting
- Includes a Seamless Closed-Cell Neoprene Gasket

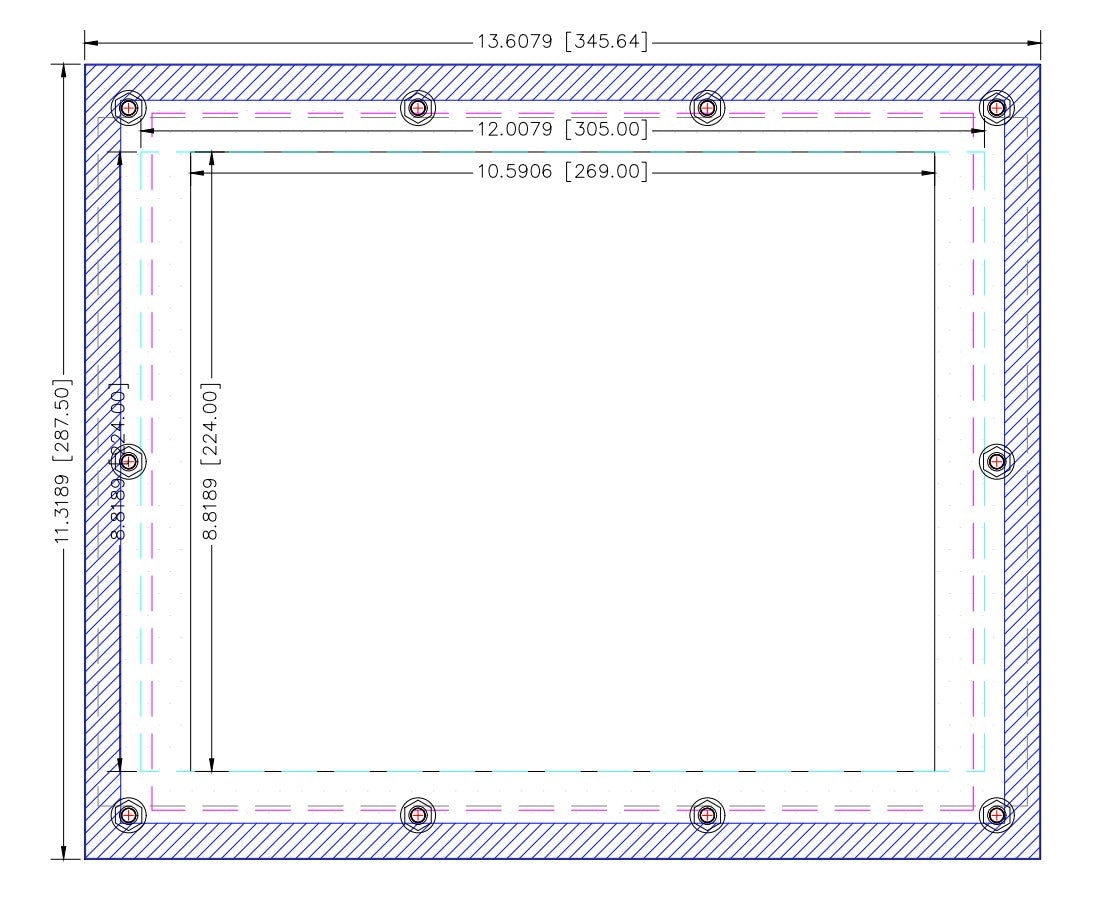

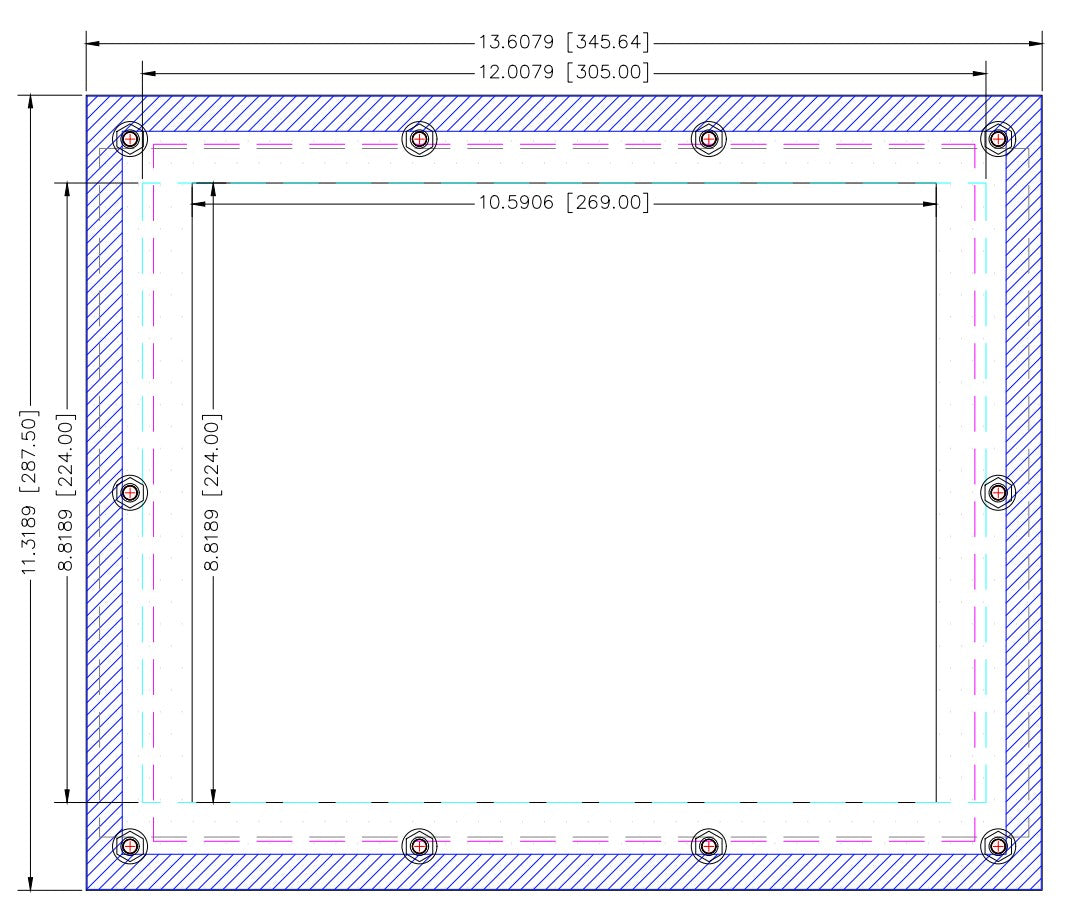

Download DXF: D065261 AP3011-2028-SM
Download PDF: D065261 AP3011-2028-SM
Cross-Reference
Allen Bradley #2711P-RAAT10
Notes
- This same conversion is also available as a Inside Mount (AP3011-2028-IN)
- This plate replaces #AP3009-2028-SM
Rating:
- Steel: NEMA 12, 13, 1

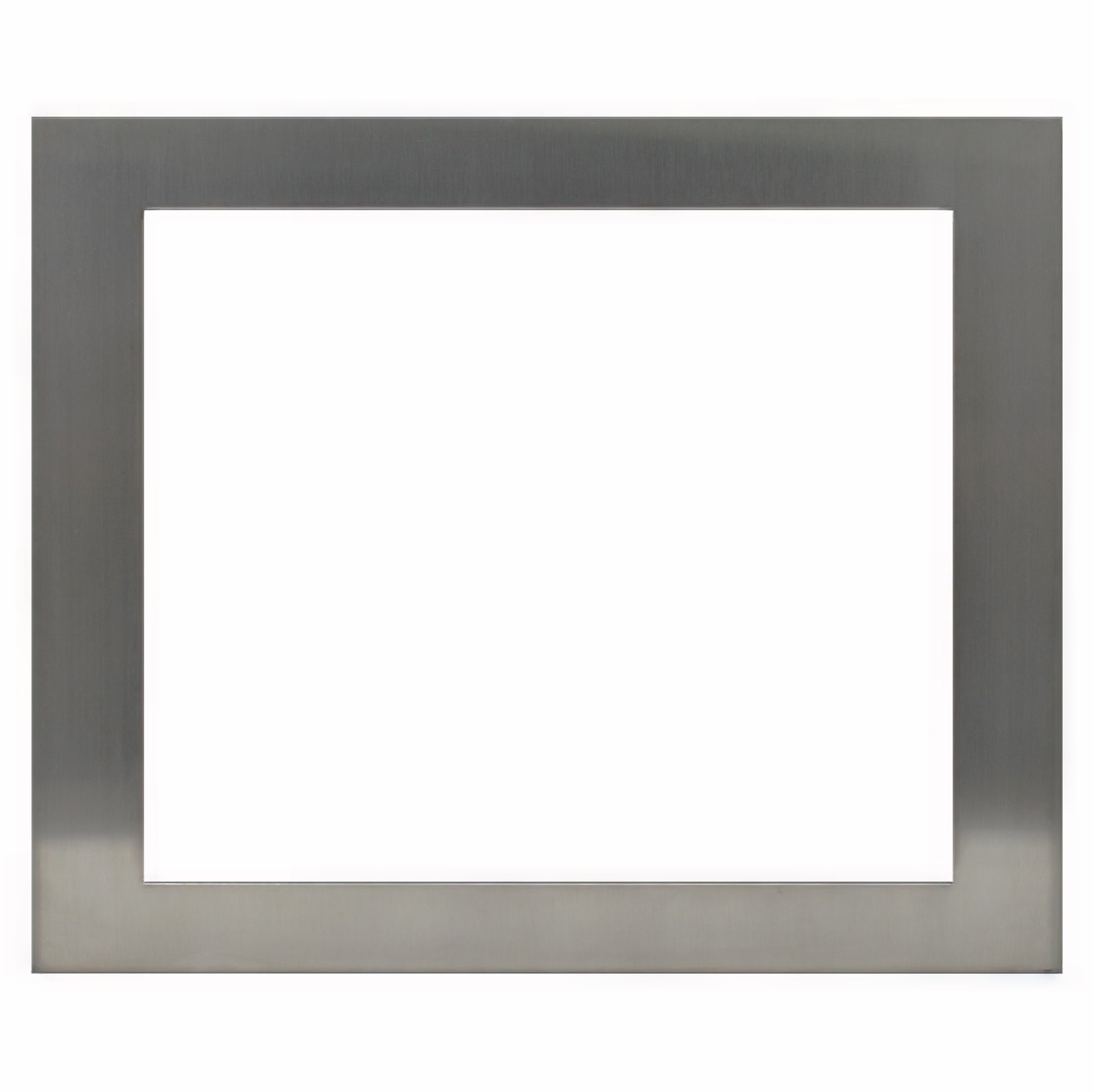

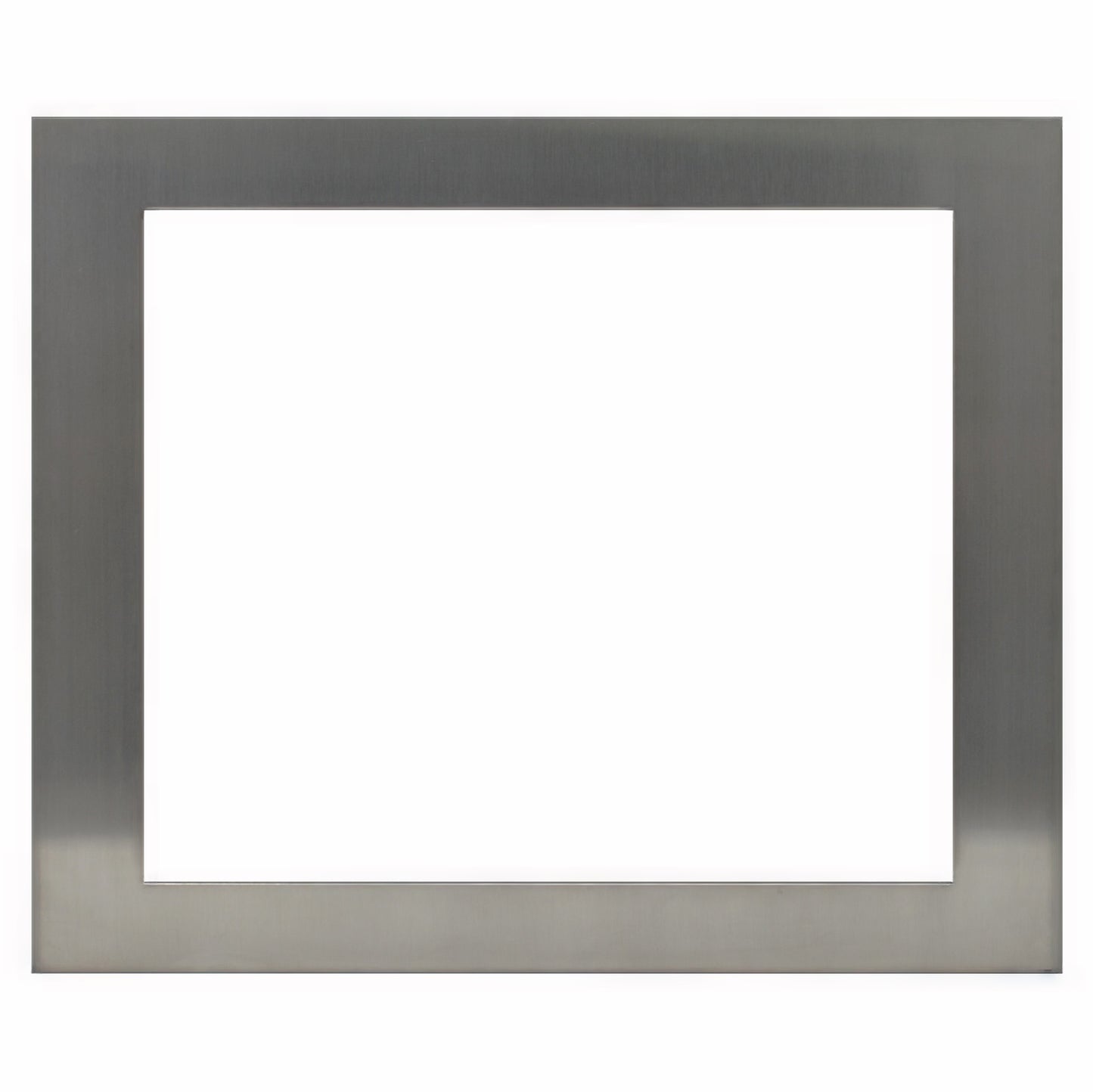

- Stainless: NEMA 4X, 4, 12, 13, 1
- IP66
